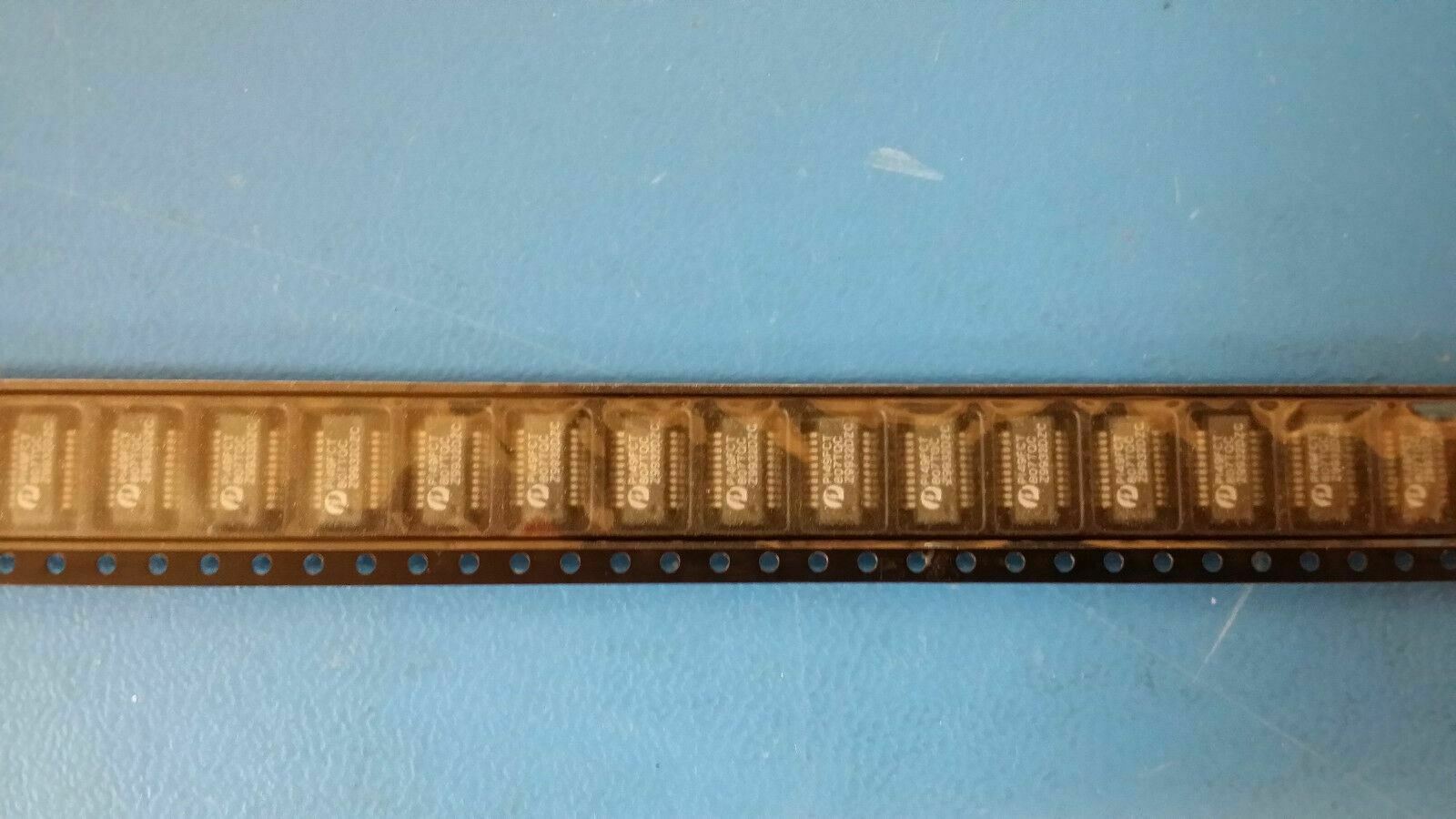

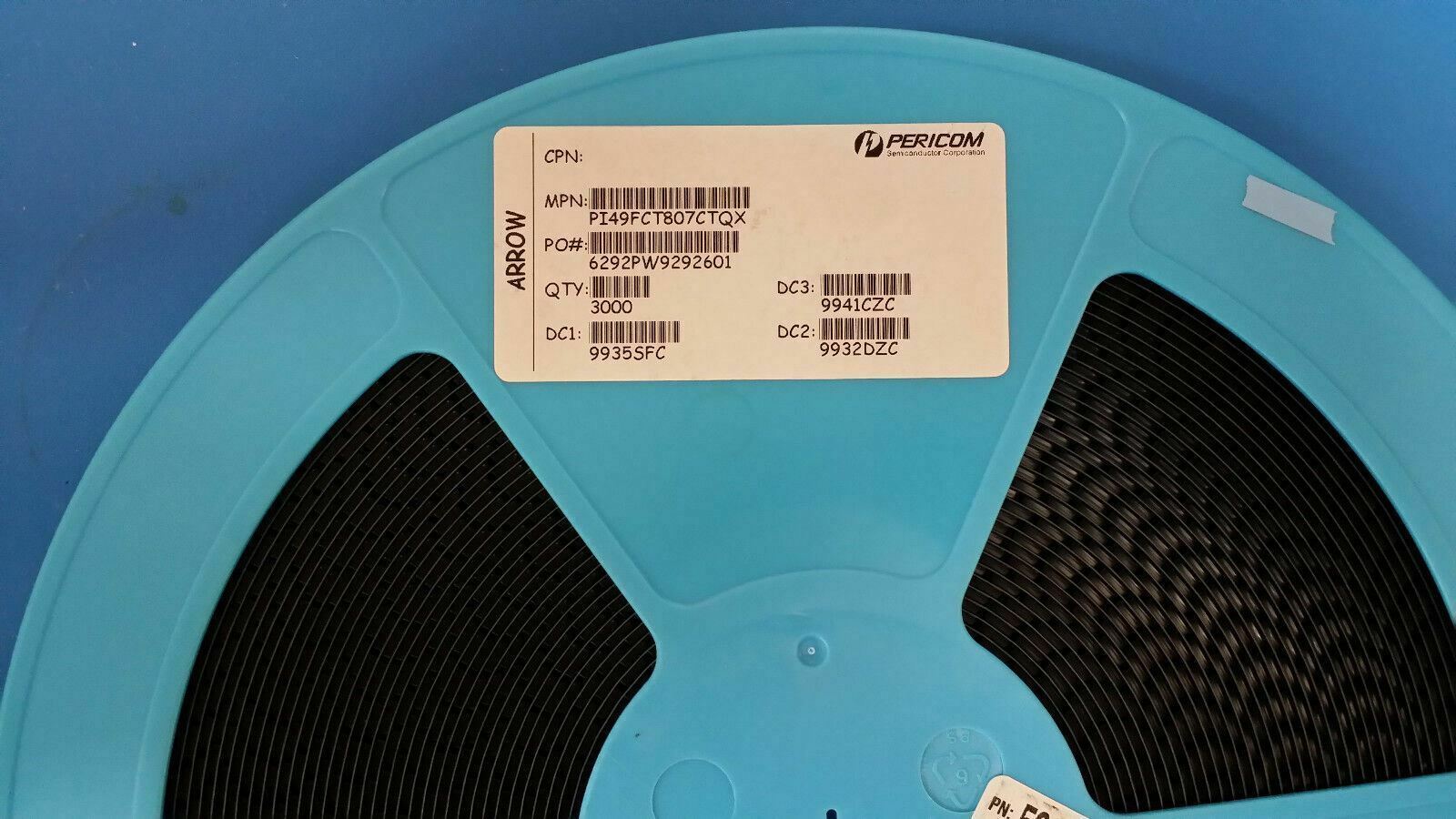

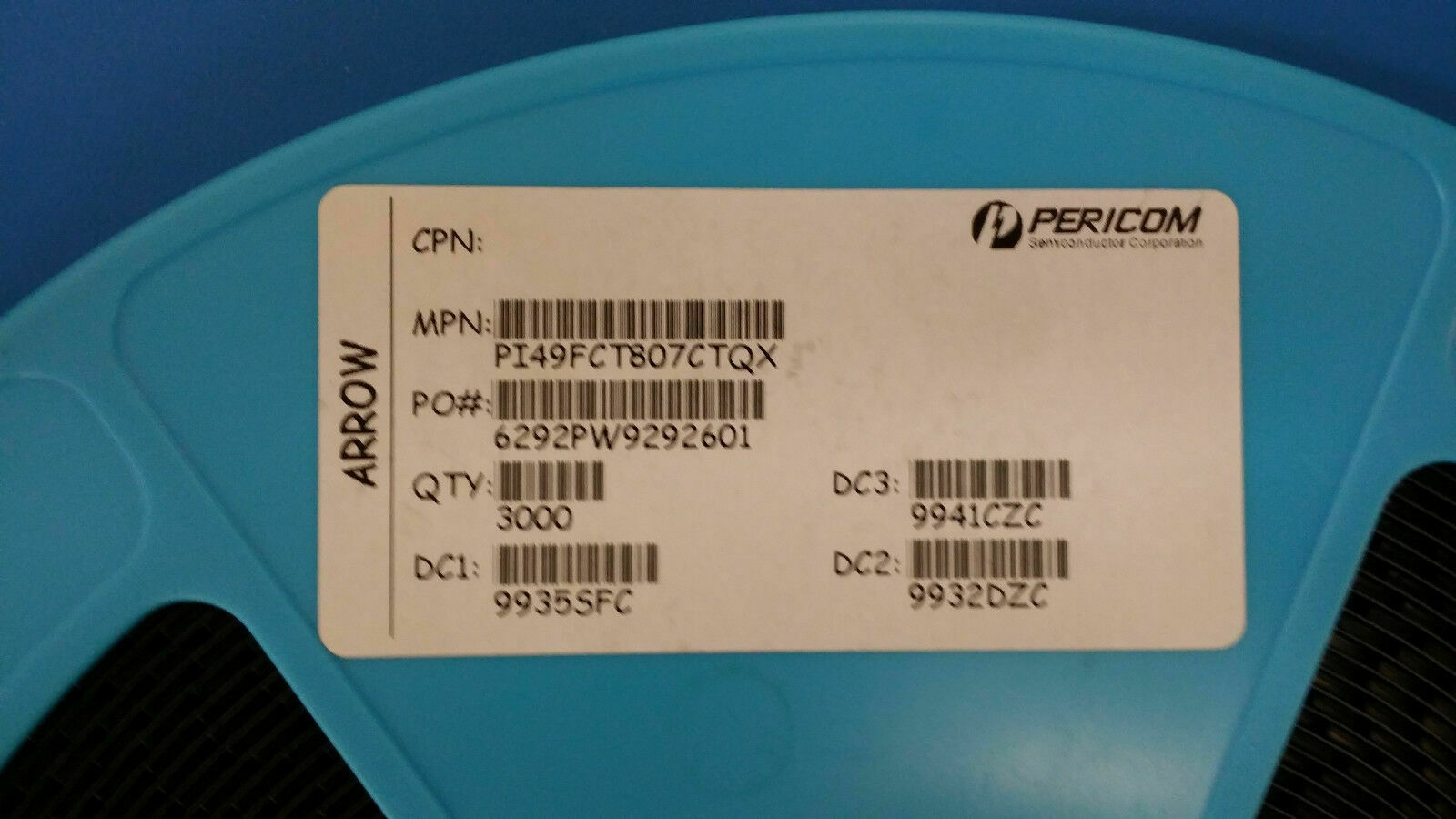

(50 PCS) PI49FCT807CTQ PERICOM Clock Fanout Buffer 10-OUT 20-Pin QSOP
(50 PCS) PI49FCT807CTQ PERICOM Clock Fanout Buffer 10-OUT 20-Pin QSOP
(50 PCS) PI49FCT807CTQ PERICOM Clock Fanout Buffer 10-OUT 20-Pin QSOP

(50 PCS) PI49FCT807CTQ PERICOM Clock Fanout Buffer 10-OUT 20-Pin QSOP

Tax included.
Only 40 left!
THIS LISTING IS FOR (50 PCS) OF PI49FCT807CTQ BY PERICOM
Clock Fanout Buffer 10-OUT 20-Pin QSOP

Part #: PI49FCT807CTQ
Part Category: Logic ICs
Manufacturer: Pericom Semiconductor Corp.
Description: Low Skew Clock Driver, FCT Series, 10 True Output(s), 0 Inverted Output(s), CMOS,   QSOP20

Mfr Package Description 0.150 INCH, QSOP-20
REACH Compliant Yes
Status Discontinued
Logic IC Type LOW SKEW CLOCK DRIVER
Sub Category Clock Drivers
Family FCT
Input Conditioning SCHMITT TRIGGER
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Load Capacitance (CL) 50.0  pF
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 20
Number of True Outputs 10.0
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Prop. Delay@Nom-Sup 3.5  ns
Propagation Delay (tpd) 3.5  ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.35  ns
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.635  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 8.65  mm
Width 3.9  mm
Additional Feature VOH MAX = 2.4V @ IOH = 15MA; MAX PART TO PART SKEW = 0.75NS
