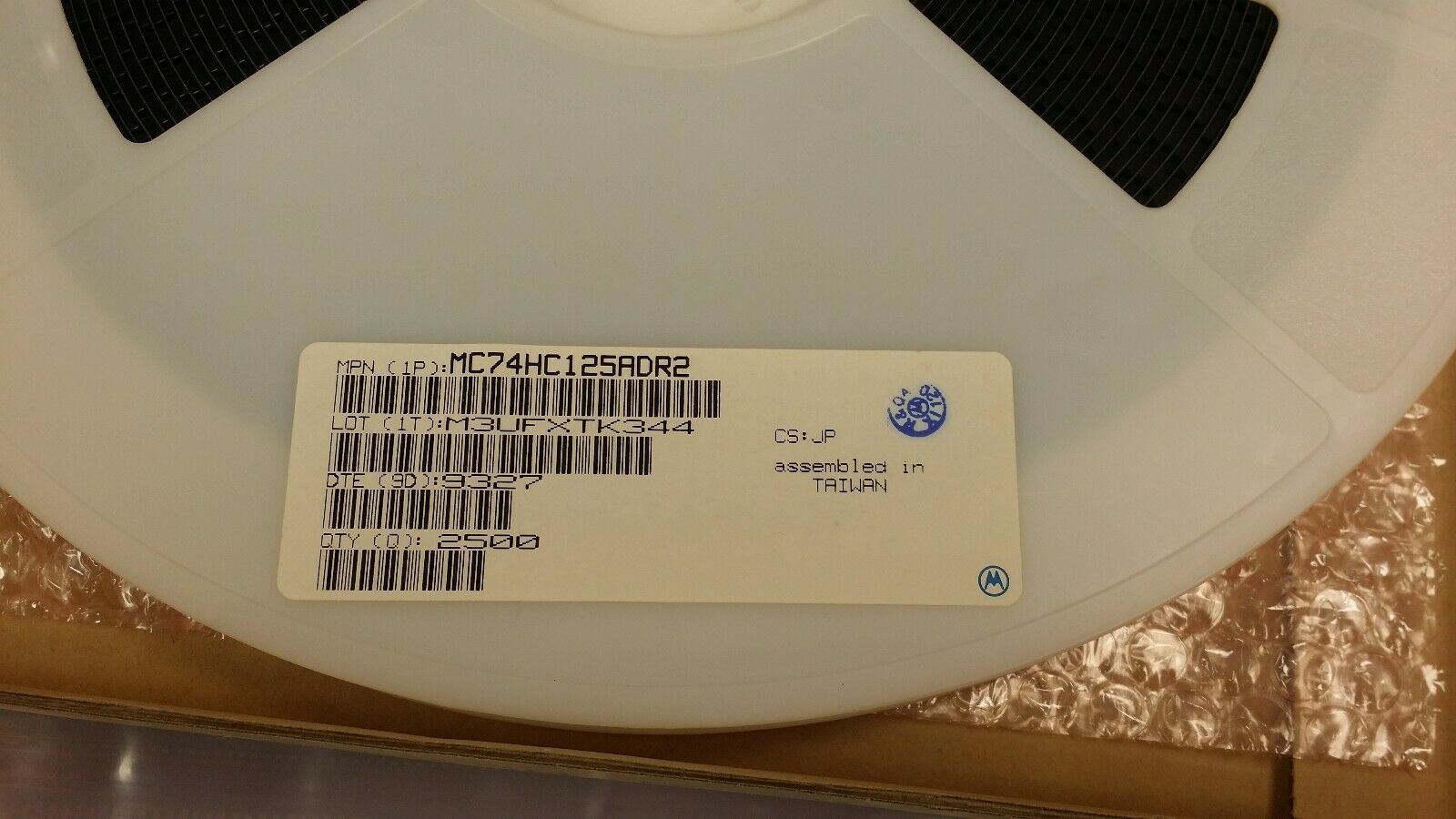

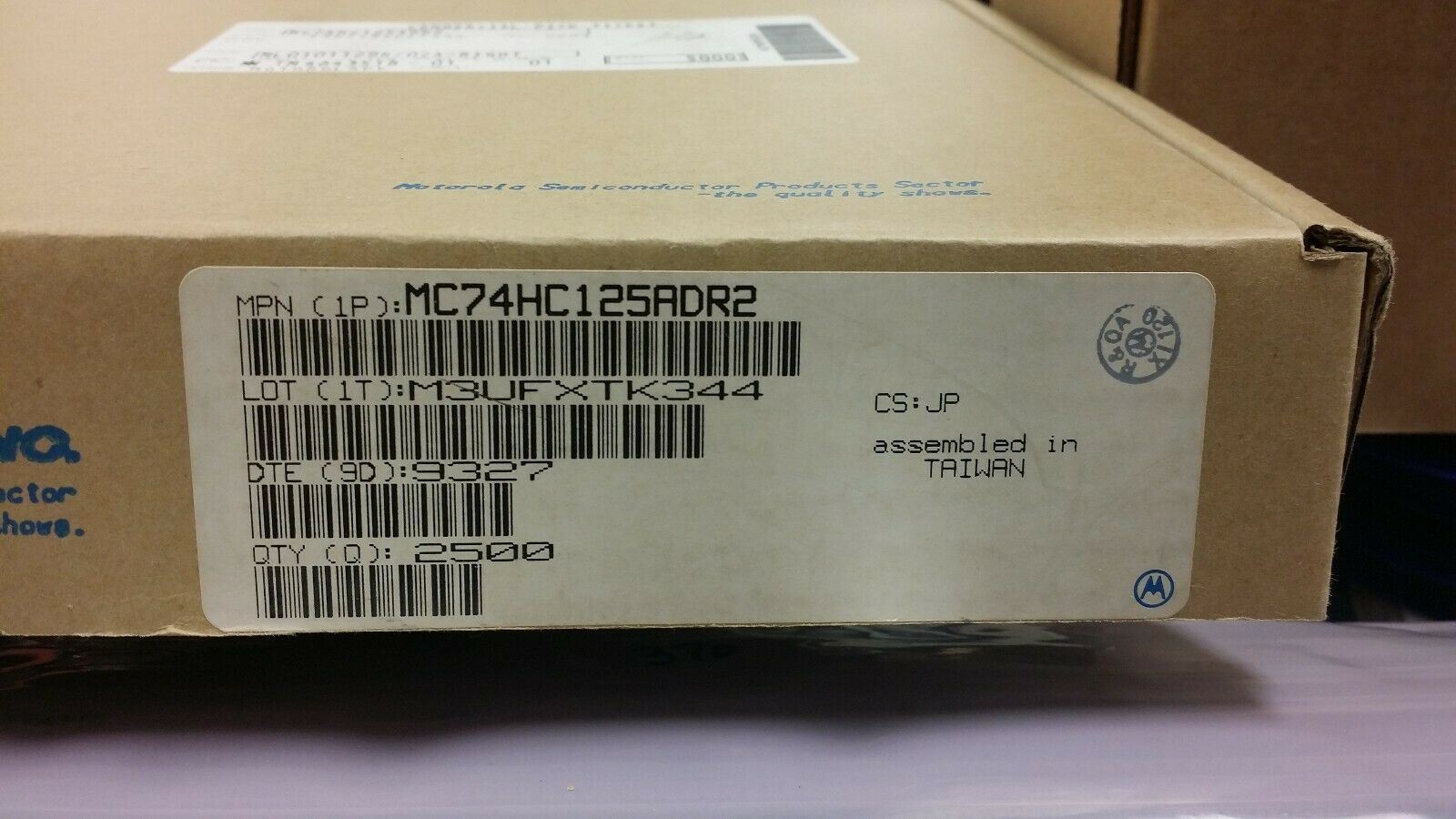

(50 PCS) MC74HC125ADR2 MOT IC BUFFER NON-INVERT 6V 14SOIC

$19.95
Unit price per

Tax included.

THIS LISTING IS FOR (50 PCS) OF MC74HC125AD, MC74HC125ADR2 BY MOT

IC BUFFER NON-INVERT 6V 14SOIC

Part #: MC74HC125ADR2

Part Category: Logic ICs

Manufacturer: Motorola Solutions, Inc.

Description: Bus Driver, HC/UH Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14

Mfr Package Description 0.150 INCH, PLASTIC, SOIC-14

Status Transferred

Logic IC Type BUS DRIVER

Family HC/UH

JESD-30 Code R-PDSO-G14

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Number of Bits 1

Number of Functions 4

Number of Ports 2

Number of Terminals 14

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Propagation Delay (tpd) 27.0 ns

Qualification Status Not Qualified

Seated Height-Max 1.75 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 2.0 V

Supply Voltage-Max (Vsup) 6.0 V

Surface Mount YES

Technology CMOS

Temperature Grade MILITARY

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Length 8.65 mm

Width 3.9 mm
