(50 PCS) MC34002P MOT Op Amp, 2 Func, 18V, 13000uV Offset-Max, BIPolar, PDIP8
Tax included.

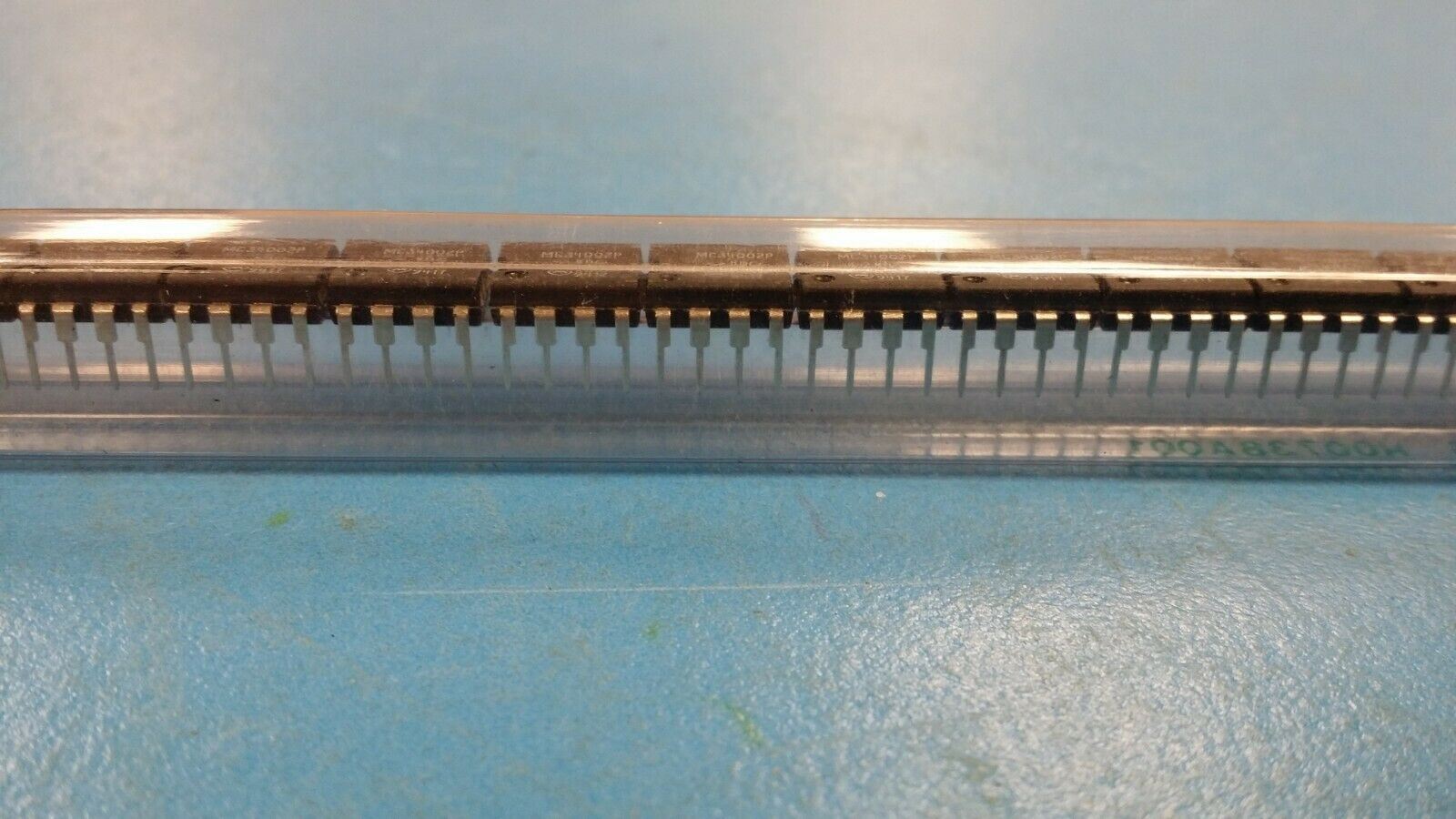

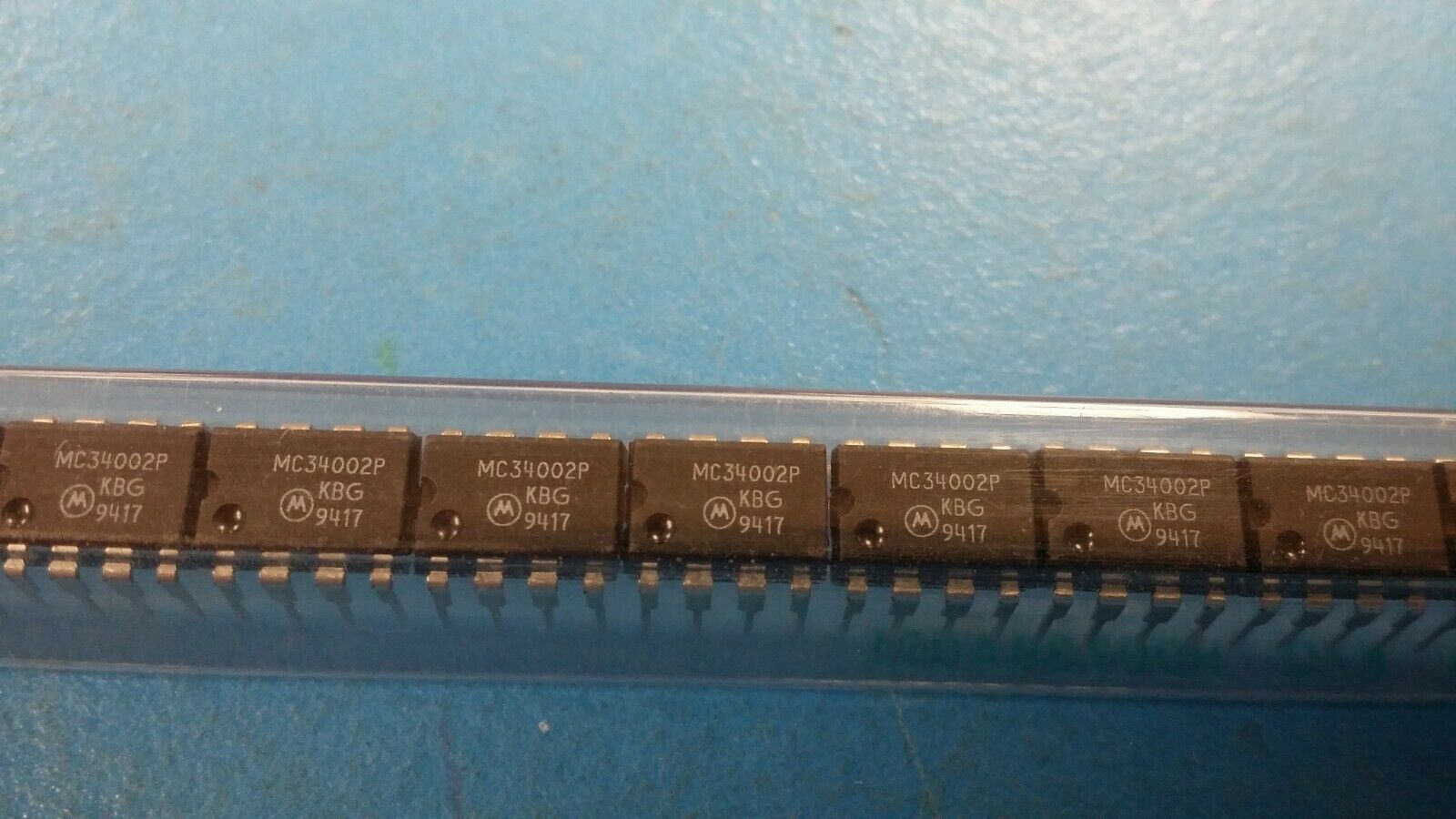

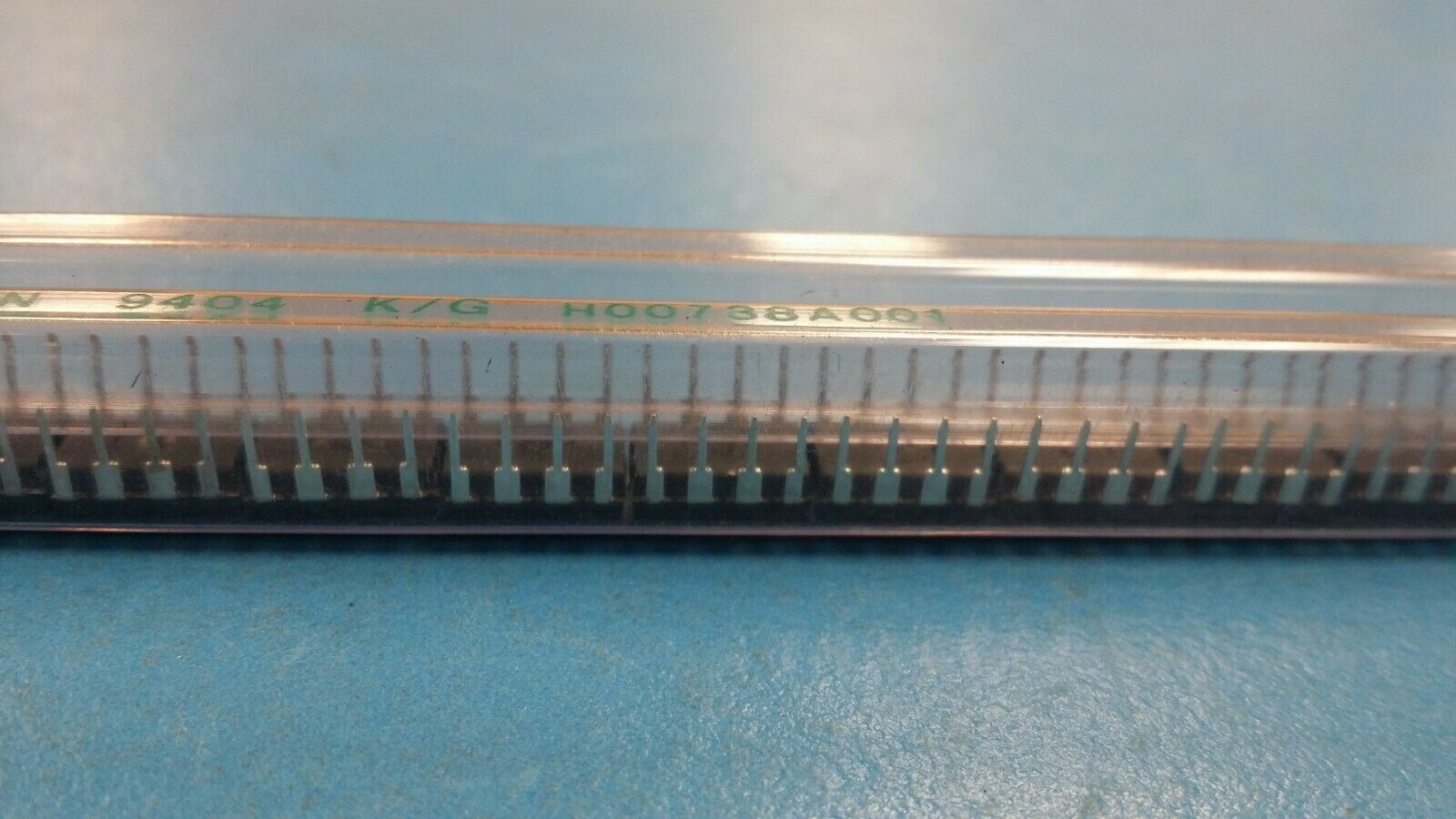

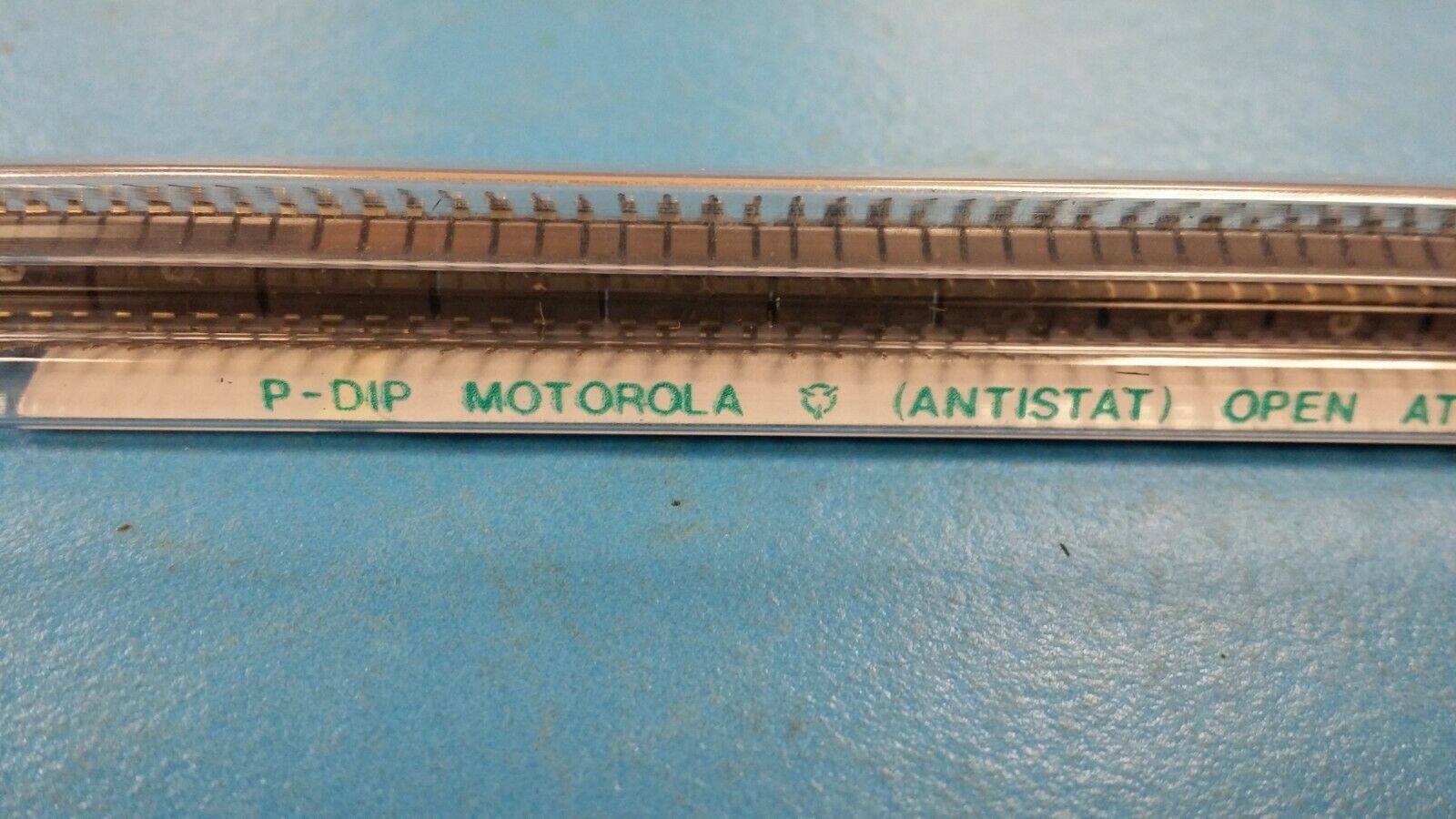

THIS LISTING IS FOR 1 FACTORY TUBE (50 PCS) OF MC34002P BY MOT
Op Amp, 2 Func, 18V, 13000uV Offset-Max, BIPolar, PDIP8
Part #: MC34002P
Part Category: Amplifiers
Manufacturer: Motorola Solutions, Inc.
Description: Operational Amplifier, 2 Func, 13000uV Offset-Max, BIPolar, PDIP8
Amplifier Type OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB) 0.008 µA
Common-mode Reject Ratio-Nom 70.0 dB
Common-mode Reject Ratio-Min 70.0 dB
Input Offset Voltage-Max 13000.0 µV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 4.45 mm
Slew Rate-Nom 13.0 V/us
Sub Category Operational Amplifier
Supply Current-Max 6.0 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 4000.0 kHz
Voltage Gain-Min 25000.0
Length 9.78 mm
Width 7.62 mm
