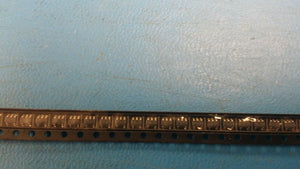

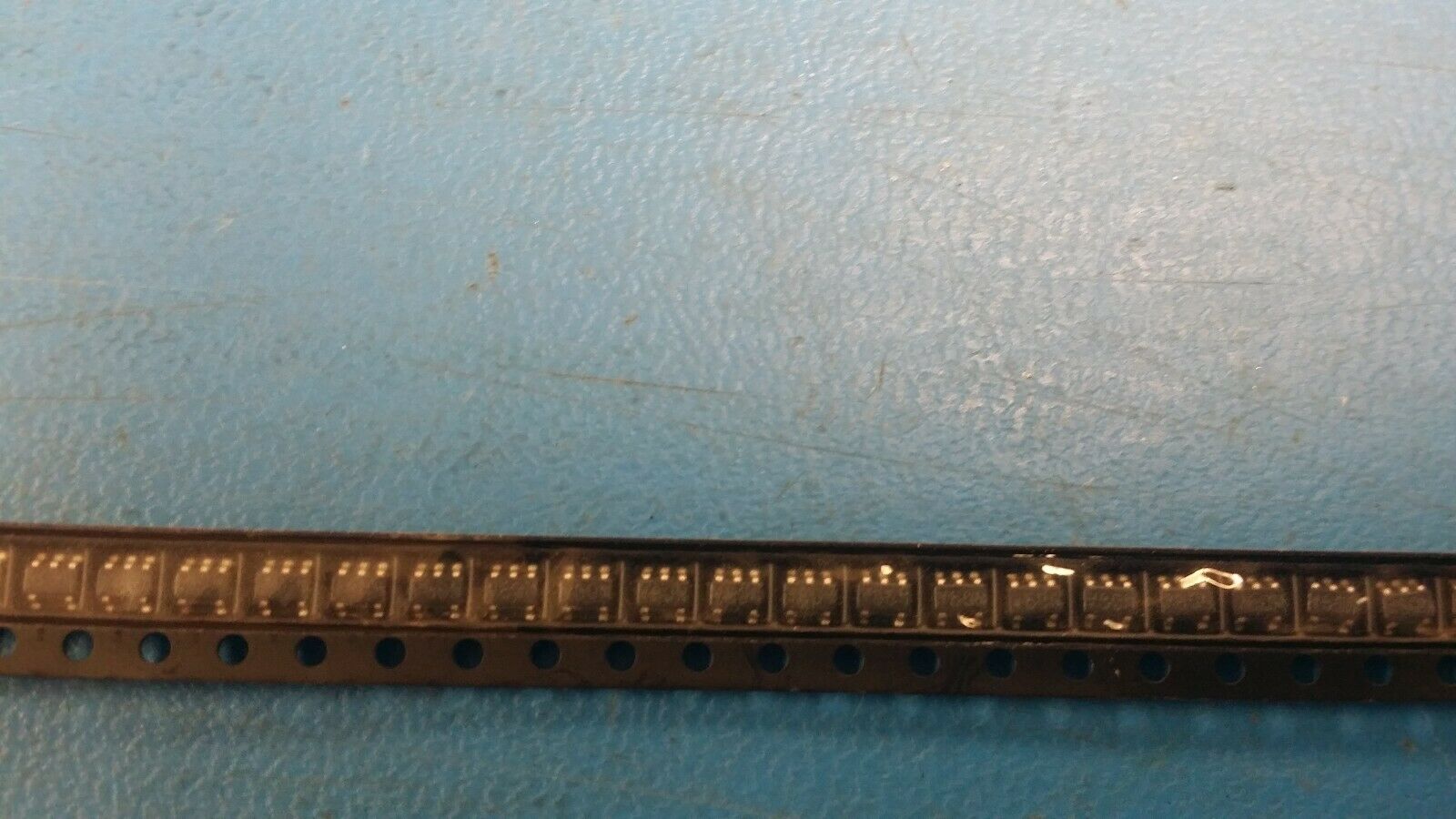

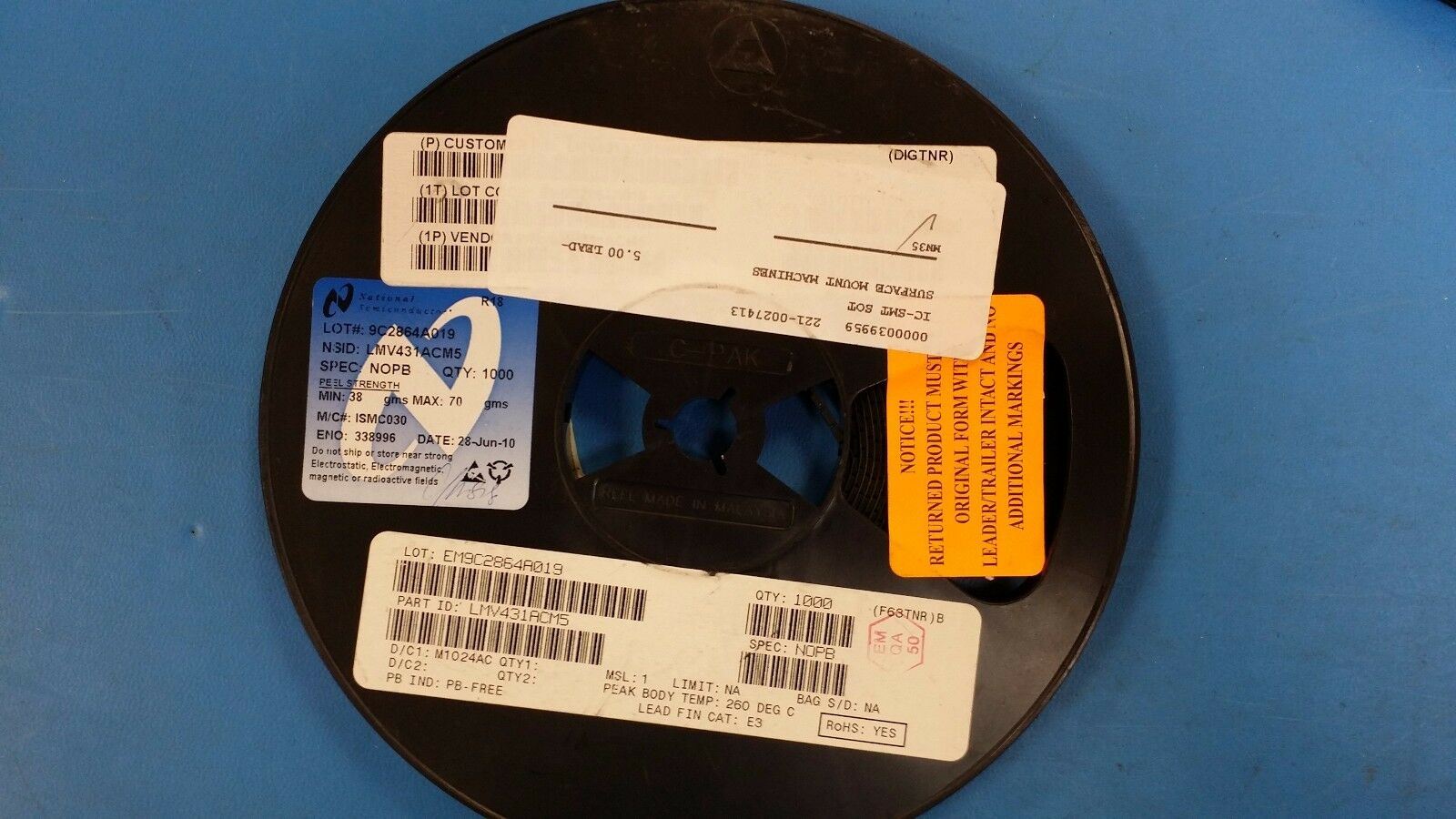

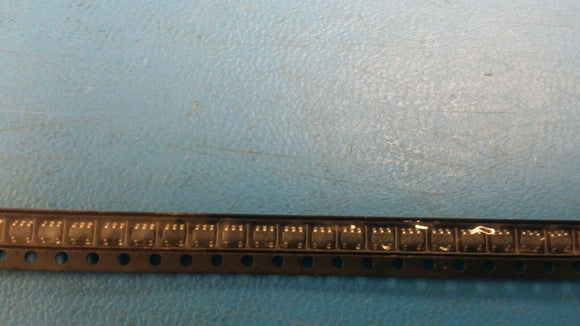

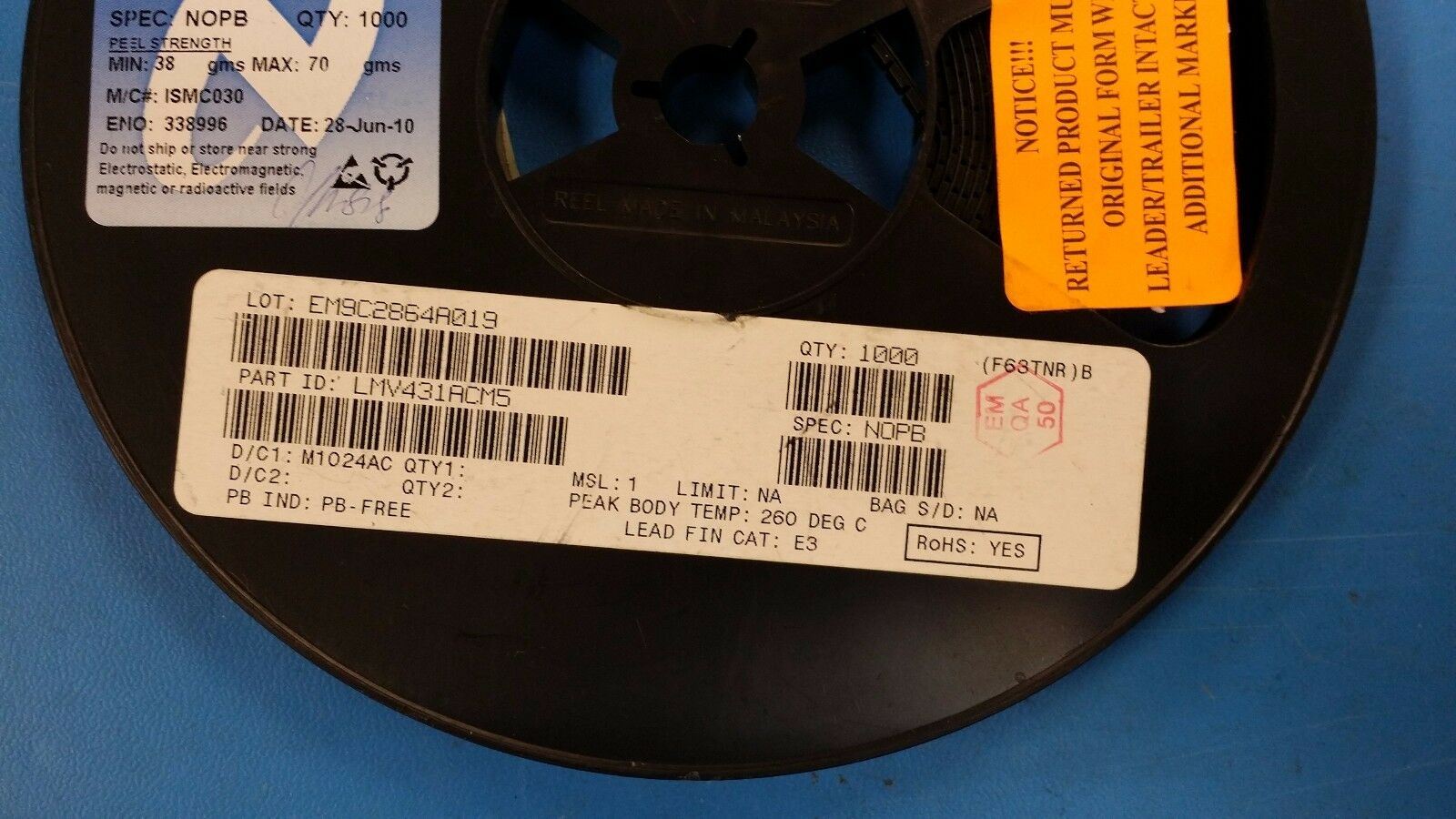

(50 PCS) LMV431ACM5/NOPB V-Ref Adjustable 1.24V to 30V 15mA 5-Pin SOT-23
Tax included.
THIS LISTING IS FOR (50 PCS) OF LMV431ACM5/NOPB BY NSC
V-Ref Adjustable 1.24V to 30V 15mA 5-Pin SOT-23 ROHS
SPECIFICATIONS
| Mfr Package Description | GREEN, SOT-23, 5 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE |
| JESD-30 Code | R-PDSO-G5 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 5 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Output Current-Max | 0.0150 A |
| Output Voltage-Nom | 1.24 V |
| Output Voltage-Min | 1.22 V |
| Output Voltage-Max | 1.26 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LSSOP |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.22 mm |
| Sub Category | Voltage References |
| Supply Voltage-Nom (Vsup) | 6 V |
| Supply Voltage-Min (Vsup) | 1.24 V |
| Supply Voltage-Max (Vsup) | 30 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temp Coef of Voltage-Max | 138 ppm/Cel |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.9500 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trim/Adjustable Output (V) | YES |
| Length | 2.92 mm |
| Width | 1.6 mm |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 1.24V TO 30V |
