(50 PCS) HD74LS51P HITACHI AND-OR-Invert Gate 2-Func 6-Input TTL PDIP14
Tax included.

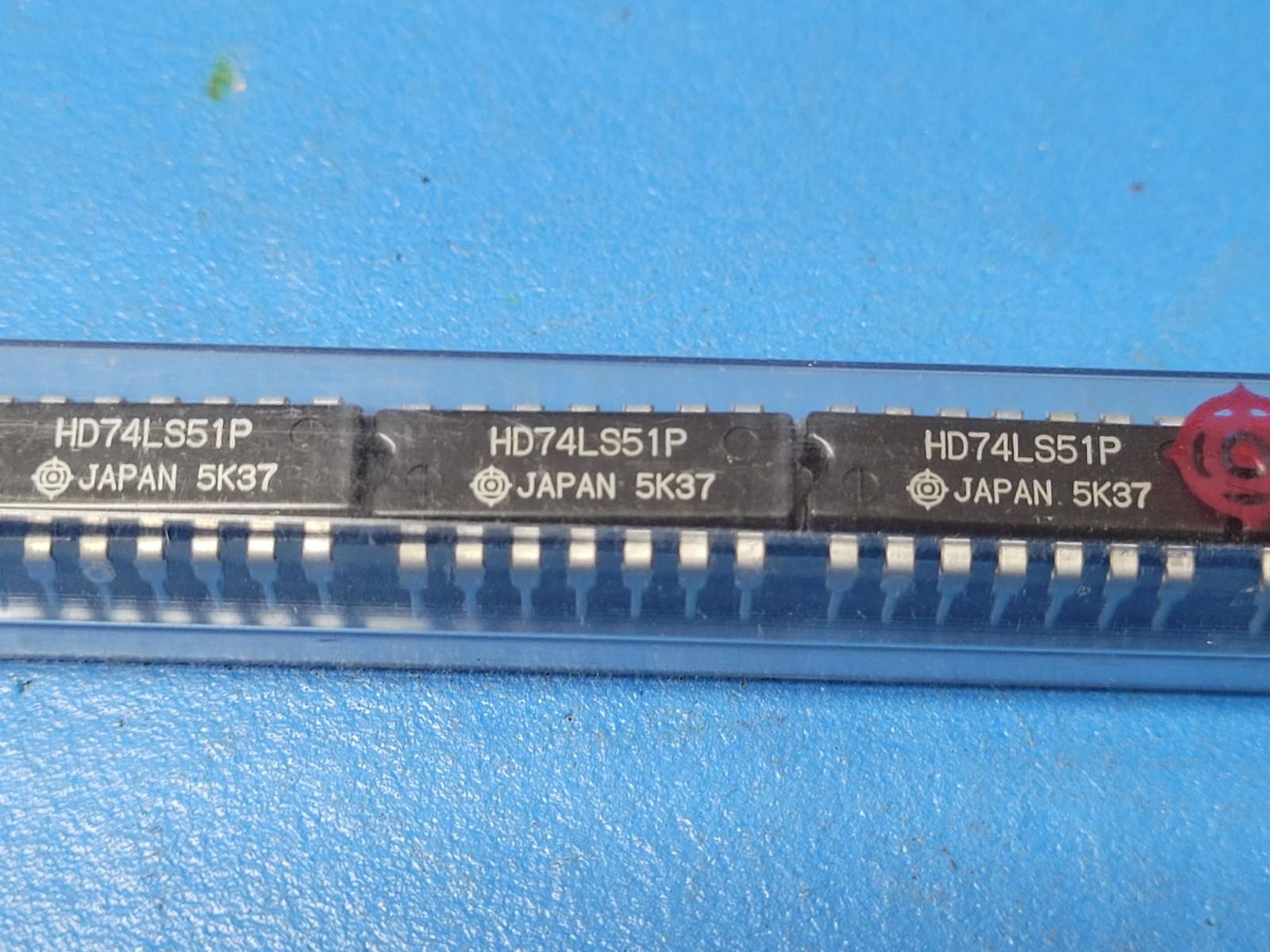

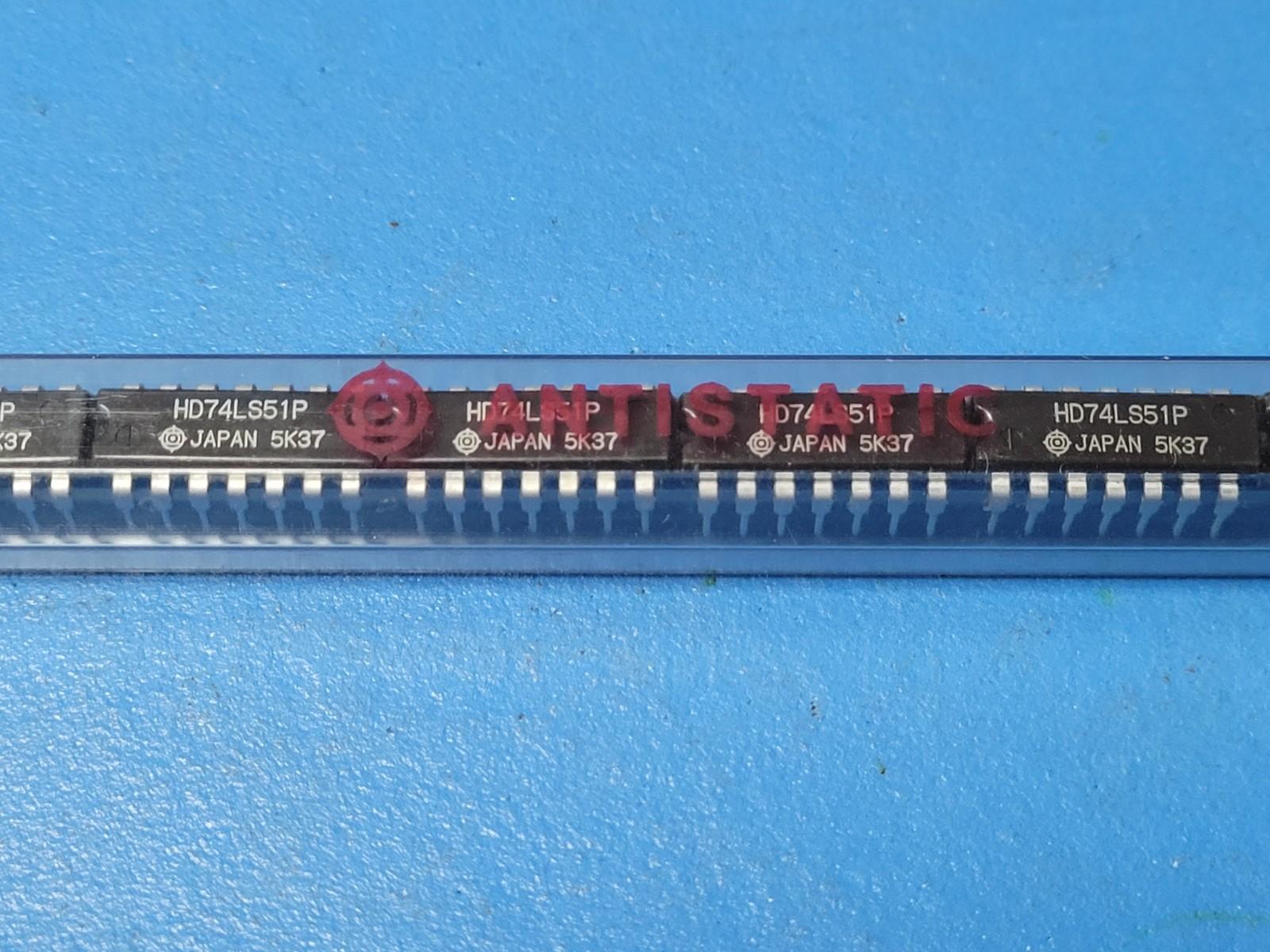

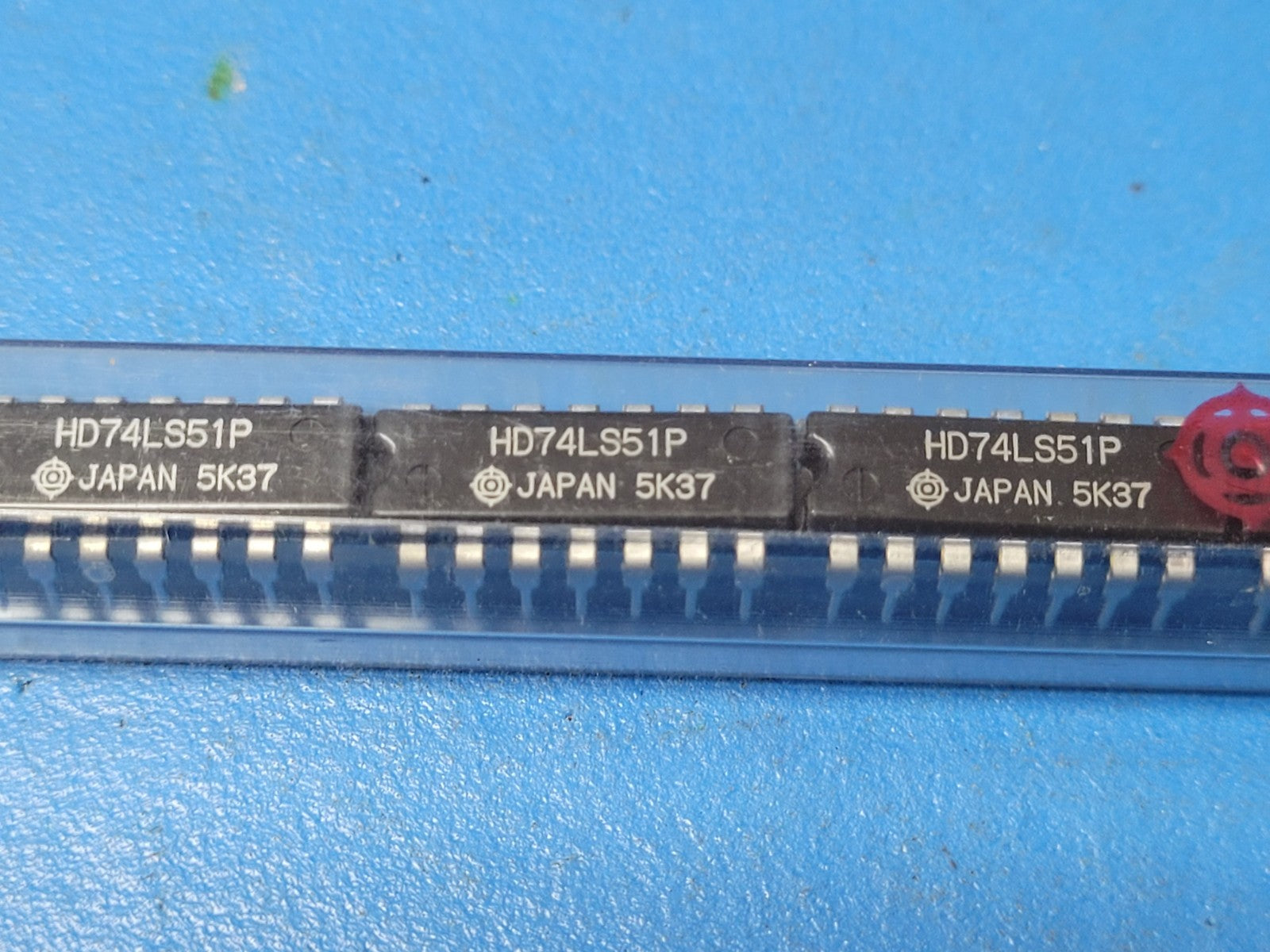

THIS IS FOR (50 PCS) OF HD74LS51P BY HITACHI
AND-OR-Invert Gate 2-Func 6-Input TTL PDIP14
Part #: HD74LS51P
Part Category: Logic ICs
Manufacturer: Hitachi, Ltd.
Description: AND-OR-Invert Gate, LS Series, 2-Func, 6-Input, TTL, PDIP14
Mfr Package Description DP-14
Status Transferred
Logic IC Type AND-OR-INVERT GATE
Sub Category Gates
Family LS
JESD-30 Code R-PDIP-T14
Max I(ol) 0.008 Amp
Number of Functions 2
Number of Inputs 6.0
Number of Terminals 14
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 75.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 2.8 mA
Prop. Delay@Nom-Sup 20.0 ns
Propagation Delay (tpd) 20.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.06 mm
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL EXTENDED
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.2 mm
Width 7.62 mm
Additional Feature ASYMMETRICAL INPUTS
