(50 PCS) GLL4744A GEN. INST. Diode Zener Single 15V 5% 1W 2-Pin MELF T/R
Tax included.

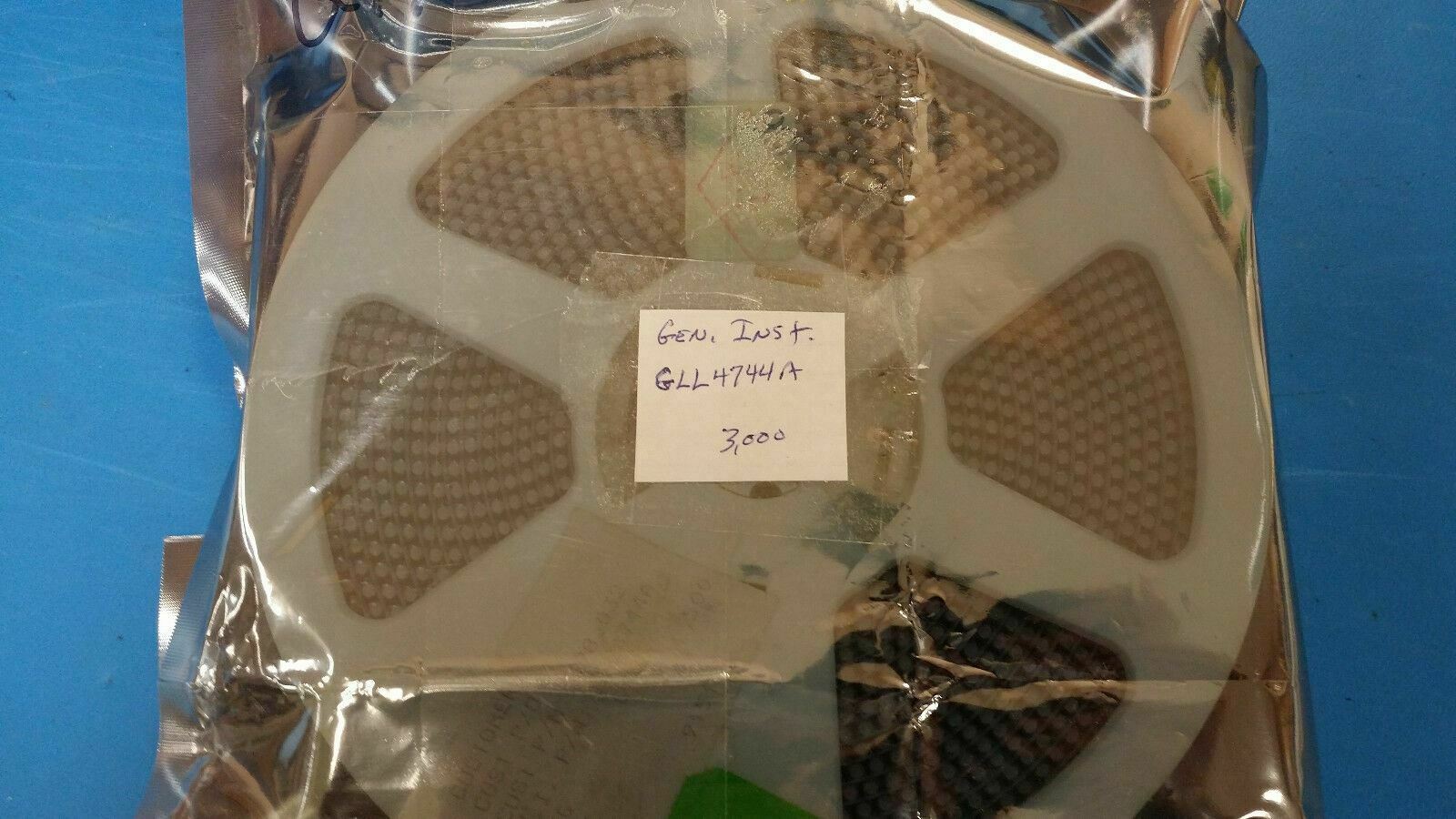

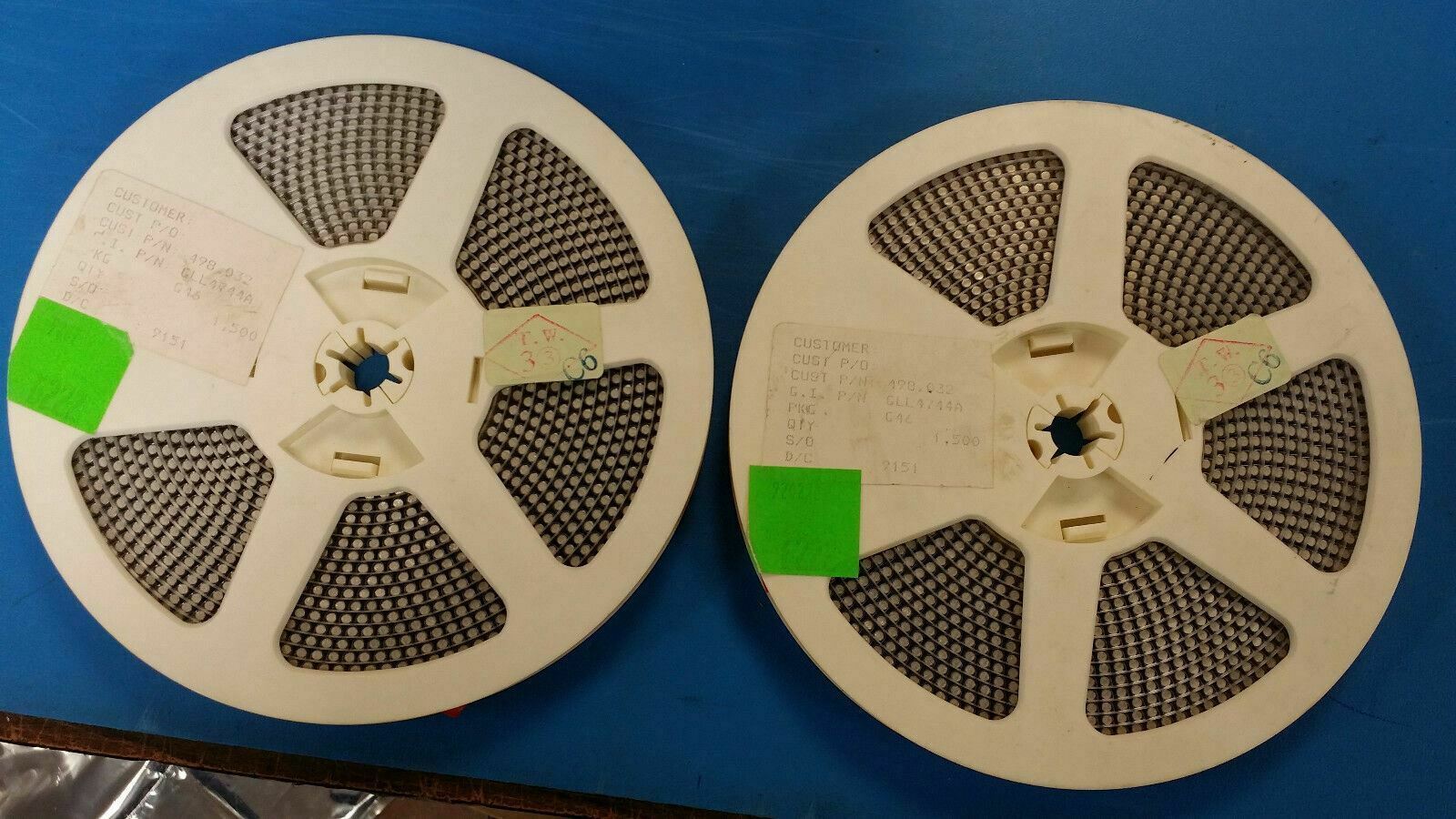

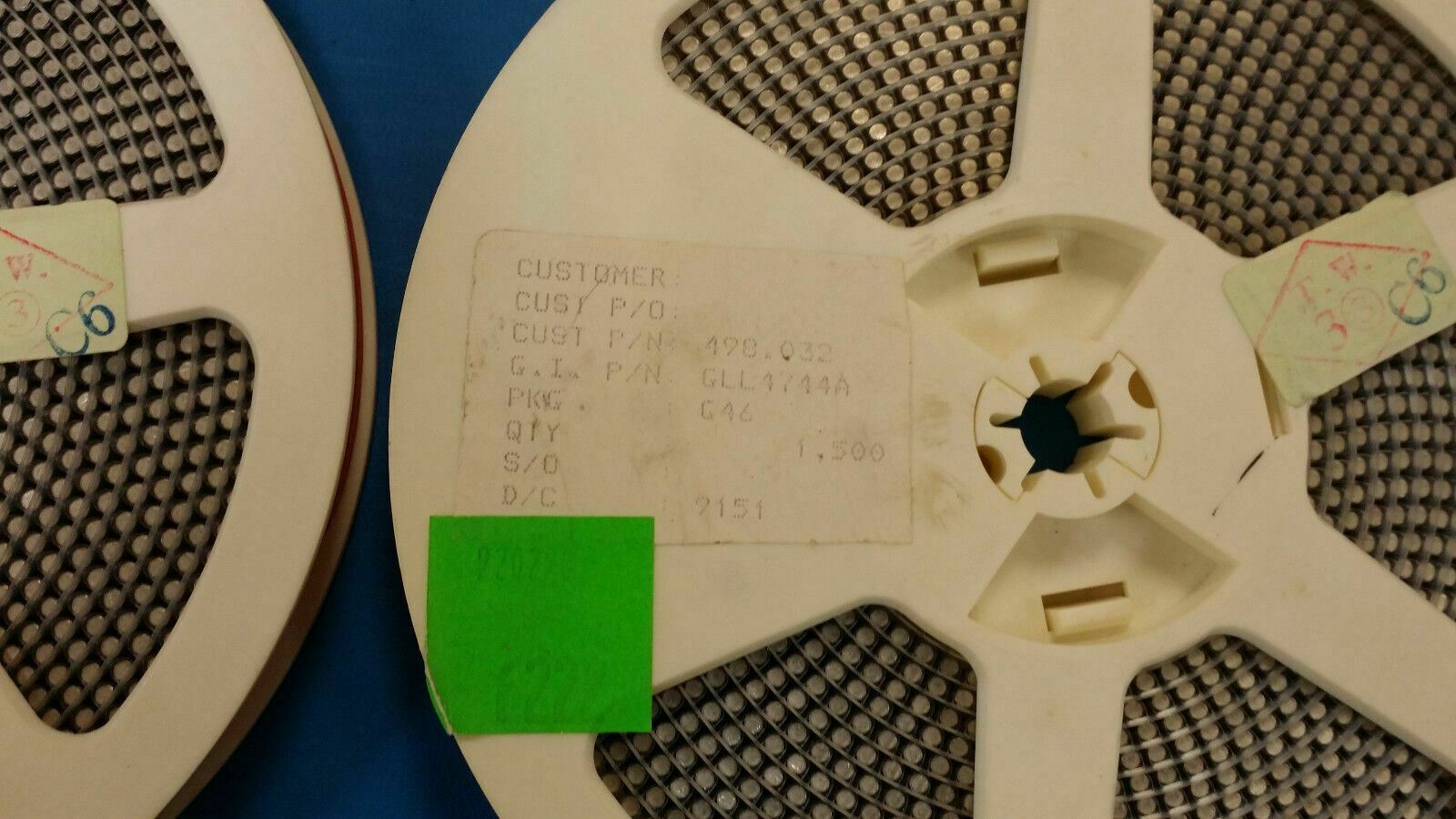

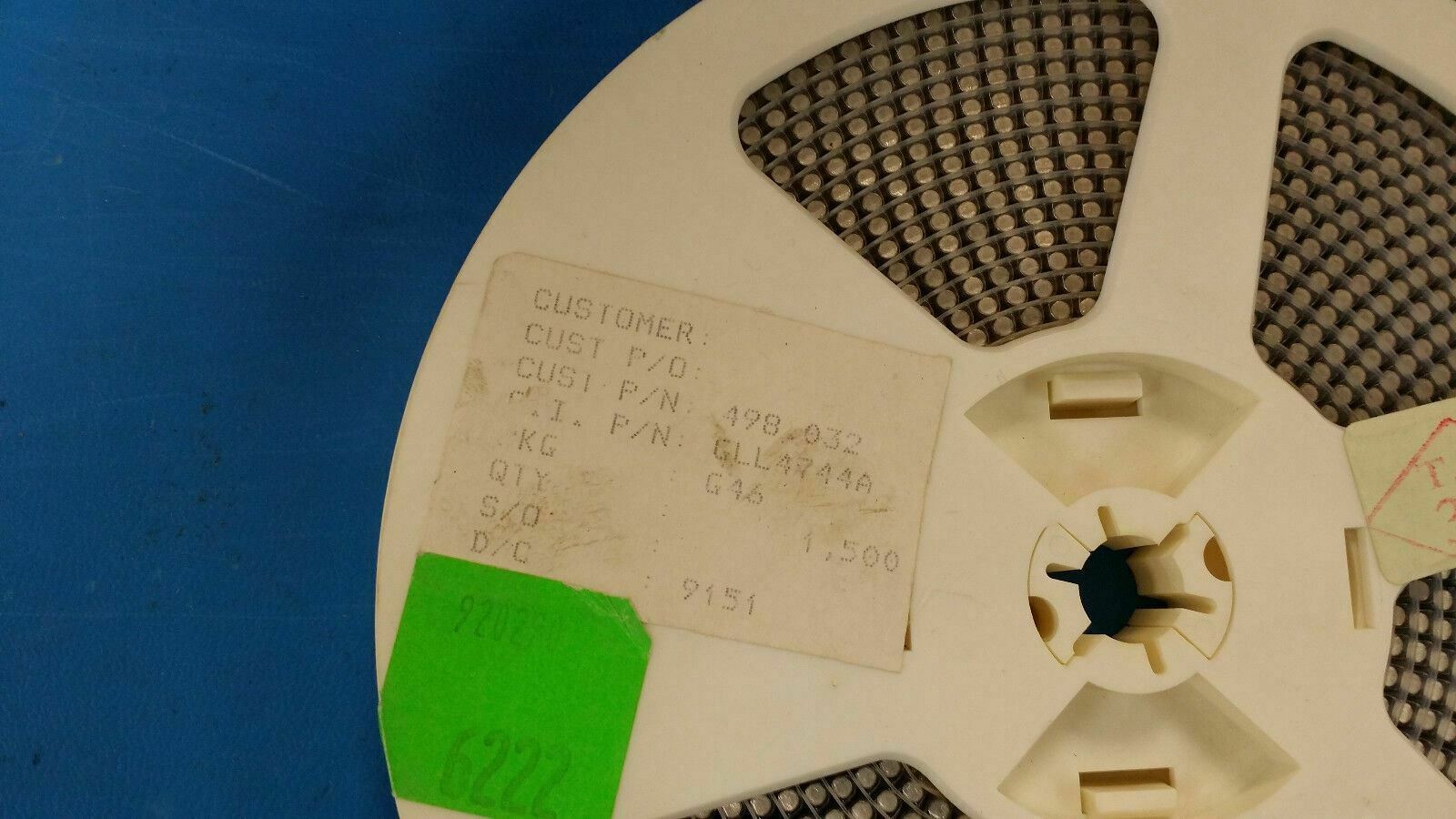

THIS LISTING IS FOR (50 PCS) OF GLL4744A BY GENERAL INSTRUMENT
Diode Zener Single 15V 5% 1W 2-Pin MELF T/R
Diode Zener Single 15V 5% 1W 2-Pin MELF T/R
GLL4744A Part Details & Parametric
| Configuration | Single |
| Nominal Zener Voltage (V) | 15 |
| Maximum Reverse Leakage Current (uA) | 5 |
| Maximum Zener Impedance (Ohm) | 14 |
| Maximum Power Dissipation (mW) | 1000 |

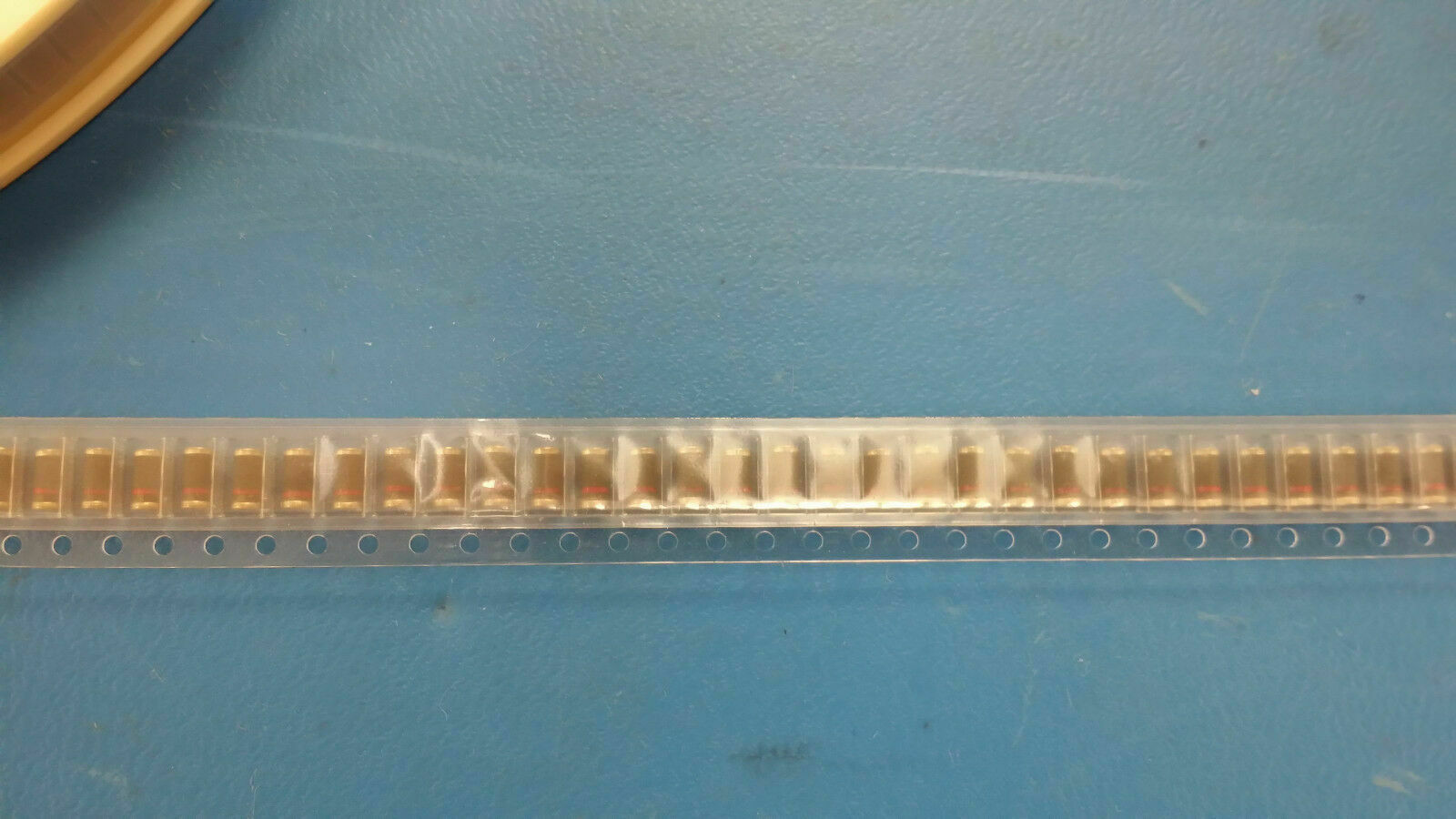

| Packaging | Tape and Reel |
| Maximum Regulator Current (mA) | 305 |
| Test Current (mA) | 17 |
| Zener Voltage Tolerance | 5% |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Package Diameter (mm) | 2.67(Max) |
| Mounting | Surface Mount |
| Package Length (mm) | 5.2(Max) |
| PCB | 2 |
| Standard Package Name | MELF |
| Supplier Package | MELF |
| Pin Count | 2 |
