(50 PCS) GDU250V25A EM0H26, Semi-time Lag Glass Tube Fuse 250V 25A, 30mm x 6.4mm

  • $29.95
    Unit price per
Tax included.

Only 70 left!

THIS LISTING IS FOR (50 PCS) OF GDU250V25A EM0H26, BY NS

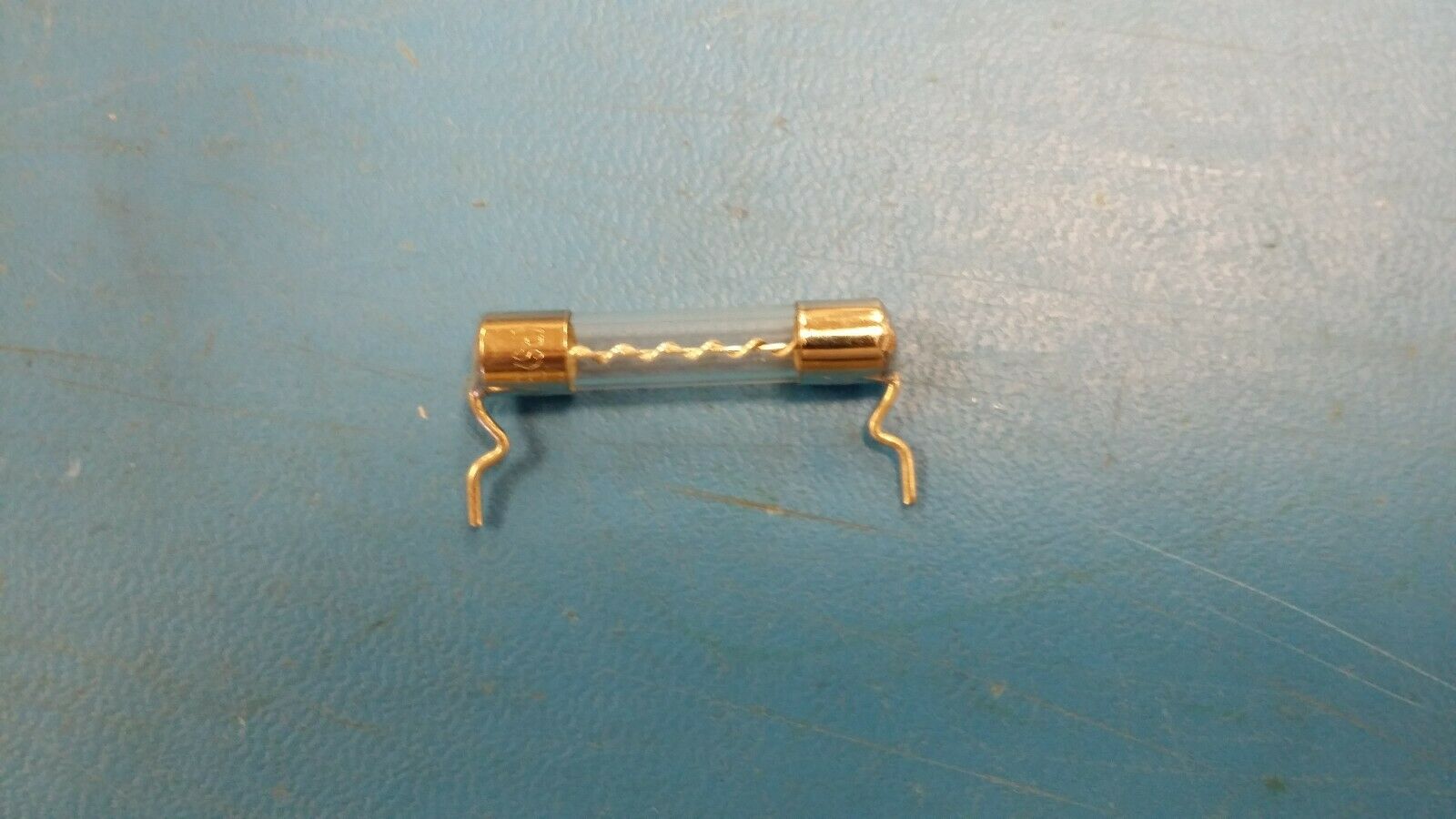

Semi-time Lag Glass Tube Fuse 250V 25A, 30mm x 6.4mm

Key Specifications/Special Features:

FSS type fuse is a semi-time lag glass tube fuse for the electronic device which rated voltage is less than AC 250VElectrical characteristics:
    Current carrying capacity: the fuse should not be melted until the temperature rise becomes almost constantly fixed when 130% rated current is appliedMelting time: 160% (1 hour max.); 200% (2 minutes max.)Interrupting current: AC 250V 100AFuses list:
      GAU/GDU 250V 250mA/315mA/400mA/500mA/630mA/800mA/1A/1.25A/1.6A/2A/2.5A/3A/3.15A/4A/5A/6A/6.3A/7A/8A/10A/12A/13A/15A/17A/18A/20A/25A/30A
    Approved standard:

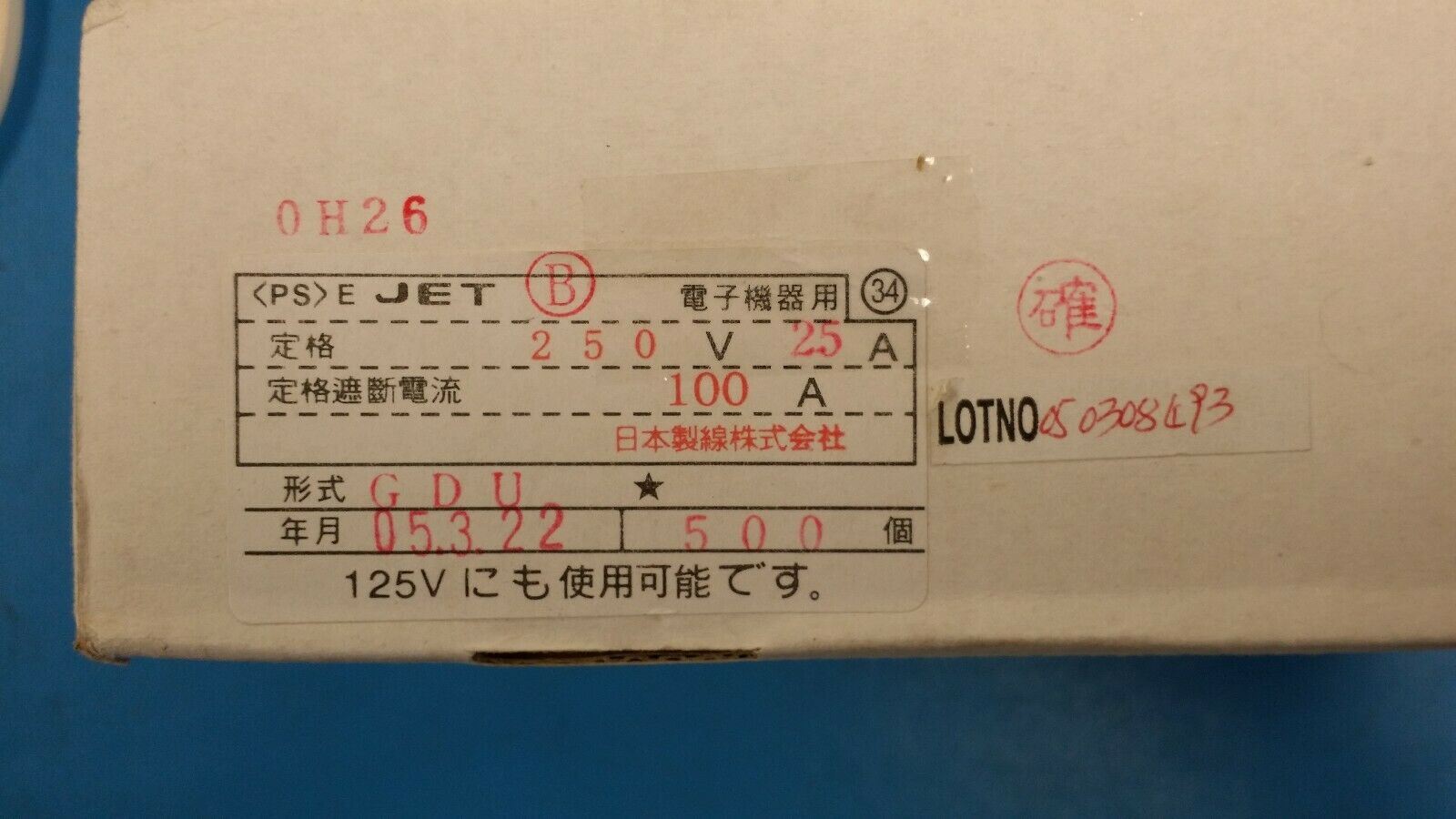

      PSE JET 2014-31003 (AC250V 1A~30A) (AC125V)
    Packaging:
      500 pcs/box
