(50 PCS) AP1604ASNA Switching Regulator, 1.2A, 700kHz Switching Freq-Max, SON-6
Tax included.
THIS LISTING IS FOR (50 PCS) OF AP1604ASNA BY ANACHIP CORP.
Switching Regulator, 1.2A, 700kHz Switching Freq-Max, SON-6 ROHS

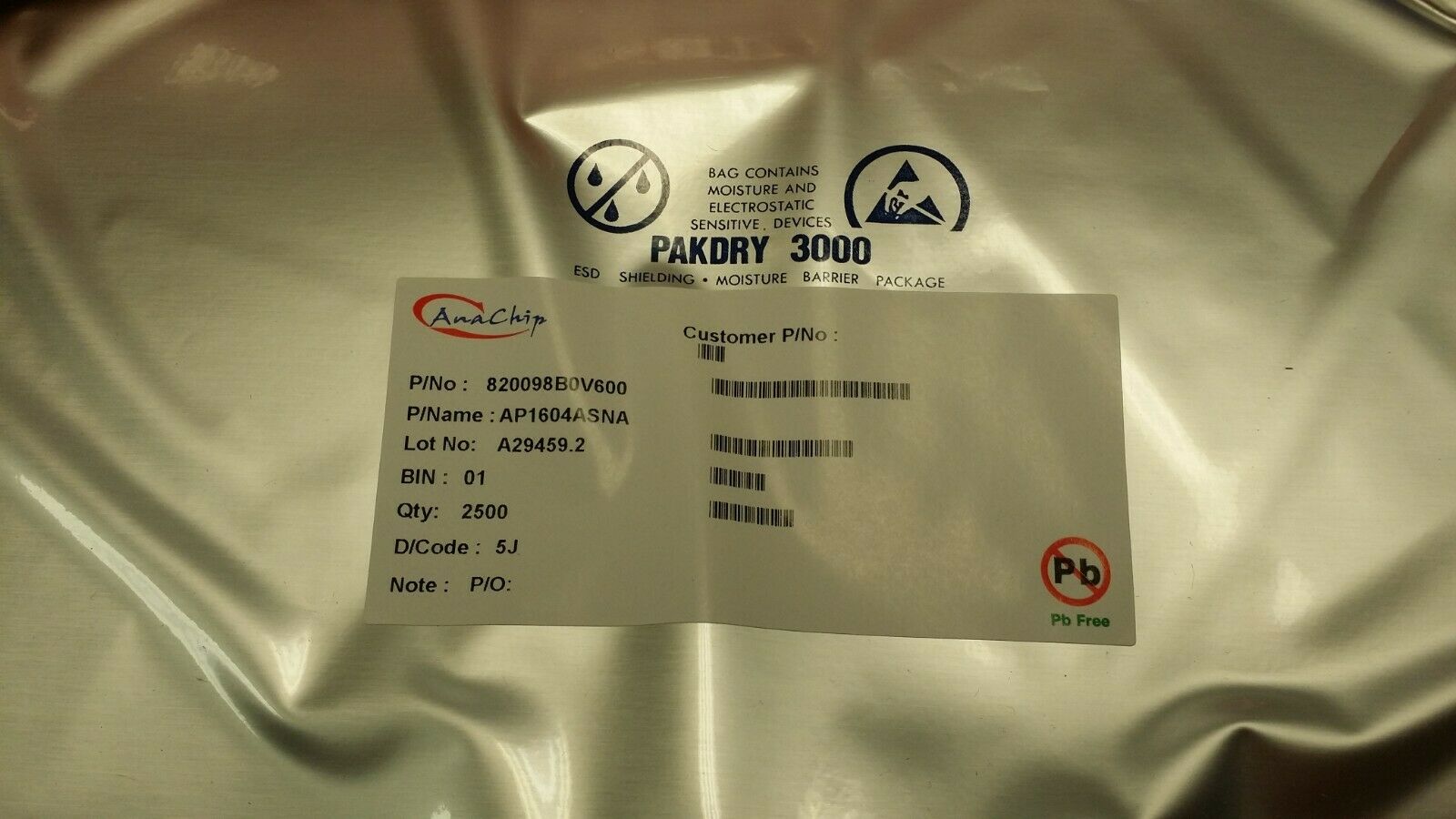

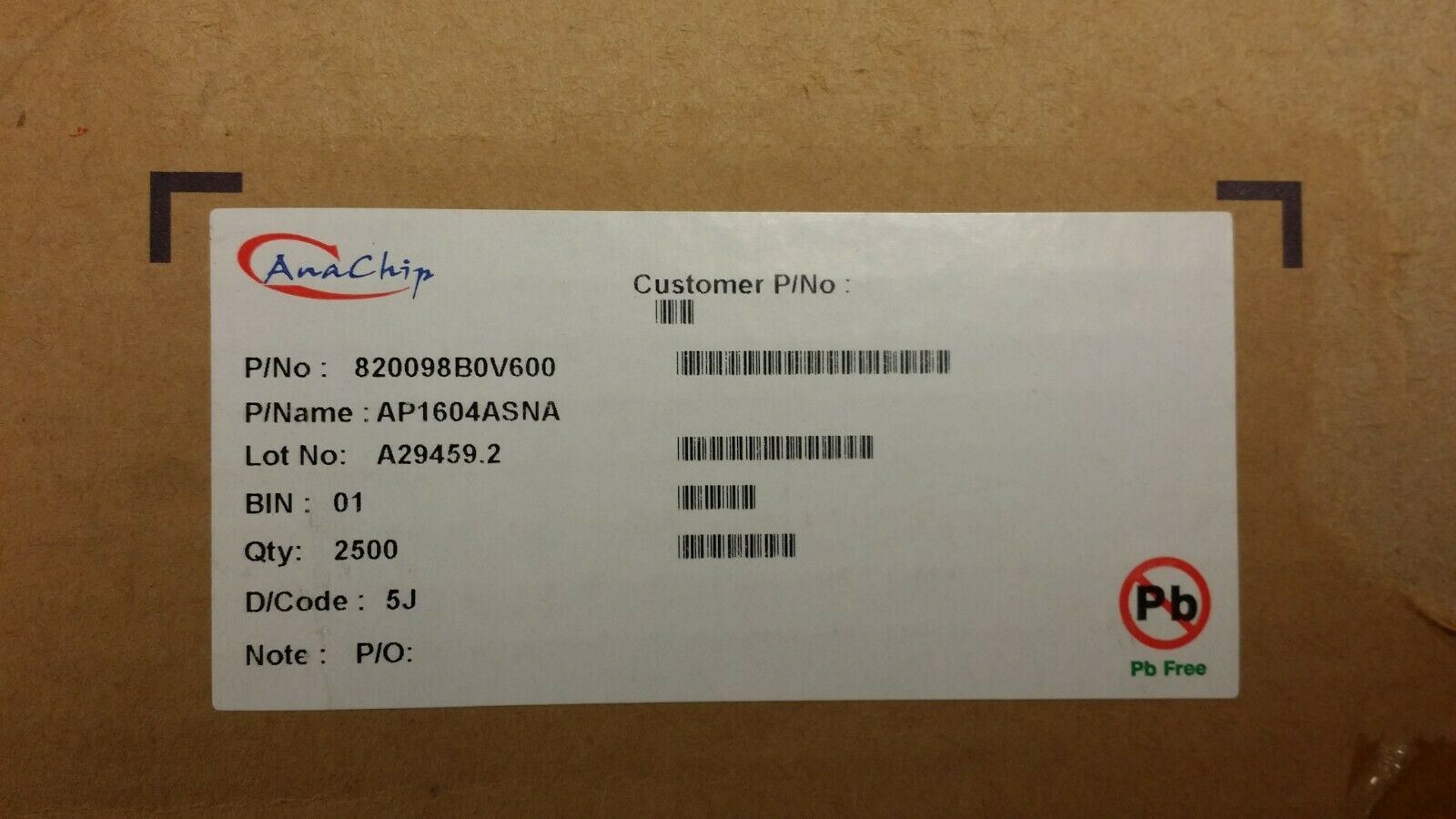

Part #: AP1604ASNA
Part Category: Other Semiconductors
Manufacturer: AnaChip Corp.
Description: Switching Regulator, 1.2A, 700kHz Switching Freq-Max, PDSO6
Mfr Package Description 3 X 3 MM, 0.80 MM HEIGHT, LEAD FREE, SON-6
Status Transferred
Analog IC - Other Type SWITCHING REGULATOR
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 5.0 V
Input Voltage-Min 2.2 V
Input Voltage-Max 5.5 V
JESD-30 Code S-PDSO-N6
Number of Functions 1
Number of Terminals 6
Operating Temperature-Min -25.0 Cel
Operating Temperature-Max 80.0 Cel
Output Current-Max 1.2 A
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Qualification Status Not Qualified
Seated Height-Max 0.8 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 700.0 kHz
Temperature Grade COMMERCIAL EXTENDED
Terminal Form NO LEAD
Terminal Pitch 0.95 mm
Terminal Position DUAL
Length 3.0 mm
Width 3.0 mm
