(50 PCS) 55032201400 SUMIDA General Purpose Inductor 0.022uH 20% SMD 1206
Tax included.

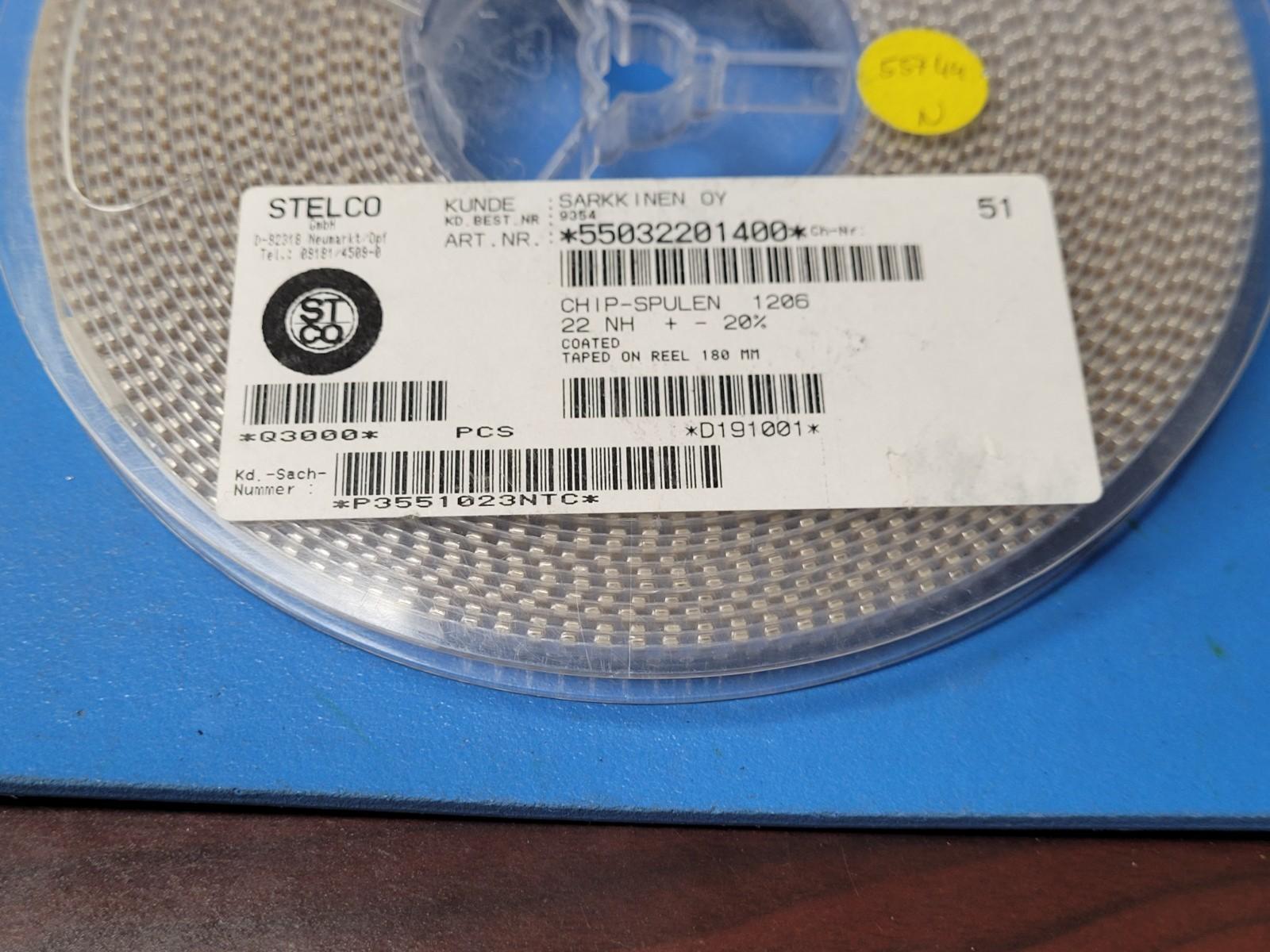

THIS LISTING IS FOR (50 PCS) OF 55032201400 BY SUMIDA STELCO
General Purpose Inductor 0.022uH 20% SMD 1206
Mfr Package Description CHIP
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 1206
Construction Rectangular
Core Material CERAMIC
DC Resistance 0.1 ohm
Inductance-Nom (L) 0.022 µH
Inductor Application RF INDUCTOR
JESD-609 Code e4
Number of Functions 1
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Height 1.42 mm
Package Length 3.4 mm
Package Width 1.73 mm

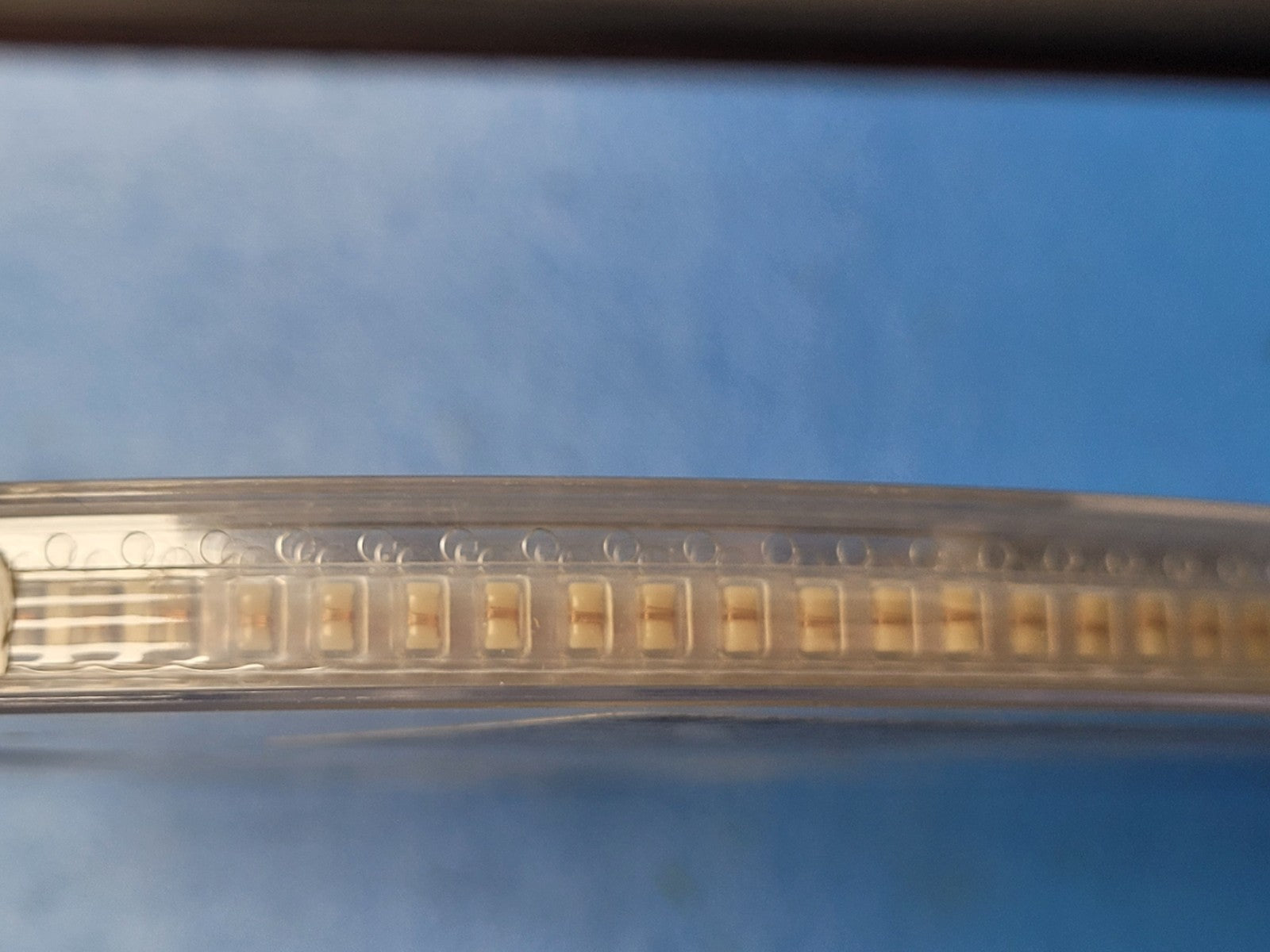

Packing Method TR, 7 Inch
Quality Factor-Min (at L-nom) 35.0
Rated Current-Max 1.0 A
Reference Standard AEC-Q200
Self Resonance Frequency 2300.0 MHz
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Surface Mount YES
Terminal Finish Silver/Palladium/Platinum (Ag/Pd/Pt)
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 100.0 MHz
Tolerance 20.0 %
