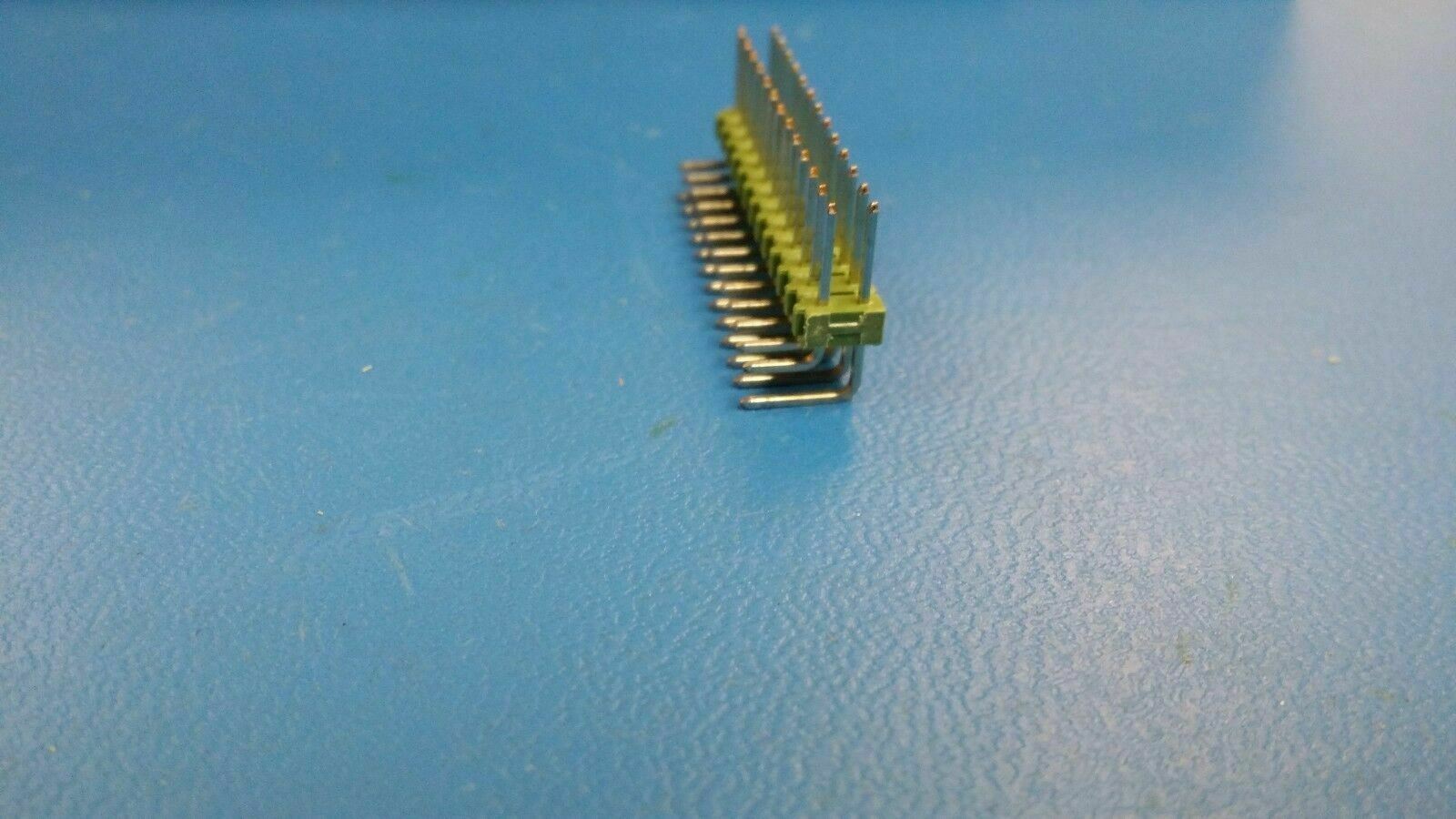

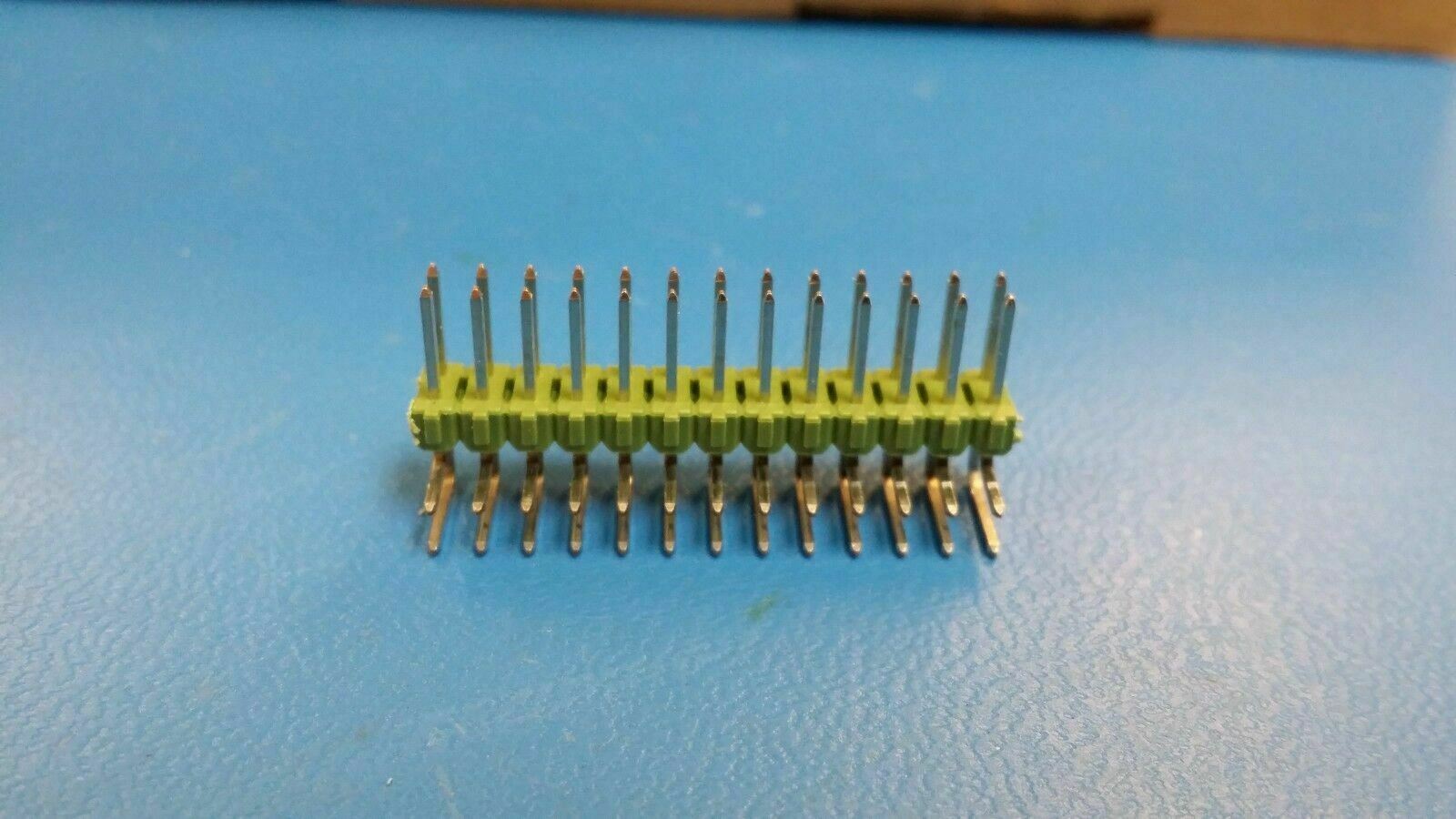

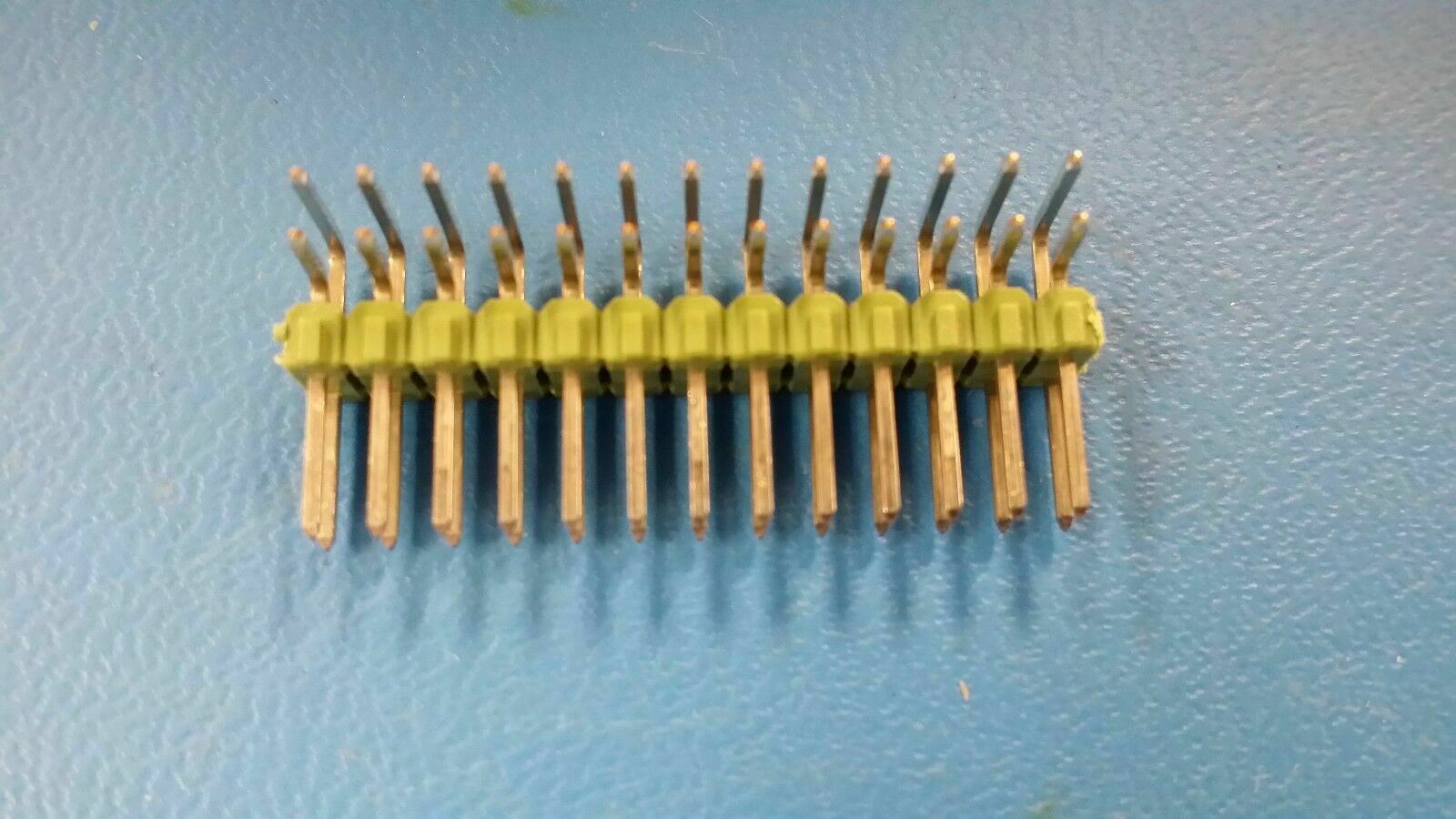

(50 PCS) 1-826953-3, TE Connectivity, Breakaway Header Connector, 26 Positions
(50 PCS) 1-826953-3, TE Connectivity, Breakaway Header Connector, 26 Positions
(50 PCS) 1-826953-3, TE Connectivity, Breakaway Header Connector, 26 Positions
(50 PCS) 1-826953-3, TE Connectivity, Breakaway Header Connector, 26 Positions
(50 PCS) 1-826953-3, TE Connectivity, Breakaway Header Connector, 26 Positions

(50 PCS) 1-826953-3, TE Connectivity, Breakaway Header Connector, 26 Positions

Tax included.
Only 35 left!

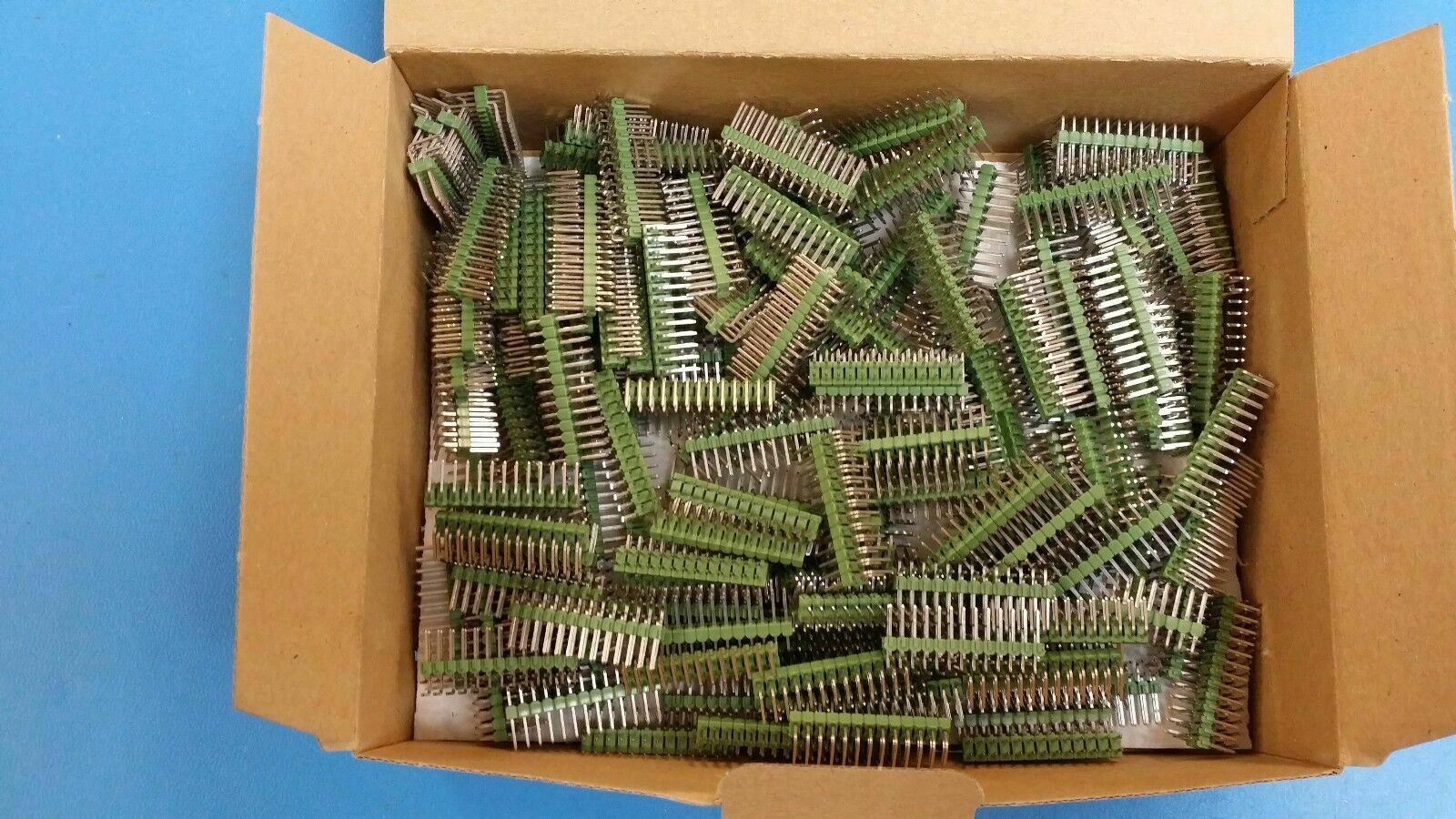

This listing is for 50 connectors.

Contact Type Male Pin
Connector Type Header, Unshrouded, Breakaway
Number of Positions 26
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Contact Mating Length 0.264" (6.70mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type -
Features -
Contact Finish Tin
Contact Finish Thickness 78.7µin (2.00µm)
Color Green
