(50) 1-1123723-9 TE/AMP Connector Header Through Hole 9 position 0.156" (3.96mm)
(50) 1-1123723-9 TE/AMP Connector Header Through Hole 9 position 0.156" (3.96mm)
(50) 1-1123723-9 TE/AMP Connector Header Through Hole 9 position 0.156" (3.96mm)
(50) 1-1123723-9 TE/AMP Connector Header Through Hole 9 position 0.156" (3.96mm)
(50) 1-1123723-9 TE/AMP Connector Header Through Hole 9 position 0.156" (3.96mm)

(50) 1-1123723-9 TE/AMP Connector Header Through Hole 9 position 0.156" (3.96mm)

Tax included.
Only 100 left!

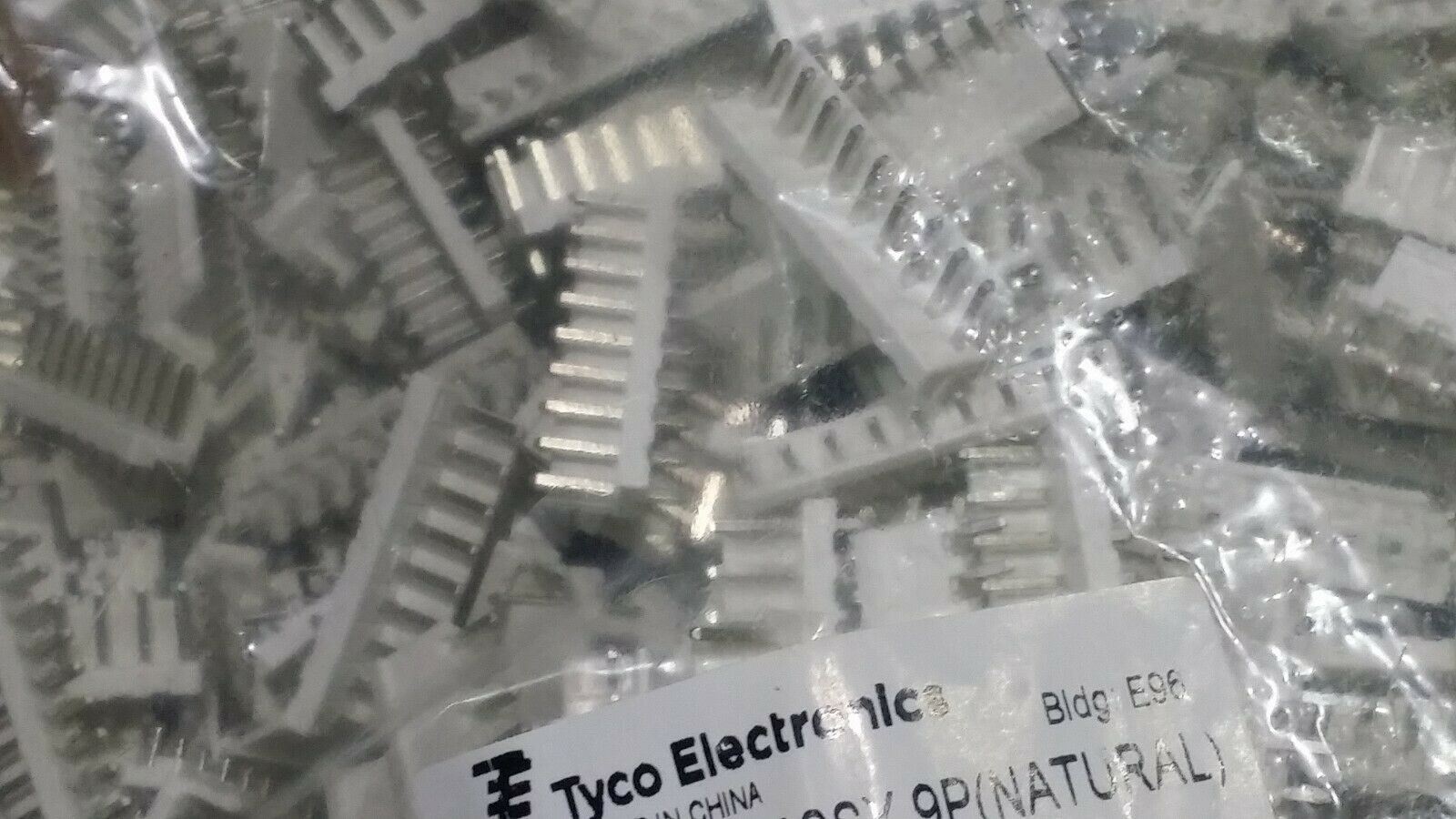

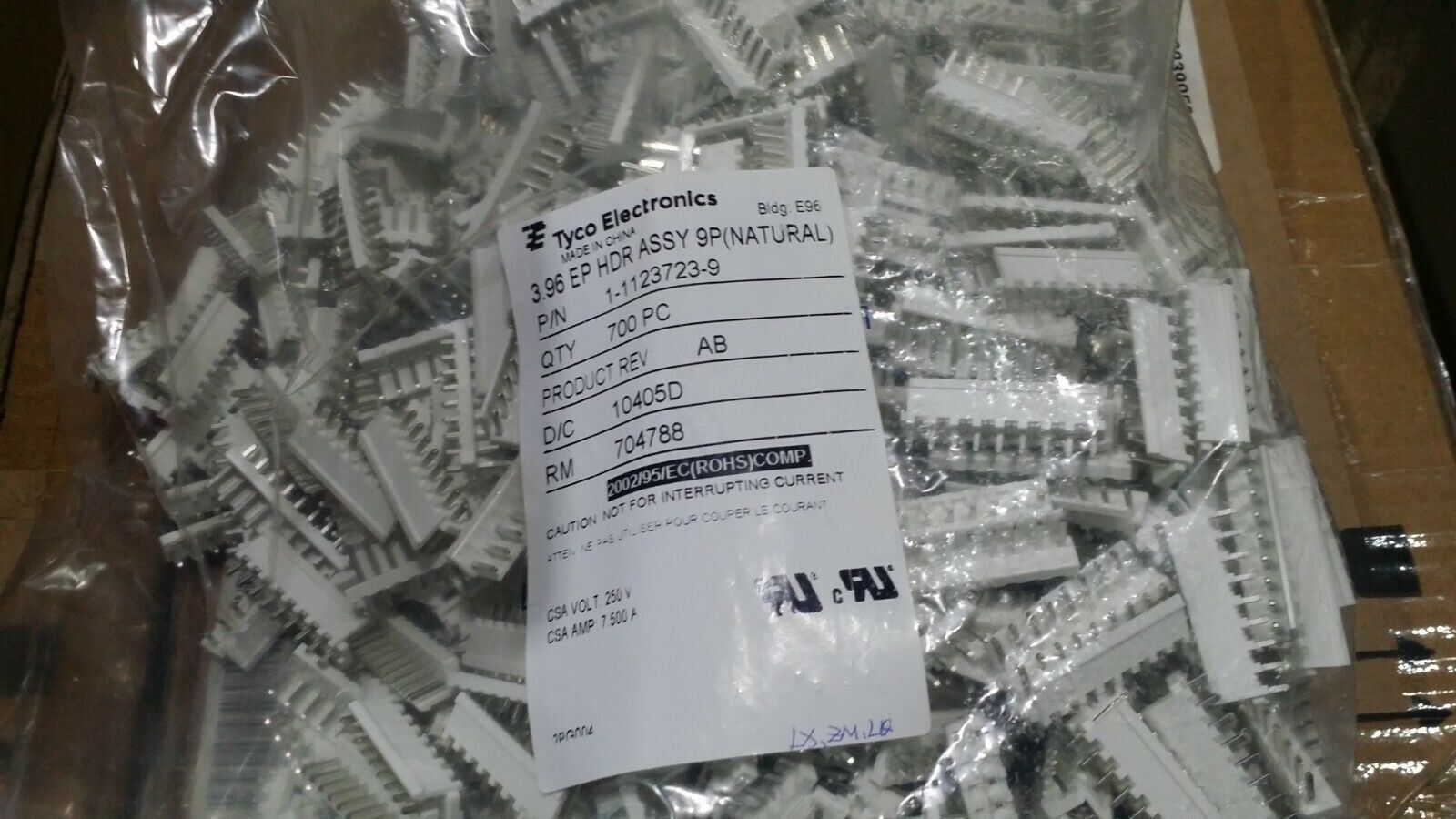

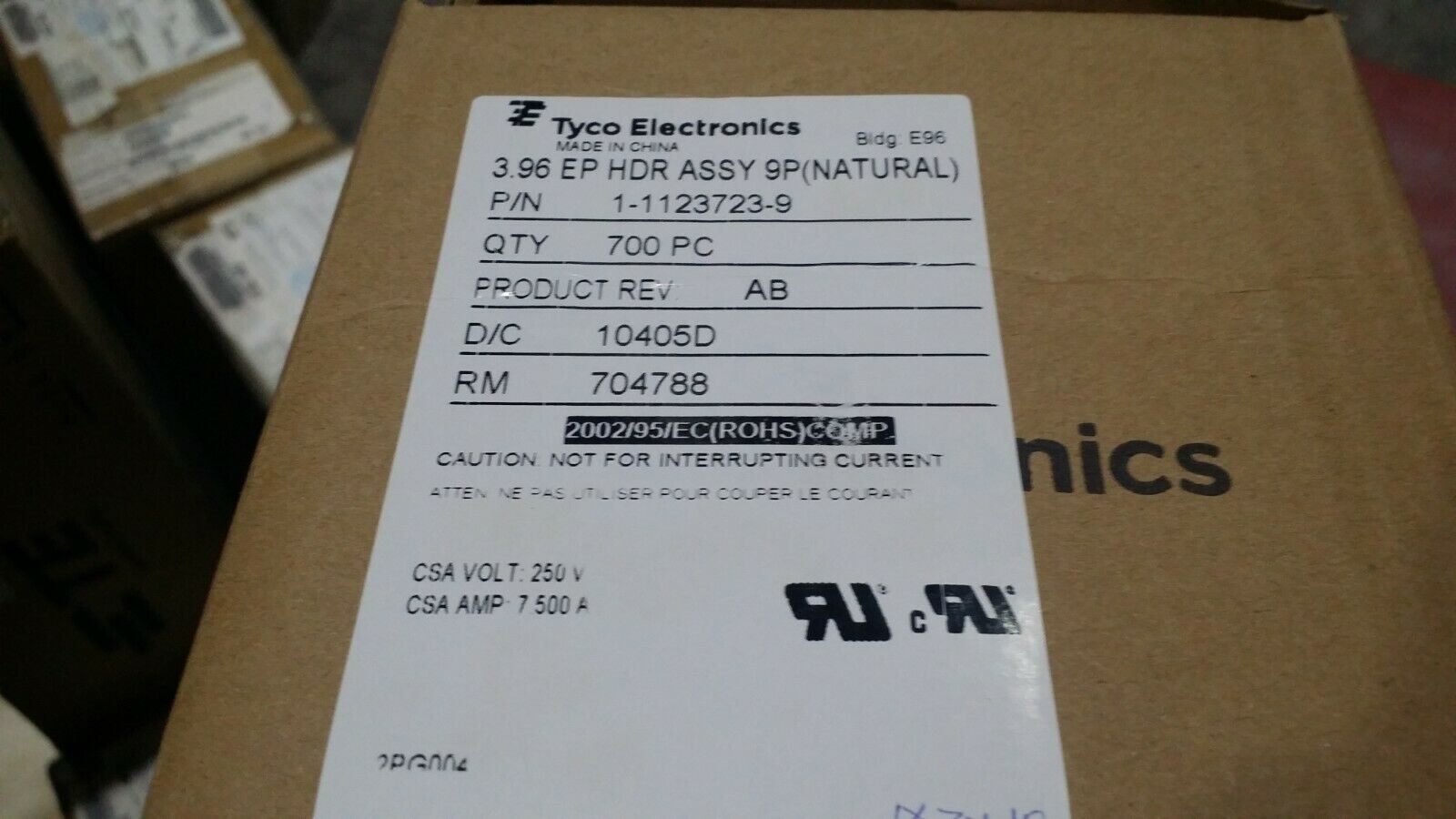

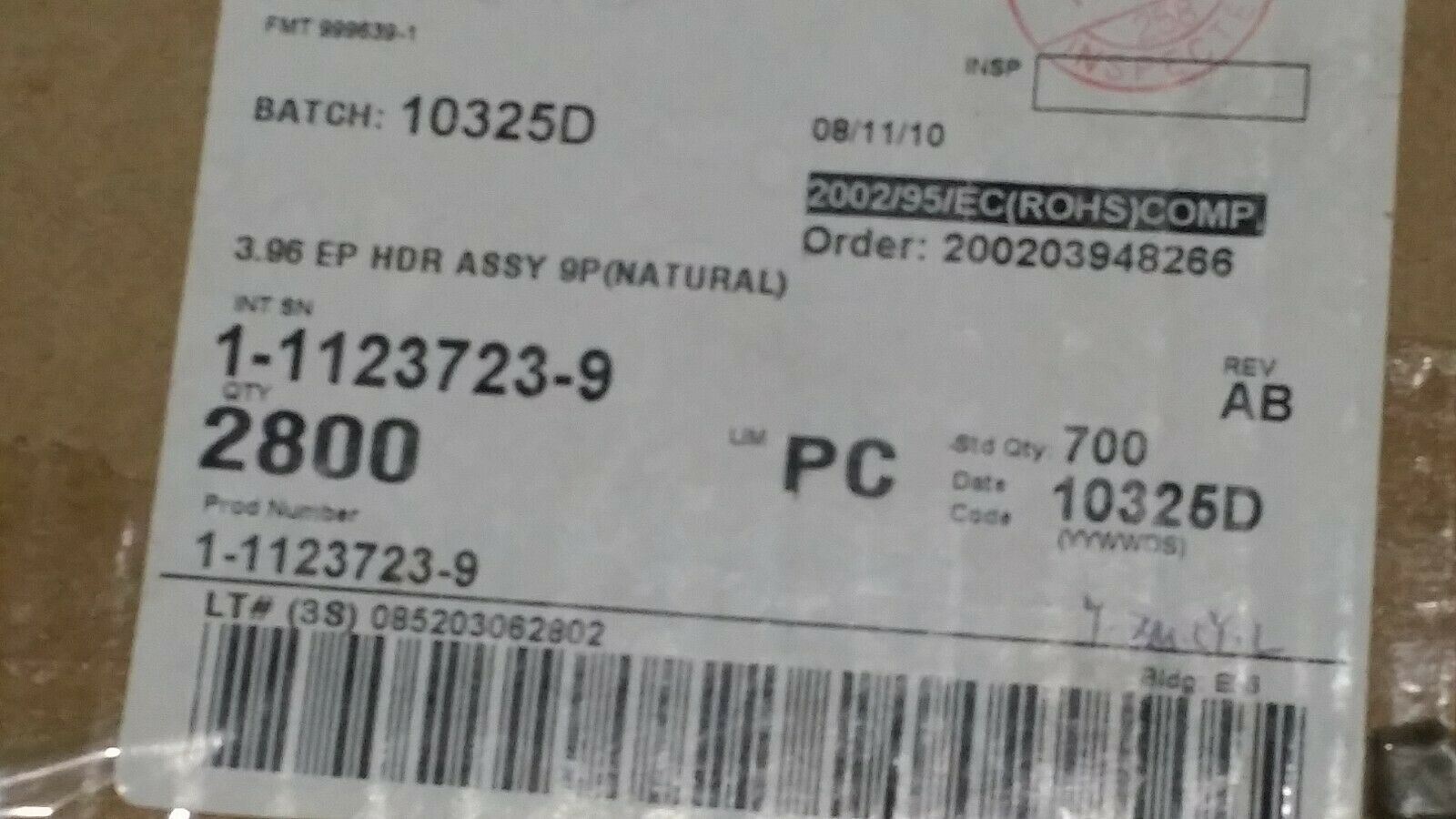

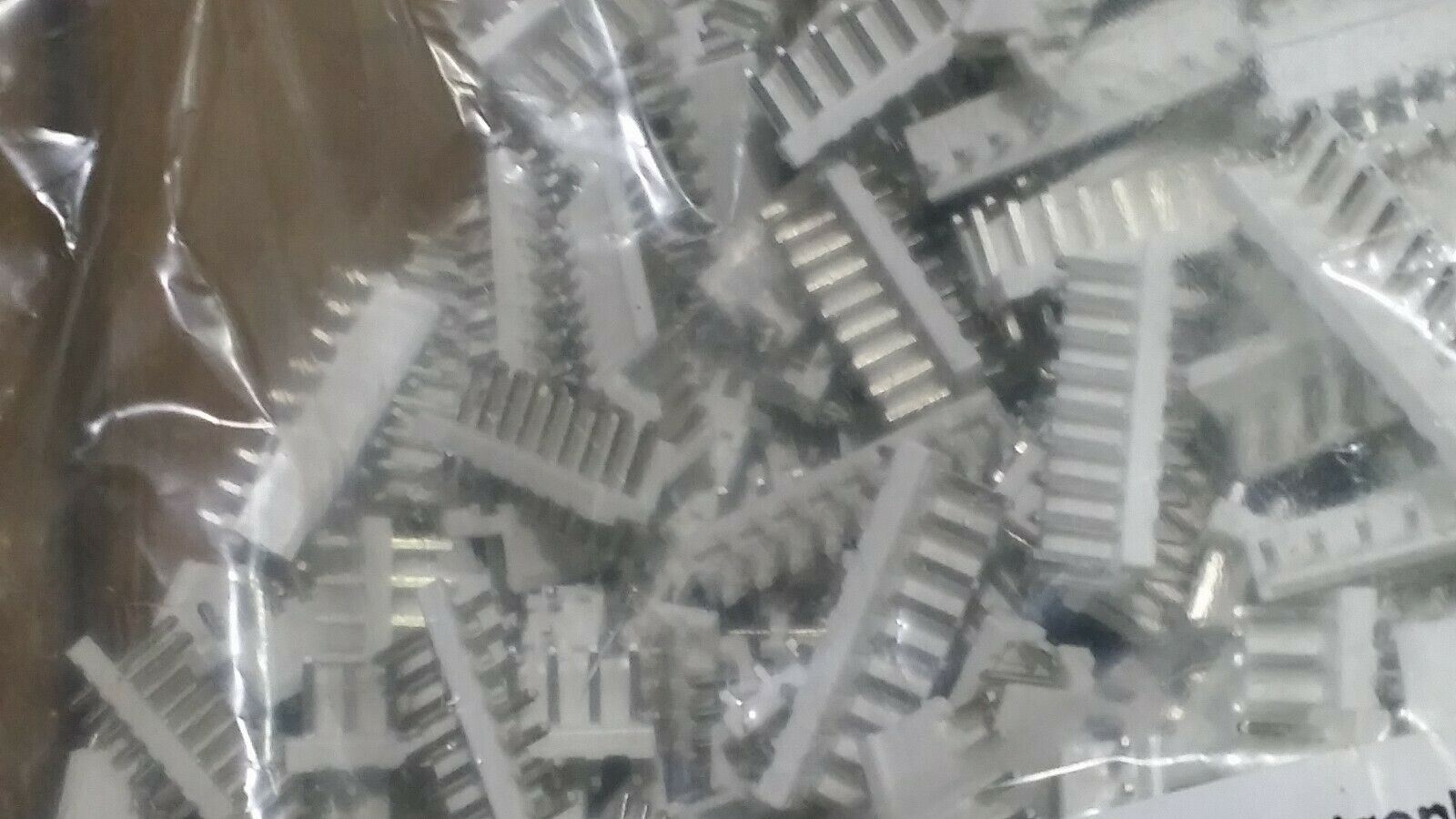

THIS IS FOR (50 PCS) OF 1-1123723-9 BY TYCO/AMP
Connector Header Through Hole 9 position 0.156" (3.96mm)

Manufacturer: TE Connectivity
Product Category: Headers & Wire Housings
RoHS: YES
Product: Headers
Type: Locking
Number of Positions: 9 Position
Pitch: 3.96 mm
Number of Rows: 1 Row
Mounting Style: -
Termination Style: Solder Pin
Mounting Angle: Straight
Contact Gender: Pin (Male)
Contact Plating: Tin
Application: Wire-to-Board
Minimum Operating Temperature: - 25 C
Maximum Operating Temperature: + 105 C
Brand: TE Connectivity / AMP
Contact Material: Brass
Current Rating: 7.5 A
Flammability Rating: UL 94 V-0
Housing Color: Natural
Housing Material: Polybutylene Terephthalate (PBT)
Product Type: Headers & Wire Housings
700
Subcategory: Headers & Wire Housings
Voltage Rating: 250 V
Unit Weight: 0.092418 oz
