(5) Q4025R6 TECCOR TRIAC 400 V 25 A Through Hole TO-220 Non-Isolated Tab
Tax included.

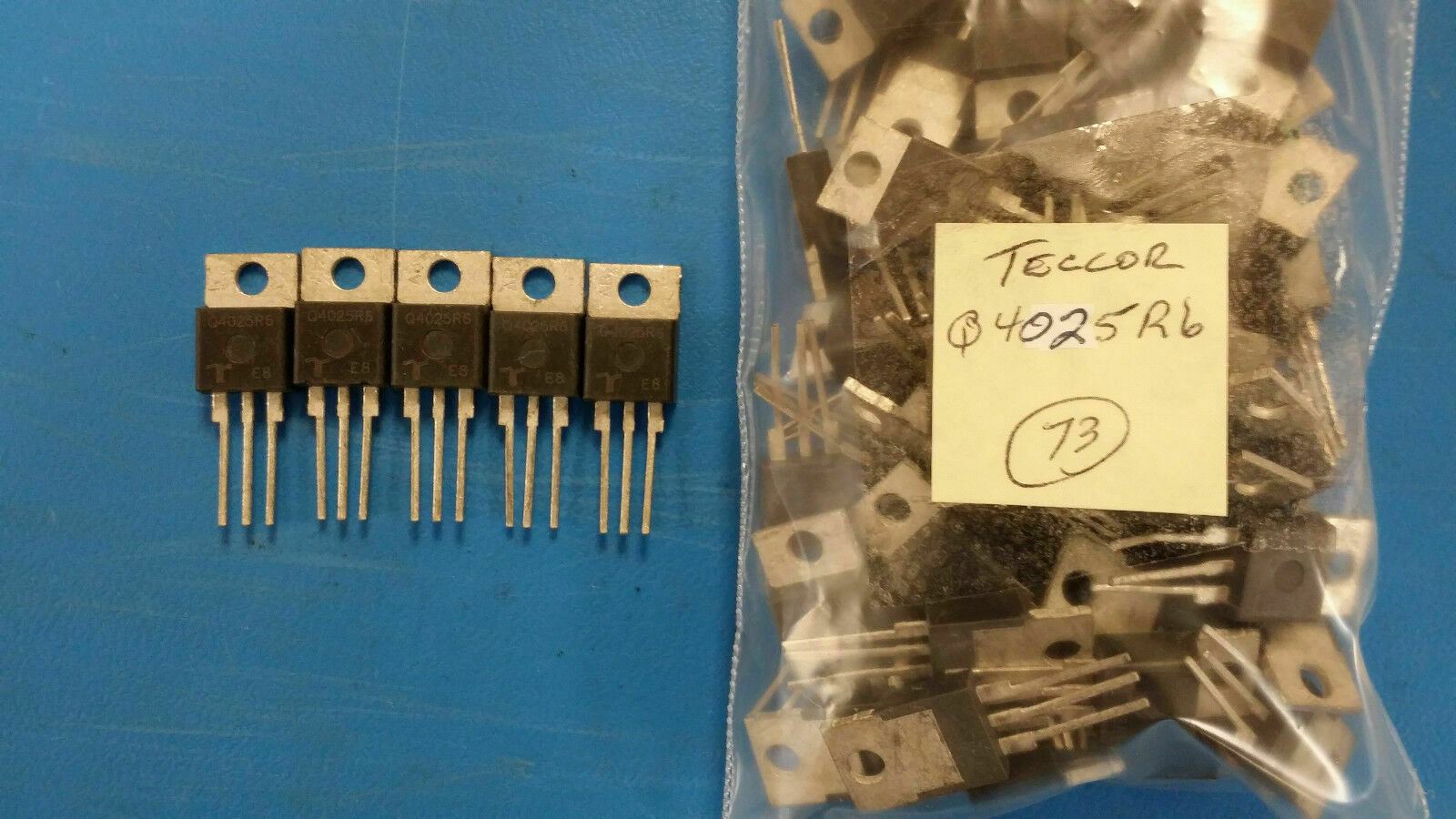

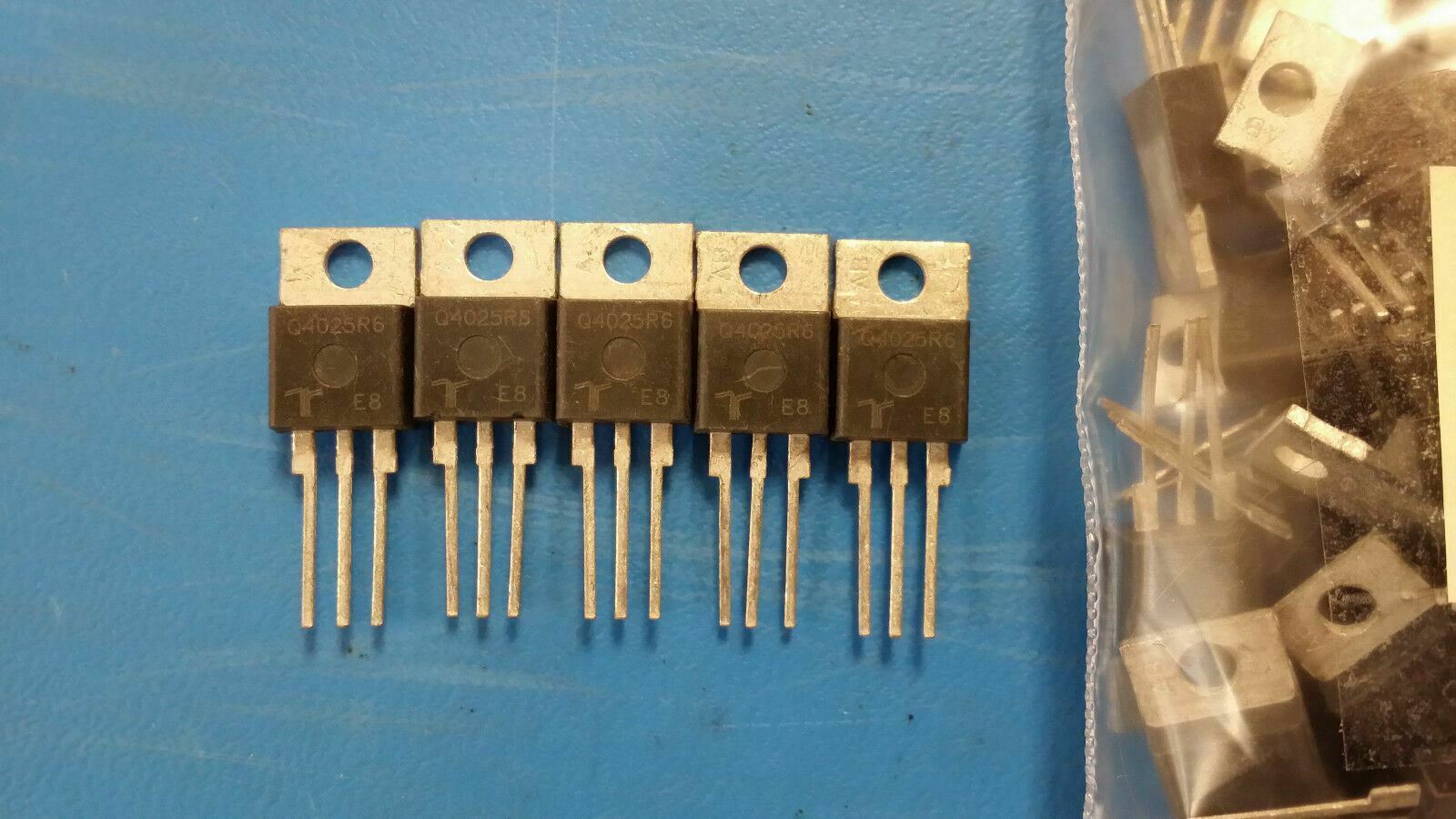

THIS LISTING IS FOR (5 PCS) OF Q4025R6 BY TECCOR
Thyristor TRIAC 400V 250A 3-Pin(3+Tab) TO-220AB Non-Isolated
Thyristor TRIAC 400V 250A 3-Pin(3+Tab) TO-220AB Non-Isolated
| Manufacturer: | Littelfuse/Teccor | |
| Product Category: | Triacs | |
| On-State RMS Current - It RMS: | 25 A | |
| Non Repetitive On-State Current: | 208 A, 250 A | |
| Rated Repetitive Off-State Voltage VDRM: | 400 V | |
| Off-State Leakage Current @ VDRM IDRM: | 50 uA | |
| On-State Voltage: | 1.8 V | |
| Holding Current Ih Max: | 100 mA | |
| Gate Trigger Voltage - Vgt: | 2.5 V | |
| Gate Trigger Current - Igt: | 80 mA | |
| Maximum Operating Temperature: | + 125 C | |
| Mounting Style: | Through Hole | |
| Package / Case: | TO-220-3 | |
| Brand: | Littelfuse/Teccor |
|
| Minimum Operating Temperature: | - 40 C |
