(5) Q4012RH5 TECCOR Thyristor TRIAC 400V 120A 3-Pin(3+Tab) TO-220AB Non-Isolated
(5) Q4012RH5 TECCOR Thyristor TRIAC 400V 120A 3-Pin(3+Tab) TO-220AB Non-Isolated

(5) Q4012RH5 TECCOR Thyristor TRIAC 400V 120A 3-Pin(3+Tab) TO-220AB Non-Isolated

Tax included.
Only 83 left!

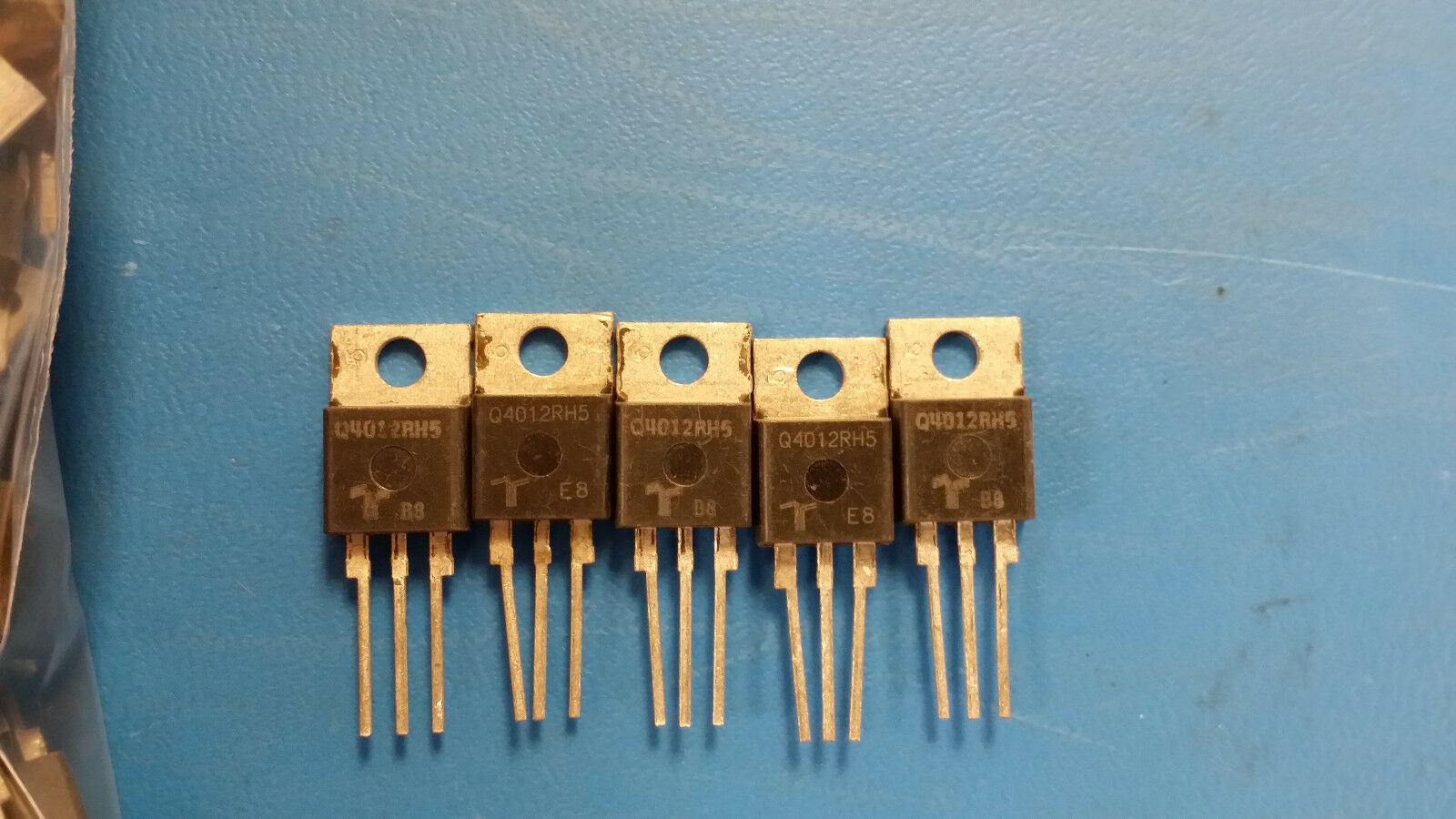

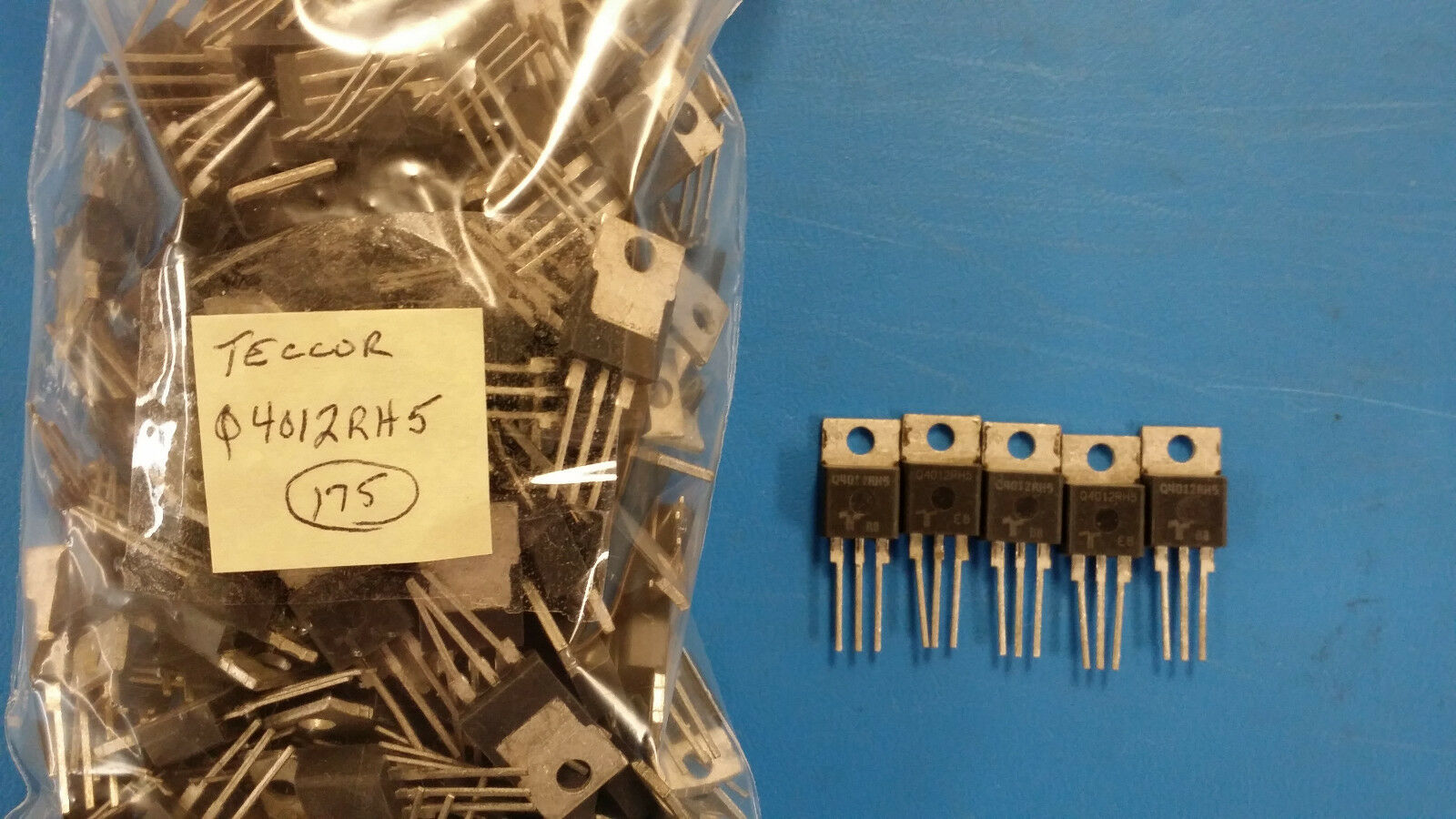

THIS LISTING IS FOR (5 PCS) OF Q4012RH5 BY TECCOR
Thyristor TRIAC 400V 120A 3-Pin(3+Tab) TO-220AB Non-Isolated

Manufacturer: Littelfuse/Teccor
Product Category: Triacs
On-State RMS Current - It RMS: 12 A
Non Repetitive On-State Current: 110 A, 120 A
Rated Repetitive Off-State Voltage VDRM: 400 V
Off-State Leakage Current @ VDRM IDRM: 10 uA
On-State Voltage: 1.6 V
Holding Current Ih Max: 50 mA
Gate Trigger Voltage - Vgt: 1.3 V
Gate Trigger Current - Igt: 50 mA
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: TO-220-3
Brand: Littelfuse/Teccor
