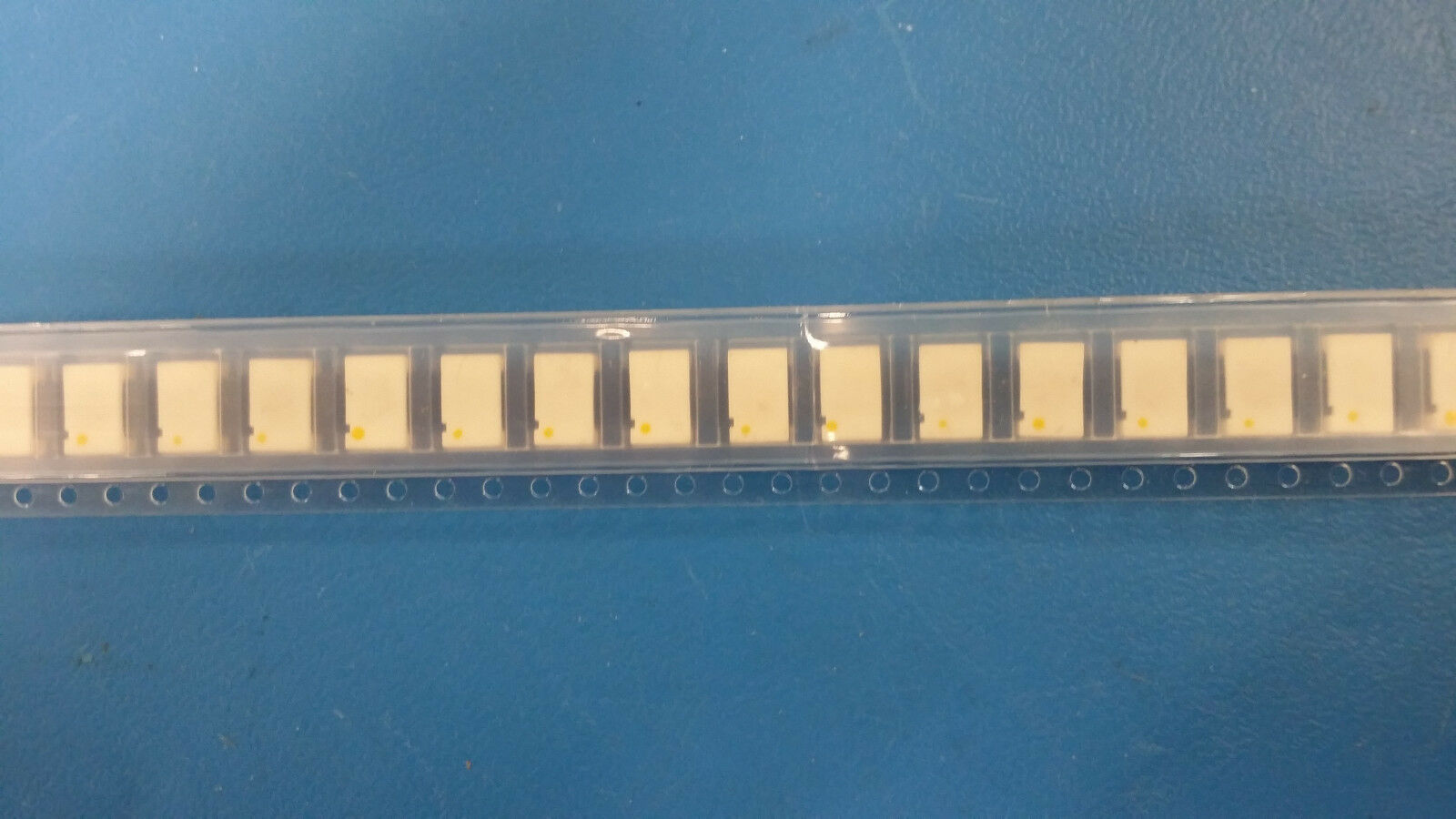

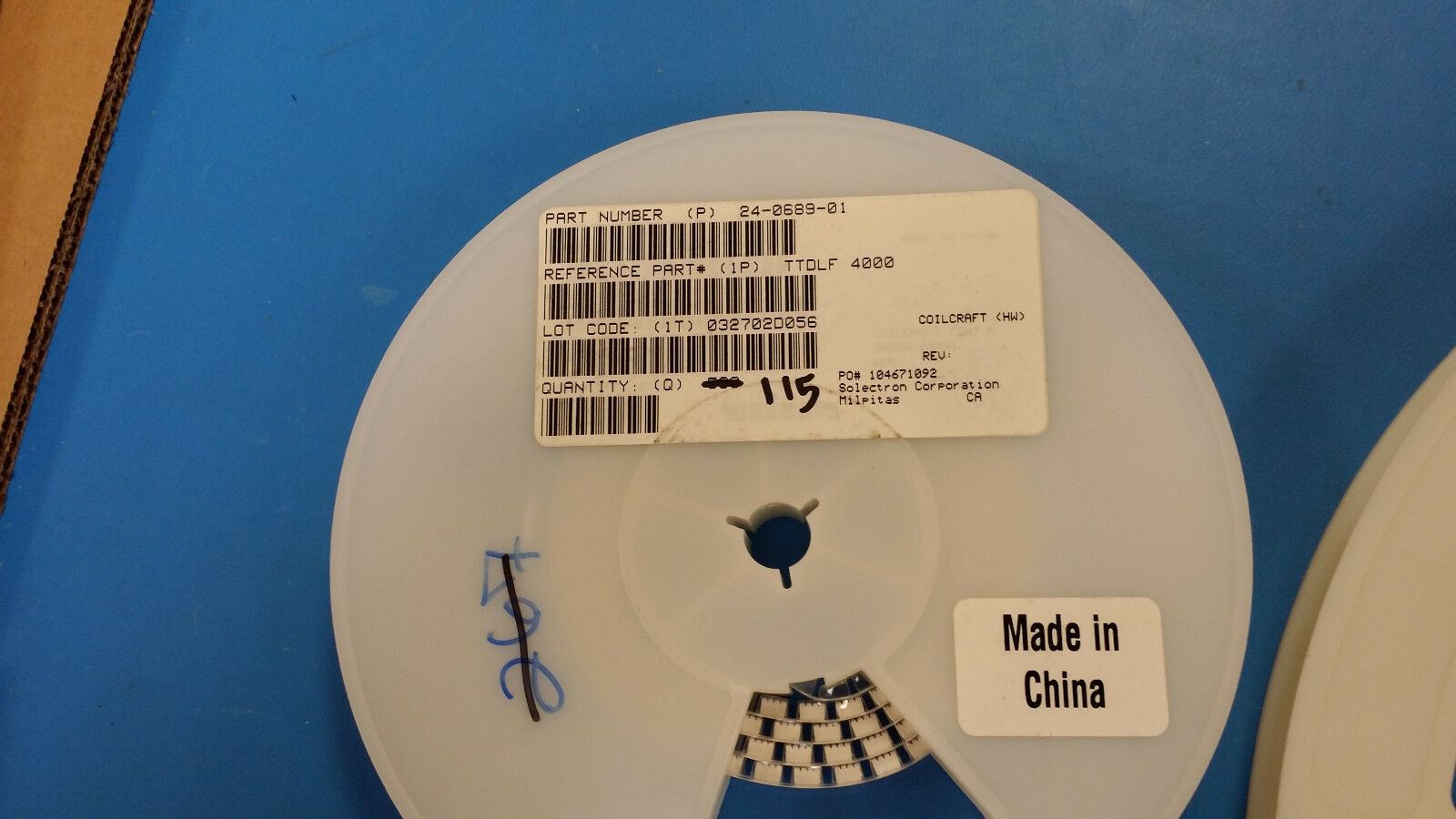

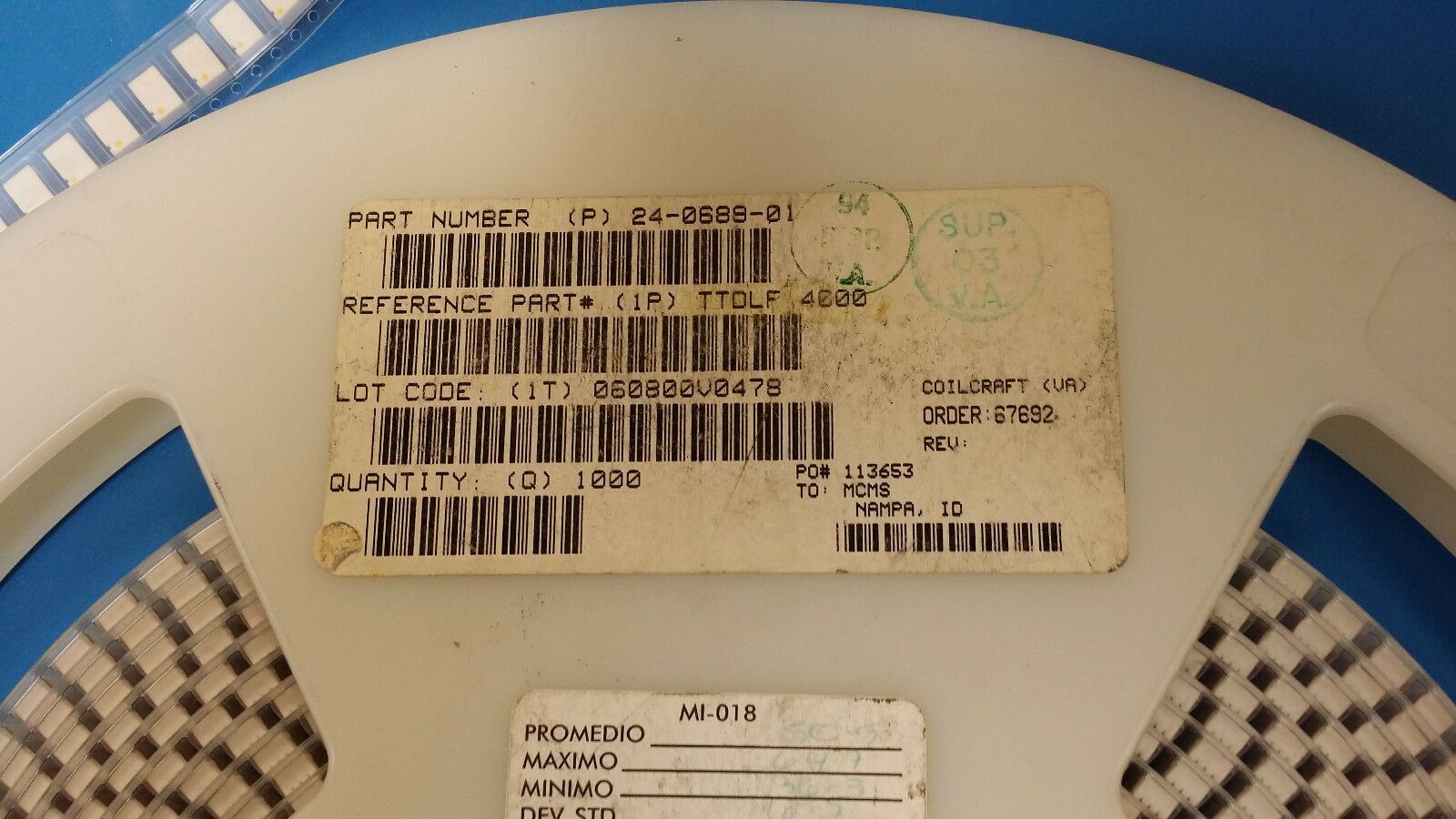

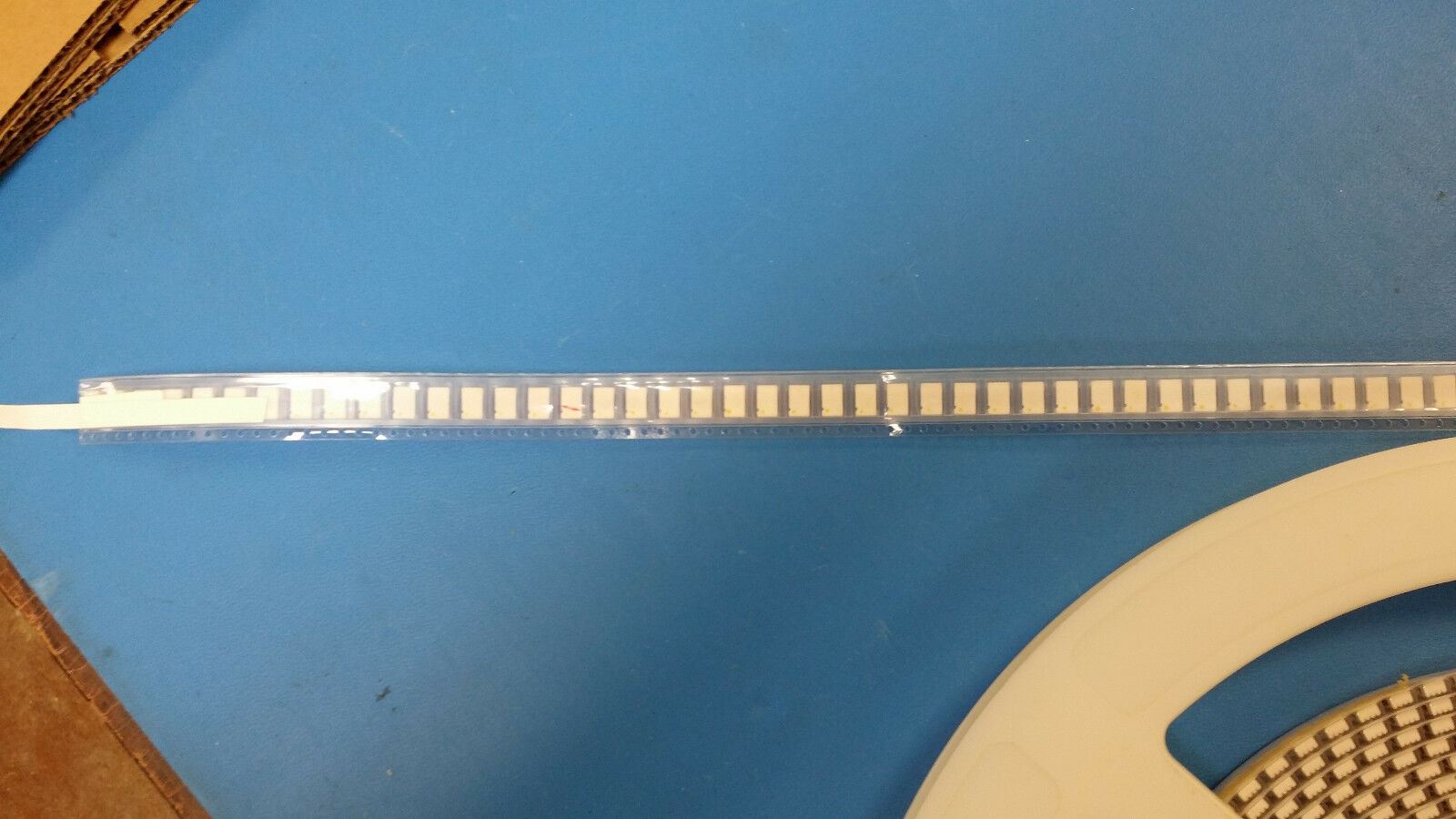

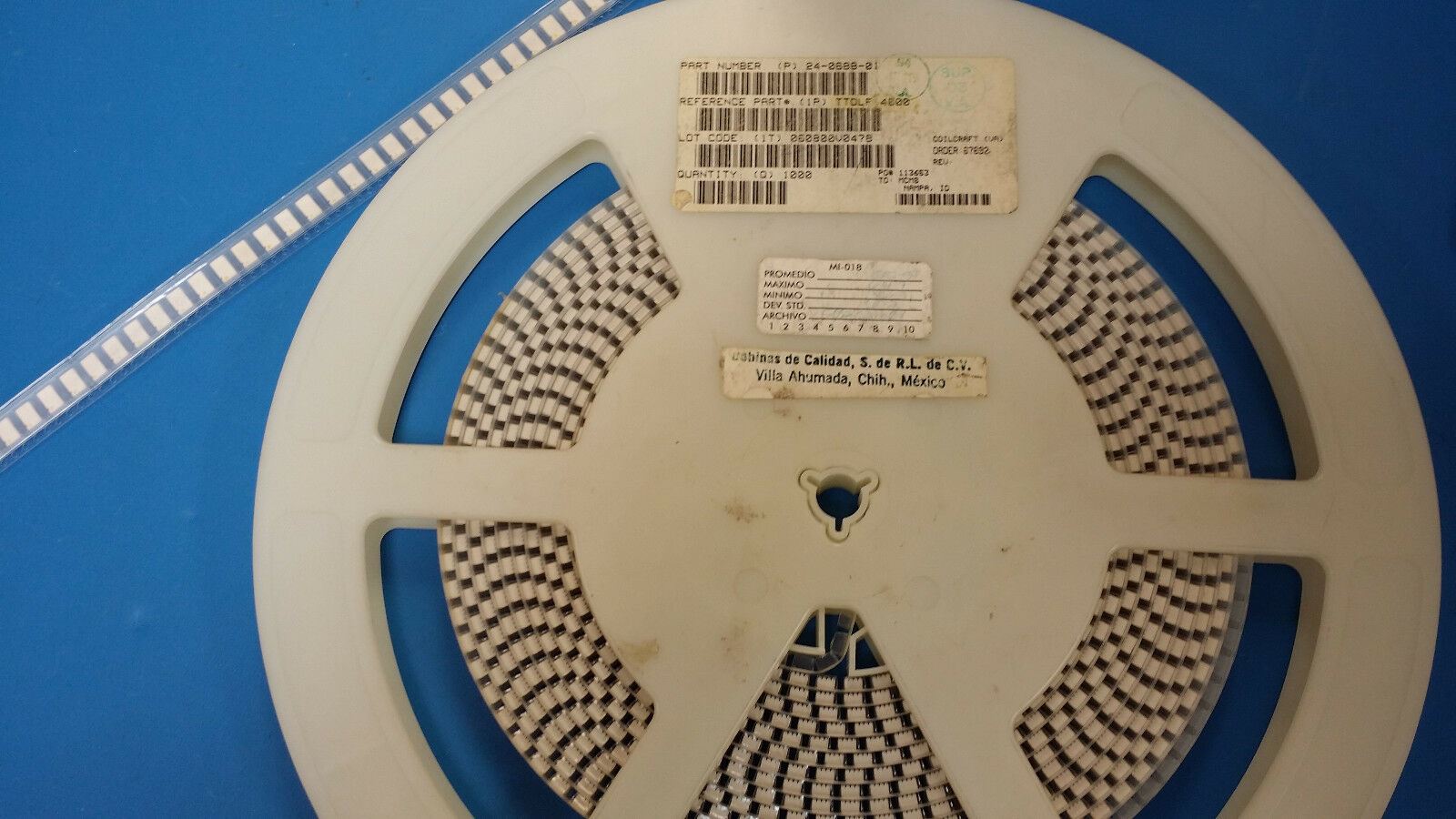

(5 PCS)TTDLF4000 COILCRAFT SURFACE MOUNT DATA LINE EMI FILTERS

  • $14.00
    Unit price per
Tax included.

Only 50 left!

THIS LISTING IS FOR (5 PCS) OF TTDLF4000 BY COILCRAFT
(762 STOCK. WE WILL MAKE DEALS ON LARGER QUANTITIES.SEND OFFERS)
SURFACE MOUNT DATA LINE EMI FILTERS
Lines 4
Current max (mA) 100
Inductance min (uH)5
DCR max (mOhms) 250
Weight (mg) 268
Color Dot Yellow
Coilcraft surface mount filters are designed to virtually
eliminate the problem of conducted EMI in data line applications.
They provide exceptional common mode noise
attenuation from 15 MHz to 300 MHz while passing signal
line data below 300 MHz with minimal attenuation.
These low resistance filters have been designed for excellent
electrical isolation (300 Vrms), environmental stability
and low cost.
These data line EMI filters come in 10, 8, 4, 3 and 2-line
versions with DC current capacity of 500 or 100 mA.
2. Current rating is for each line.
3. Inductance is per winding, tested at 1 MHz.
4. Operating temperature range -40°C to +85°C.
5. Electrical specifications at 25°C.
