(5 PCS) ZVP4424GTA ZETEX MOSFET P-CH 240V 480MA SOT223 ROHS
Tax included.

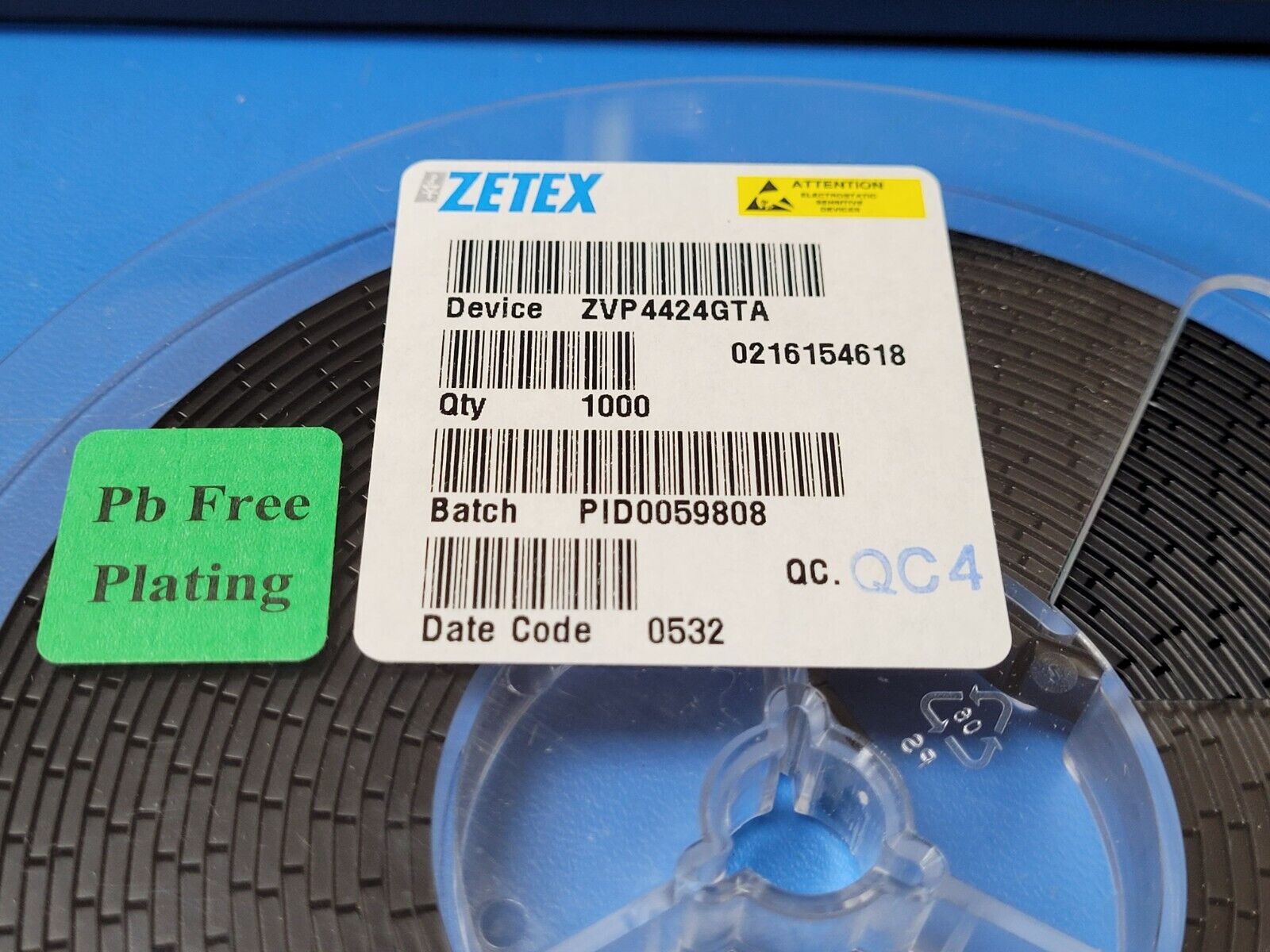

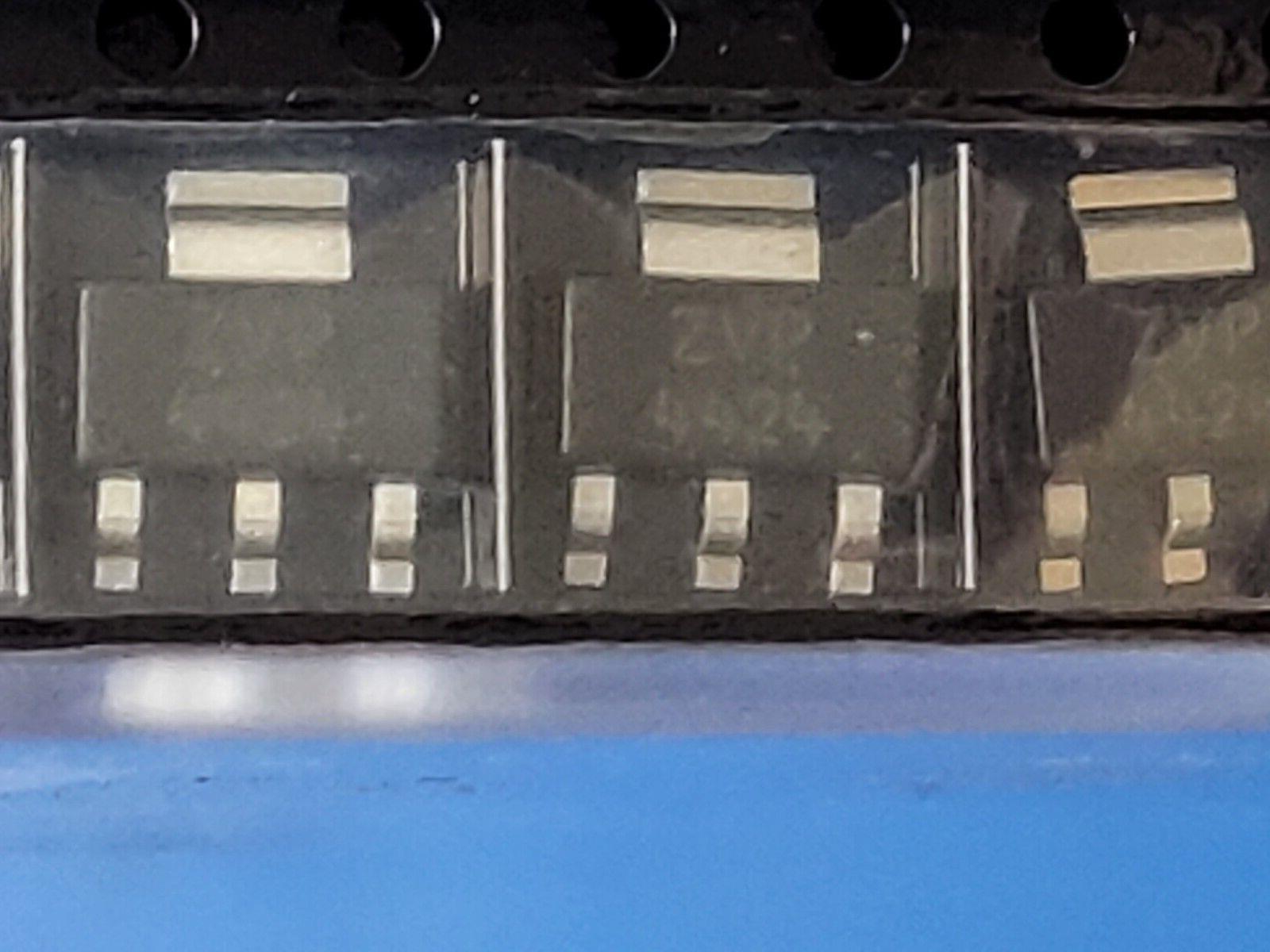

THIS IS FOR (5 PCS) OF ZVP4424GTA BY ZETEX
MOSFET P-CH 240V 480MA SOT223 ROHS
Manufacturer: (ZETEX) Diodes Incorporated
Product Category: MOSFET
RoHS: YES
REACH - SVHC:
Technology: Si
Mounting Style: SMD/SMT
Package / Case: SOT-223-3
Transistor Polarity: P-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 240 V
Id - Continuous Drain Current: 480 mA
Rds On - Drain-Source Resistance: 9 Ohms
Vgs - Gate-Source Voltage: - 40 V, + 40 V
Vgs th - Gate-Source Threshold Voltage: 700 mV
Qg - Gate Charge: -
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 2.5 W
Channel Mode: Enhancement
Series: ZVP4424
Packaging: Reel
Packaging: Cut Tape
Brand: (ZETEX) Diodes Incorporated
Configuration: Single
Fall Time: 20 ns
Forward Transconductance - Min: 125 mS
Height: 1.65 mm
Length: 6.7 mm
Product Type: MOSFET
Rise Time: 8 ns
1000
Subcategory: MOSFETs
Transistor Type: 1 P-Channel
Type: FET
Typical Turn-Off Delay Time: 26 ns
Typical Turn-On Delay Time: 8 ns
Width: 3.7 mm
Unit Weight: 0.003951 oz
