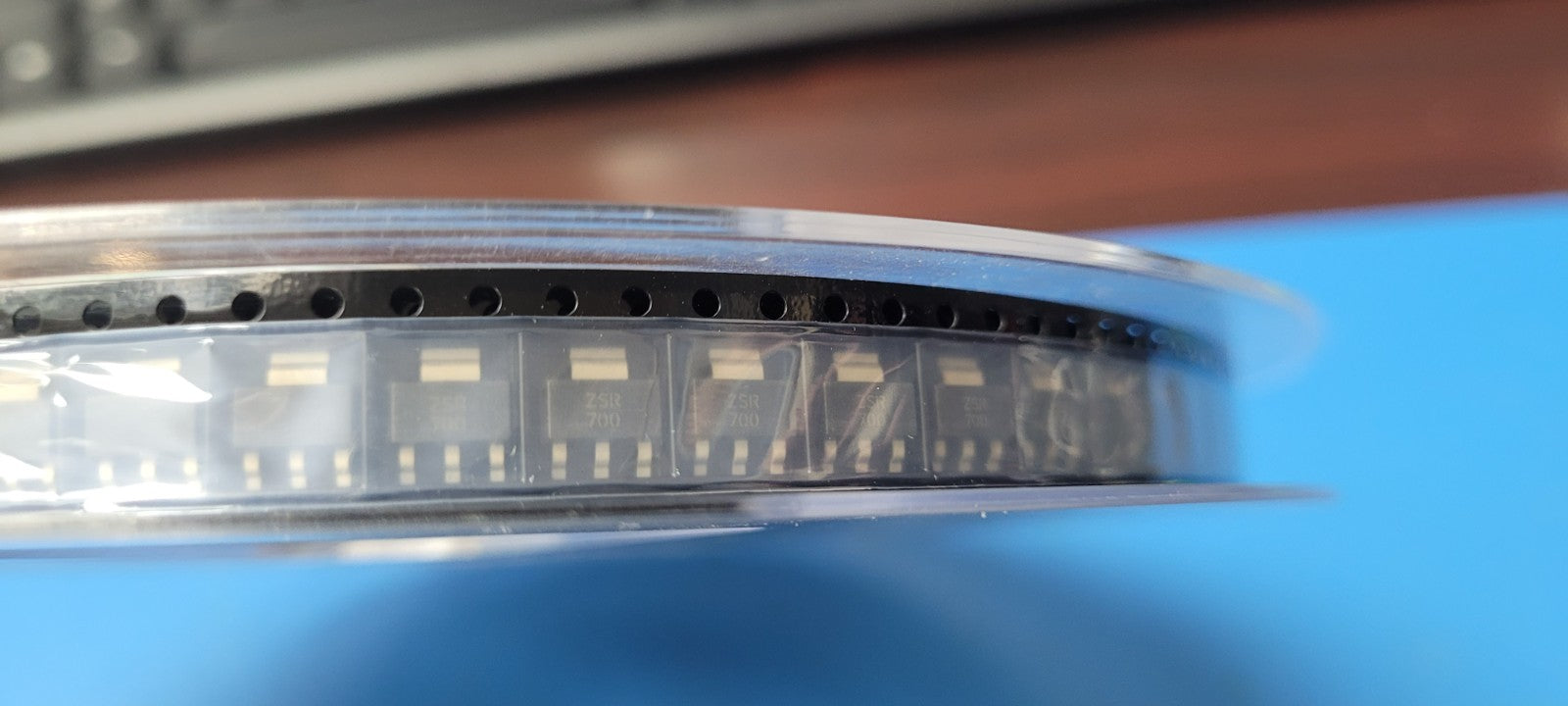

(5 PCS) ZSR700GTA ZETEX Linear Voltage Regulator 7V BIPolar SOT-223-4

$9.95
Unit price per

Tax included.

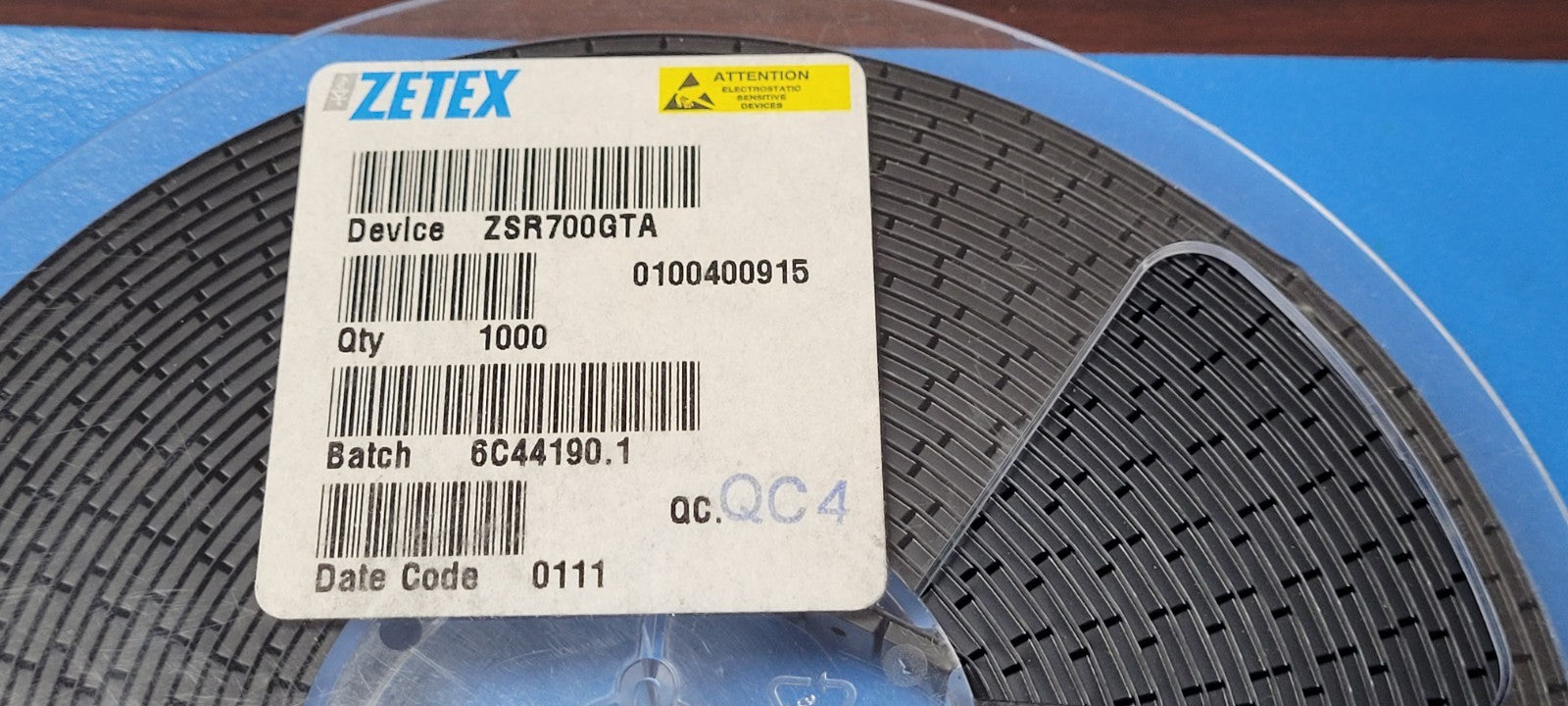

THIS IS FOR (5 PCS) OF ZSR700GTA BY ZETEX

Linear Voltage Regulator 7V BIPolar SOT-223-4

Part #: ZSR700GTA

Obsolete

Part Category: Fixed Positive Single Output Standard Regulators

Manufacturer: ZETEX PLC

Description: Fixed Positive Standard Regulator, 7V, BIPolar, PDSO4

Status Discontinued

Input Voltage-Max (V) 20.0000

Input Voltage-Min (V) 9.0000

JESD-30 Code R-PDSO-G4

Length (mm) 6.5000

Number of Functions 1

Number of Terminals 4

Operating Temperature TJ-Max (Cel) 125

Operating Temperature TJ-Min (Cel) -55

Output Current1-Max (A) 0.2000

Output Voltage1-Max (V) 7.2800

Output Voltage1-Min (V) 6.7200

Output Voltage1-Nom (V) 7.0000

Package Body Material PLASTIC/EPOXY

Package Code LSOP

Package Equivalence Code SOT-223

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, LOW PROFILE

DLA Qualification Not Qualified

Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

Seated Height-Max (mm) 1.7000

Surface Mount YES

Technology BIPOLAR

Terminal Form GULL WING

Terminal Pitch (mm) 2.300

Terminal Position DUAL

Voltage Tolerance-Max (%) 4.000000

Width (mm) 3.5000
