(10 PC) ZRT040GA1TA 3 Term. Voltage Ref. 1 Output 4.01V SOT-223-4 ROHS

$59.95
Unit price per

Tax included.

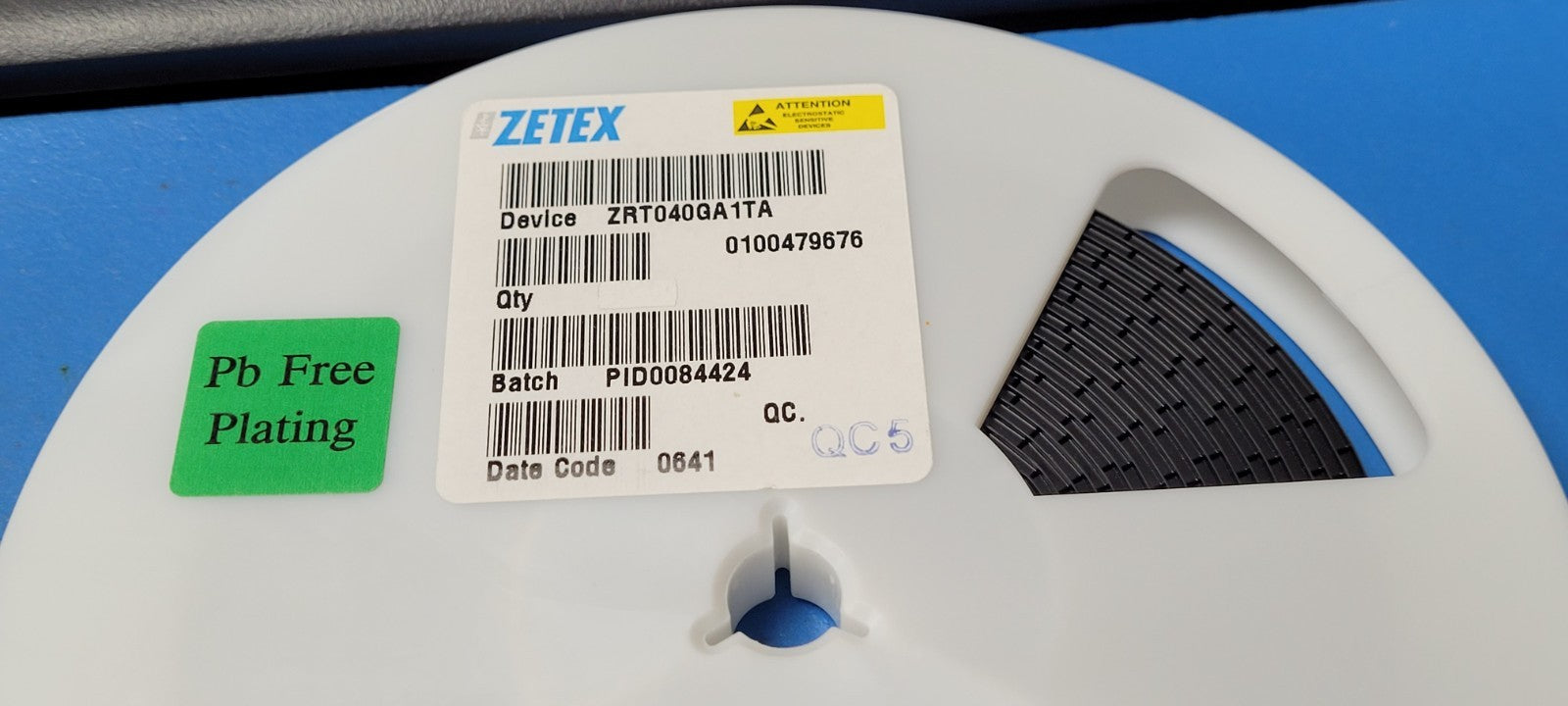

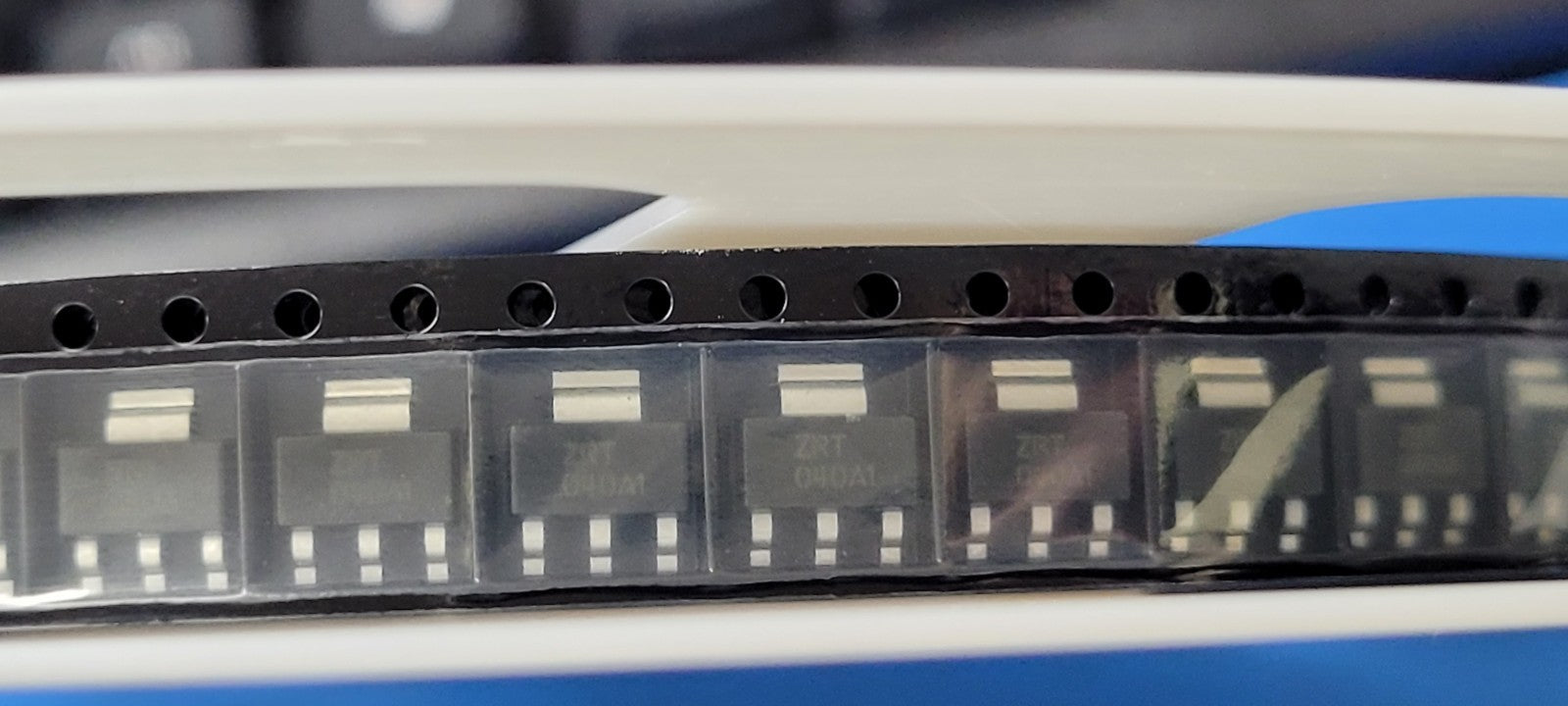

THIS IS FOR (10 PCS) OF ZRT040GA1TA BY ZETEX

3 Term. Voltage Ref. 1 Output 4.01V Trim/Adjustable SOT-223

Part #: ZRT040GA1TA

Other

Part Category: Voltage References

Manufacturer: ZETEX PLC

Description: Three Terminal Voltage Reference, 1 Output, 4.01V, Trim/Adjustable, PDSO4

Status Transferred

Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE

JESD-30 Code R-PDSO-G4

J-STD-609 Code e3

Length (mm) 6.5000

Moisture Sensitivity Level 1

Number of Functions 1

Number of Outputs 1

Number of Terminals 4

Operating Temperature-Max (Cel) 125

Operating Temperature-Min (Cel) -55

Output Voltage-Max (V) 4.0500000000000000

Output Voltage-Min (V) 3.9700000000000000

Output Voltage-Nom (V) 4.0100000000000000

Package Body Material PLASTIC/EPOXY

Package Code LSOP

Package Equivalence Code SOT-223

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, LOW PROFILE

Peak Reflow Temperature (Cel) 260

DLA Qualification Not Qualified

Seated Height-Max (mm) 1.7000

Supply Current-Max (mA) 75.0000000000000000

Surface Mount YES

Temp Coef of Voltage-Max (ppm/Cel) 50.0000000000000000

Temperature Grade MILITARY

Terminal Finish Matte Tin (Sn)

Terminal Form GULL WING

Terminal Pitch (mm) 2.300

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) 40

Trim/Adjustable Output YES

Width (mm) 3.5000
