(5 PCS) W320-04X CYPRESS PLL Clock Synthesizer Dual 56-Pin TSSOP
Tax included.

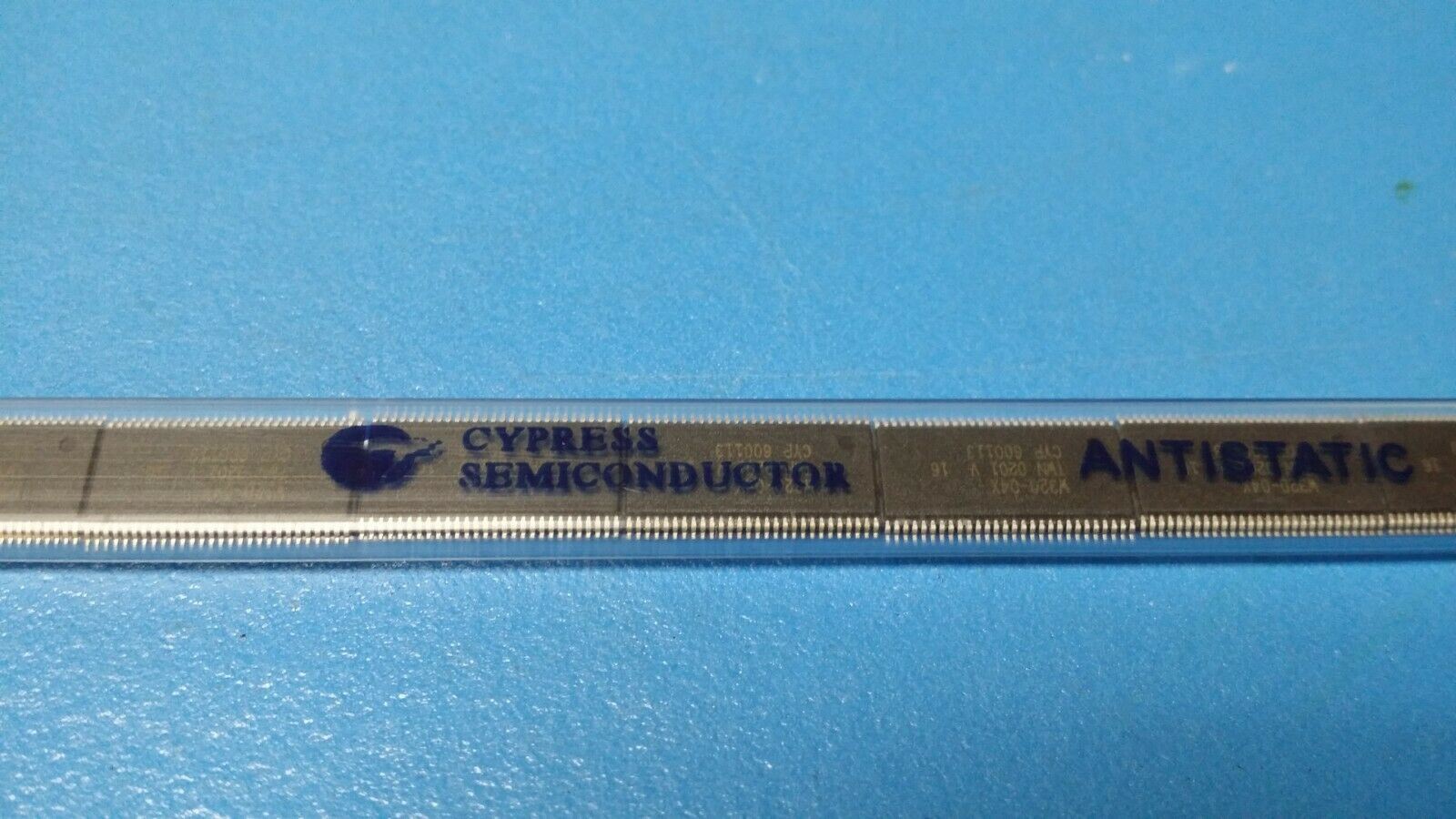

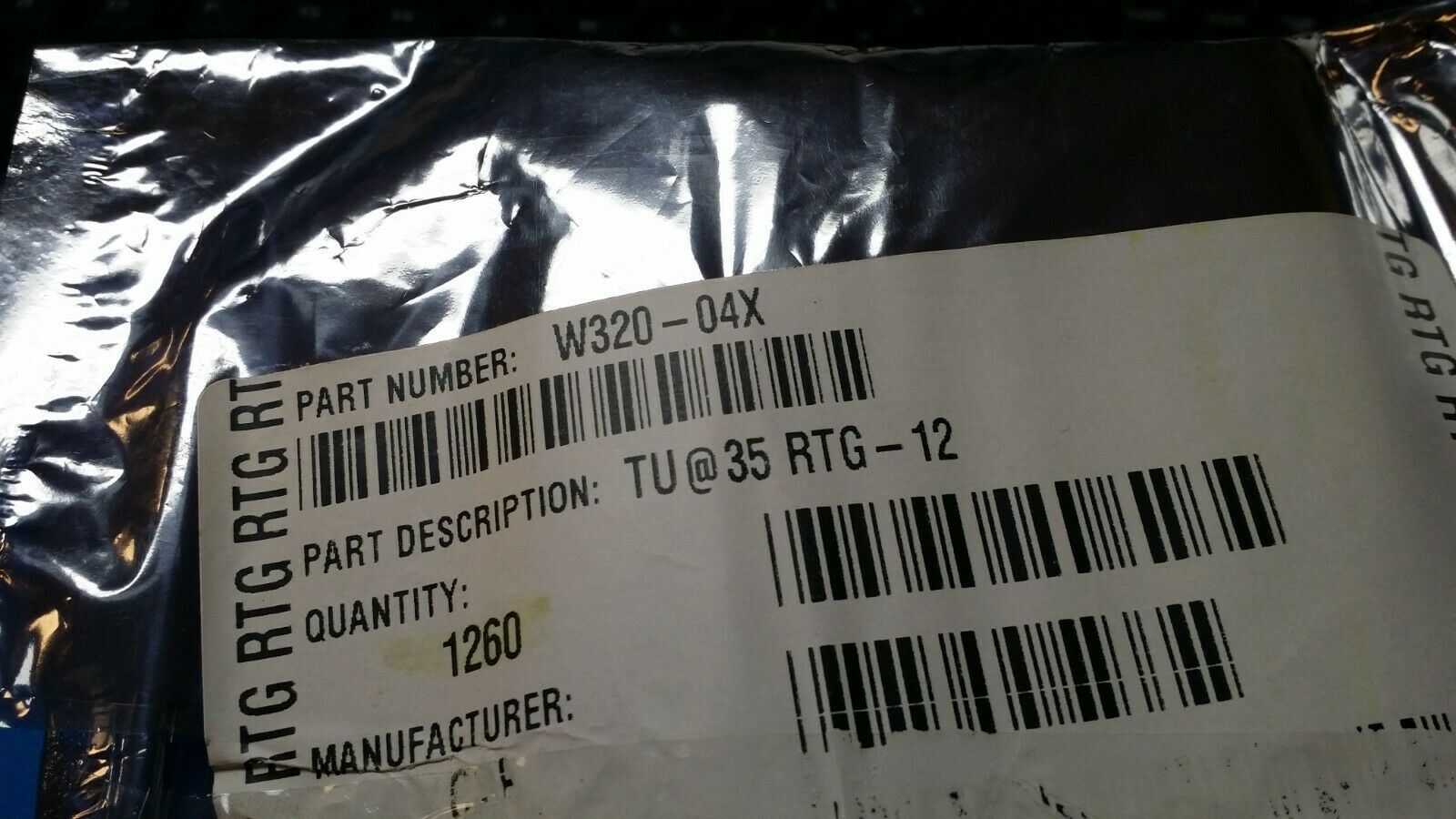

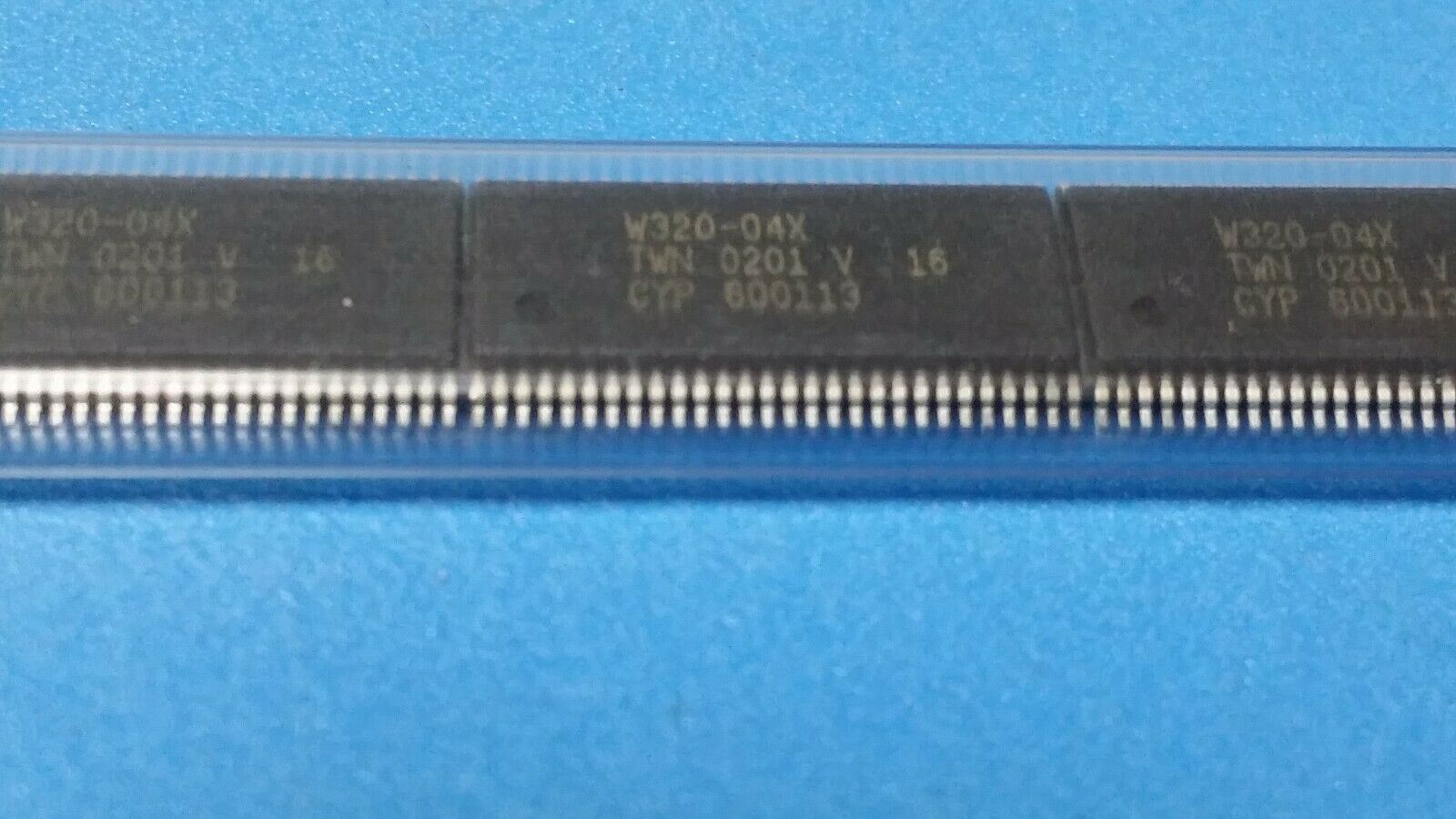

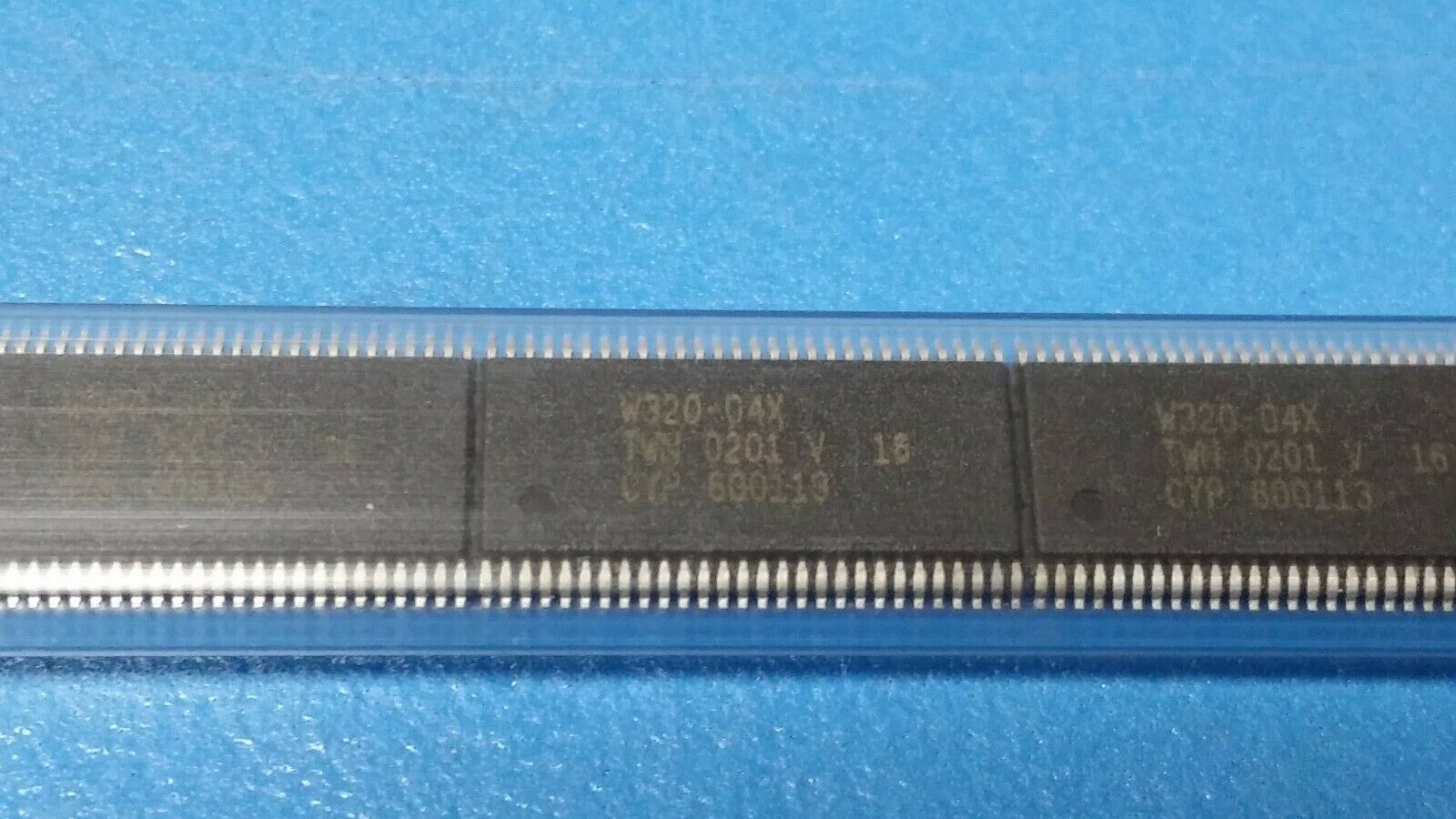

THIS LISTING IS FOR (5 PCS) OF W320-04X BY CYPRESS
PLL Clock Synthesizer Dual 56-Pin TSSOP
Key Features
Compliant with Intel® CK-Titan clock synthesizer/driver specifications
Multiple output clocks at different frequencies
Three pairs of differential CPU outputs, up to 200 MHz
Ten synchronous PCI clocks, three free-running
Six 3V66 clocks
Two 48-MHz clocks
One reference clock at 14.318 MHz
One VCH clock
Spread Spectrum clocking (down spread)
Power-down features (PCI-STOP#, CPU-STOP# PWR-DWN#)
Three Select inputs (Mode select and IC Frequency Select)
OE and Test Mode support
56-pin SSOP package and 56-pin TSSOP package
Max Processing Temp 260
Minimum Input Frequency 14.318 MHz
Mounting Surface Mount
MSL Level 1
Number of Elements per Chip 2
Operating Supply Voltage 3.3 V
Operating Temperature 0 to 70 °C
Output Frequency Range 33, 200 MHz
Pin Count 56
Product Dimensions 6.2 x 14.1 x 2.29 mm
Screening Level Commercial
Supplier Package TSSOP
Type PLL Clock Synthesizer
