(5 PCS) V15T16-CP300-A01 HONEYWELL Short Lever SPST Micro-switch 16A 1/2HP ROHS
Tax included.
THIS IS FOR (5 PCS) OF V15T16-CP300-A01 BY HONEYWELL

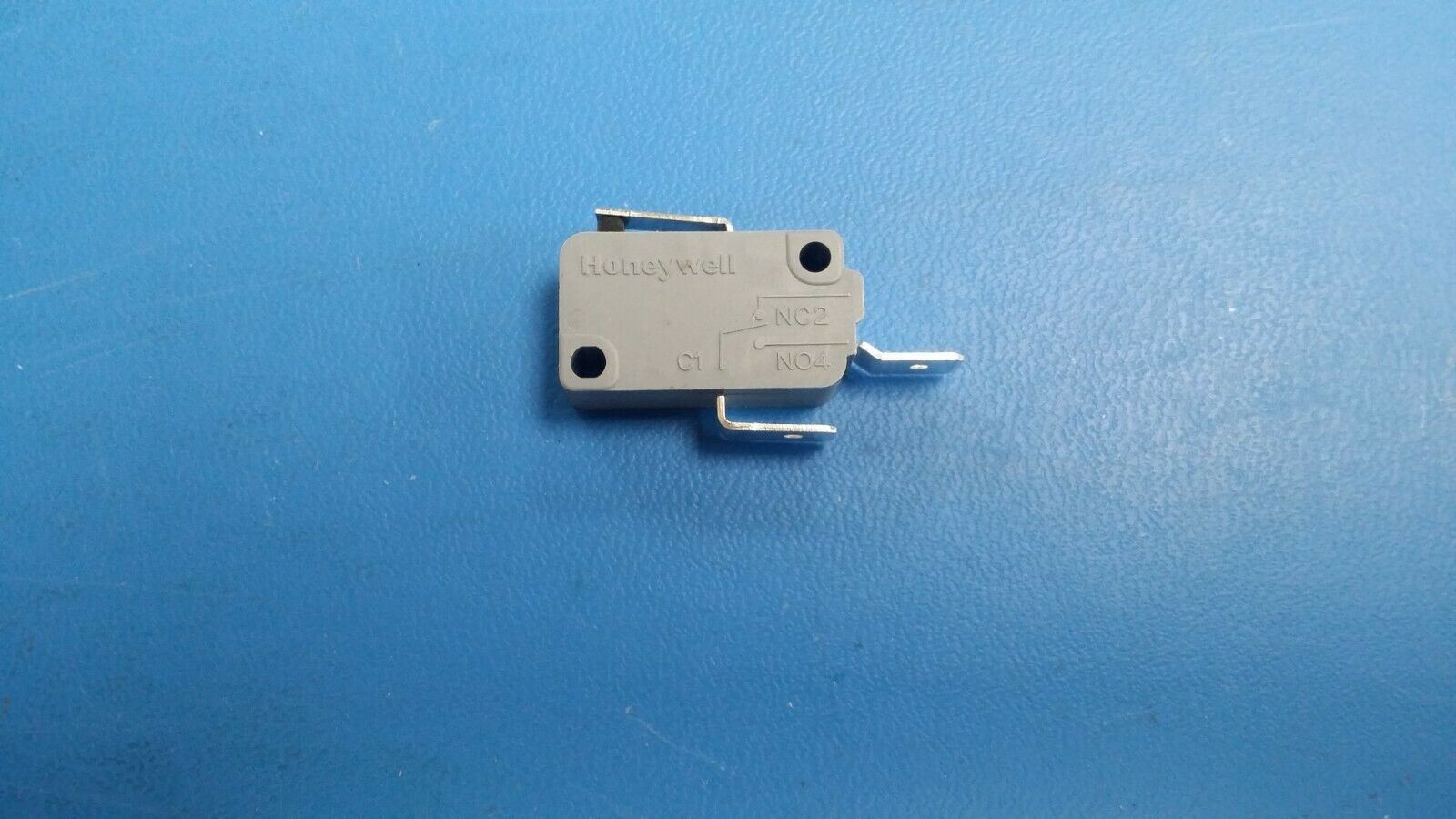

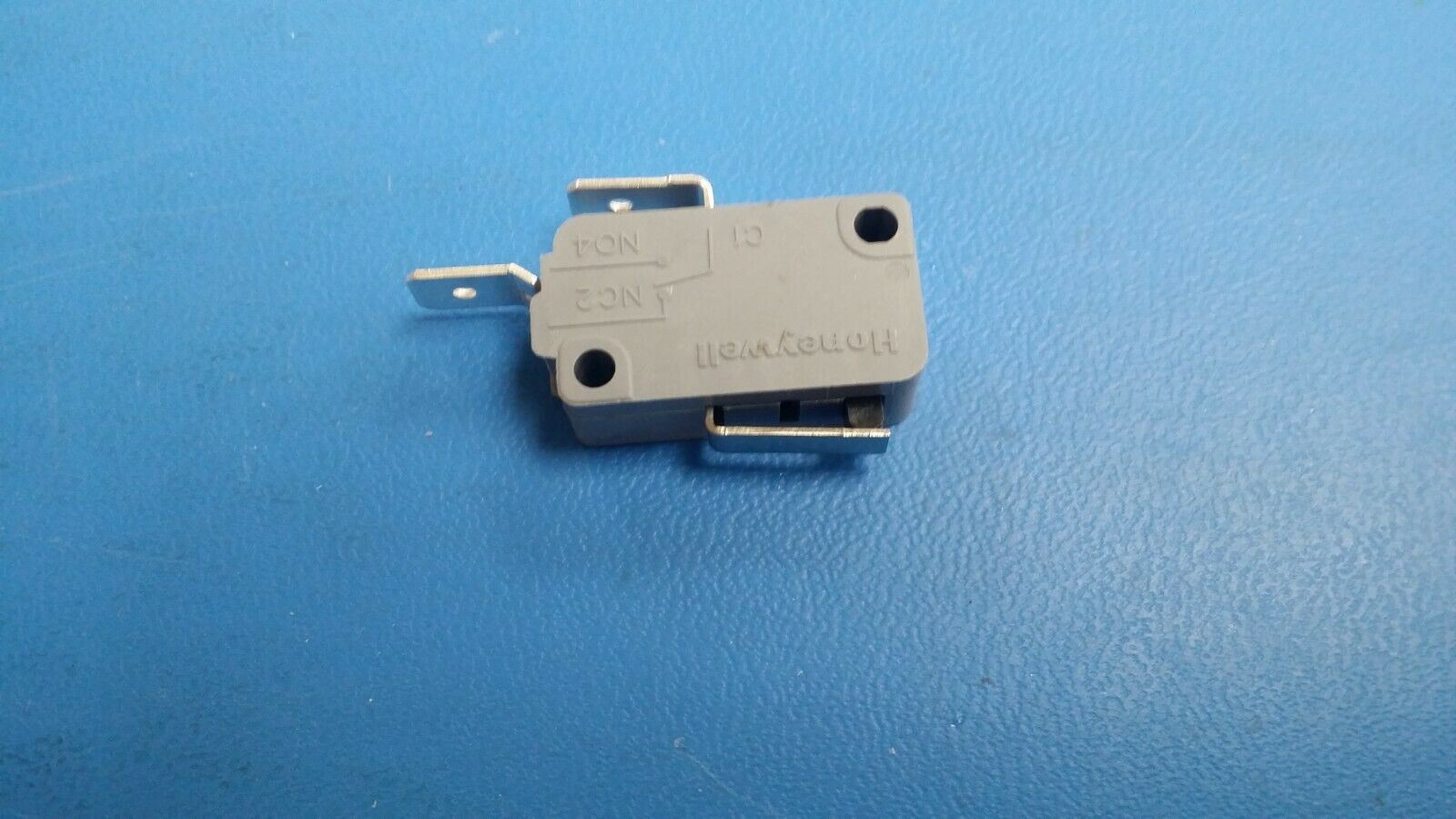

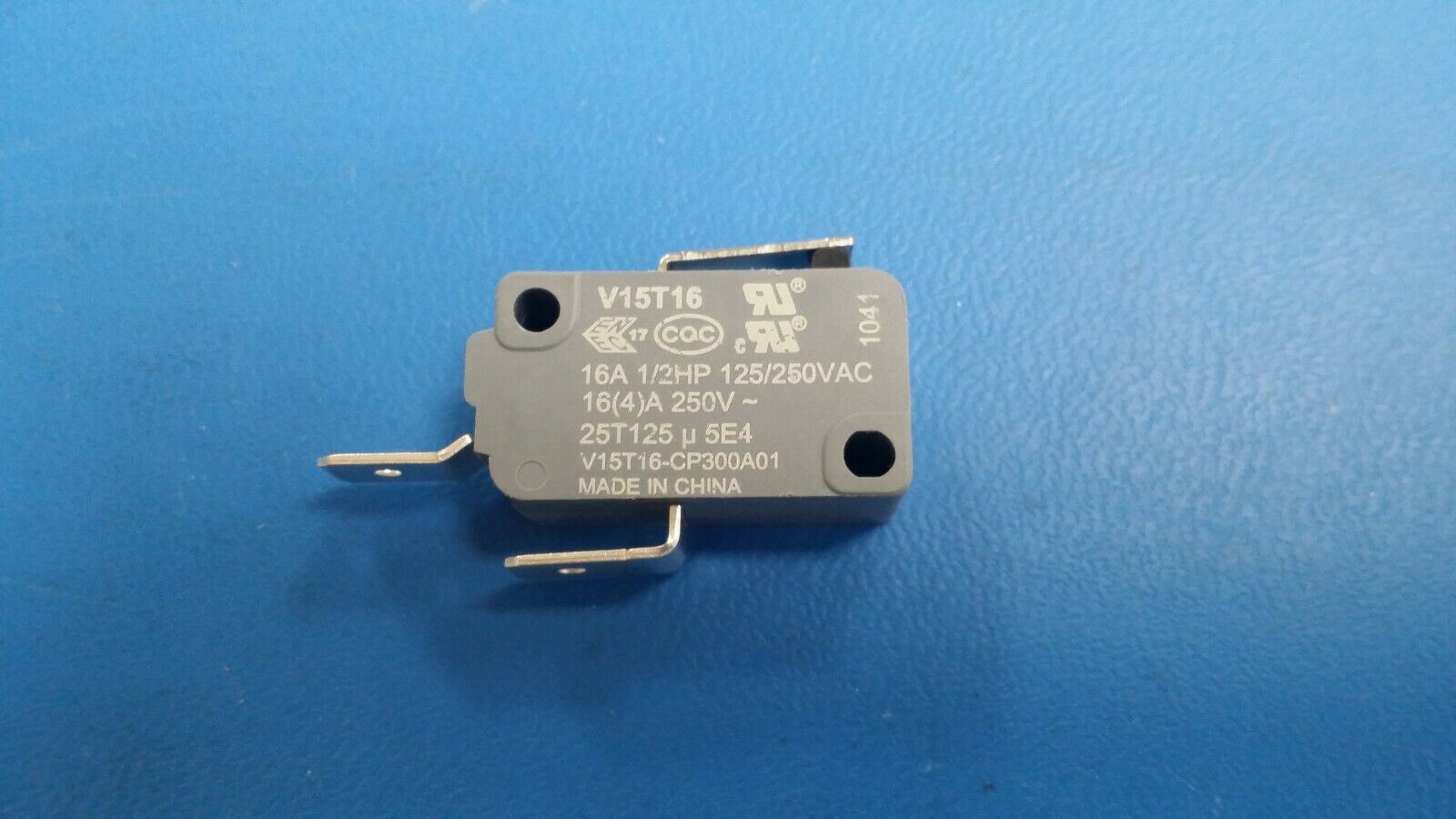

Short Lever SPST-NO Micro-switch, 16A, 1/2HP ROHS
Part #: V15T16-CP300A01
Part Category: Switches
Manufacturer: Honeywell Sensing and Control
Description: Snap Acting/Limit Switch, SPST, Momentary, Quick Connect Terminal, Short Straight Lever Actuator, Panel Mount
Status Active
Switch Type SNAP ACTING/LIMIT SWITCH
Actuator Type SHORT STRAIGHT LEVER
Body Breadth 10.3 mm
Body Height 15.9 mm
Body Length or Diameter 27.8 mm
Contact AC Max Rating R Load 16A@250VAC
Contact Current(AC)-Max 16.0 A
Contact Voltage(AC)-Max 250.0 V
Electrical Life 6000.0 Cycle(s)
Mounting Feature PANEL MOUNT
Operating Force-Max 2.94 N
Switch Action MOMENTARY
Switch Function SPST
Termination Type QUICK CONNECT
