(5 PCS) UPW1A472MHD NICHICON Cap Aluminum Lytic 4700uF 10V 20% 105°C Radial
Tax included.

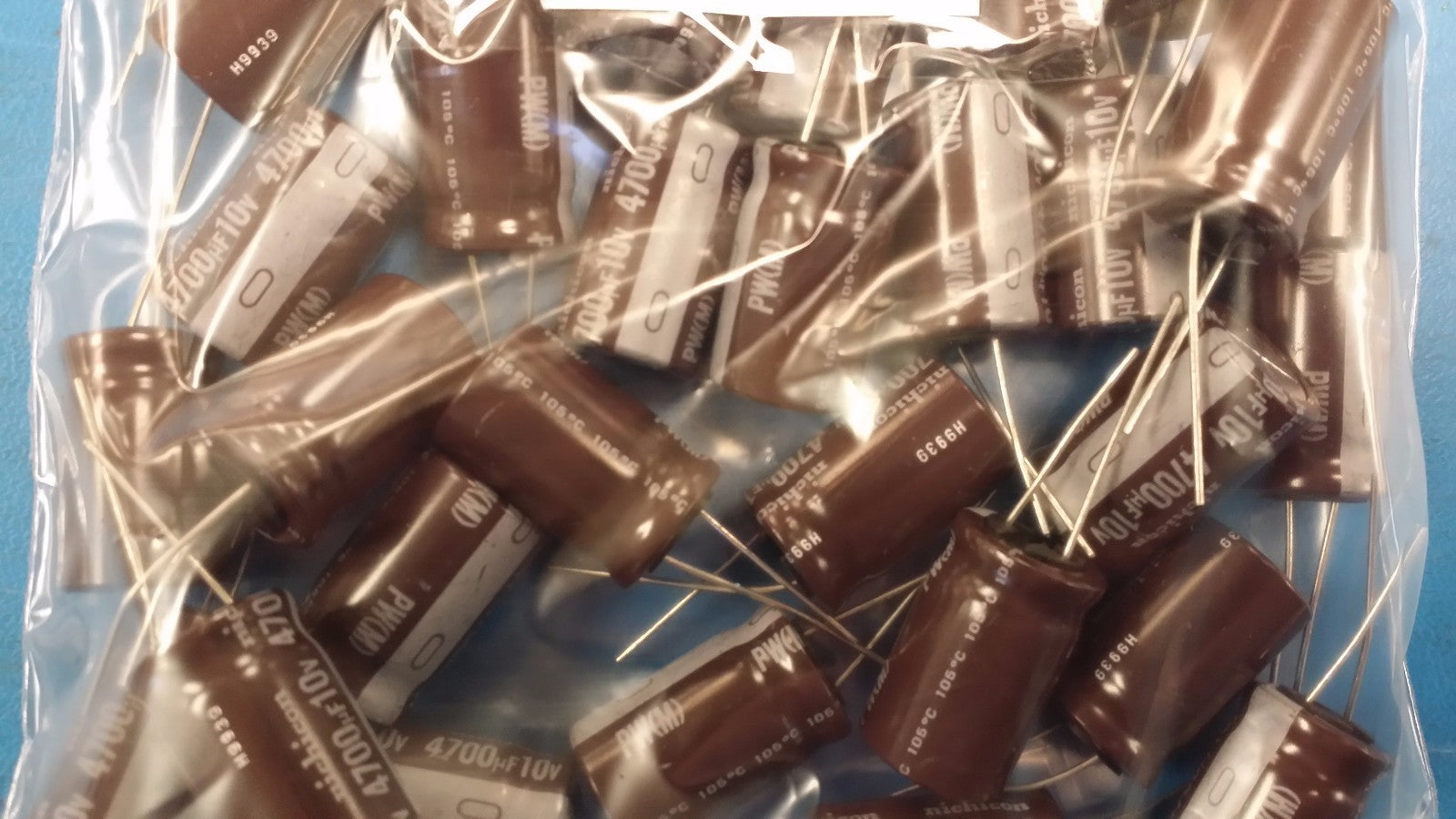

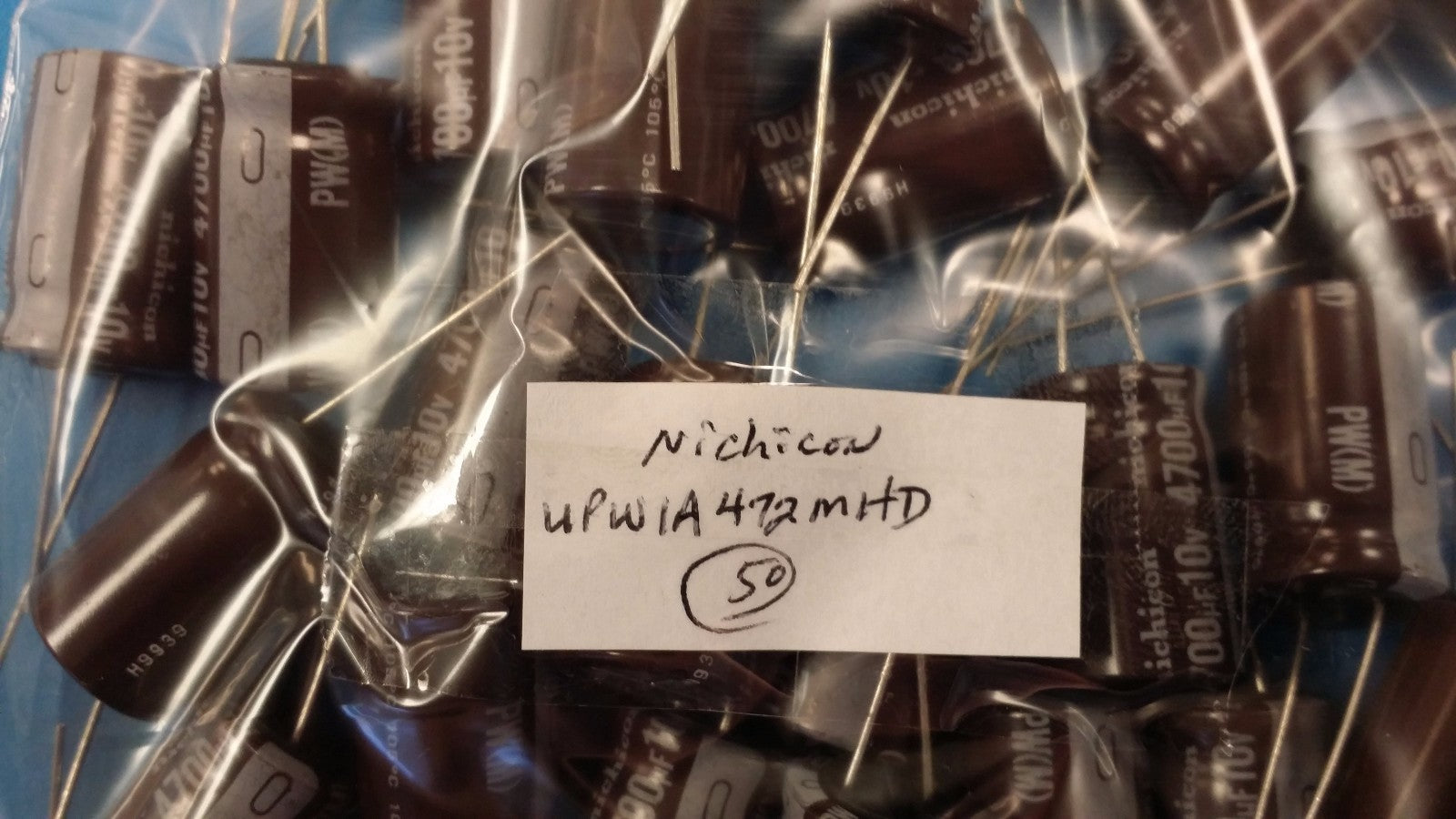

THIS LISTING IS FOR (5 PCS) OF UPW1A472MHD BY NICHICON
Cap Aluminum Lytic 4700uF 10V 20% 105°C Radial
Manufacturer Nichicon
Series UPW
Packaging Bulk
Part Status Active
Capacitance 4700µF
Tolerance ±20%
Voltage - Rated 10V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 2.555A @ 100kHz
Impedance 22 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
