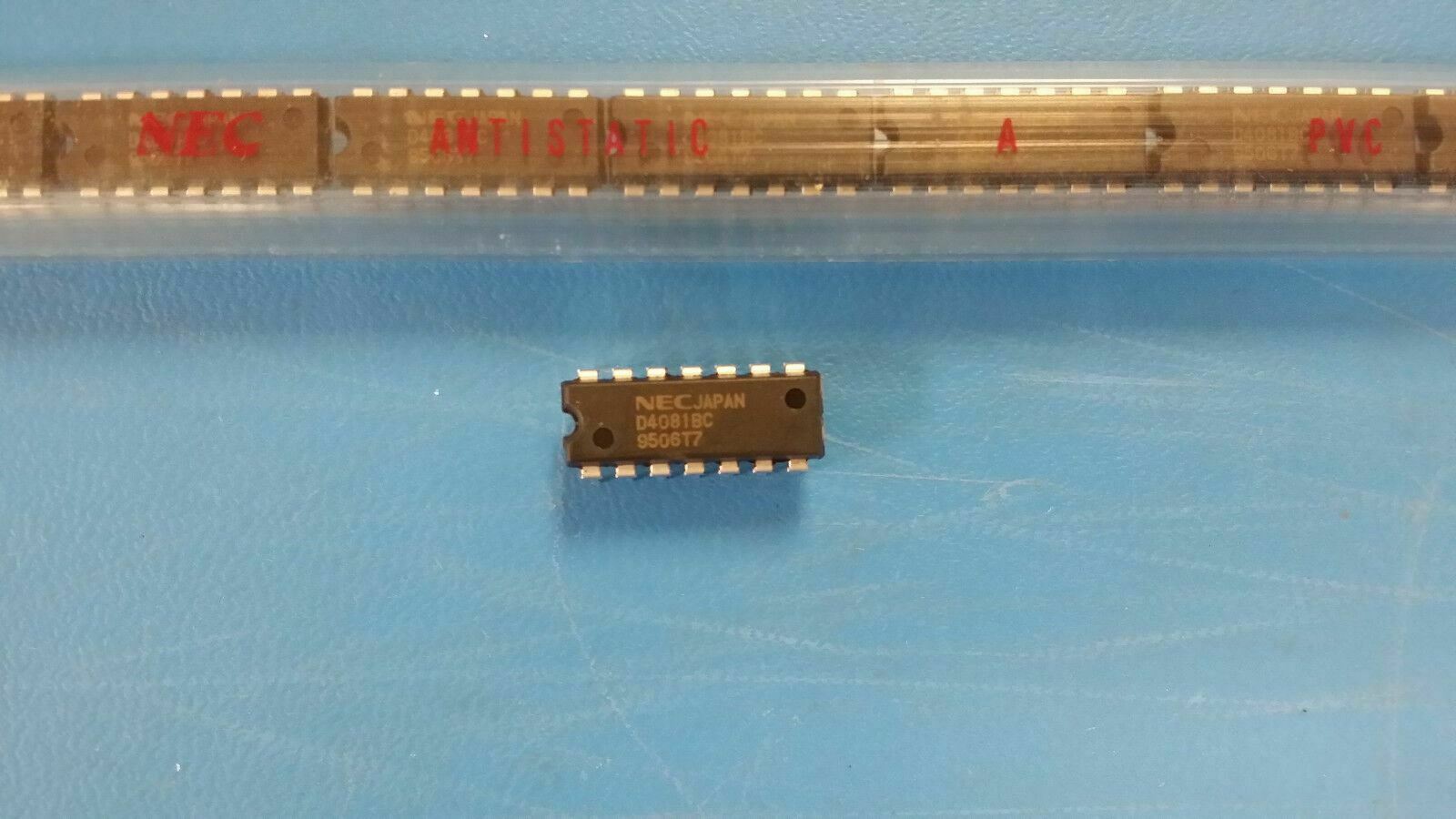

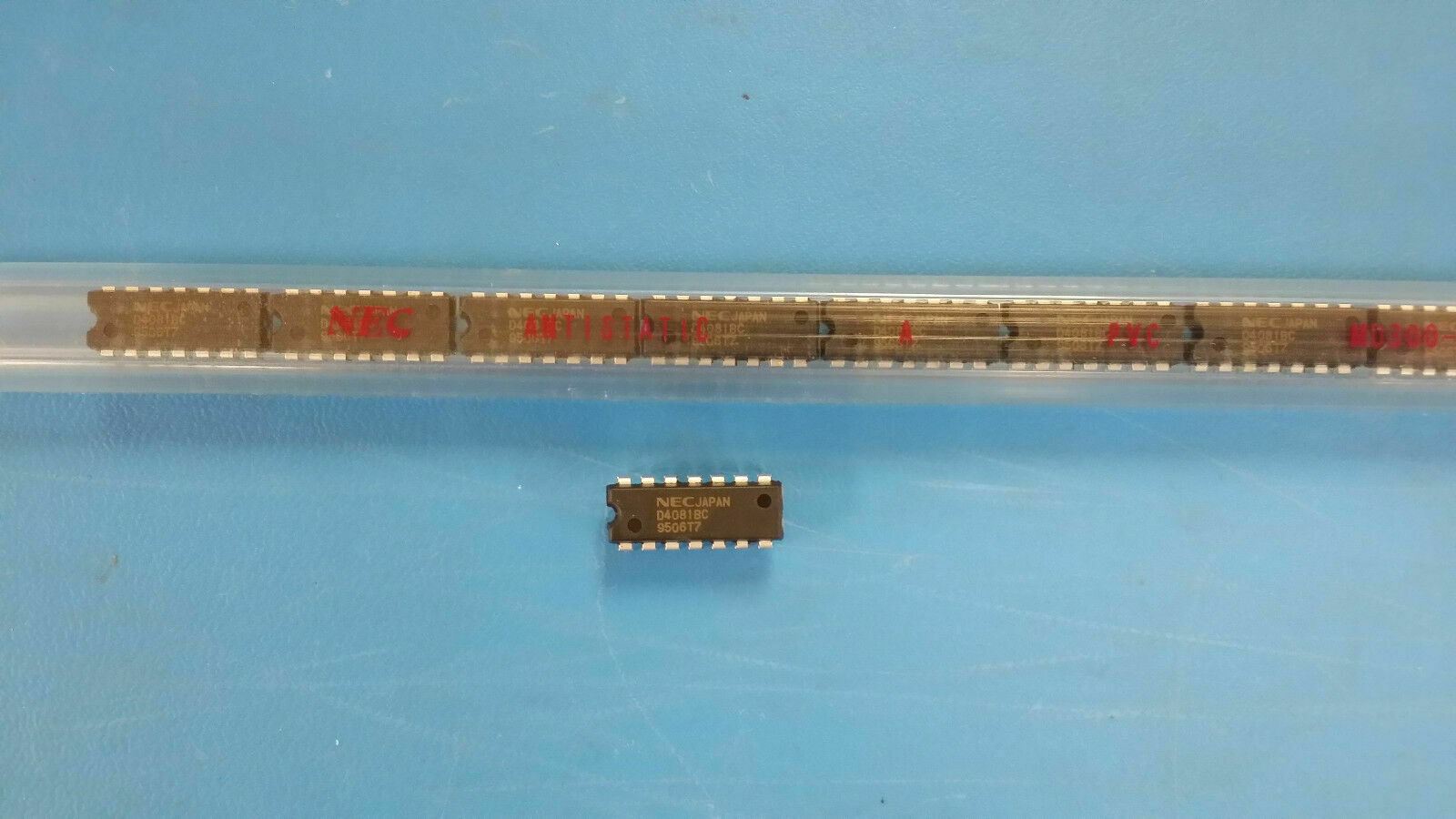

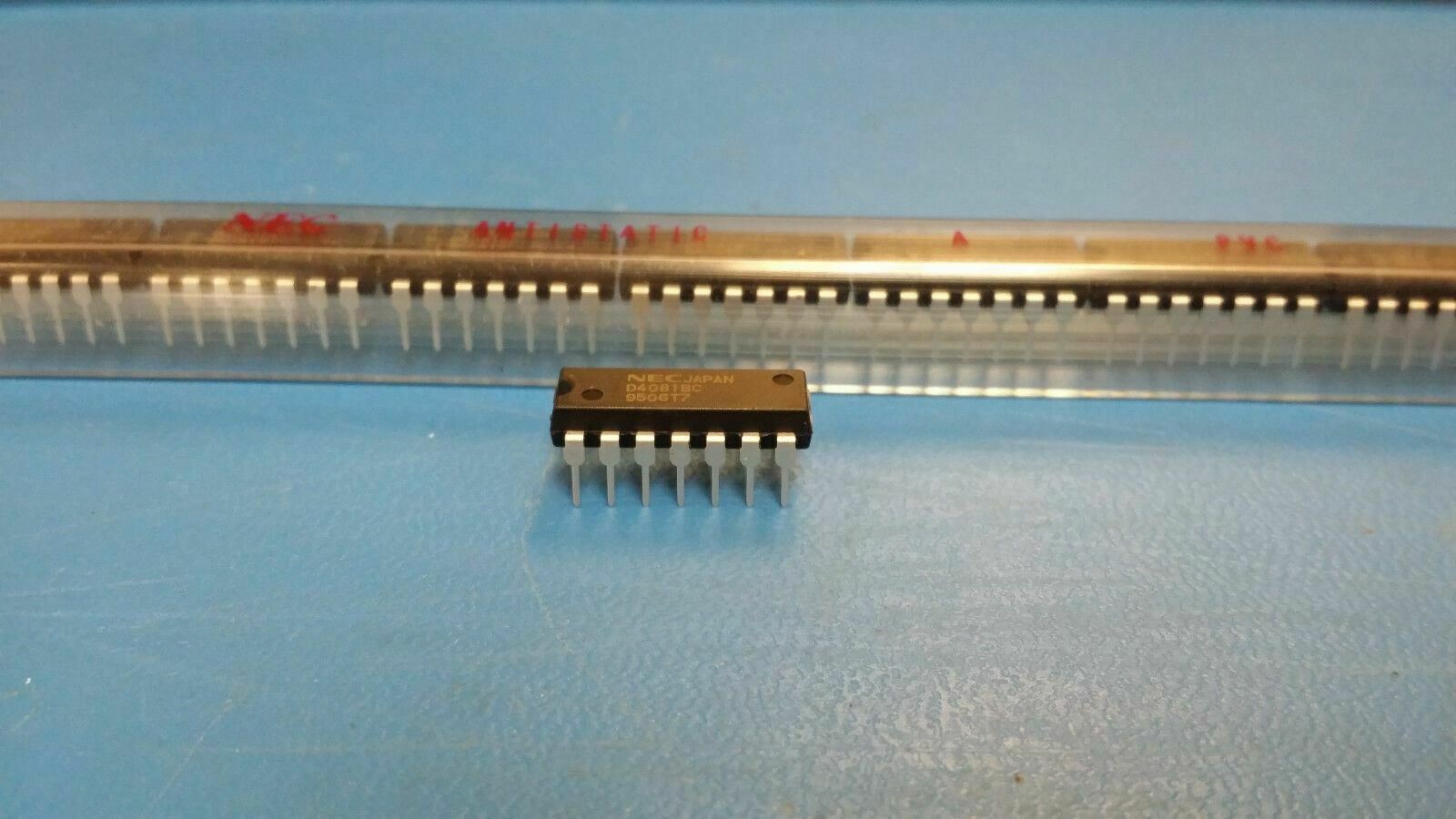

(5 PCS) UPD4081BC NEC IC GATE AND 4CH 2-INP 14-DIP
Tax included.
THIS LISTING IS FOR (5 PCS) OF UPD4081BC BY NEC
IC GATE AND 4CH 2-INP 14-DIP
Manufacturer:
IC GATE AND 4CH 2-INP 14-DIP
Manufacturer:
| NEC | ||
| Product Category: | Logic Gates | |
| Product: | Single-Function Gate | |
| Logic Function: | AND | |
| Number of Gates: | 4 Gate | |
| Number of Input Lines: | 8 Input | |
| Number of Output Lines: | 4 Output | |
| High Level Output Current: | - 3.6 mA | |
| Low Level Output Current: | 3.6 mA | |
| Propagation Delay Time: | 50 ns | |
| Supply Voltage - Max: | 15 V | |
| Supply Voltage - Min: | 3 V | |
| Maximum Operating Temperature: | + 125 C | |
| Mounting Style: | Through Hole | |
| Package / Case: | DIP-14 | |
| Packaging: | Tube | |
| Brand: | NEC |
|
| Function: | AND |
|
| Height: | 3.2 mm |
|
| Length: | 19.5 mm |
|
| Logic Type: | Quad AND Gate |
|
| Minimum Operating Temperature: | - 40 C |
|
| Operating Supply Voltage: | 4.5 V to 15.5 V |
