(5 PCS) TS461CD STMICRO Op Amp Single GP R-R O/P ±5V/10V SOIC-8 ROHS
Tax included.

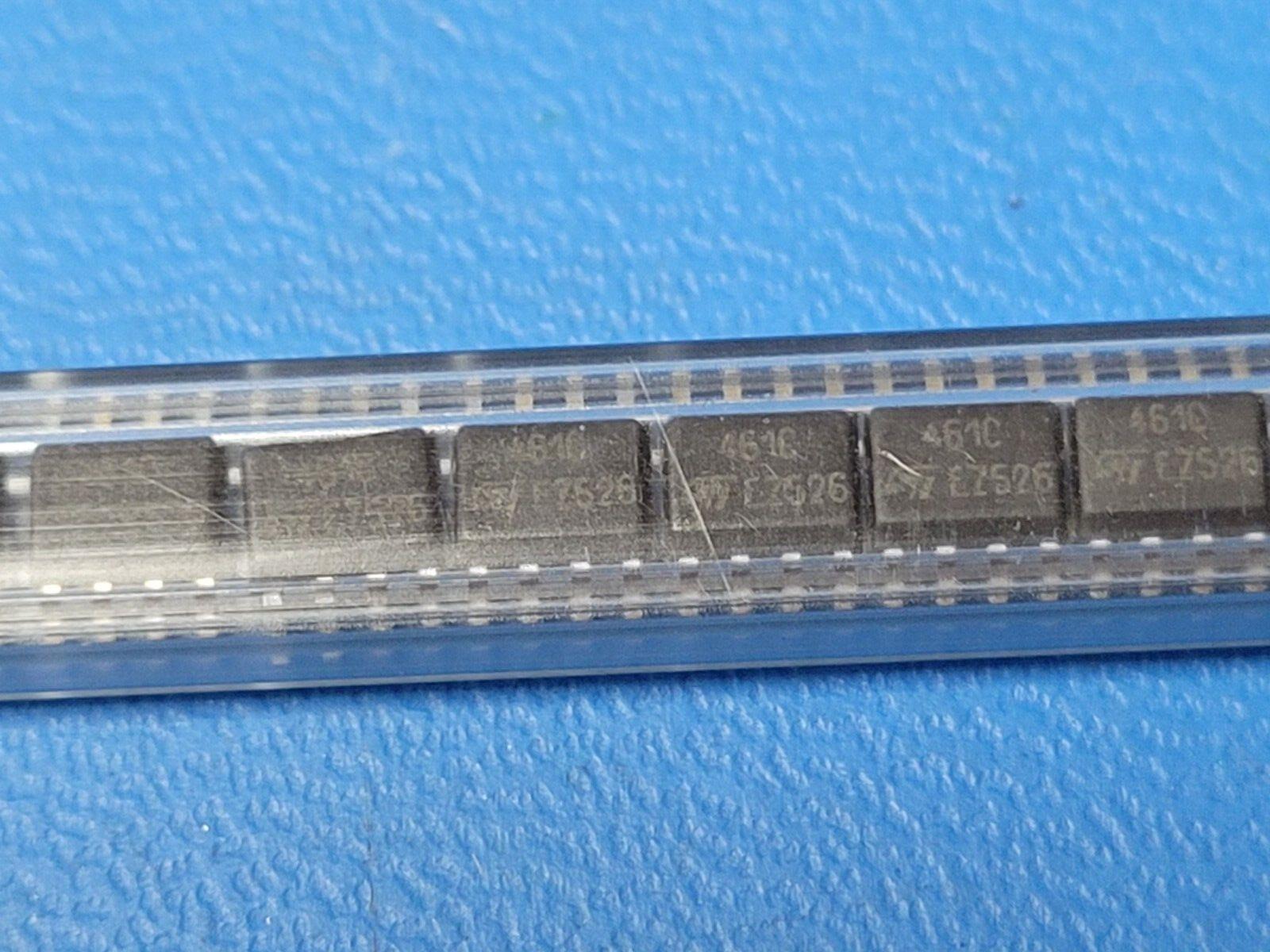

THIS IS FOR (5 PCS) OF TS461CD BY STMICRO
Op Amp Single GP R-R O/P ±5V/10V SOIC-8 ROHS
Manufacturer: STMicroelectronics
Product Category: Operational Amplifiers - Op Amps
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Number of Channels: 1 Channel
Supply Voltage - Max: 10 V, +/- 5 V
GBP - Gain Bandwidth Product: 12 MHz
SR - Slew Rate: 4 V/us
Vos - Input Offset Voltage: 5 mV
Supply Voltage - Min: 2.7 V, +/- 1.35 V
Minimum Operating Temperature: - 20 C
Maximum Operating Temperature: + 70 C
Ib - Input Bias Current: 750 nA
Operating Supply Current: 2.8 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 60 dB
en - Input Voltage Noise Density: 4 nV/sqrt Hz
Series: TS461
Packaging: Tube
Amplifier Type: General Purpose Amplifier
Brand: STMicroelectronics
Dual Supply Voltage: +/- 3 V
Height: 1.65 mm (Max)
Length: 5 mm (Max)
Maximum Dual Supply Voltage: +/- 5 V
Minimum Dual Supply Voltage: +/- 1.35 V
Operating Supply Voltage: 2.7 V to 10 V, +/- 1.35 V to +/- 5 V
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 60 dB
