(5 PCS) TS274CN Operational Amplifier, 4 Func, 12000uV Offset-Max, CMOS, PDIP14
Tax included.

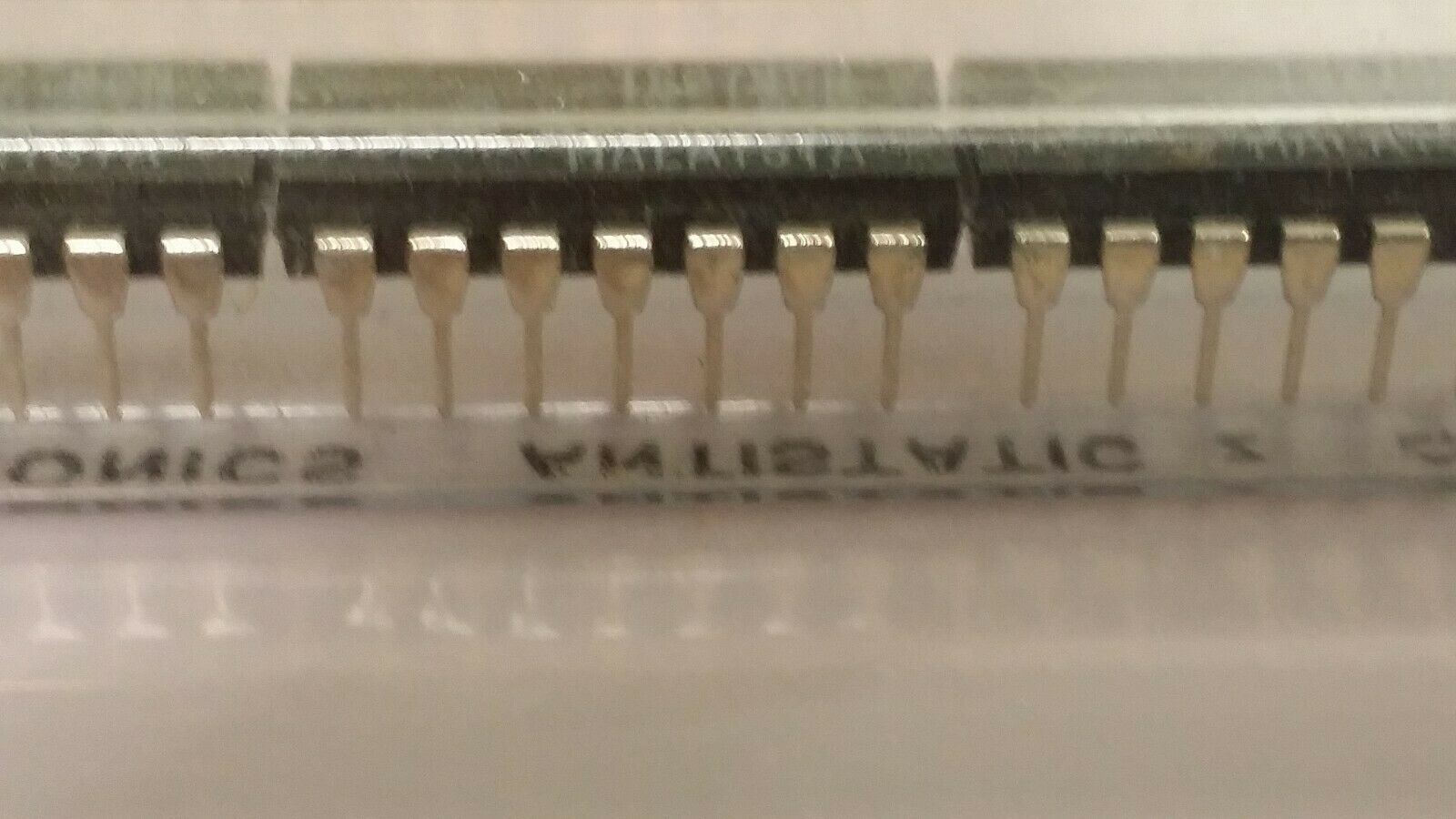

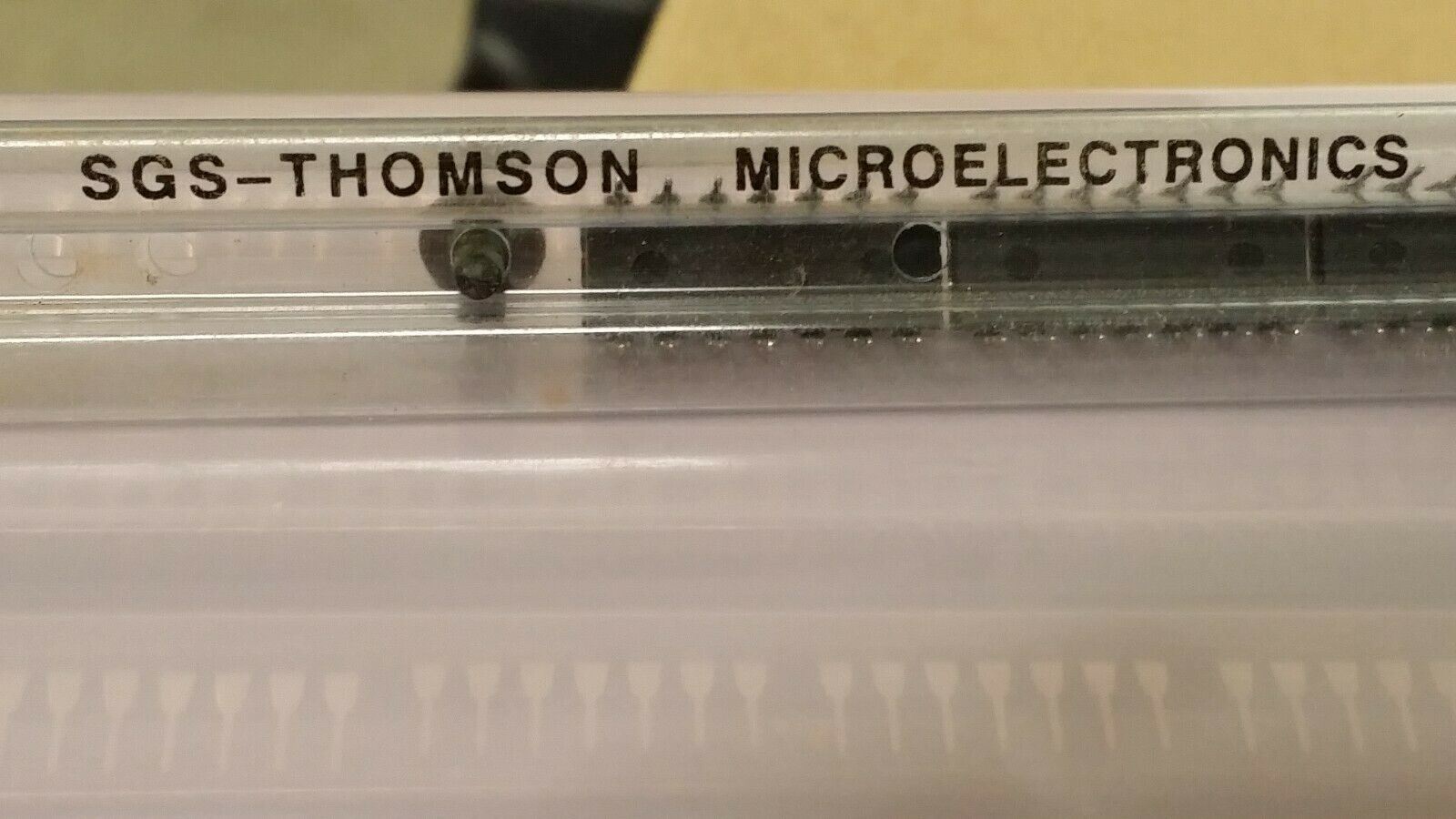

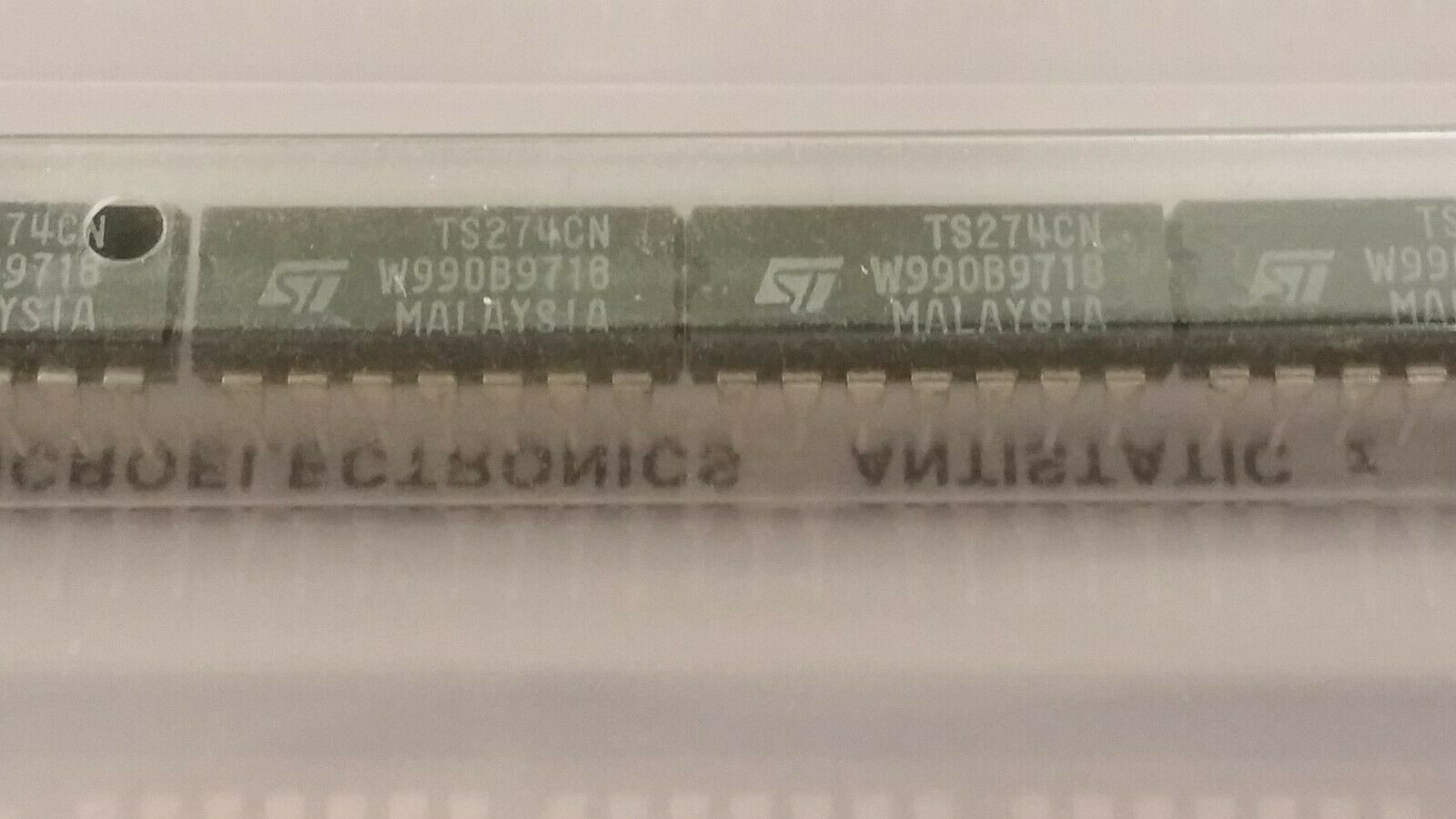

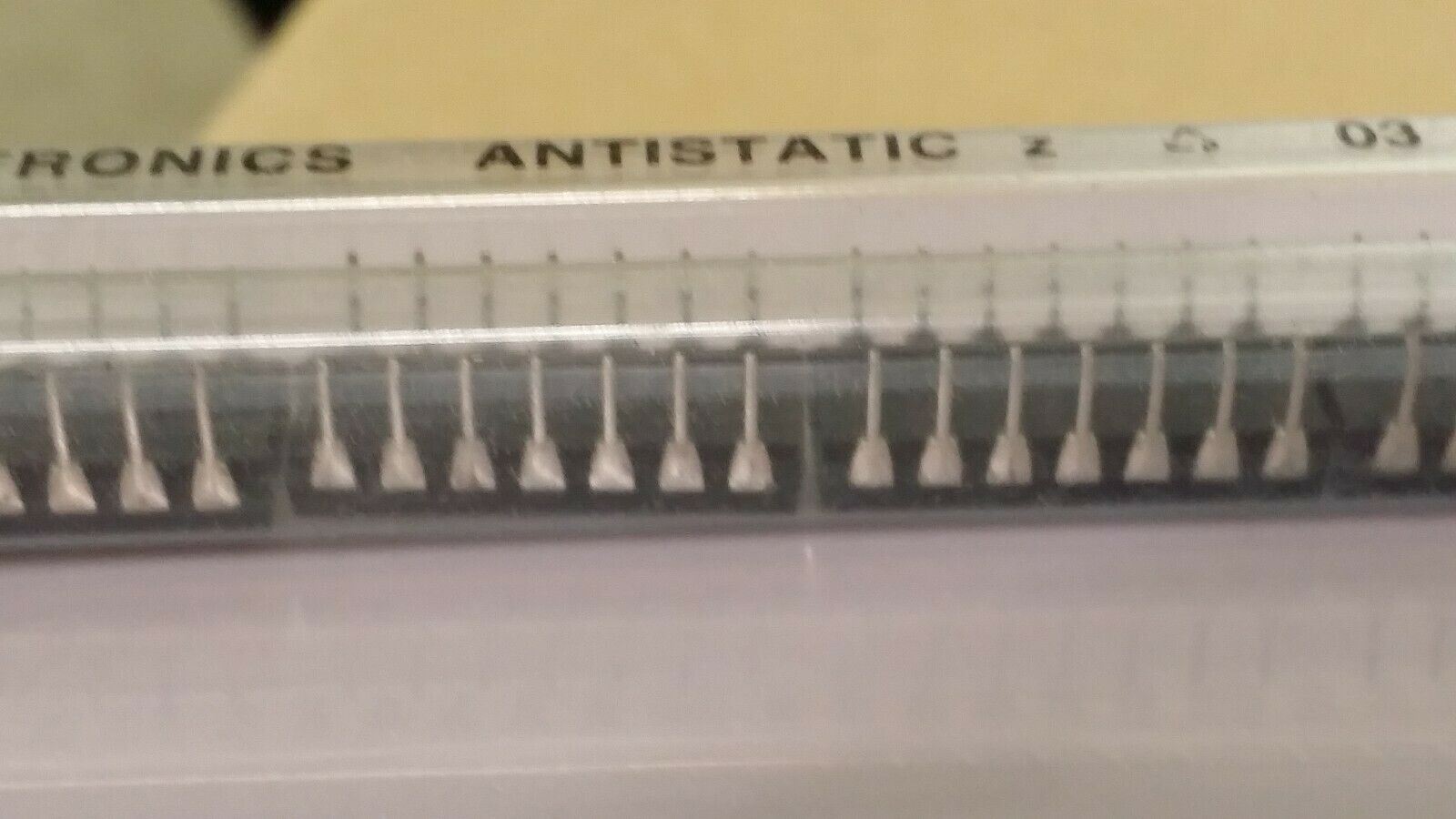

THIS LISTING IS FOR (5 PCS) OF TS274CN BY STMicroelectronics
Operational Amplifier, 4 Func, 12000uV Offset-Max, CMOS, PDIP14
Part #: TS274CN
Part Category: Amplifiers
Manufacturer: STMicroelectronics, Inc.
Description: Operational Amplifier, 4 Func, 12000uV Offset-Max, CMOS, PDIP14
Mfr Package Description PLASTIC, DIP-14
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 1.5E-4 µA
Bias Current-Max (IIB) @25C 1.5E-4 µA
Common-mode Reject Ratio-Nom 80.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 12000.0 µV
JESD-30 Code R-PDIP-T14
JESD-609 Code e4
Low-Bias YES
Low-Offset NO
Neg Supply Voltage Limit-Max 0.0 V
Neg Supply Voltage-Nom (Vsup) 0.0 V
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.1 mm
Slew Rate-Nom 5.5 V/us
Sub Category Operational Amplifier
Supply Current-Max 6.4 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 10.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 3500.0 kHz
Voltage Gain-Min 7000.0
Width 7.62 mm
