(5 PCS) TPS79901DDCR TI IC REG LIN POS ADJ 200MA SOT23-5 ROHS
Tax included.

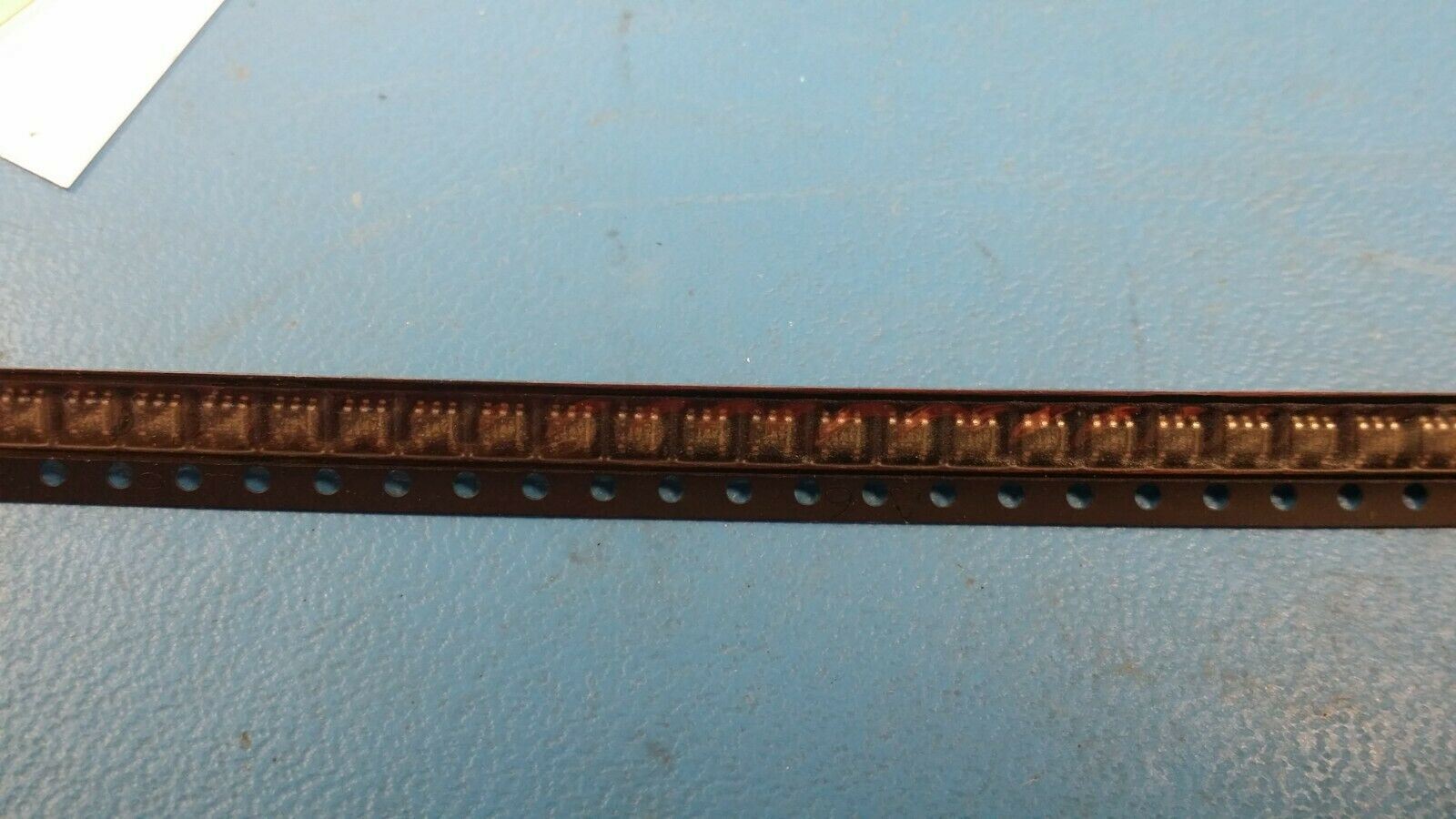

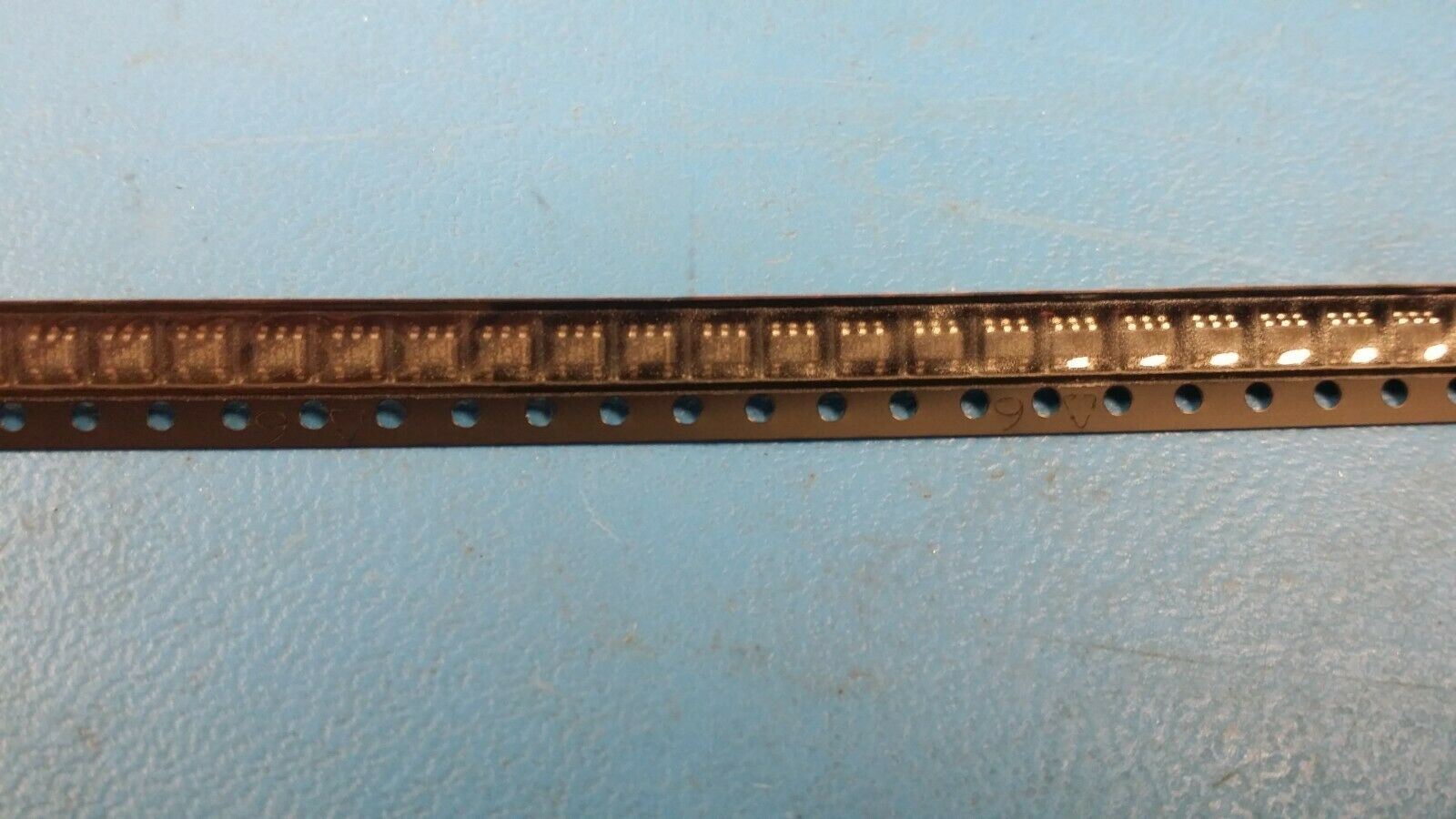

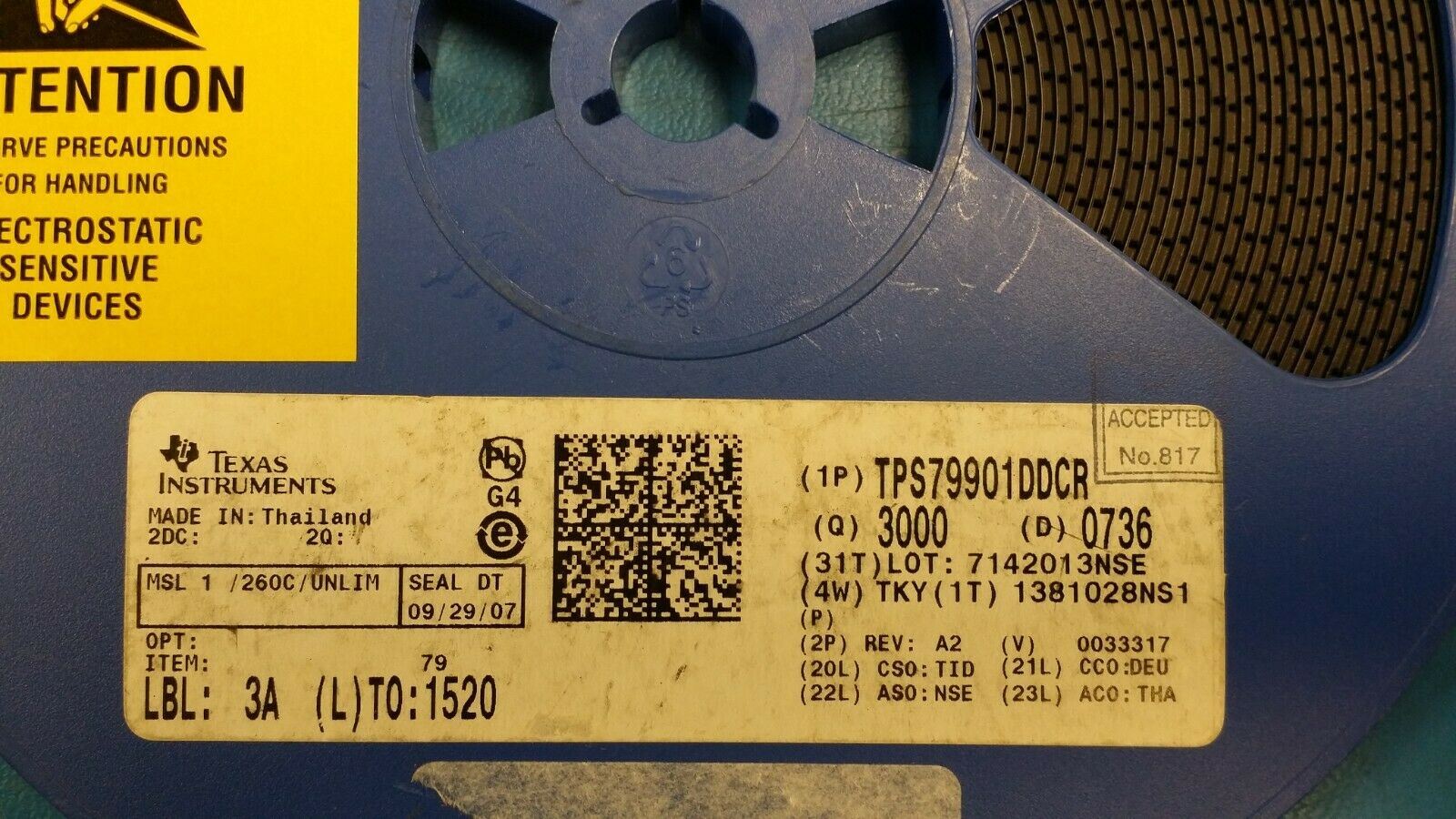

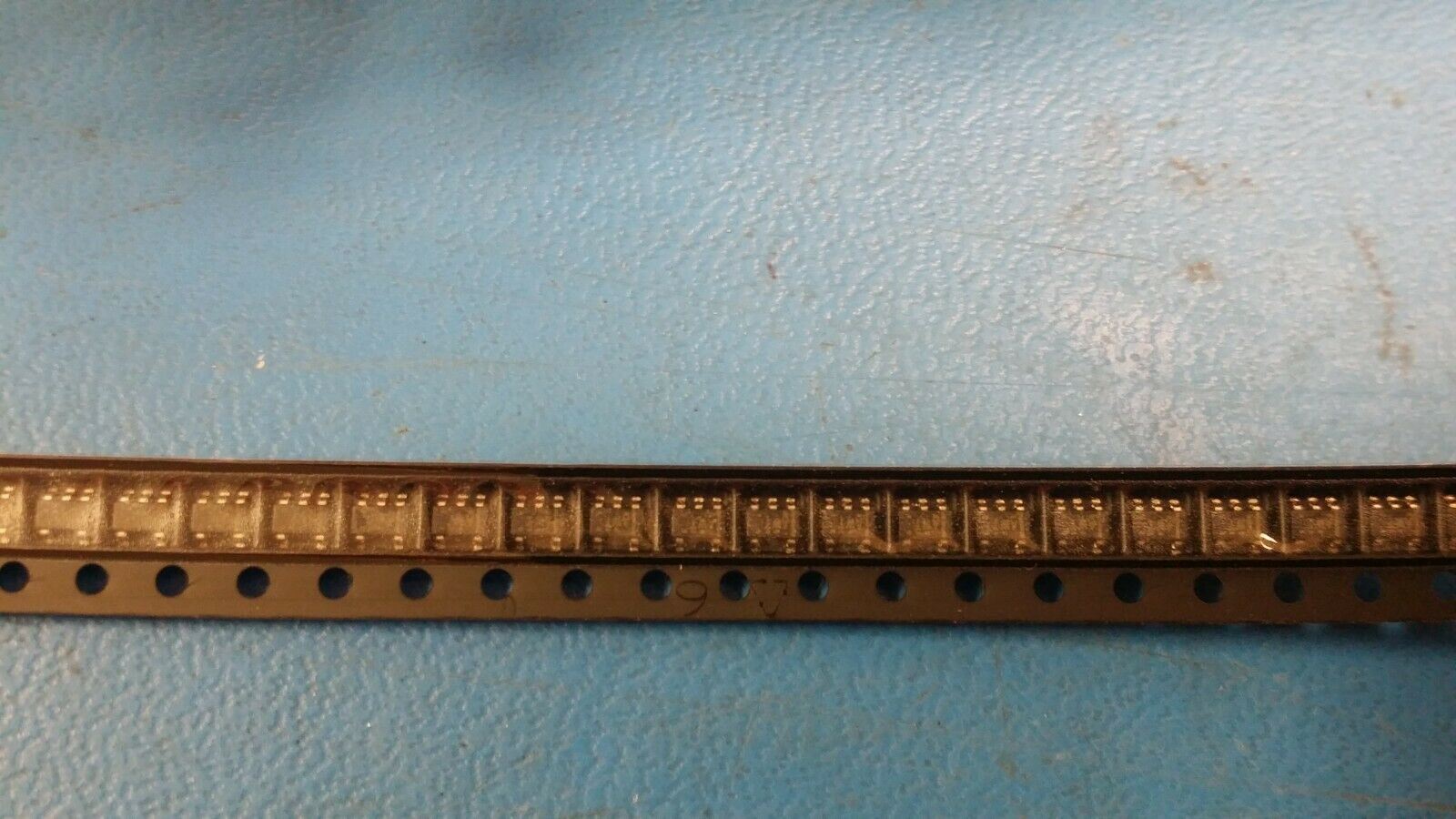

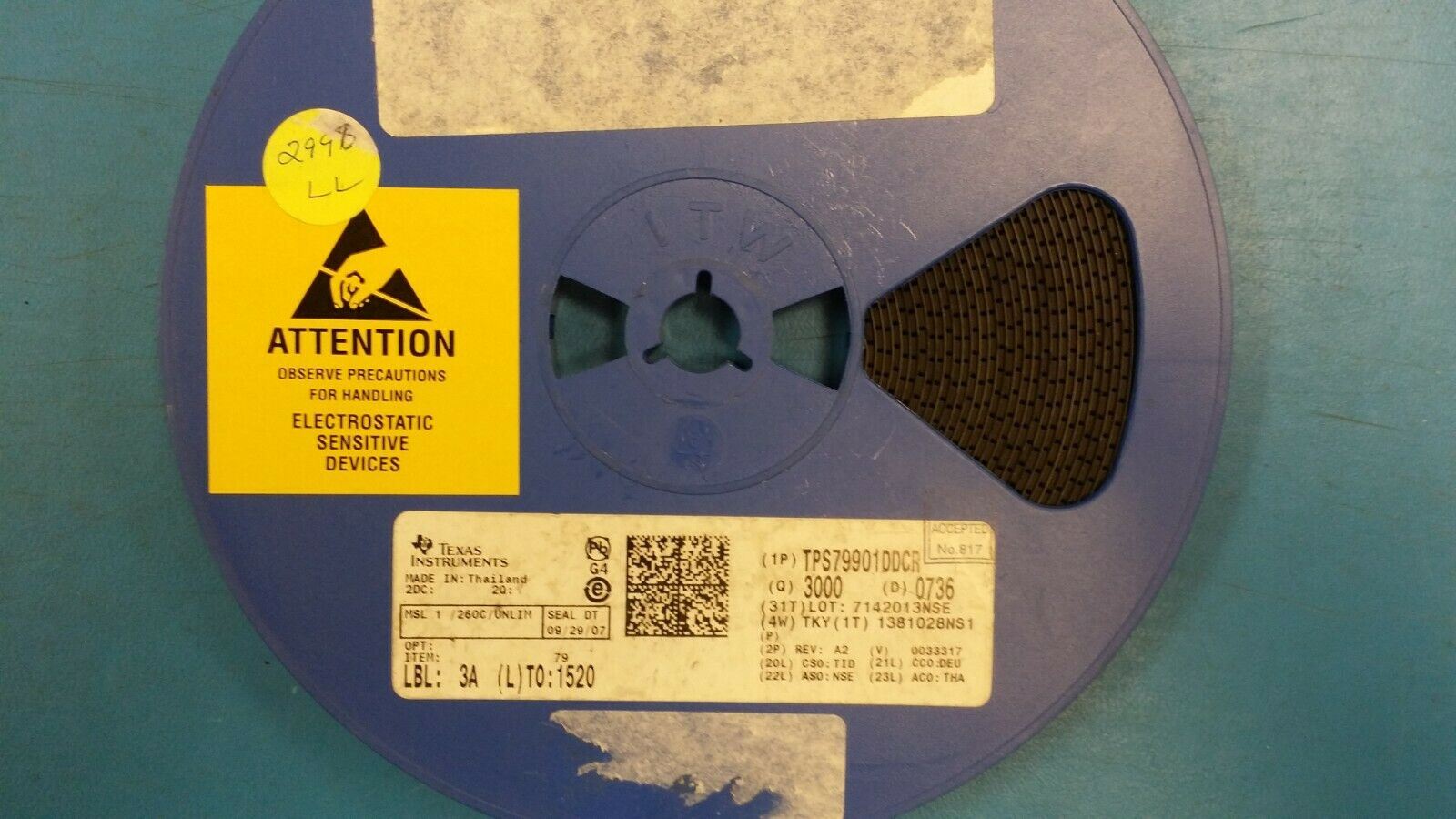

THIS LISTING IS FOR (5 PCS) OF TPS79901DDCR BY TI
IC REG LIN POS ADJ 200MA SOT23-5 ROHS
Manufacturer: Texas Instruments
Product Category: LDO Voltage Regulators
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: SOT-23-Thin-5
Output Voltage: 1.2 V to 6.5 V
Output Current: 200 mA
Number of Outputs: 1 Output
Polarity: Positive
Input Voltage MAX: 6.5 V
Input Voltage MIN: 2.7 V
Output Type: Adjustable
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Dropout Voltage: 100 mV
Series: TPS79901
Packaging: Cut Tape
Packaging: Reel
Height: 0.87 mm
Length: 2.9 mm
Operating Temperature Range: - 4
Width: 1.6 mm
Brand: Texas Instruments
Dropout Voltage - Max: 175 mV at 200 mA
Voltage Regulation Accuracy: 1 %
Ib - Input Bias Current: 40 uA
Line Regulation: 0.02 %/V
Load Regulation: 0.002 %/mA
Operating Supply Current: 40 uA
Pd - Power Dissipation: 0.5 W
Product Type: LDO Voltage Regulators
Reference Voltage: 1.193 V
Factory Pack Quantity: 3000
Subcategory: PMIC - Power Management ICs
Unit Weight: 0.001552 oz
