(5 PCS) TPC8403 (T2LWD) TOSHIBA Trans MOSFET N/P-CH 30V 6A/4.5A 8-Pin SOP
Tax included.

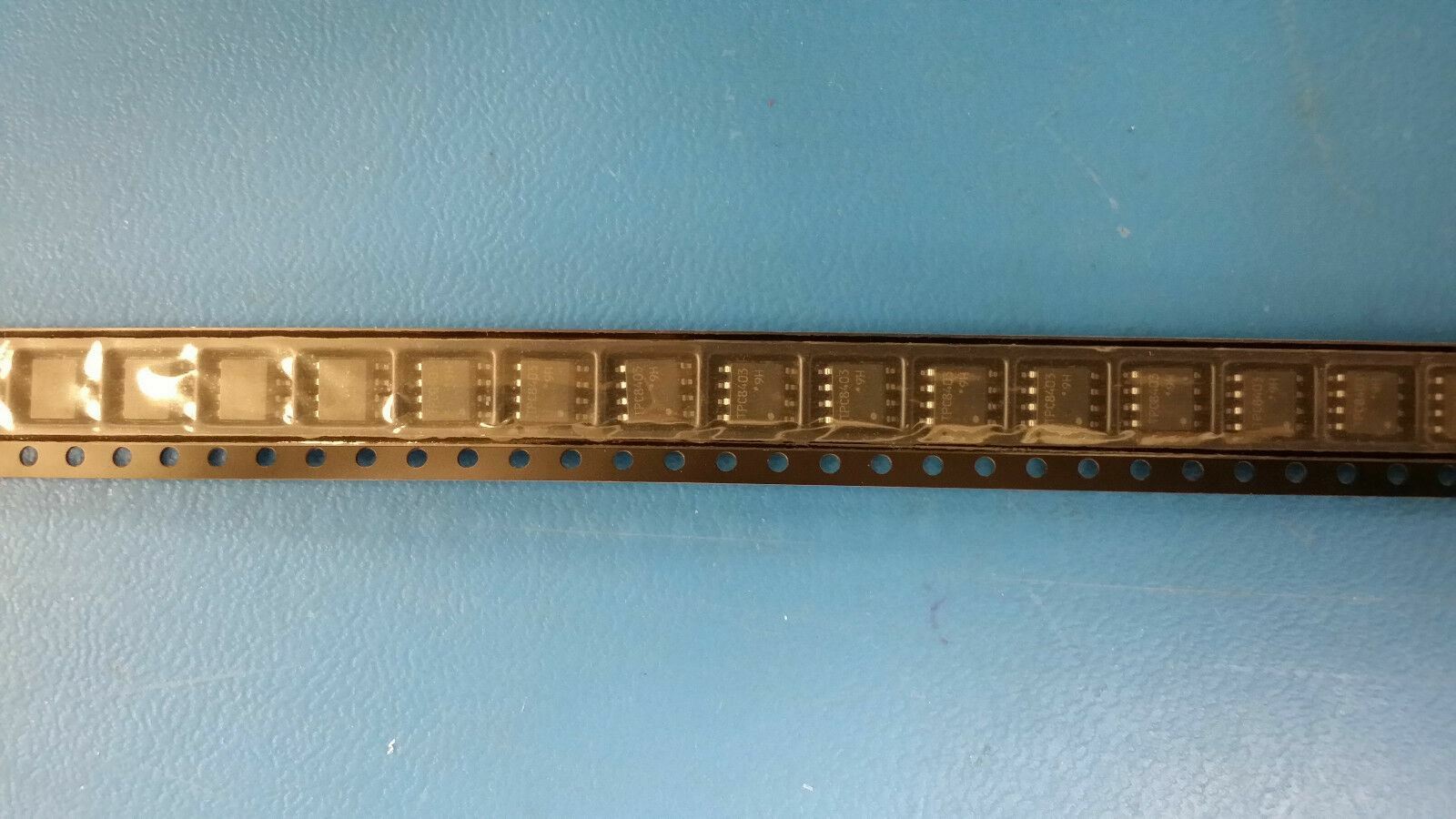

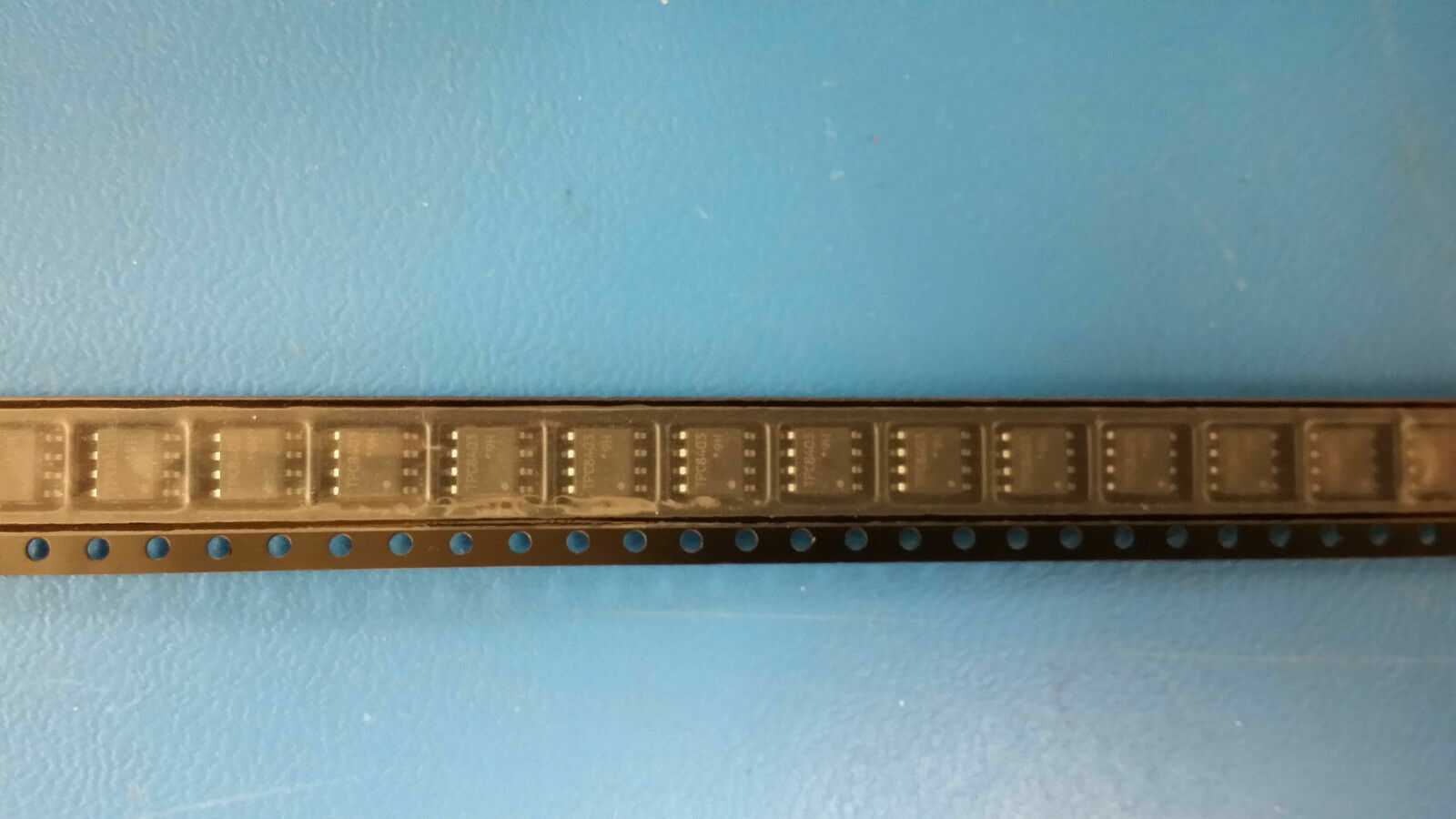

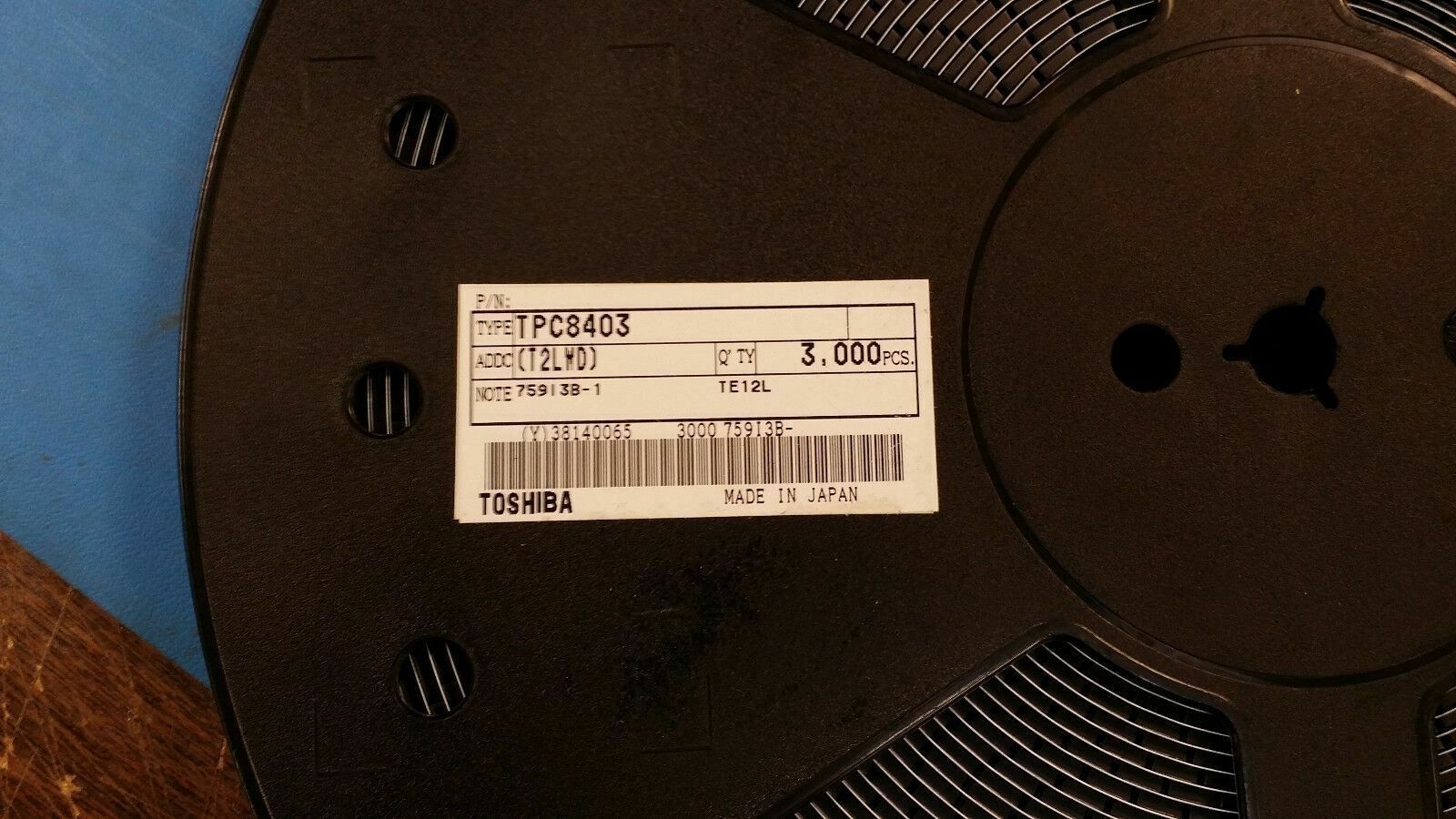

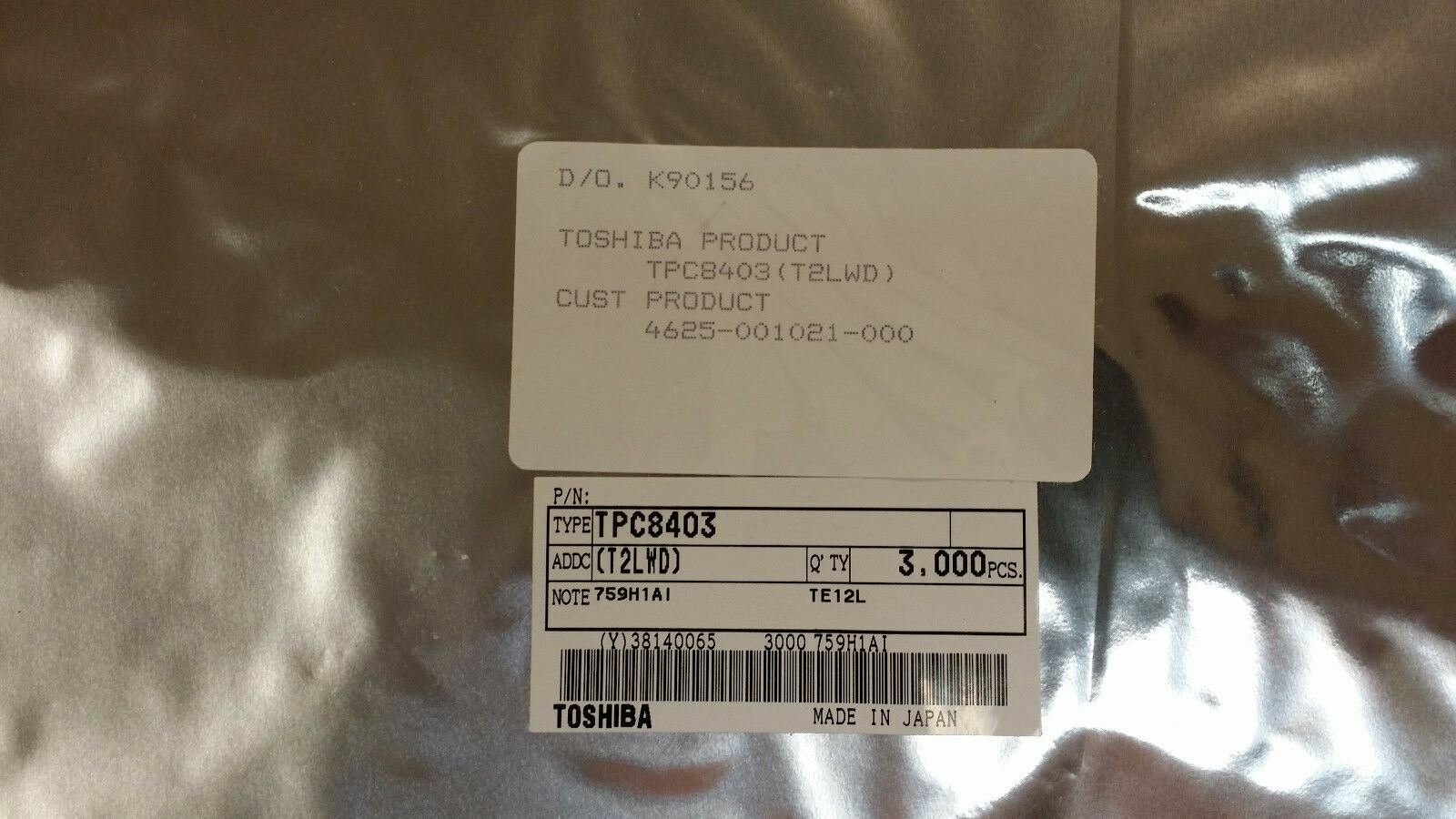

THIS LISTING IS FOR (5 PCS) OF TPC8403 (T2LWD) BY TOSHIBA
Trans MOSFET N/P-CH 30V 6A/4.5A 8-Pin SOP
Manufacturer: Toshiba America, Inc.
Description: 6A, 30V, 0.046ohm, 2 CHANNEL,N AND P-CHANNEL, Si, POWER, MOSFET
Trans MOSFET N/P-CH 30V 6A/4.5A 8-Pin SOP
Part #: TPC8403
Part Category: TransistorsManufacturer: Toshiba America, Inc.
Description: 6A, 30V, 0.046ohm, 2 CHANNEL,N AND P-CHANNEL, Si, POWER, MOSFET
| Mfr Package Description | LEAD FREE, 2-6J1E, 8 PIN |
| Status | Discontinued |
| Avalanche Energy Rating (Eas) | 46.8 mJ |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE |
| Drain Current-Max (ID) | 6 A |
| Drain-source On Resistance-Max | 0.0460 ohm |
| DS Breakdown Voltage-Min | 30 V |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Number of Elements | 2 |
| Number of Terminals | 8 |
| Operating Mode | ENHANCEMENT MODE |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL AND P-CHANNEL |
| Pulsed Drain Current-Max (IDM) | 24 A |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
|
|
|
