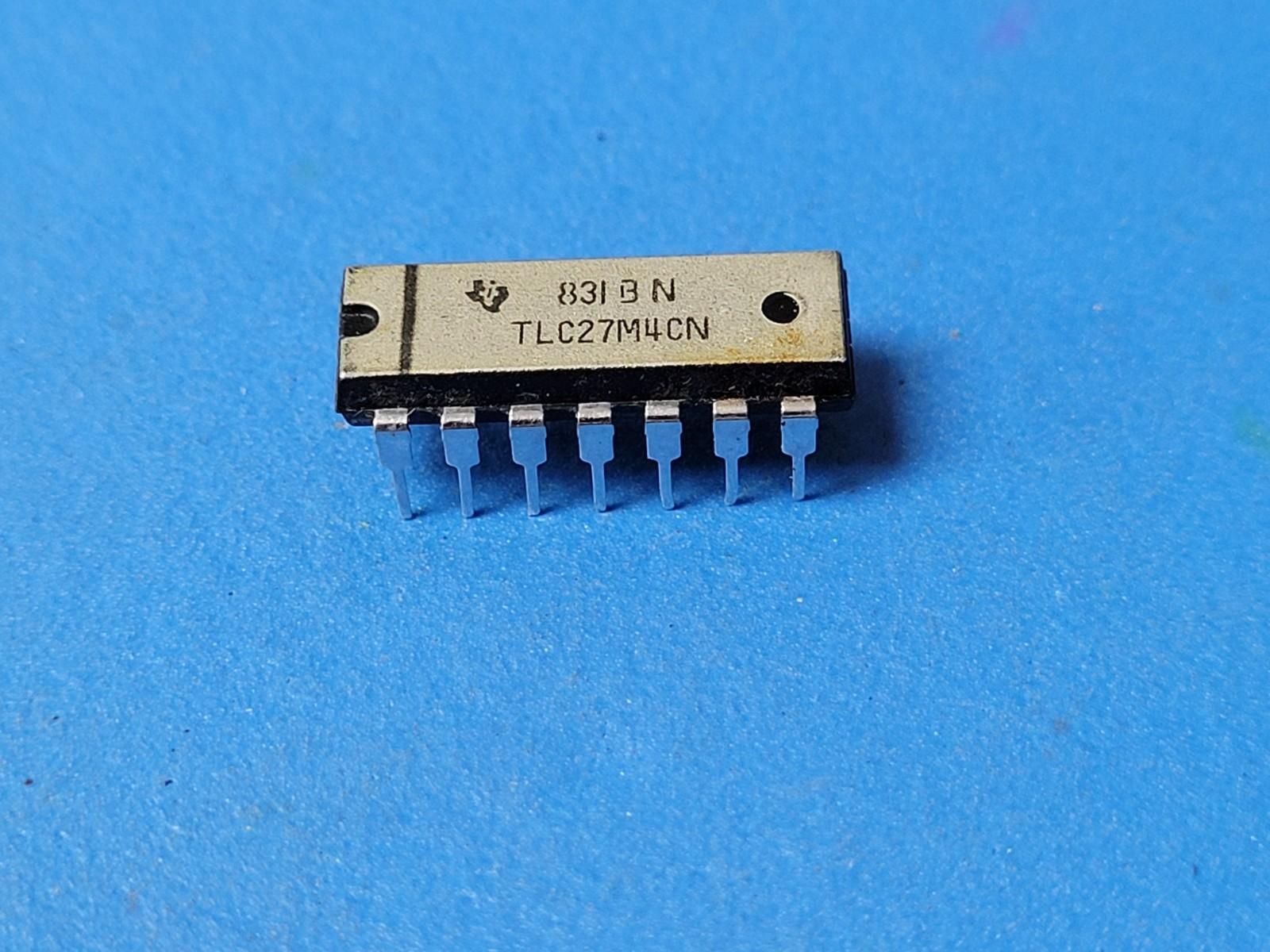

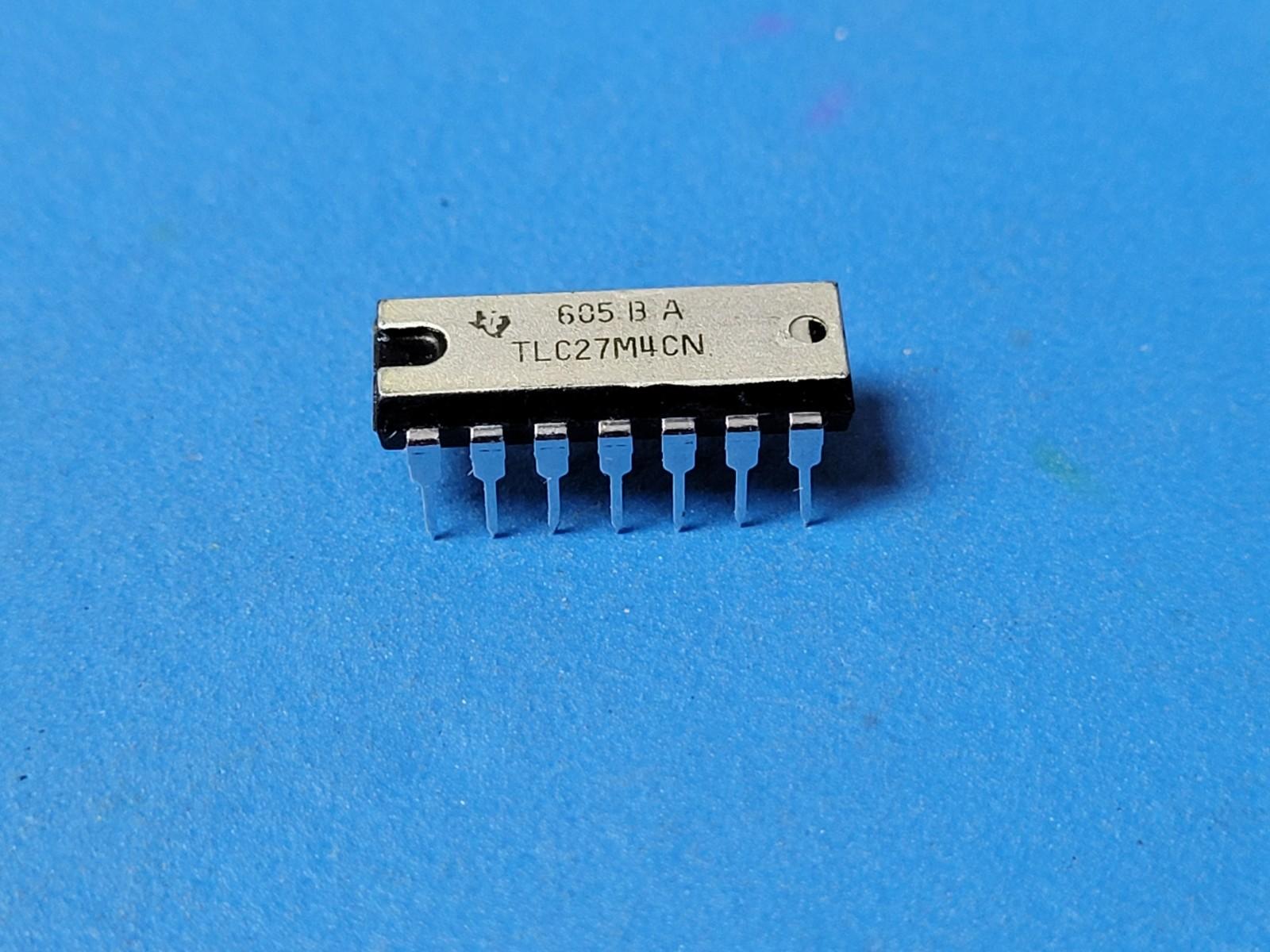

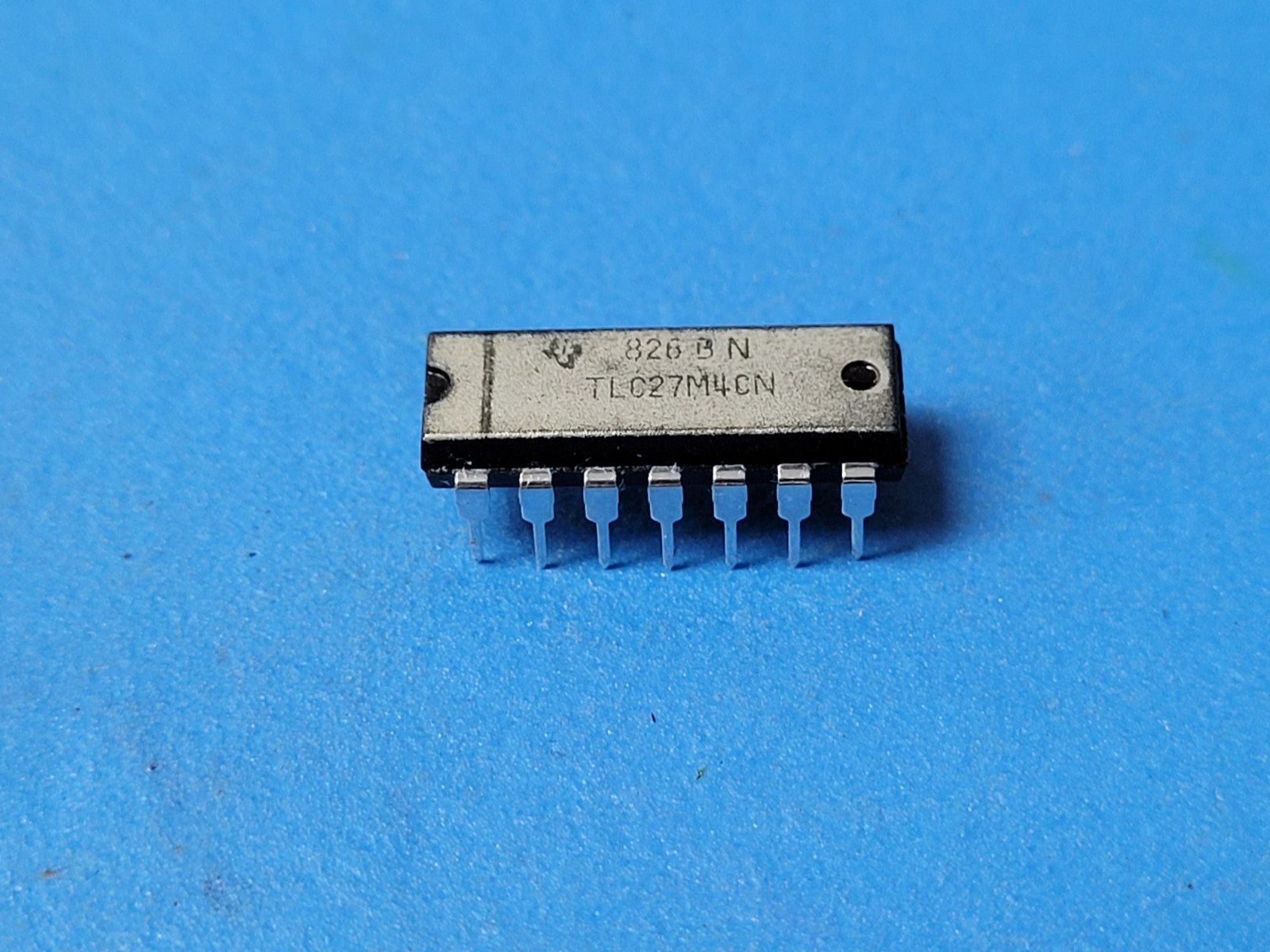

(5 PCS) TLC27M4CN TI Standard (General Purpose) Amplifier 4 Circuit 14-PDIP
Tax included.
THIS IS FOR (5 PCS) OF TLC27M4CN BY TI
Standard (General Purpose) Amplifier 4 Circuit 14-PDIP
Manufacturer: Texas Instruments
Product Category: Precision Amplifiers
RoHS: NO
Number of Channels: 4 Channel
GBP - Gain Bandwidth Product: 525 kHz
SR - Slew Rate: 620 mV/us
Vos - Input Offset Voltage: 1.1 mV
Ib - Input Bias Current: 0.7 pA
Supply Voltage - Max: 16 V
Supply Voltage - Min: 3 V
Operating Supply Current: 570 uA
Output Current per Channel: 30 mA
CMRR - Common Mode Rejection Ratio: 91 dB
en - Input Voltage Noise Density: 32 nV/sqrt Hz
Package / Case: PDIP-14
Mounting Style: Through Hole
Shutdown: No Shutdown
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Series: TLC27M4
Packaging: Tube
Amplifier Type: Precision Amplifier
Brand: Texas Instruments
Height: 4.57 mm
Input Type: Rail-to-Rail
Length: 19.3 mm
Operating Supply Voltage: 3 V to 16 V
Pd - Power Dissipation: 1.575 W
Product: Precision Amplifiers
Product Type: Precision Amplifiers
