(5 PCS) TL594CDR2G ON SEMI Voltage Mode PWM Controller 500mA 16-Pin SOIC T/R
Tax included.

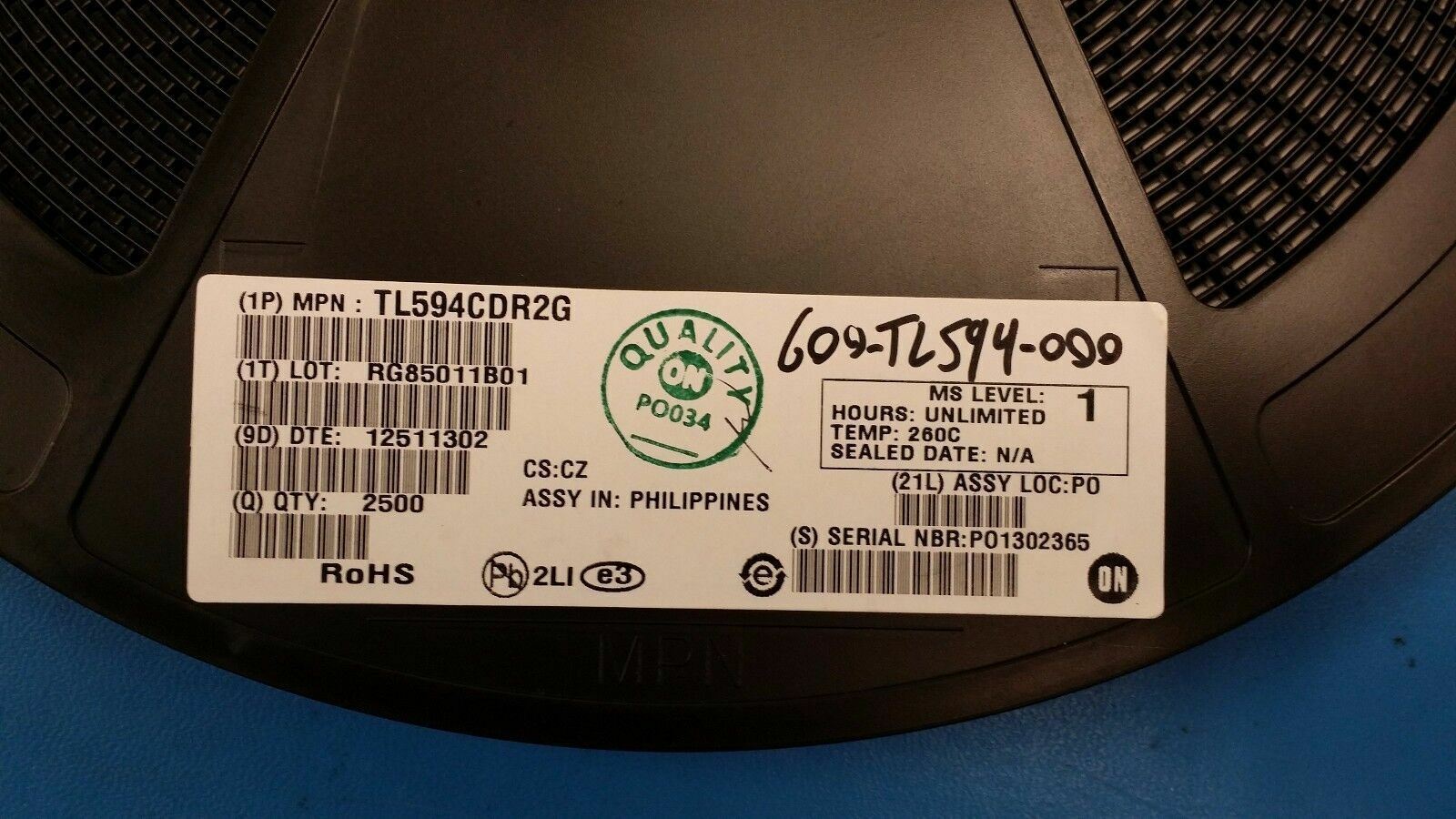

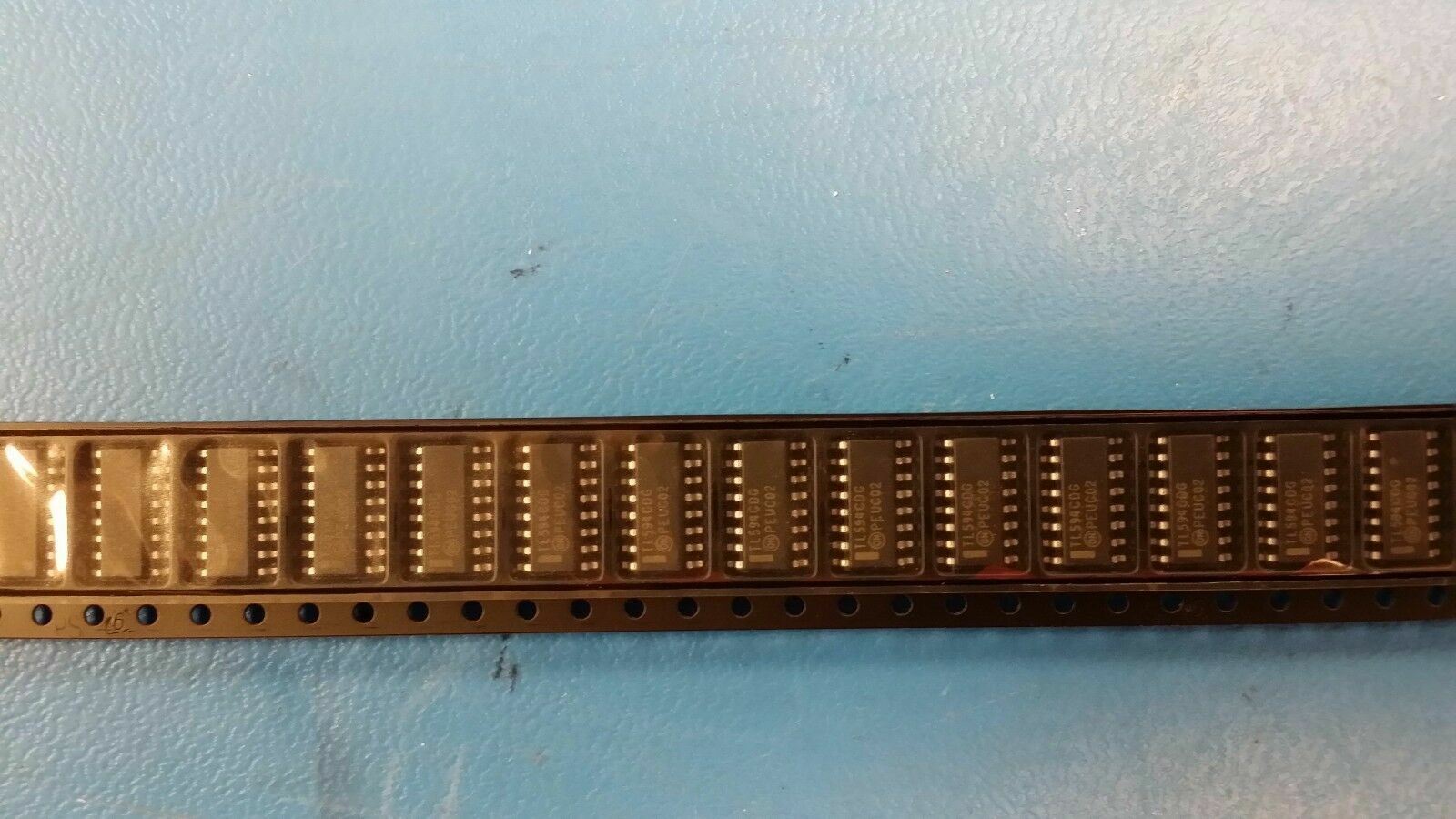

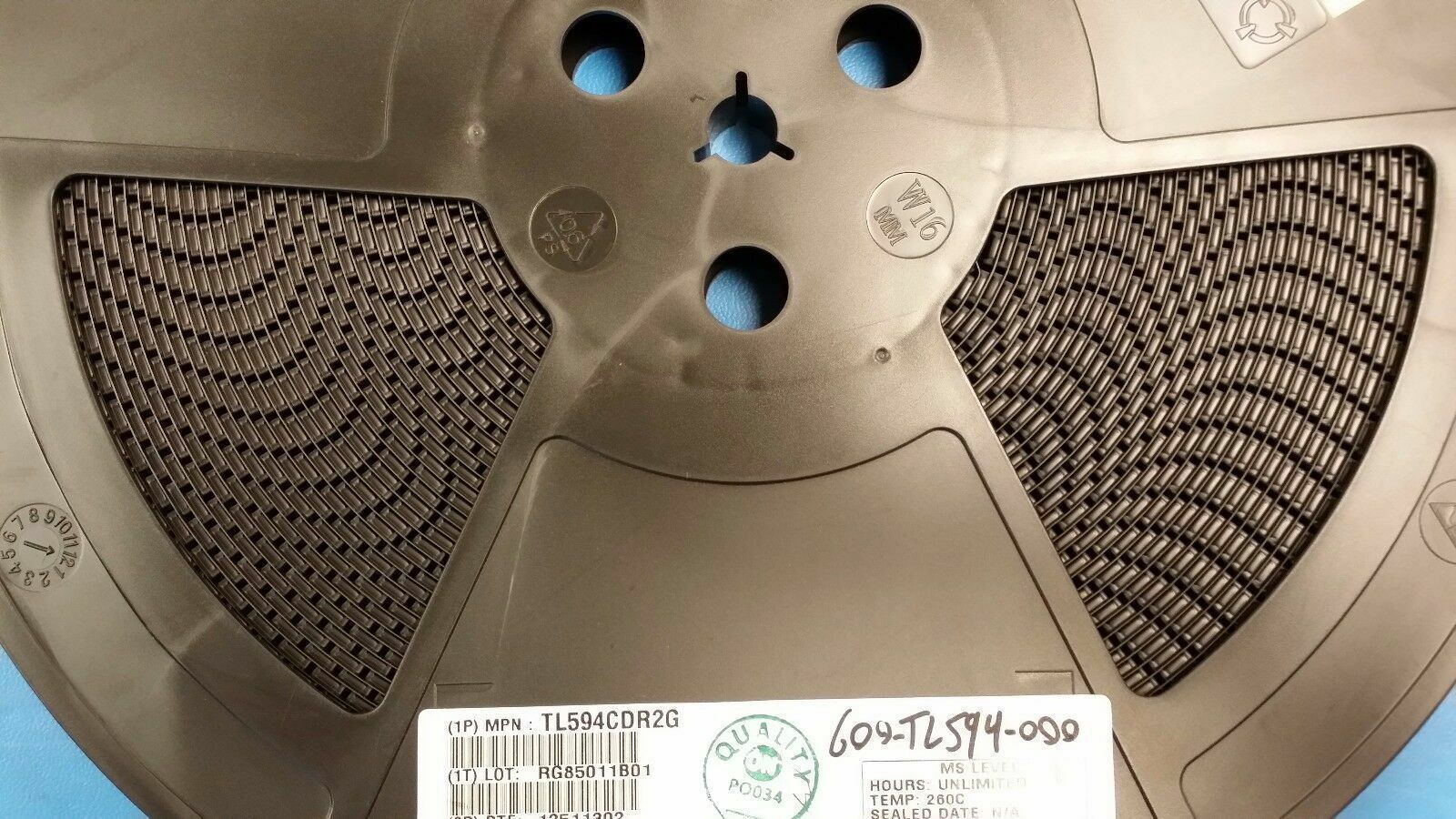

THIS LISTING IS FOR (5 PCS) OF TL594CDR2G BY ON SEMI
Voltage Mode PWM Controller 500mA 16-Pin SOIC T/R
| Product Category: | Switching Controllers | |
| Manufacturer: | ON Semiconductor | |
| RoHS: | YES | |
| Topology: | Push-Pull | |
| Number of Outputs: | 1 Output | |
| Switching Frequency: | 40 kHz | |
| Duty Cycle - Max: | 48 % | |
| Input Voltage: | 15 V | |
| Output Current: | 500 mA | |
| Maximum Operating Temperature: | + 85 C | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | SOIC-16 | |
| Packaging: | Reel | |
| Brand: | ON Semiconductor | |
| Fall Time: | 40 ns | |
| Height: | 1.5 mm | |
| Isolation: | Non-Isolated | |
| Length: | 10 mm | |
| Minimum Operating Temperature: | - 40 C | |
| Operating Supply Current: | 11 mA | |
| Operating Supply Voltage: | 15 V | |
| Product: | Switching Controllers | |
| Rise Time: | 100 ns | |
| Type: | Voltage Mode PWM Controller |
