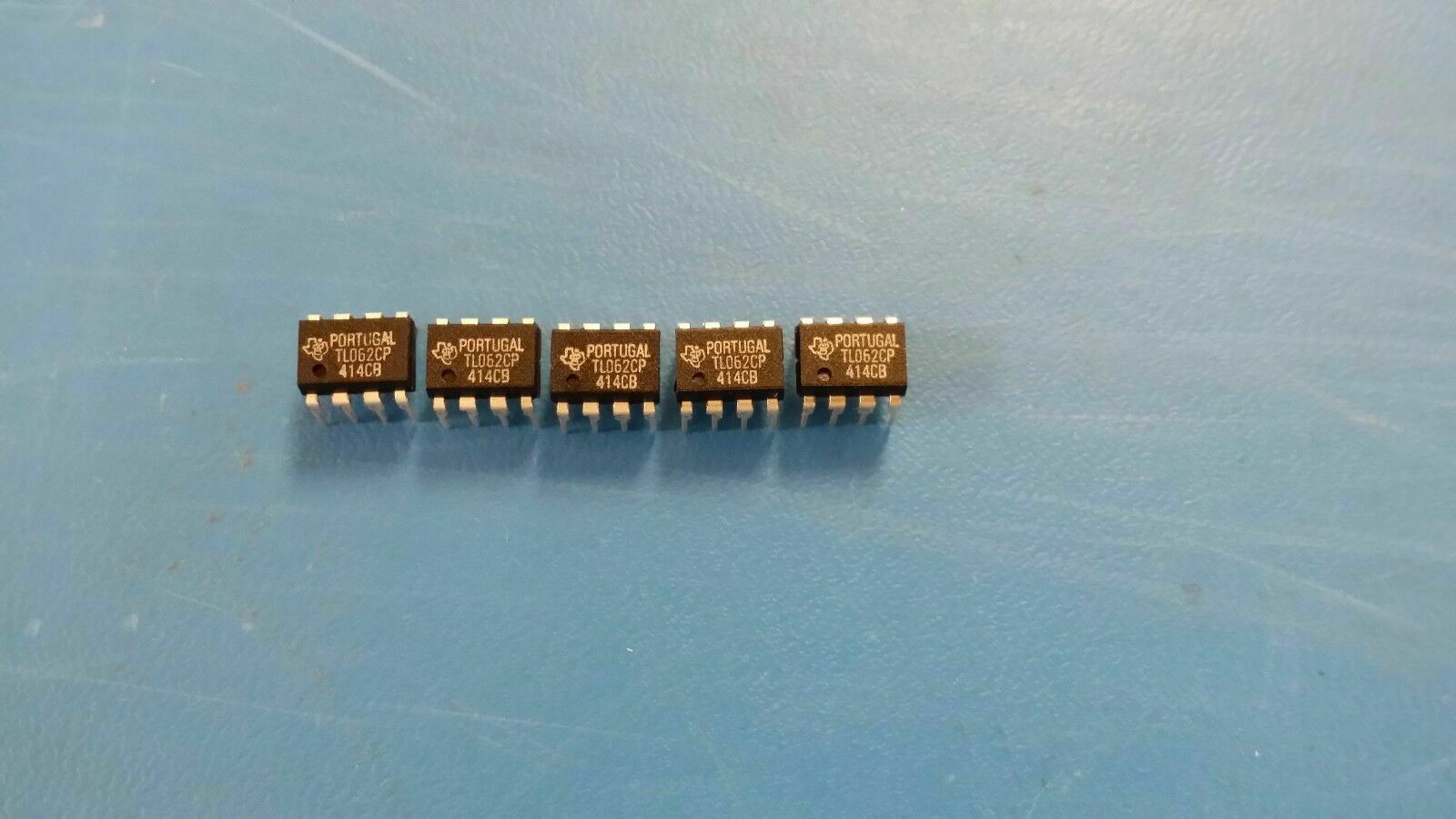

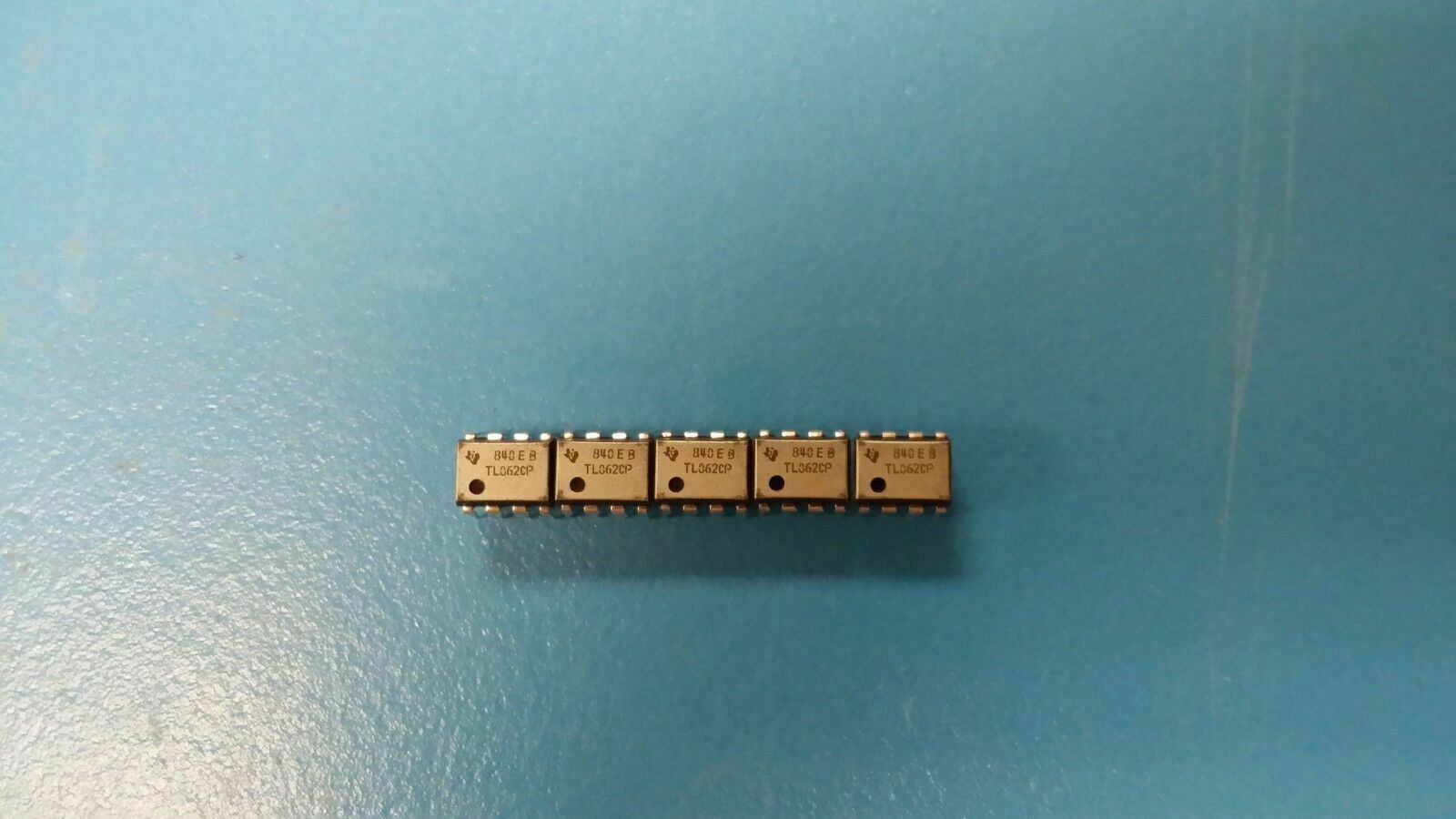

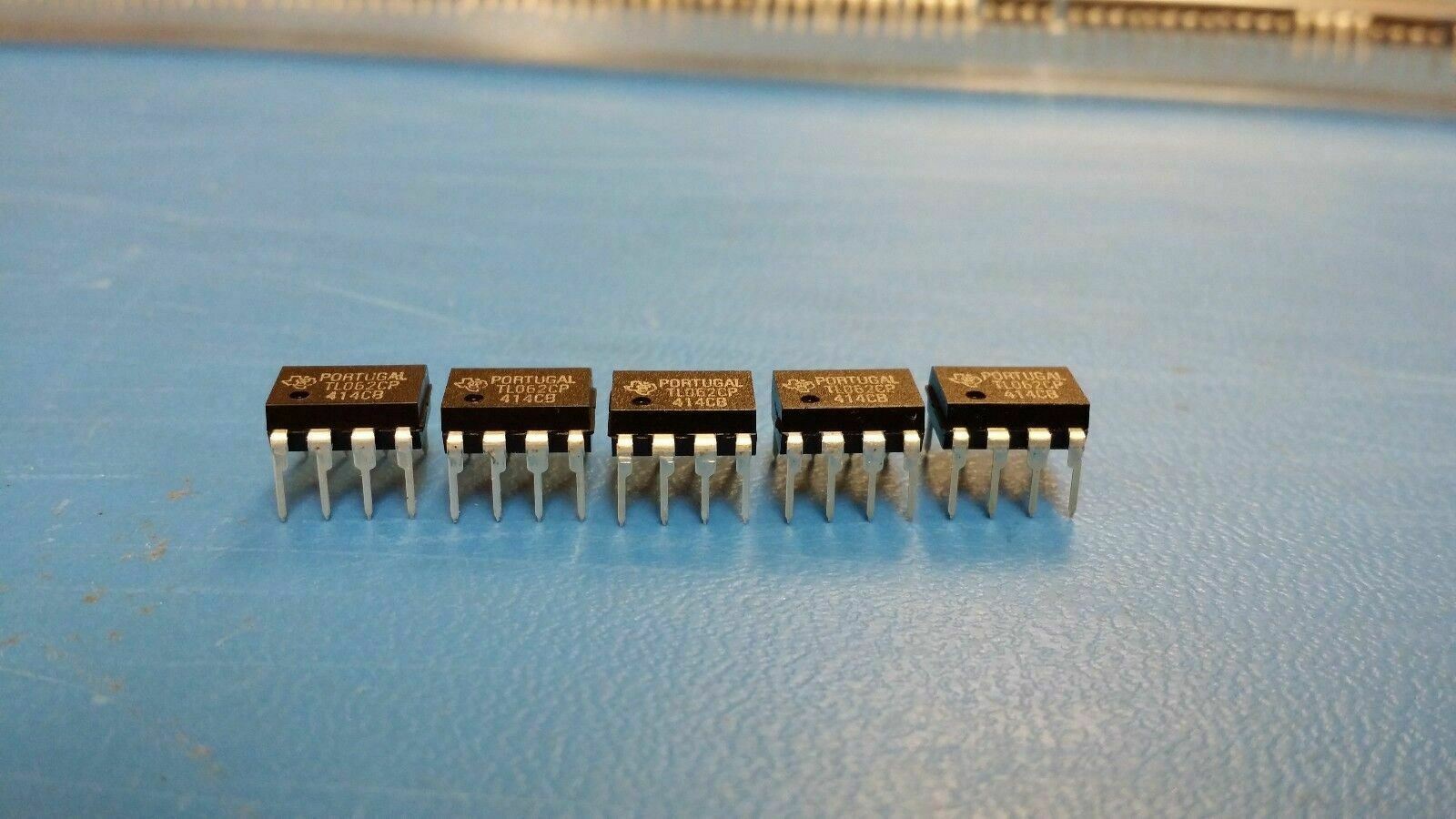

(5 PCS) TL062CP, Texas Instruments, OP Amp Dual GP 8P PDIP

Specifications

• EU RoHS
  Non-Compliant
• Manufacturer Type
  Low Power Amplifier
• Maximum Input Offset Current (uA)
  0.0002@±15V
• Type
  General Purpose Amplifier
• Number of Channels per Chip
  2
• Technology
  BiFET
• Rail to Rail
  No
• Power Supply Type
  Dual
• Typical Slew Rate (V/us)
  3.5@±15V
• Maximum Dual Supply Voltage (V)
  ±18
• Shut Down Support
  No
• Minimum Operating Temperature (°C)
  0
• Maximum Input Offset Voltage (mV)
  15@±15V
• Maximum Input Bias Current (uA)
  0.0004@±15V
• Typical Gain Bandwidth Product (MHz)
  1
• Minimum Dual Supply Voltage (V)
  ±3.5
• Typical Dual Supply Voltage (V)
  ±5|±9|±12|±15
• Minimum CMRR (dB)
  70
• Typical Voltage Gain (dB)
  75.56
• Maximum Operating Temperature (°C)
  70
• Packaging
  Tube
• Mounting
  Through Hole
• Package Height (mm)
  5.08(Max) - 0.51(Min)
• Package Length (mm)
  10.16(Max)
• Package Width (mm)
  6.6(Max)
• PCB changed
  8
• Standard Package Name
  DIP
• Supplier Package
  PDIP
• Pin Count
  8
• Lead Shape
  Through Hole
