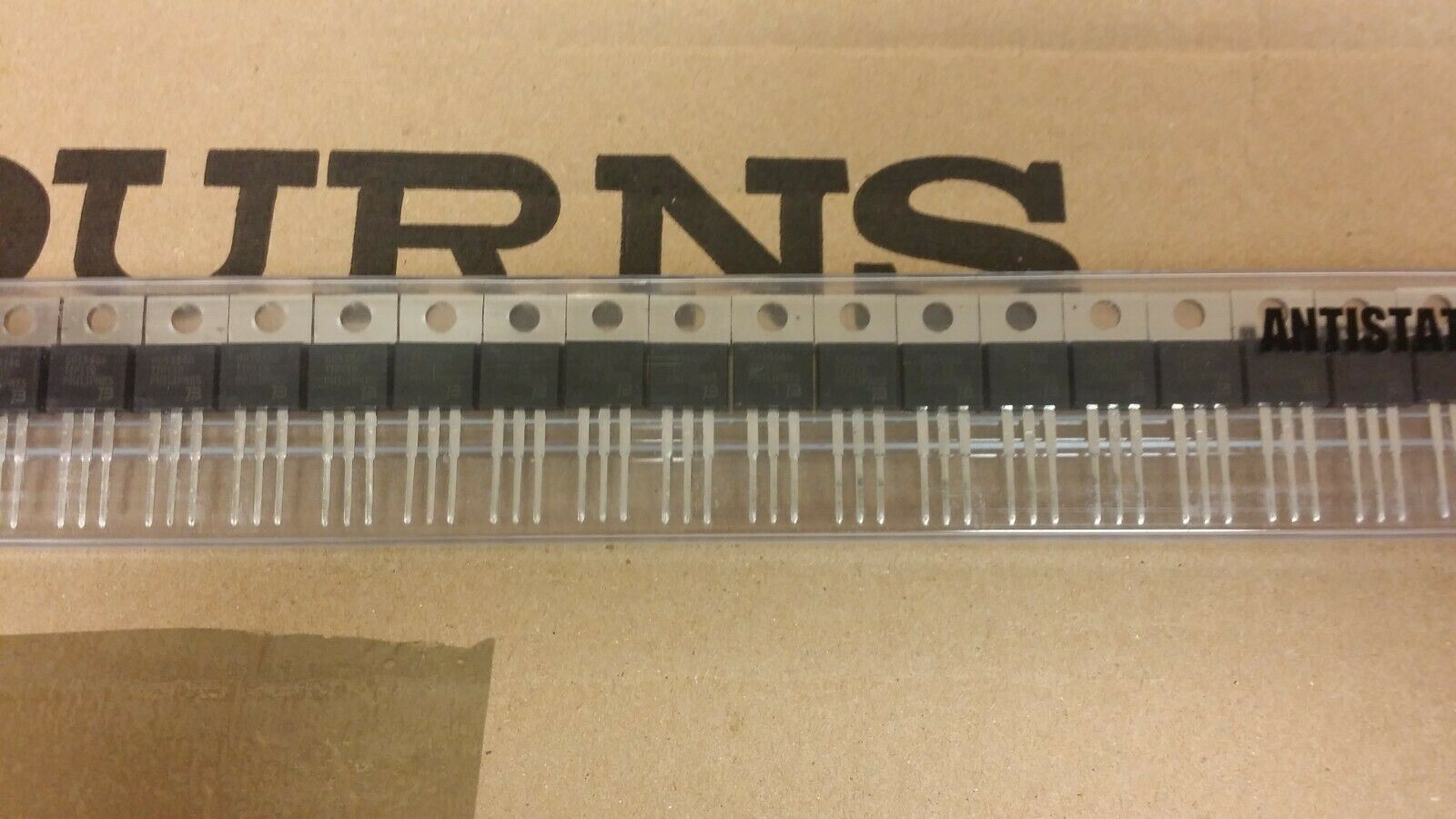

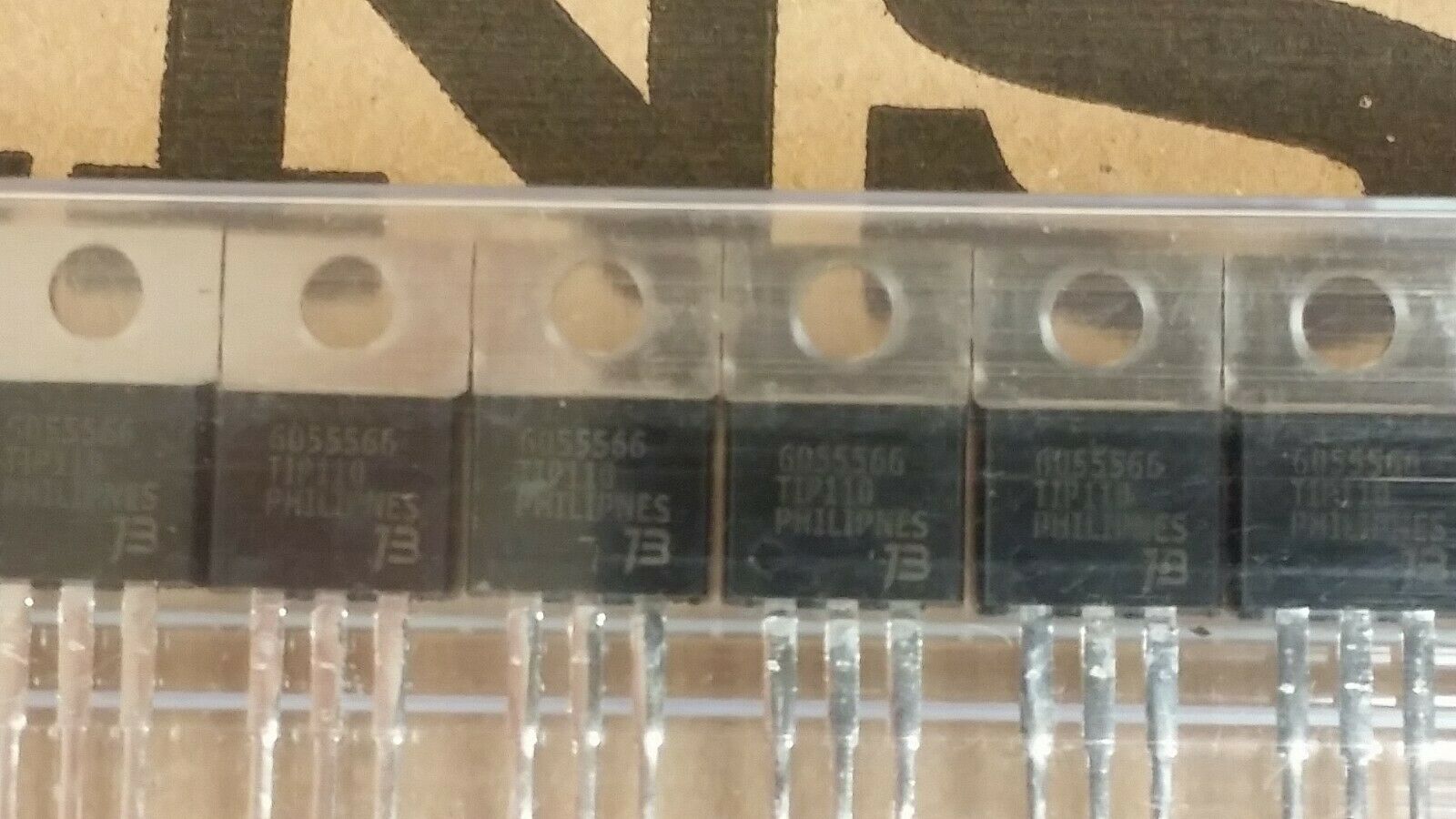

(5 PCS) TIP110-S BOURNS Darlington Transistors NPN 60V 4A TO-220 ROHS
(5 PCS) TIP110-S BOURNS Darlington Transistors NPN 60V 4A TO-220 ROHS
(5 PCS) TIP110-S BOURNS Darlington Transistors NPN 60V 4A TO-220 ROHS
(5 PCS) TIP110-S BOURNS Darlington Transistors NPN 60V 4A TO-220 ROHS

(5 PCS) TIP110-S BOURNS Darlington Transistors NPN 60V 4A TO-220 ROHS

Tax included.
Only 194 left!
THIS LISTING IS FOR (10 PCS) OF TIP110-S BY BOURNS
Darlington Transistors NPN 60V 4A TO-220 ROHS

Part #: TIP110-S
Part Category: Transistors
Manufacturer: Bourns, Inc.
Description: Power Bipolar Transistor, 4A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin

Mfr Package Description TO-220, 3 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
Status Discontinued
Case Connection COLLECTOR
Collector Current-Max (IC) 4.0  A
Collector-emitter Voltage-Max 60.0  V
Configuration DARLINGTON
DC Current Gain-Min (hFE) 500.0
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1.0
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Element Material SILICON
