(5 PCS) TCR22-3 TECCOR Thyristor SCR 100V 20A 3-Pin TO-92
Tax included.

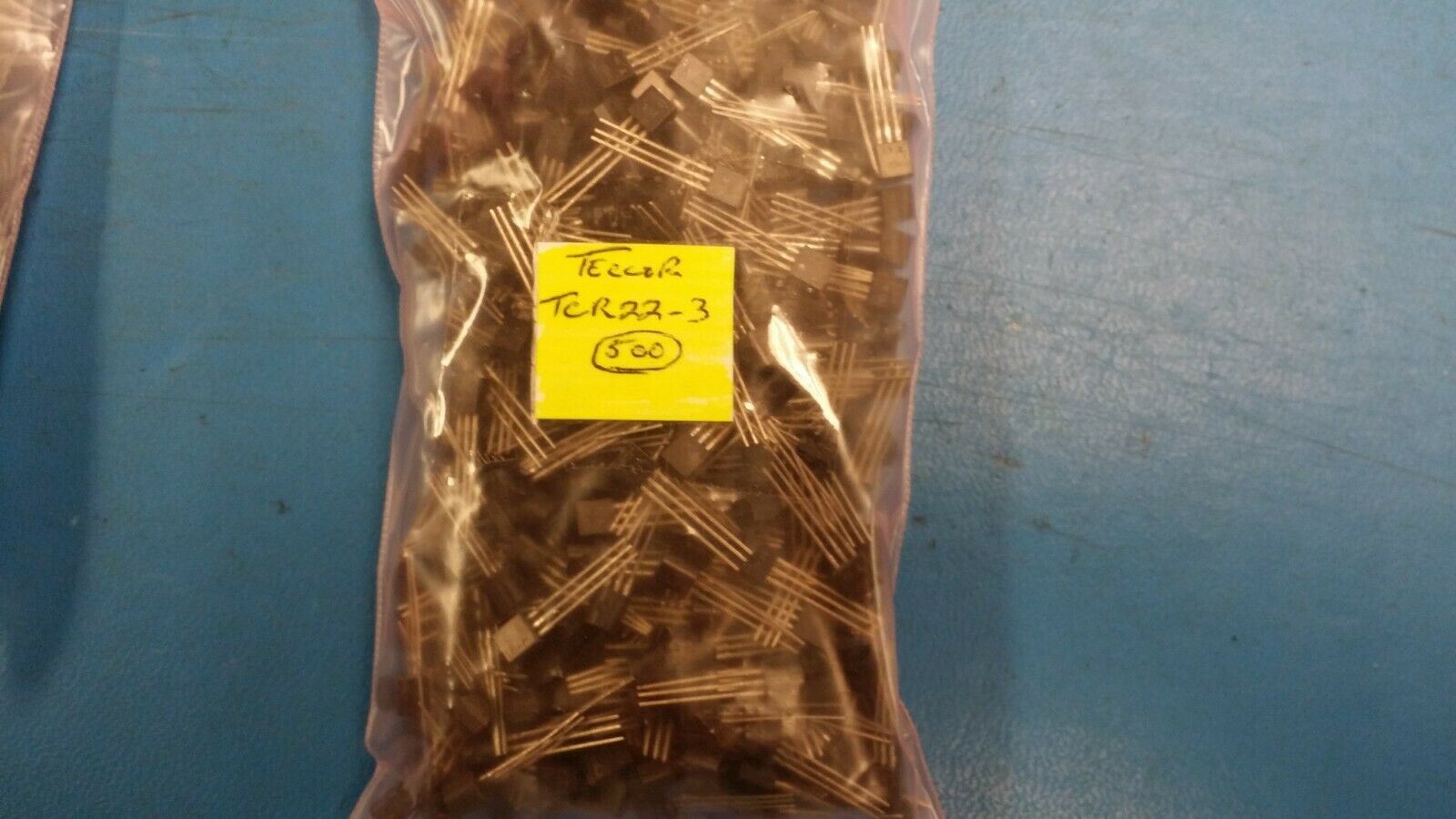

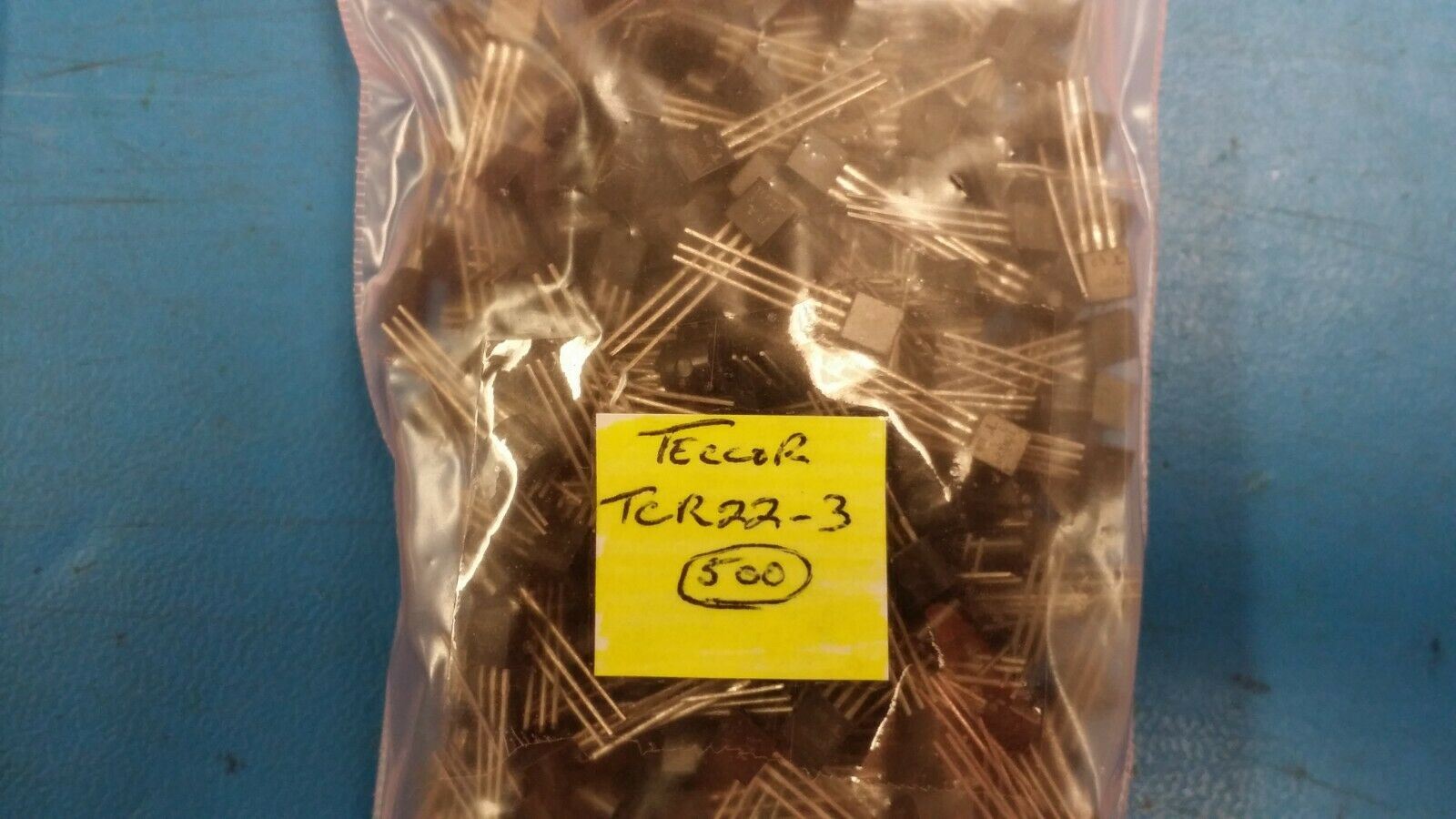

THIS LISTING IS FOR (5 PCS) OF TCR22-3 BY TECCOR
Thyristor SCR 100V 20A 3-Pin TO-92
Part #: TCR22-3
Part Category: Trigger Devices
Manufacturer: Littelfuse, Inc.(TECCOR)
Description: Silicon Controlled Rectifier, 1.5A I(T)RMS, 1500mA I(T), 100V V(DRM), 100V V(RRM), 1 Element, TO-92
Mfr Package Description TO-92, 3 PIN
Status Discontinued
Trigger Device Type SCR
Circuit Commutated Turn-off Time-Nom 50.0 µs
Configuration SINGLE
Critical Rate of Rise of Off-state Voltage-Min 75.0 V/us
DC Gate Trigger Current-Max 0.2 mA
DC Gate Trigger Voltage-Max 0.8 V
Holding Current-Max 5.0 mA
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T3
JESD-609 Code e0
Leakage Current-Max 0.001 mA
Non-Repetitive Pk On-state Cur 160.0 A
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 110.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Repetitive Peak Off-state Leakage Current-Max 1.0 µA
Repetitive Peak Off-state Voltage 100.0 V
Repetitive Peak Reverse Voltage 100.0 V
RMS On-state Current-Max 1.5 A
Sub Category Silicon Controlled Rectifiers
Surface Mount NO
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature SENSITIVE GATE
