(5 PCS) STS5PF30L STMicroelectronics MOSFET P-CH 30V 5A 8-SOIC ROHS
Tax included.

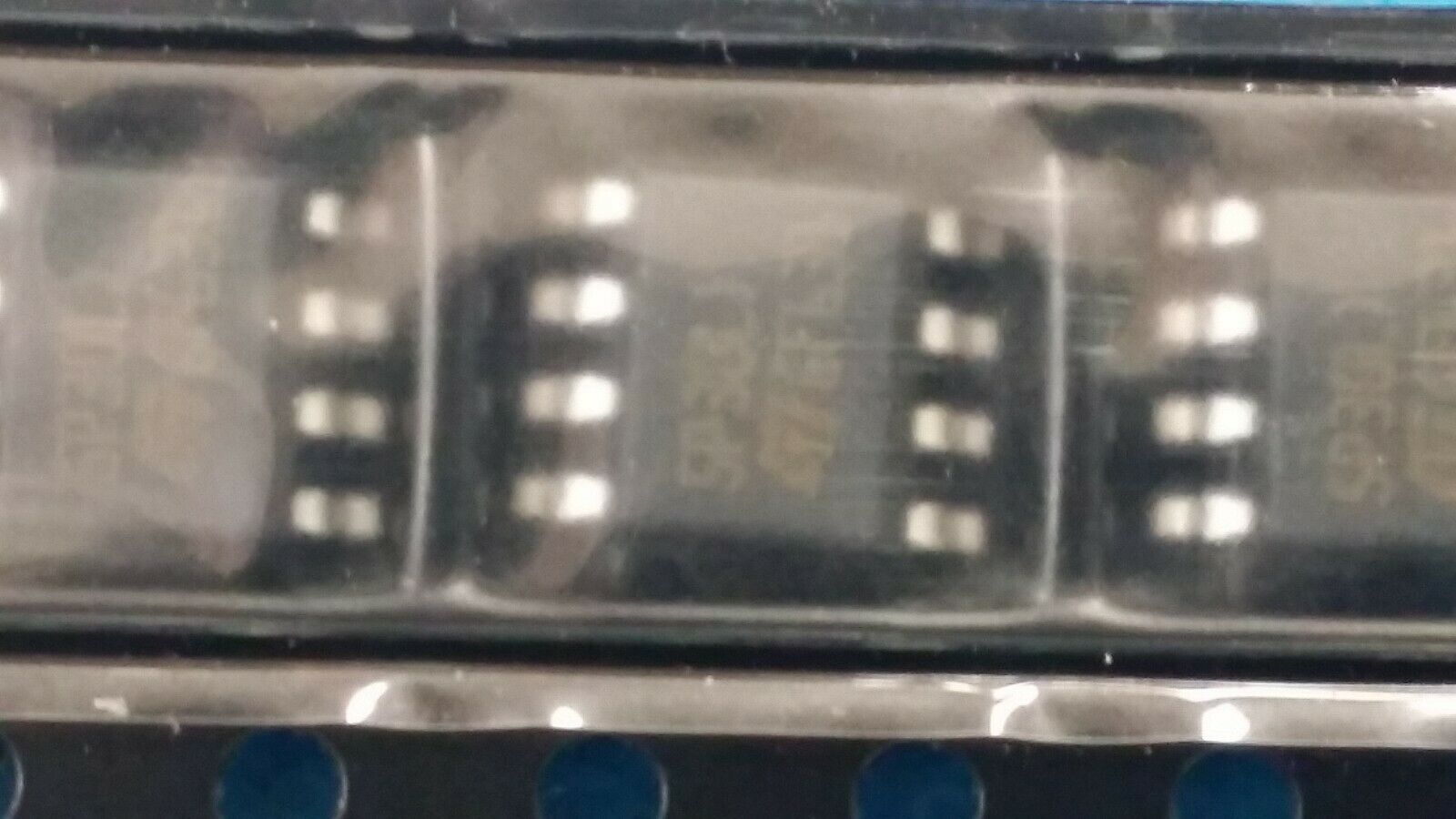

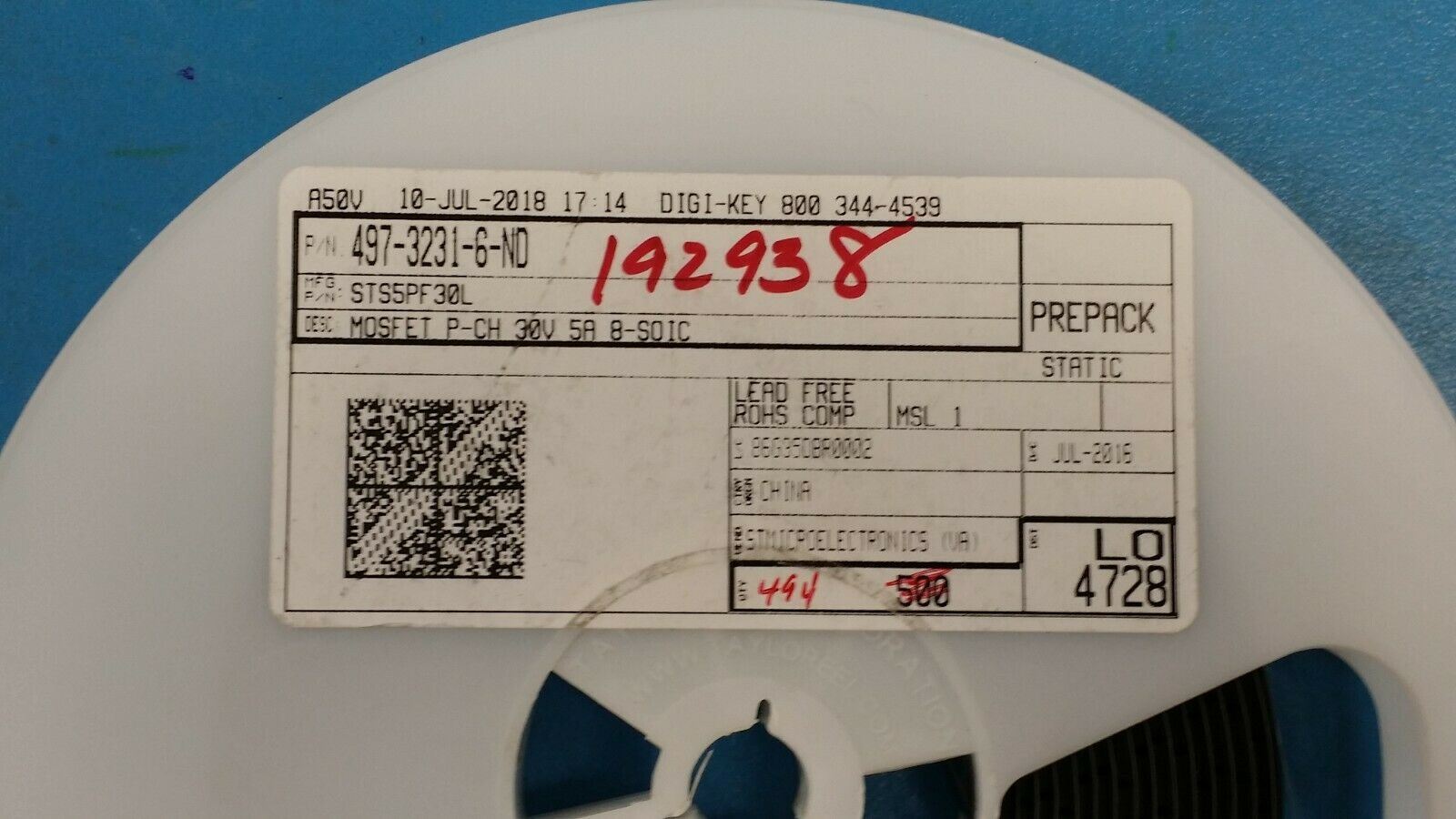

THIS LISTING IS FOR (5 PCS) OF STS5PF30L BY STMicroelectronics
MOSFET P-CH 30V 5A 8-SOIC ROHS
Manufacturer STMicroelectronics
Series STripFET™
Packaging Tape & Reel (TR)
Part Status Obsolete
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 55mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 16nC @ 5V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 1350pF @ 25V
FET Feature -
Power Dissipation (Max) 2.5W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-SO
Package / Case 8-SOIC (0.154", 3.90mm Width)
Base Part Number STS5P
