(5 PCS) STS12NF30L STMicroelectronics MOSFET N-CH 30V 12A 8-SOIC ROHS

$5.95
Unit price per

Tax included.

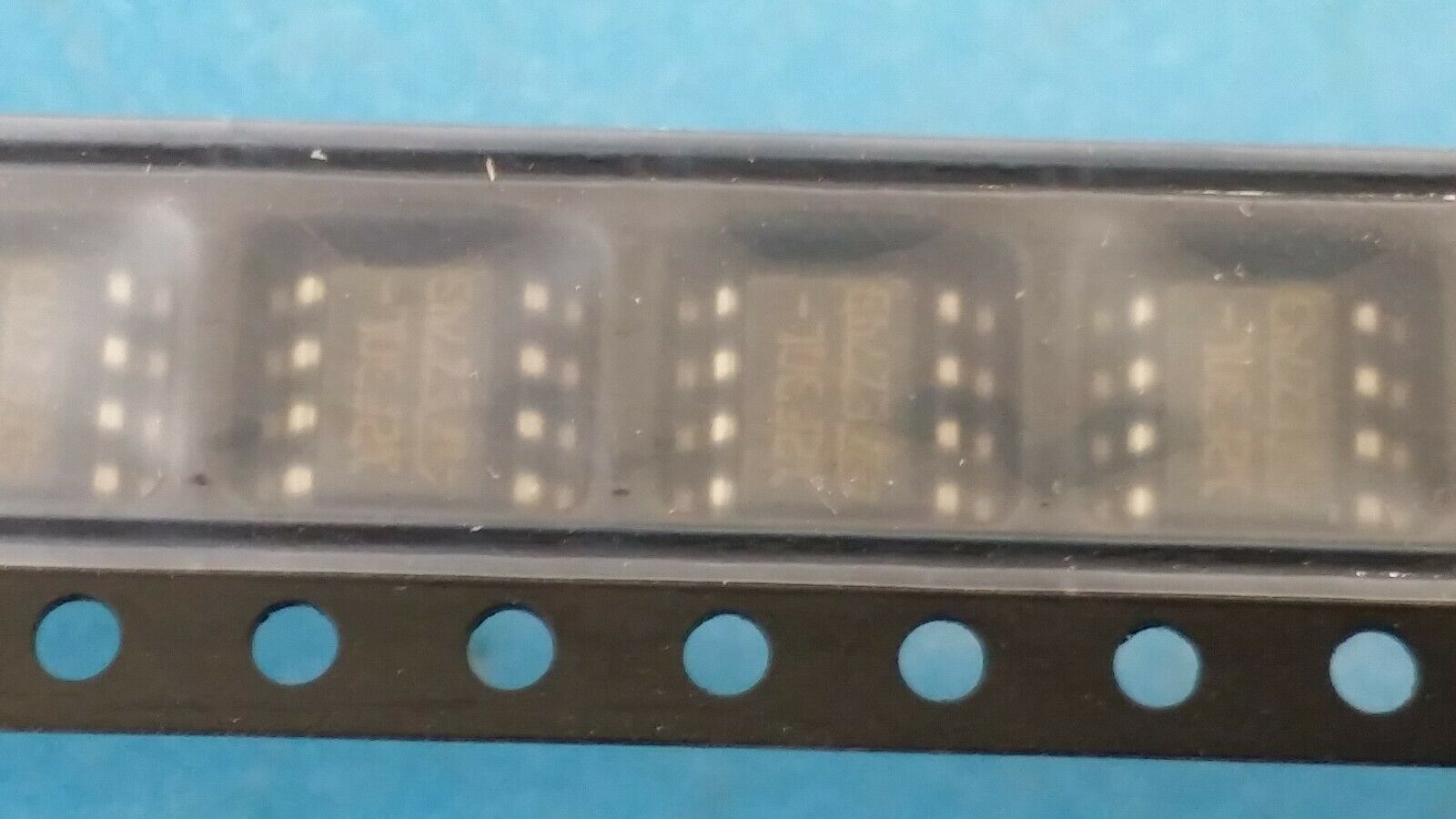

THIS LISTING IS FOR (5 PCS) OF STS12NF30L BY STMicroelectronics

MOSFET N-CH 30V 12A 8-SOIC ROHS

Manufacturer STMicroelectronics

Series STripFET™ II

Packaging Tape & Reel (TR)

Part Status Obsolete

FET Type N-Channel

Technology MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss) 30V

Current - Continuous Drain (Id) @ 25°C 12A (Tc)

Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V

Rds On (Max) @ Id, Vgs 9mOhm @ 6A, 10V

Vgs(th) (Max) @ Id 1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs 50nC @ 4.5V

Vgs (Max) ±16V

Input Capacitance (Ciss) (Max) @ Vds 2400pF @ 25V

FET Feature -

Power Dissipation (Max) 2.5W (Ta)

Operating Temperature 150°C (TJ)

Mounting Type Surface Mount

Supplier Device Package 8-SO

Package / Case 8-SOIC (0.154", 3.90mm Width)

Base Part Number STS12
