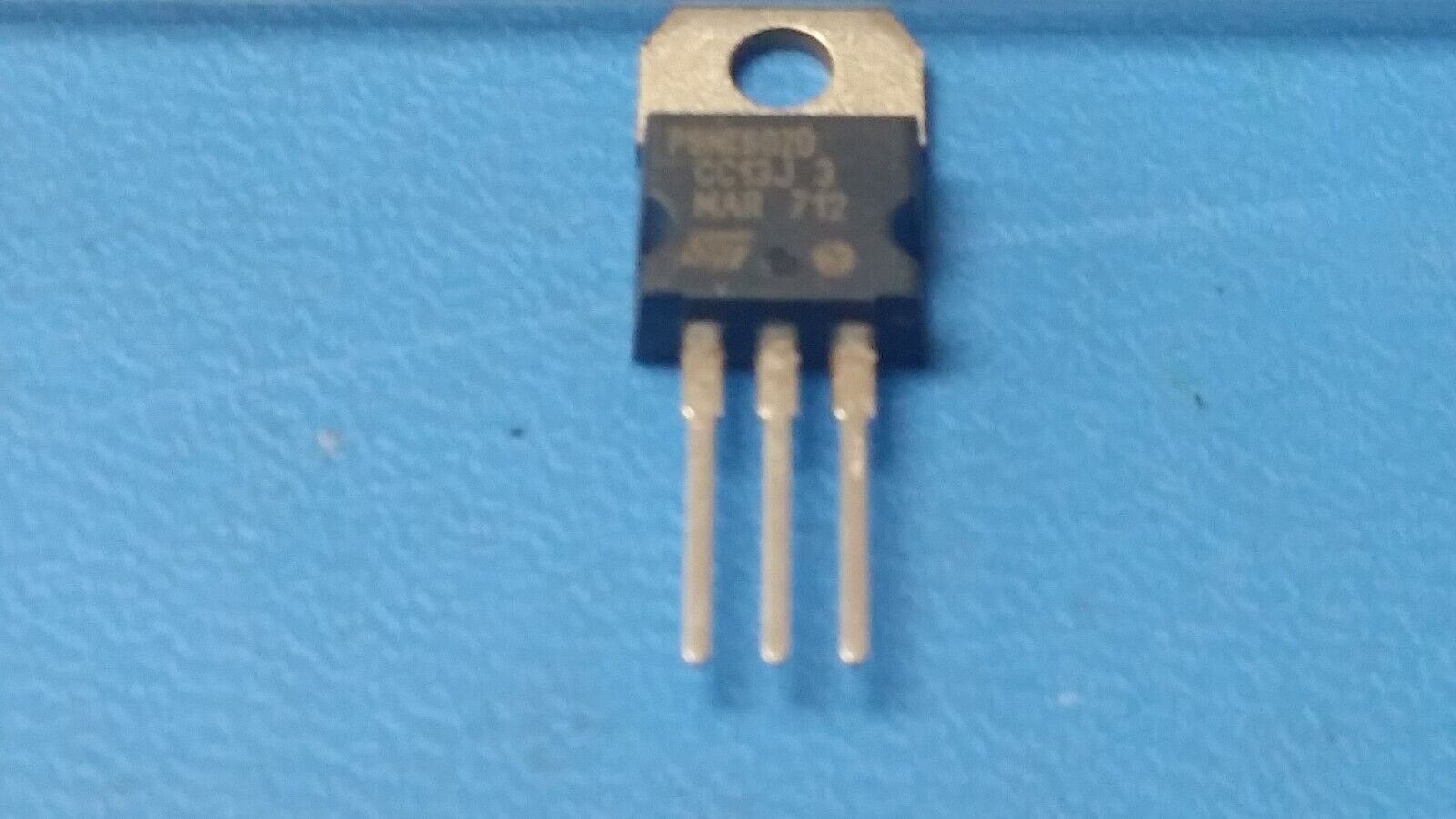

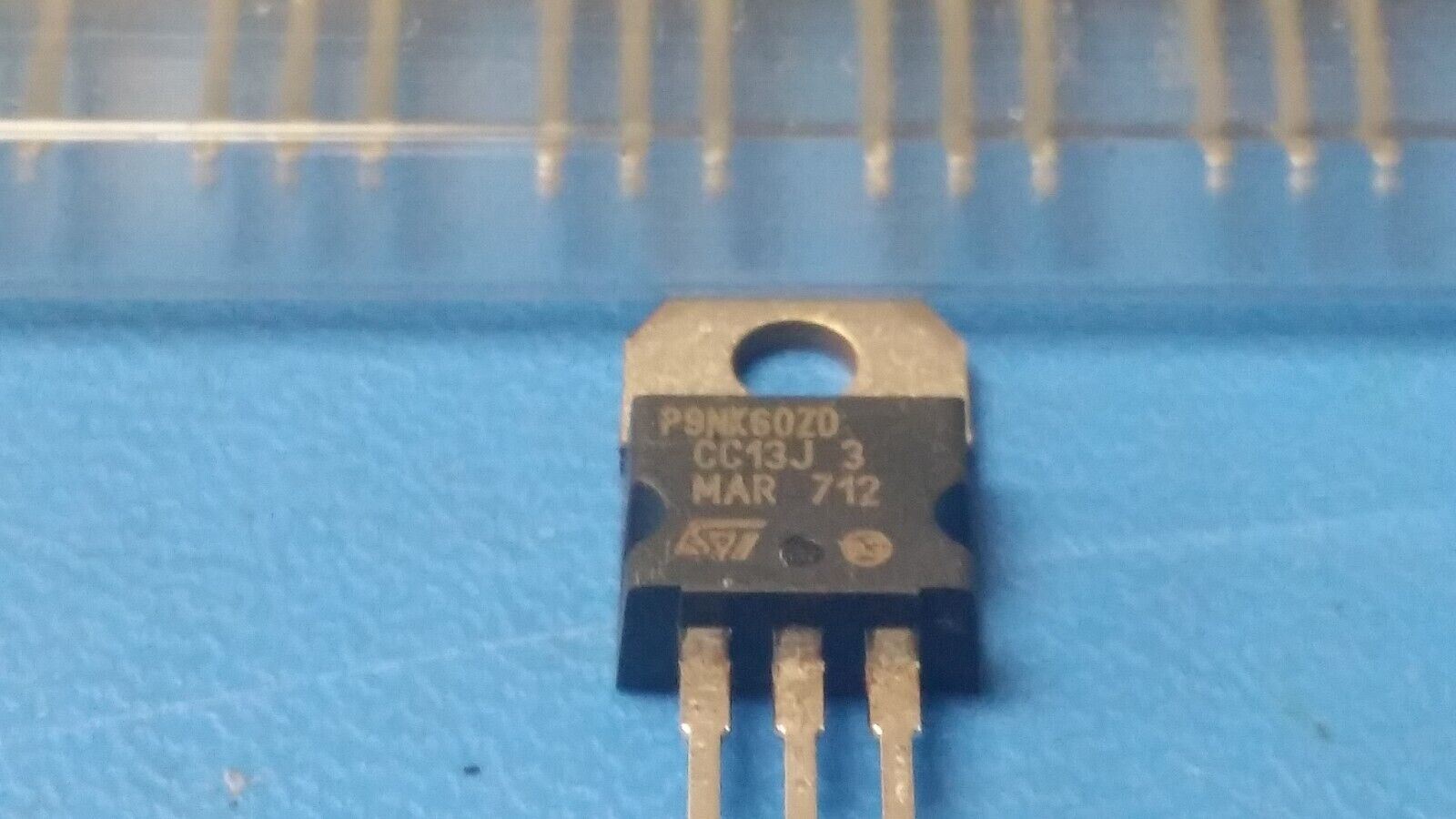

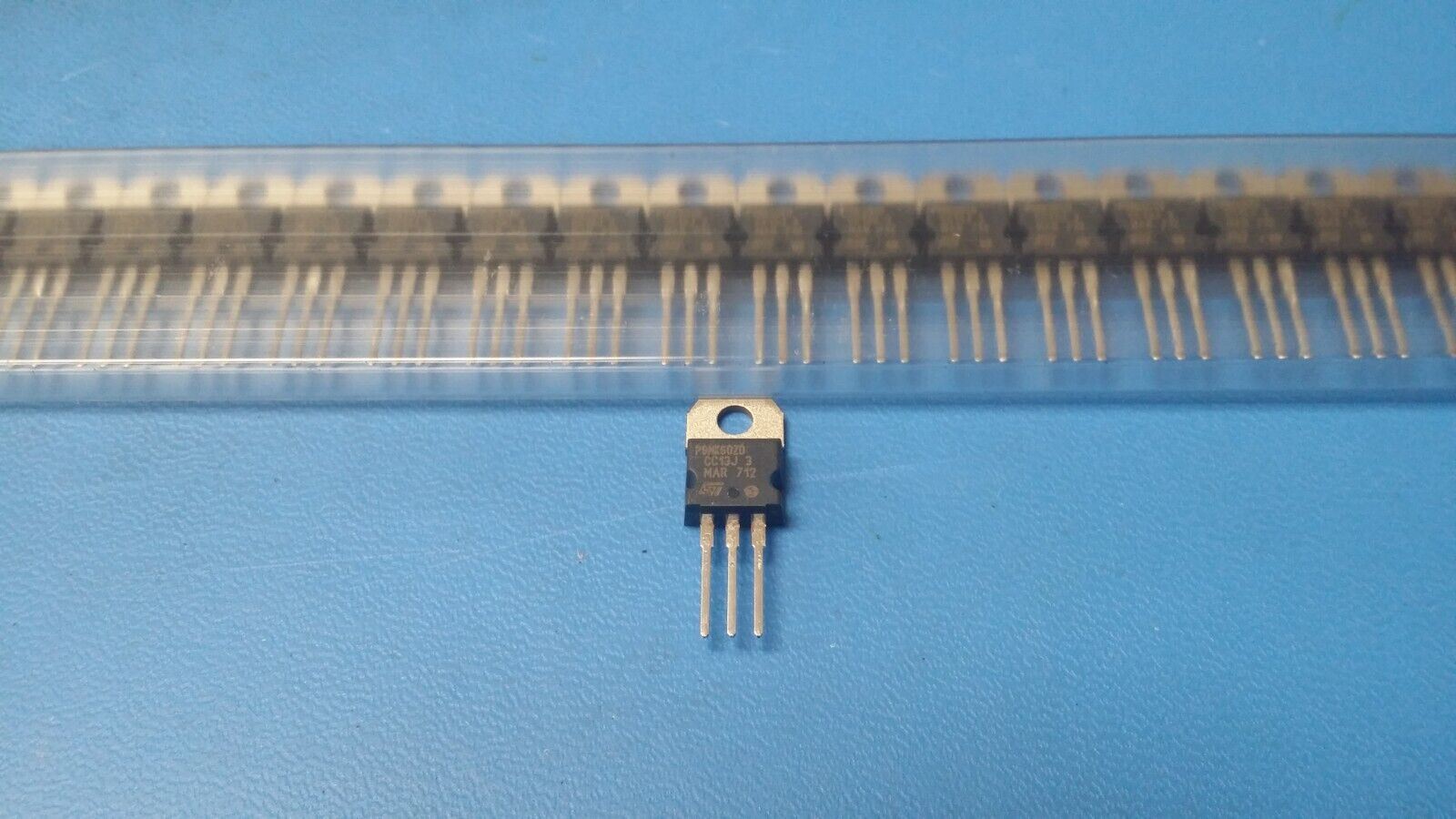

(5 PCS) STP9NK60ZD STMicroelectronics N-Channel 600 V 7A (Tc) 125W (Tc) TO-220
Tax included.
THIS IS FOR (5 PCS) OF STP9NK60ZD BY STMicroelectronics
N-Channel 600 V 7A (Tc) 125W (Tc) TO-220 ROHS
Manufacturer: STMicroelectronics
Product Category: MOSFET
RoHS: YES
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 600 V
Id - Continuous Drain Current: 7 A
Rds On - Drain-Source Resistance: 950 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 125 W
Channel Mode: Enhancement
Packaging: Tube
Brand: STMicroelectronics
Configuration: Single
Fall Time: 15 ns
Height: 9.15 mm
Length: 10.4 mm
Product Type: MOSFET
Rise Time: 17 ns
Series: STP9NK60ZD
1000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 42 ns
Typical Turn-On Delay Time: 22 ns
Width: 4.6 mm
Unit Weight: 0.068784 oz
