(5 PCS) STP7NB30FP STMICRO Power Field-Effect Transistor 4A 300V TO-220AB
Tax included.

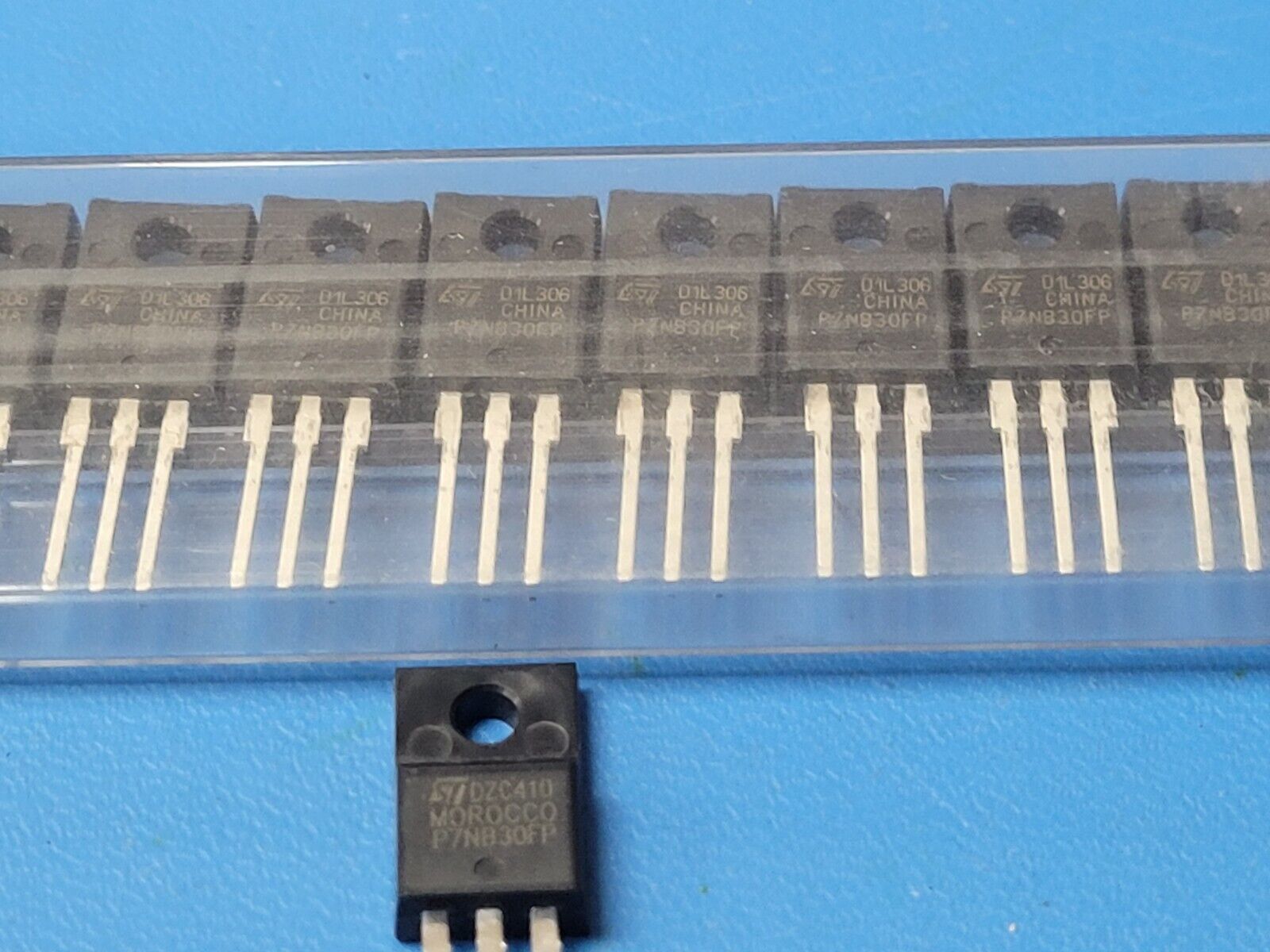

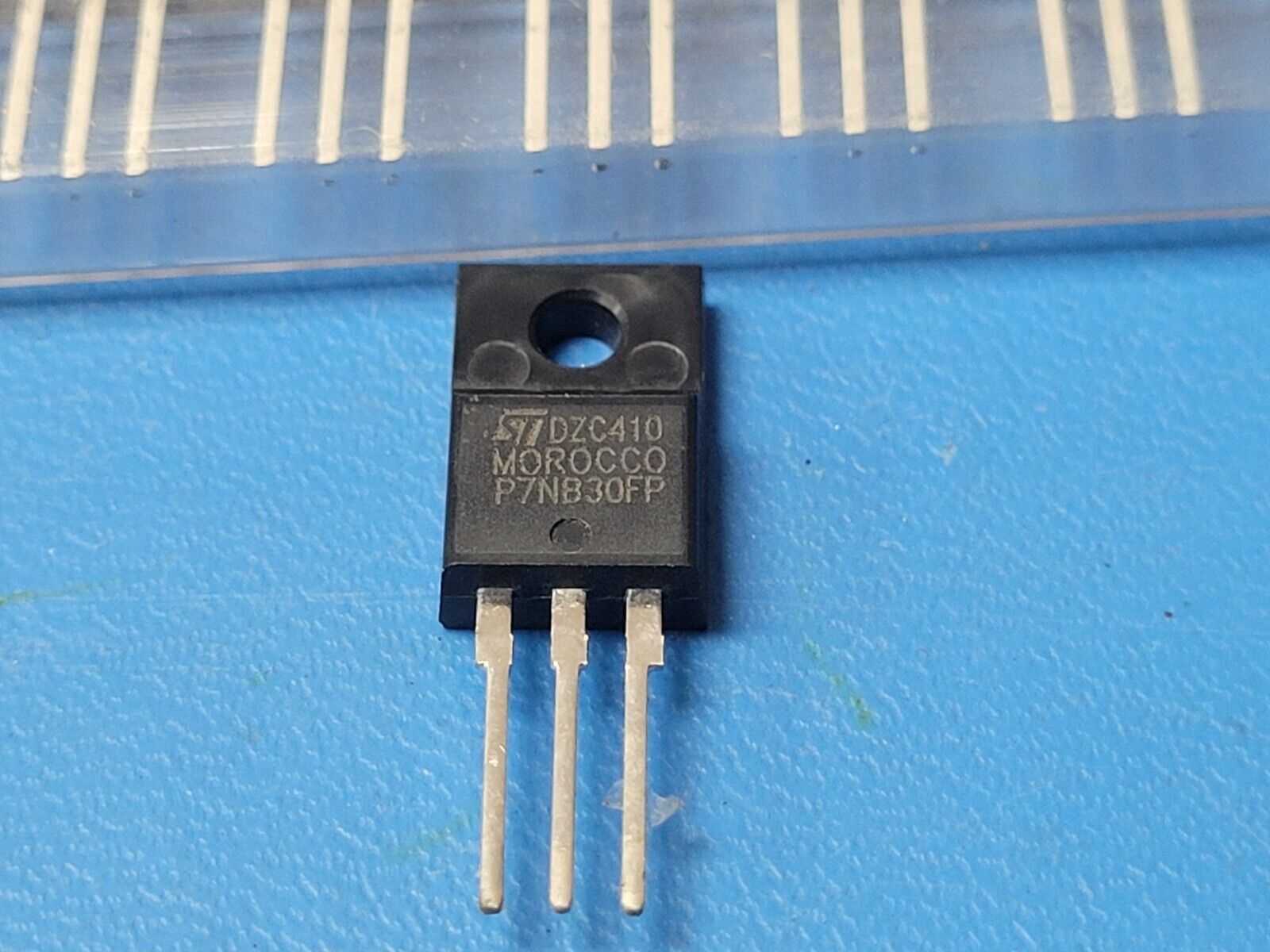

THIS IS FOR (5 PCS) OF STP7NB30FP BY STMICRO
Power Field-Effect Transistor 4A 300V TO-220AB
Part #: STP7NB30FP
Part Category: Transistors
Manufacturer: STMicroelectronics, Inc.
Description: Power Field-Effect Transistor, 4A I(D), 300V, 0.9ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB
Mfr Package Description TO-220FP, 3 PIN
Status Discontinued
Avalanche Energy Rating (Eas) 150.0 mJ
Case Connection ISOLATED
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 7.0 A
Drain Current-Max (ID) 4.0 A
Drain-source On Resistance-Max 0.9 ohm
DS Breakdown Voltage-Min 300.0 V
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 85.0 W
Pulsed Drain Current-Max (IDM) 28.0 A
Qualification Status Not Qualified
Sub Category FET General Purpose Power
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Transistor Application SWITCHING
Transistor Element Material SILICON
