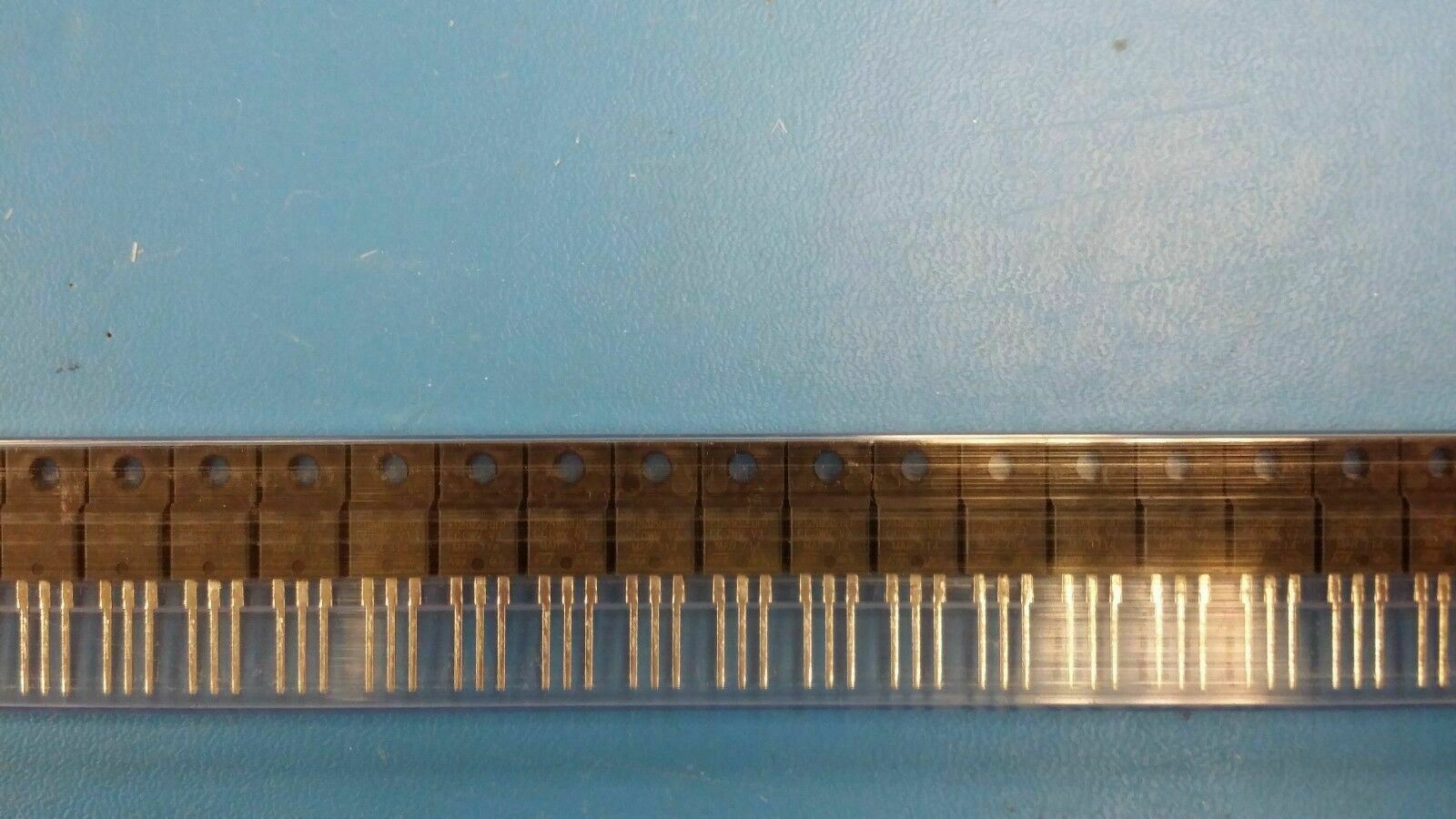

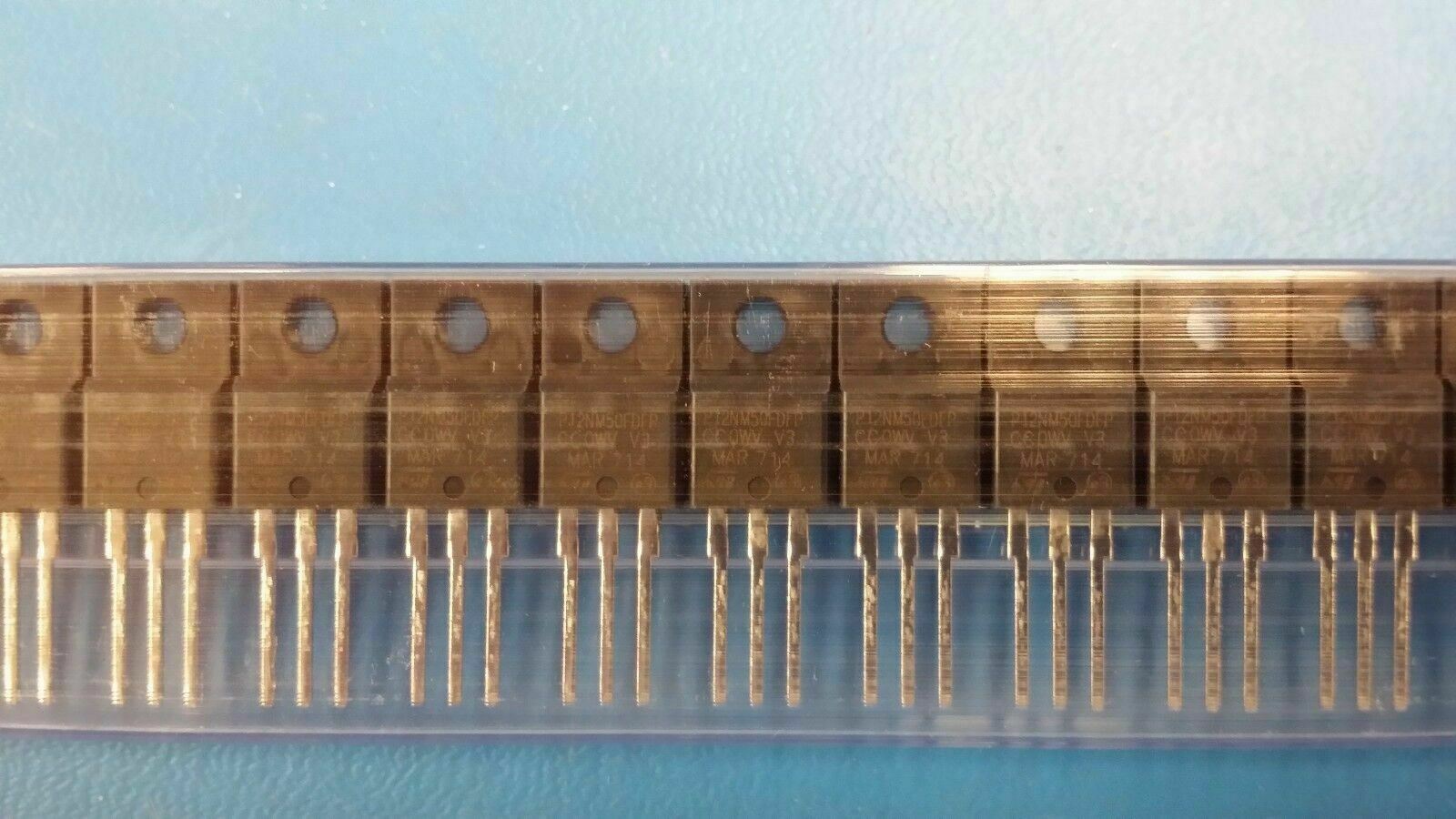

(5 PCS) STP12NM50FDFP ST MICRO MOSFET N-Ch 500 Volt 12 Amp TO-220FP
(5 PCS) STP12NM50FDFP ST MICRO MOSFET N-Ch 500 Volt 12 Amp TO-220FP
(5 PCS) STP12NM50FDFP ST MICRO MOSFET N-Ch 500 Volt 12 Amp TO-220FP

(5 PCS) STP12NM50FDFP ST MICRO MOSFET N-Ch 500 Volt 12 Amp TO-220FP

Tax included.
Only 197 left!
THIS LISTING IS FOR (5 PCS) OF STP12NM50FDFP BY ST MICRO
MOSFET N-Ch 500 Volt 12 Amp TO-220FP

Product Category: MOSFET
Manufacturer: STMicroelectronics
RoHS: YES
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 500 V
Id - Continuous Drain Current: 12 A
Rds On - Drain-Source Resistance: 400 mOhms
Vgs - Gate-Source Voltage: 30 V
Maximum Operating Temperature: + 150 C
Packaging: Tube
Channel Mode: Enhancement
Brand: STMicroelectronics
Configuration: Single
Fall Time: 18 ns
Forward Transconductance - Min: 9.8 S
Height: 9.3 mm
Length: 10.4 mm
Minimum Operating Temperature: - 65 C
Pd - Power Dissipation: 35 W
Rise Time: 10 ns
Series: STP12NM50FDFP


Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 39 ns
Typical Turn-On Delay Time: 19 ns
