(5 PCS) SRR1210-560M BOURNS FIXED IND 56UH 3.4A 90 MOHM SMD ROHS
Tax included.

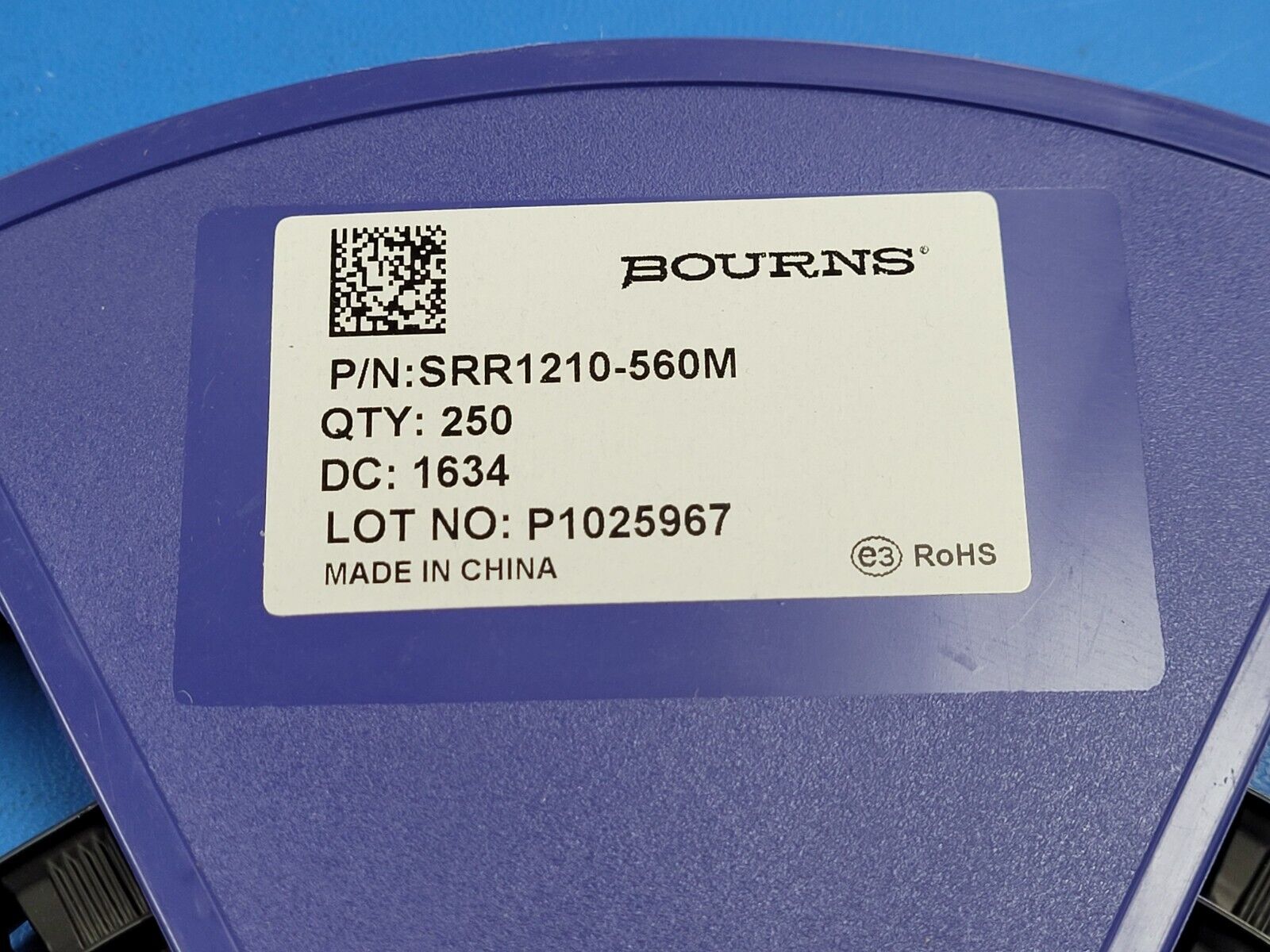

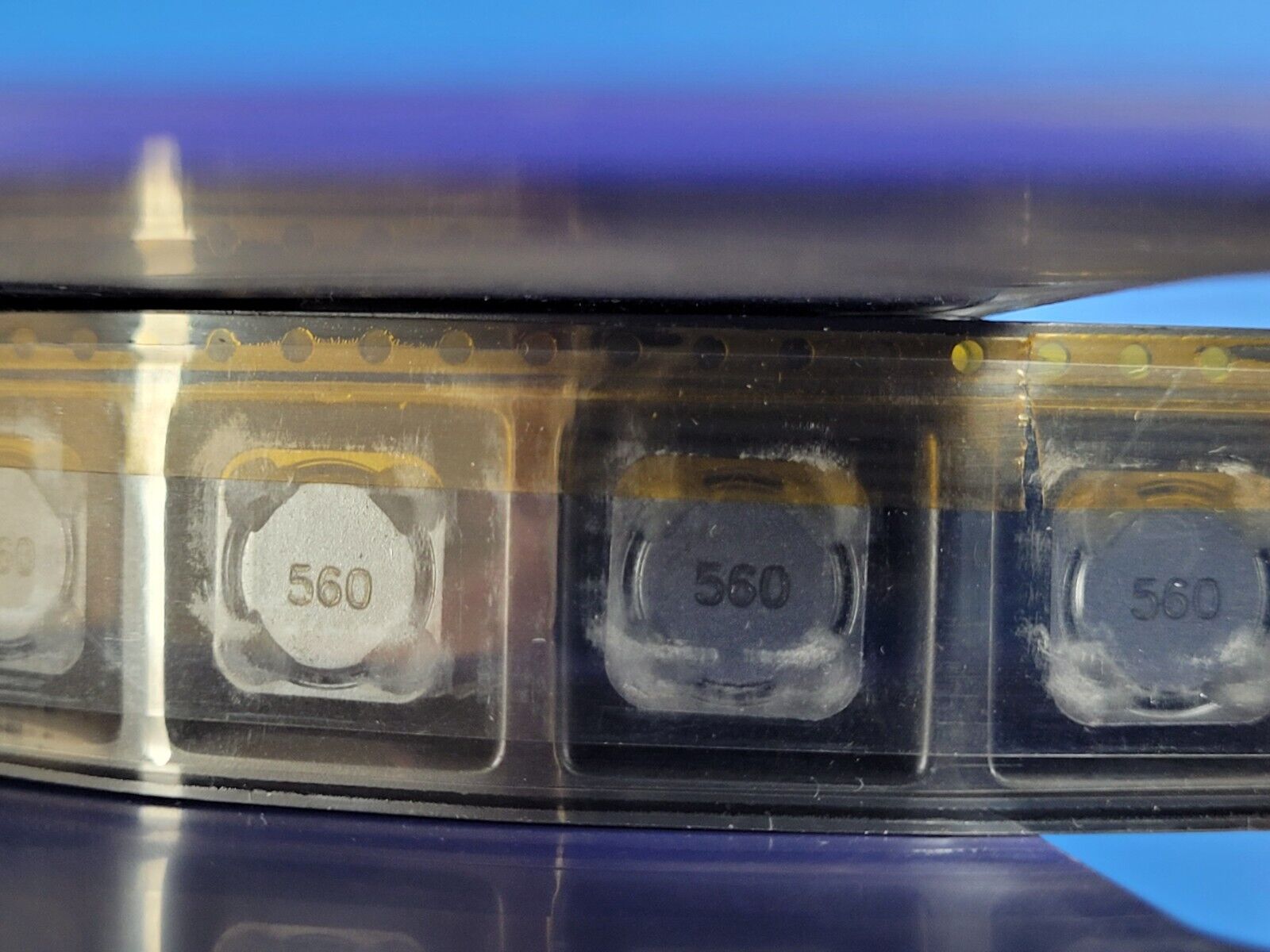

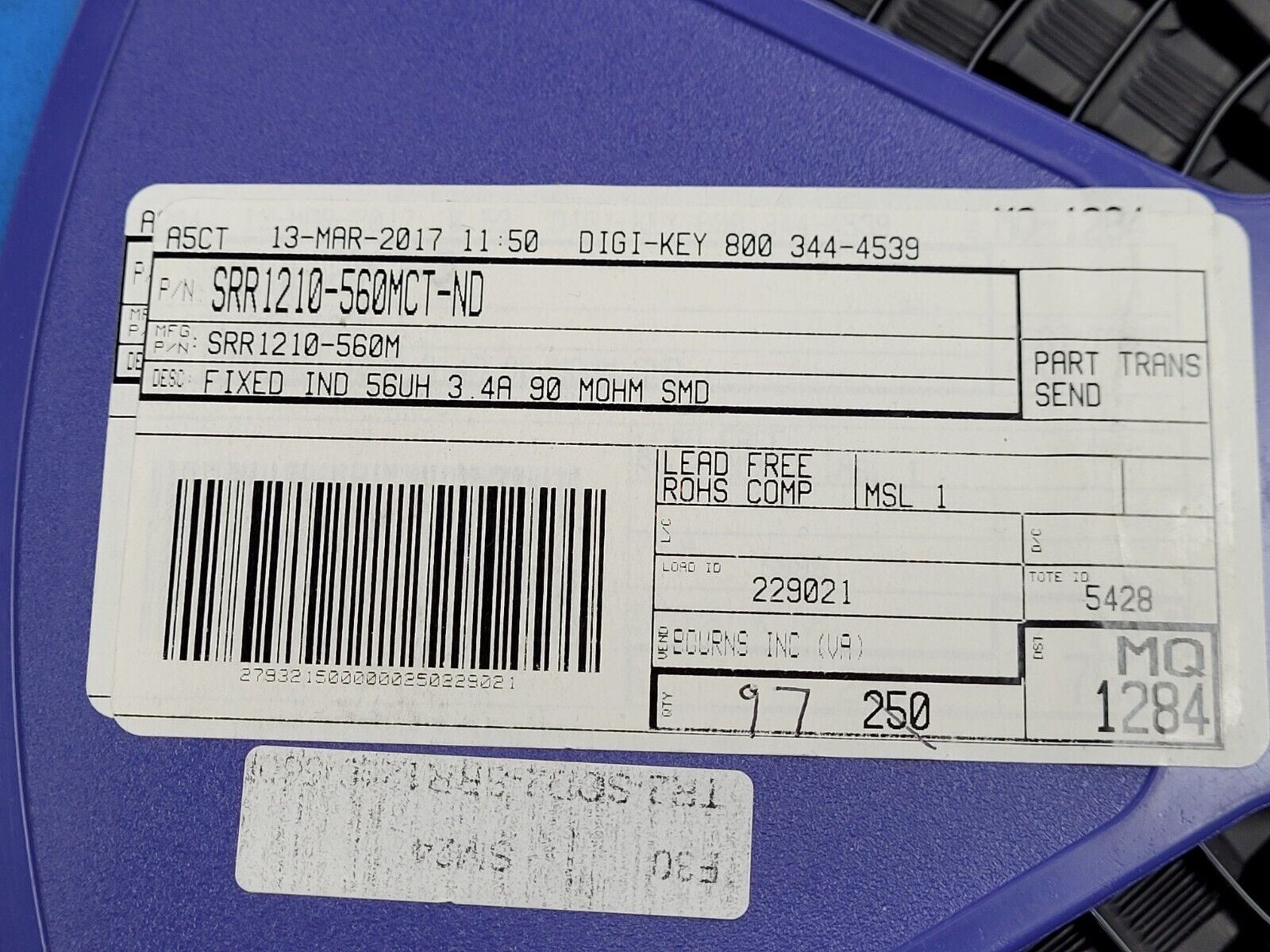

THIS IS FOR (5 PCS) OF SRR1210-560M BY BOURNS
FIXED IND 56UH 3.4A 90 MOHM SMD ROHS
Manufacturer: Bourns
Product Category: Power Inductors - SMD
RoHS: YES
Type: Power Inductor
Package / Case: 12.0 mm x 12.0 mm x 10.0 mm
Shielding: Shielded
Inductance: 56 uH
Tolerance: 20 %
Maximum DC Current: 3.4 A
Maximum DC Resistance: 90 mOhms
Saturation Current: 2.9 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Q Minimum: 8
Self Resonant Frequency: 4 MHz
Termination: Standard
Length: 12 mm
Width: 12 mm
Height: 10 mm
Core Material: Ferrite
Series: SRR1210
Packaging: Reel
Packaging: Cut Tape
Application: Power
Brand: Bourns
Core Type: Wirewound
Mounting Style: PCB Mount
Product: Power Inductors
Product Type: Power Inductors - SMD
Subcategory: Inductors, Chokes & Coils
Termination Style: SMD/SMT
Test Frequency: 2.52 MHz
Unit Weight: 0.200356 oz
