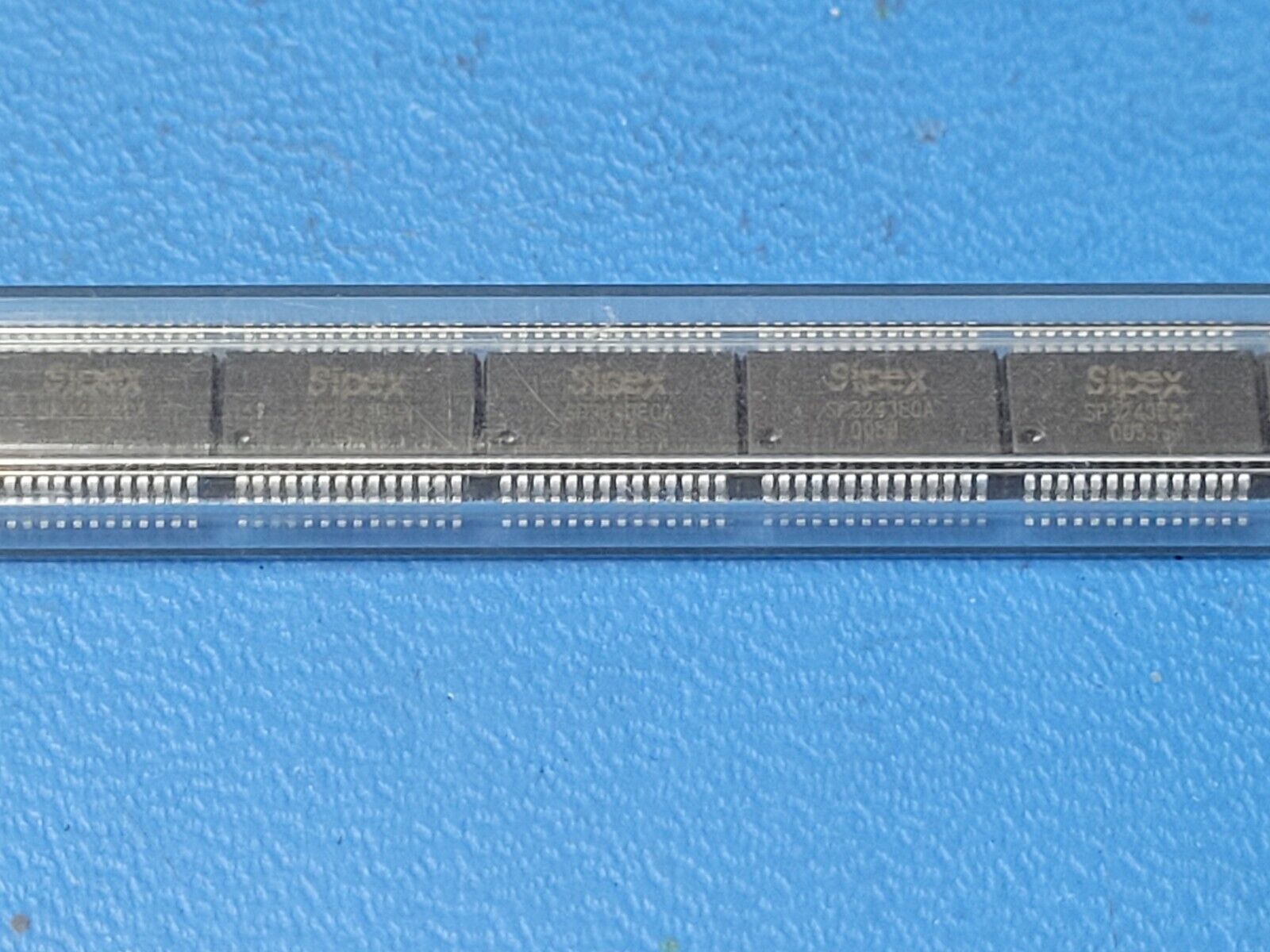

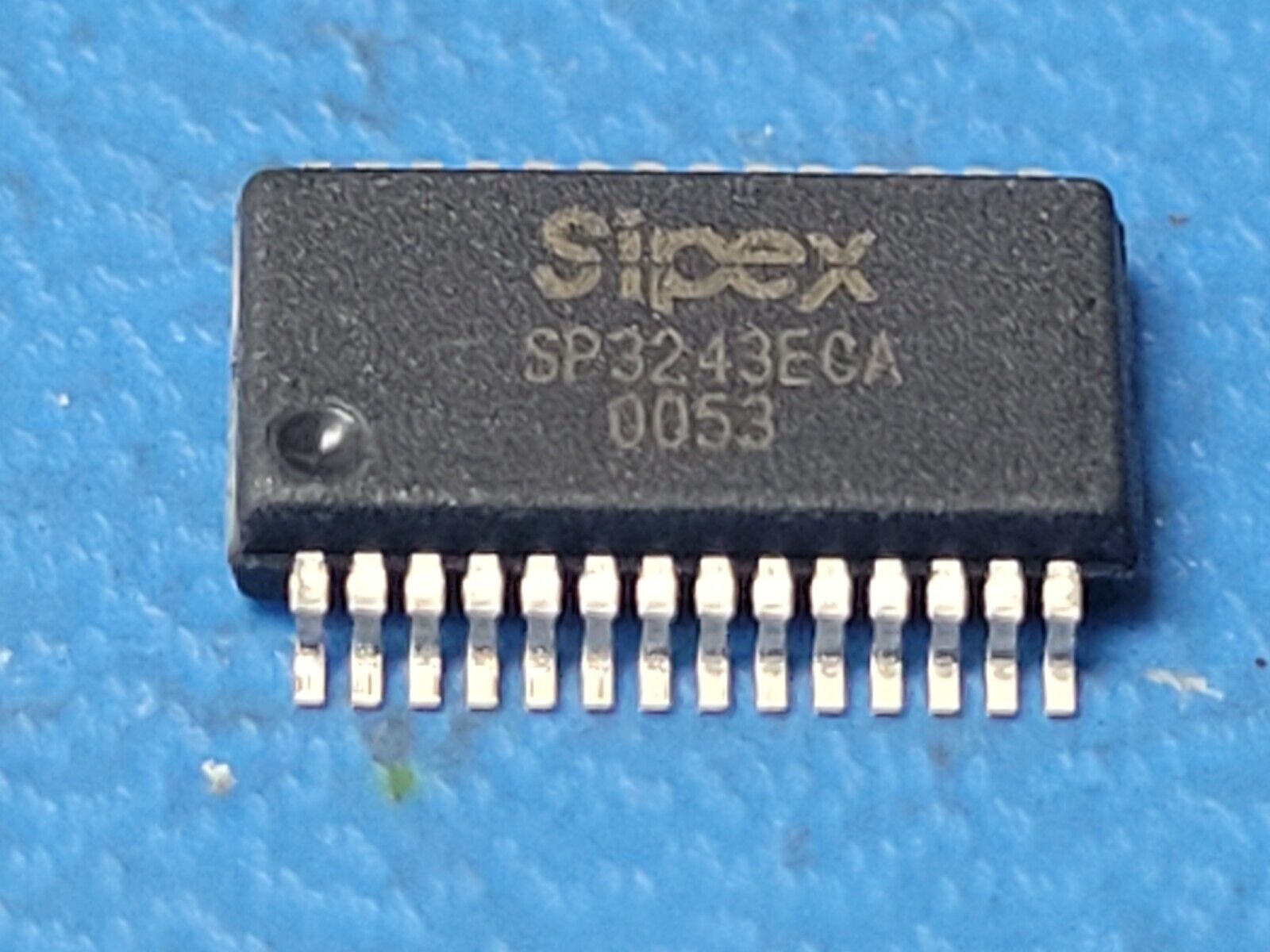

(5 PCS) SP3243ECA SIPEX 3/5 Transceiver Full RS232 28-SSOP
Tax included.
THIS IS FOR (5 PCS) OF SP3243ECA BY SIPEX
3/5 Transceiver Full RS232 28-SSOP
Mfr Package Description MO-150AH, SSOP-28
Status Transferred
Interface IC Type LINE TRANSCEIVER
Differential Output NO
Driver Number of Bits 3.0
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232-F; TIA-232-F; V.24; V.28; EIA-562; TIA-562
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Moisture Sensitivity Level 2
Number of Functions 3
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Out Swing-Min 10.0 V
Output Low Current-Max 0.0016 Amp
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Receive Delay-Max 0.0 ns
Receiver Number of Bits 5.0
Seated Height-Max 2.0 mm
Sub Category Line Driver or Receivers
Supply Current-Max 1.0 mA
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Length 10.2 mm
Width 5.3 mm
