(5 PCS) SN74LS74AFN TI IC FF D-TYPE DOUBLE 1BIT PLCC20
Tax included.

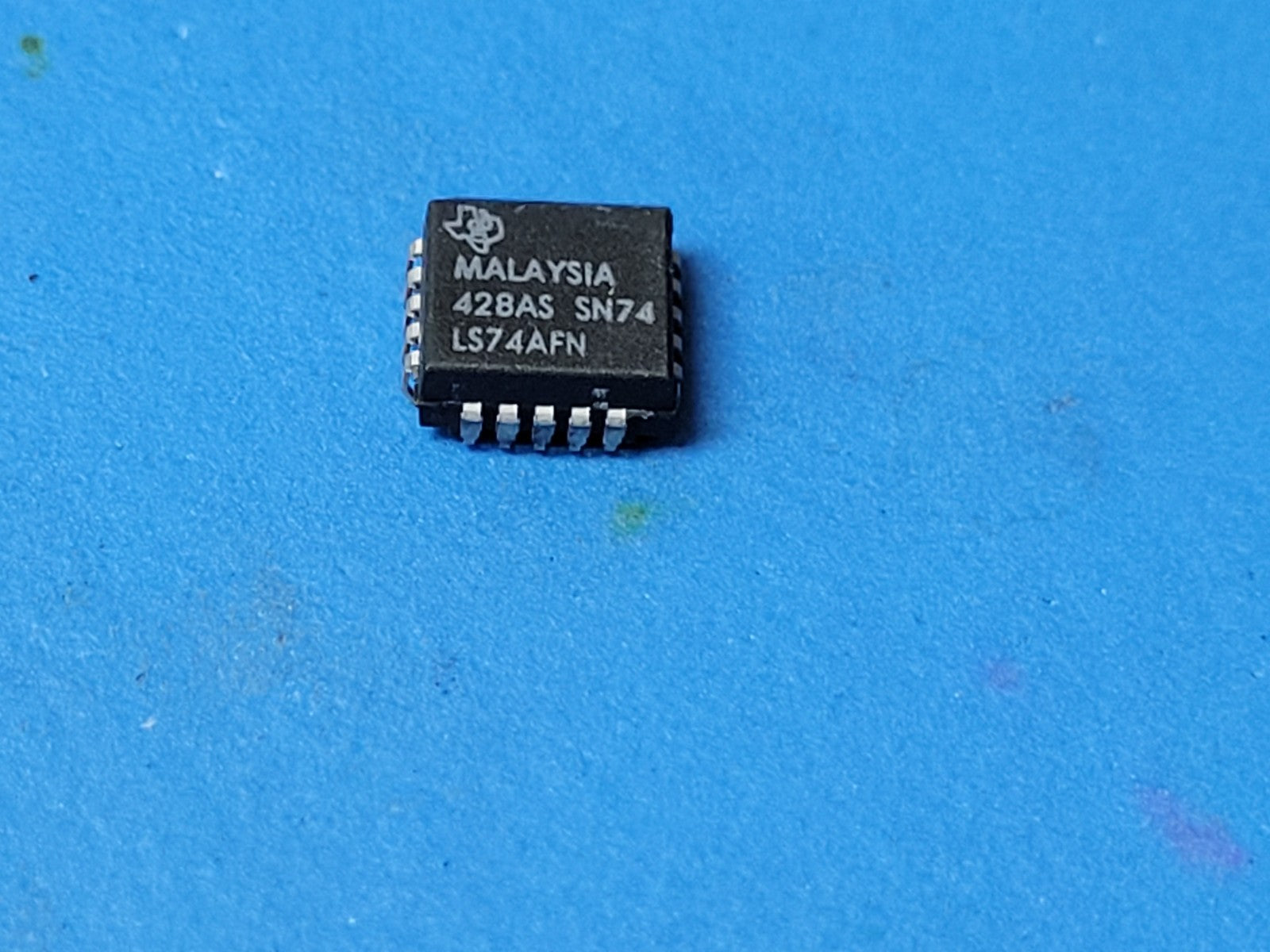

THIS IS FOR (5 PCS) OF SN74LS74AFN BY TI
IC FF D-TYPE DOUBLE 1BIT PLCC20
Part #: SN74LS74AFN
Obsolete
Part Category: FF/Latches
Manufacturer: TEXAS INSTRUMENTS INC
Description: D Flip-Flop, LS Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, TTL, PQCC20
Status Discontinued
Family LS
JESD-30 Code S-PQCC-J20
Length (mm) 8.9662
Load Capacitance (pF) 15.0000
Logic IC Type D FLIP-FLOP
Frequency-Max@Nom-Sup (Hz) 25000000.000000000000000000
Output Low Current-Max (mA) 8.000000000000000
Number of Bits 1
Number of Functions 2
Number of Terminals 20
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC20,.4SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Current-Max (mA) 8.00000000
Propagation Delay-Max@Nom-Sup (ns) 40.000000000000000000
Propagation Delay (ns) 40.0000
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.5700
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type POSITIVE EDGE
Width (mm) 8.9662
fmax-Min (MHz) 25.0000
