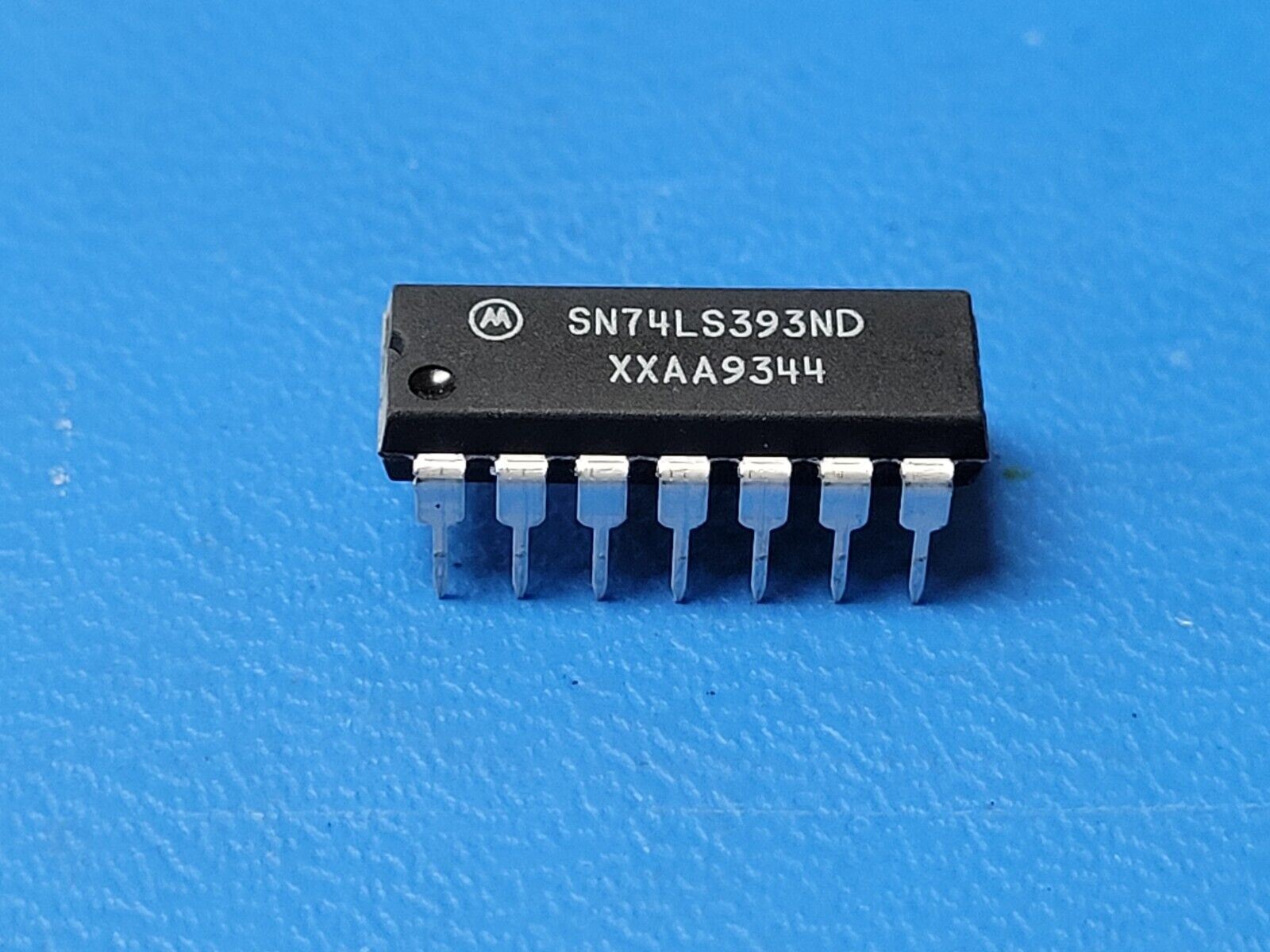

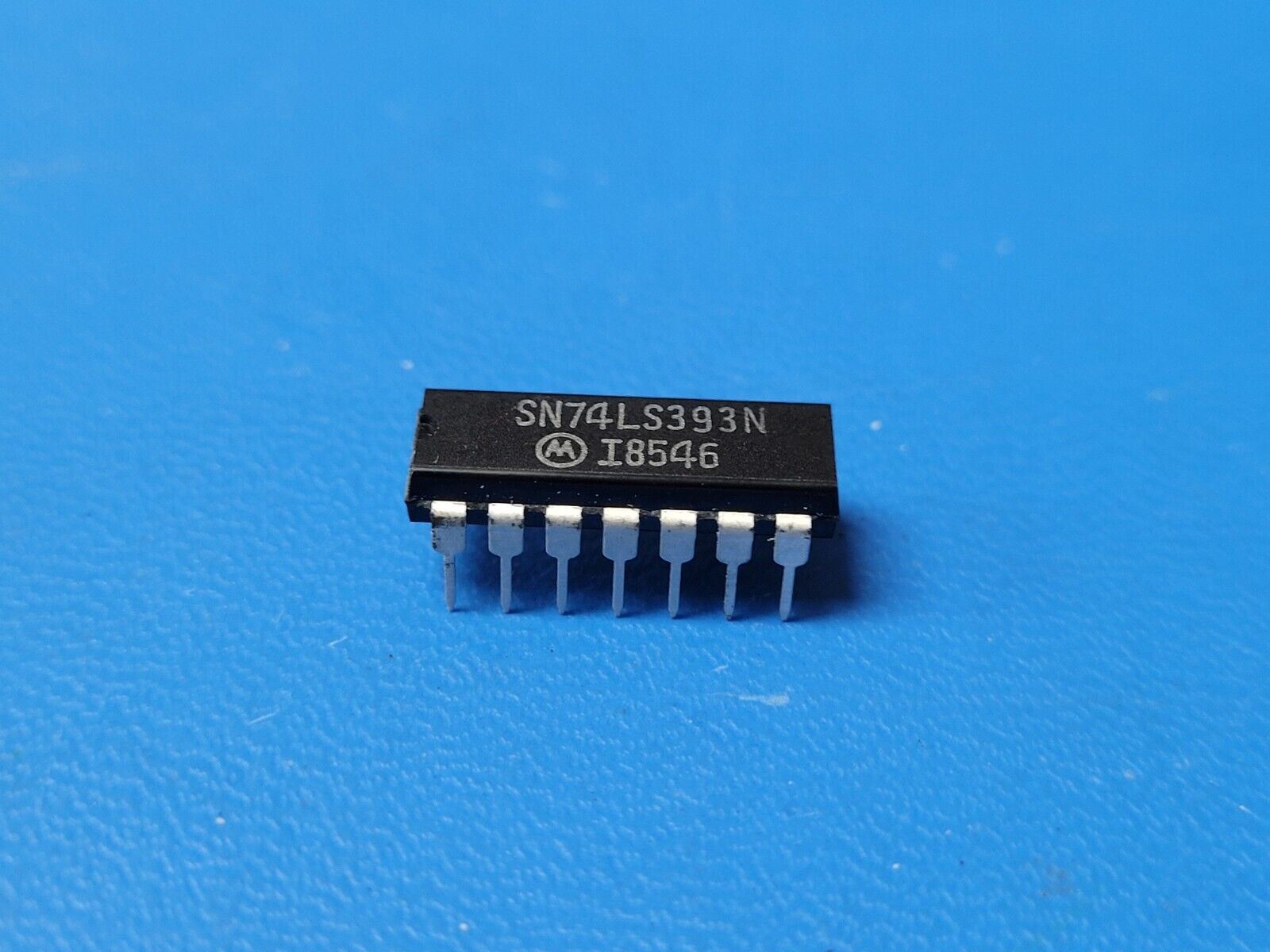

(5 PCS) SN74LS393N, SN74LS393ND MOT IC COUNTER BIN DUAL 4BIT 14-DIP
Tax included.
THIS IS FOR (5 PCS) OF SN74LS393N, SN74LS393ND BY MOT
IC COUNTER BIN DUAL 4BIT 14-DIP
Part #: SN74LS393N
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, TTL, PDIP14
Part #: SN74LS393ND
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: Binary Counter, LS Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, TTL, PDIP14
Mfr Package Description PLASTIC, DIP-14
Status Discontinued
Logic IC Type BINARY COUNTER
Sub Category Counters
Count Direction UP
Family LS
fmax-Min 20.0 MHz
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Load Capacitance (CL) 15.0 pF
Load/Preset Input NO
Max Frequency@Nom-Sup 2.5E7 Hz
Max I(ol) 0.008 Amp
Mode of Operation ASYNCHRONOUS
Number of Bits 4
Number of Functions 2
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 26.0 mA
Propagation Delay (tpd) 60.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.69 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type NEGATIVE EDGE
Length 18.86 mm
Width 7.62 mm
