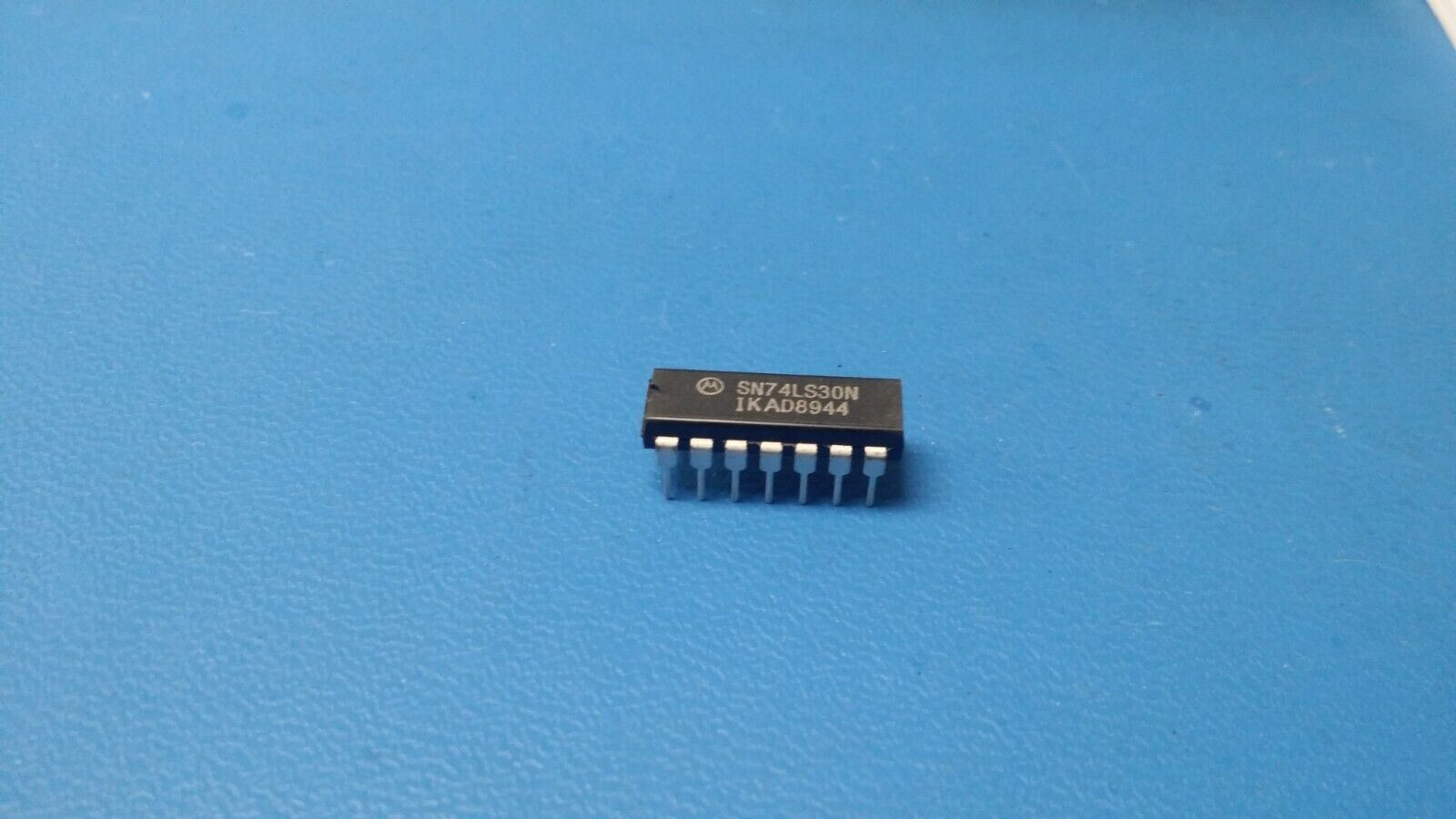

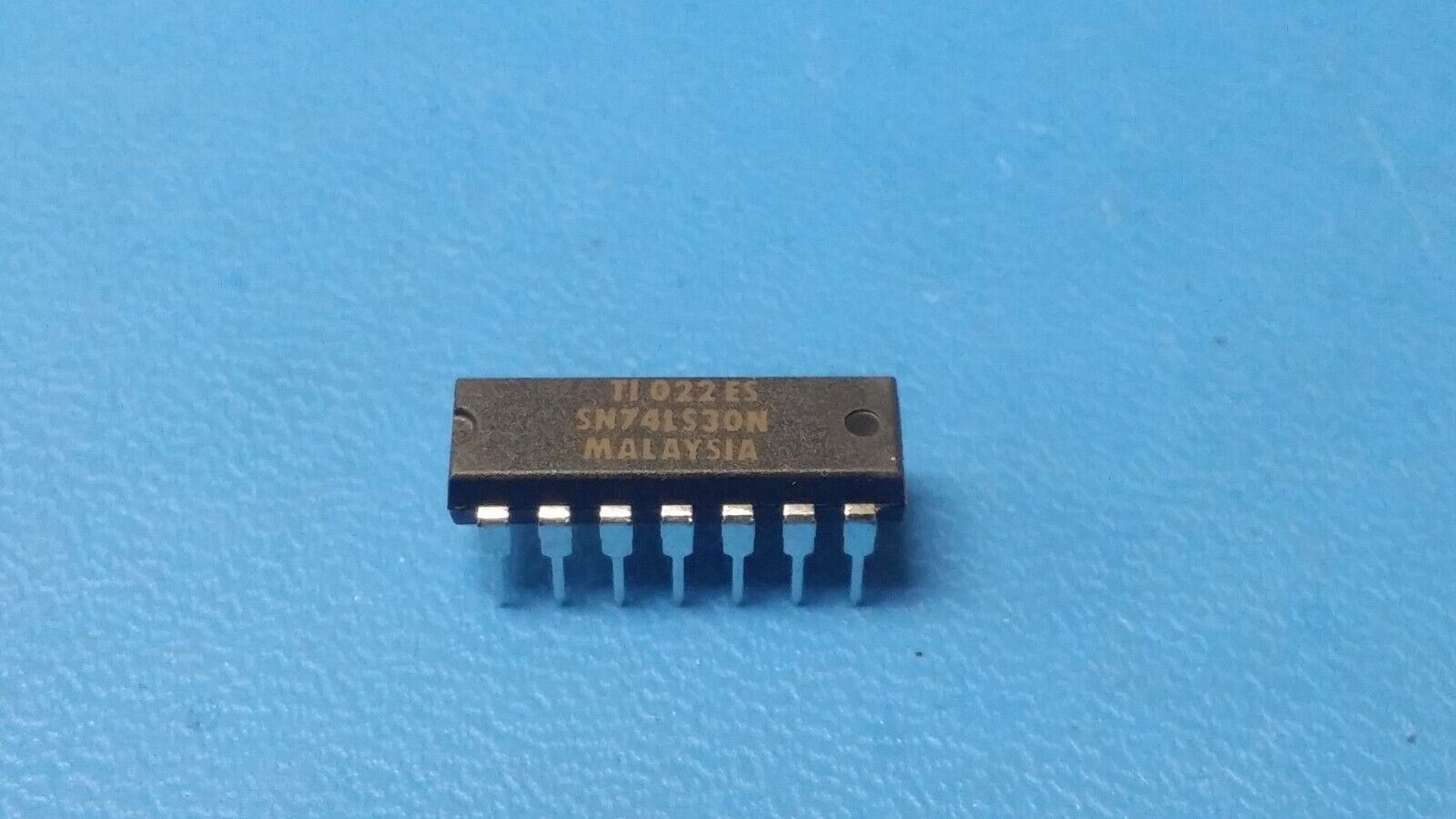

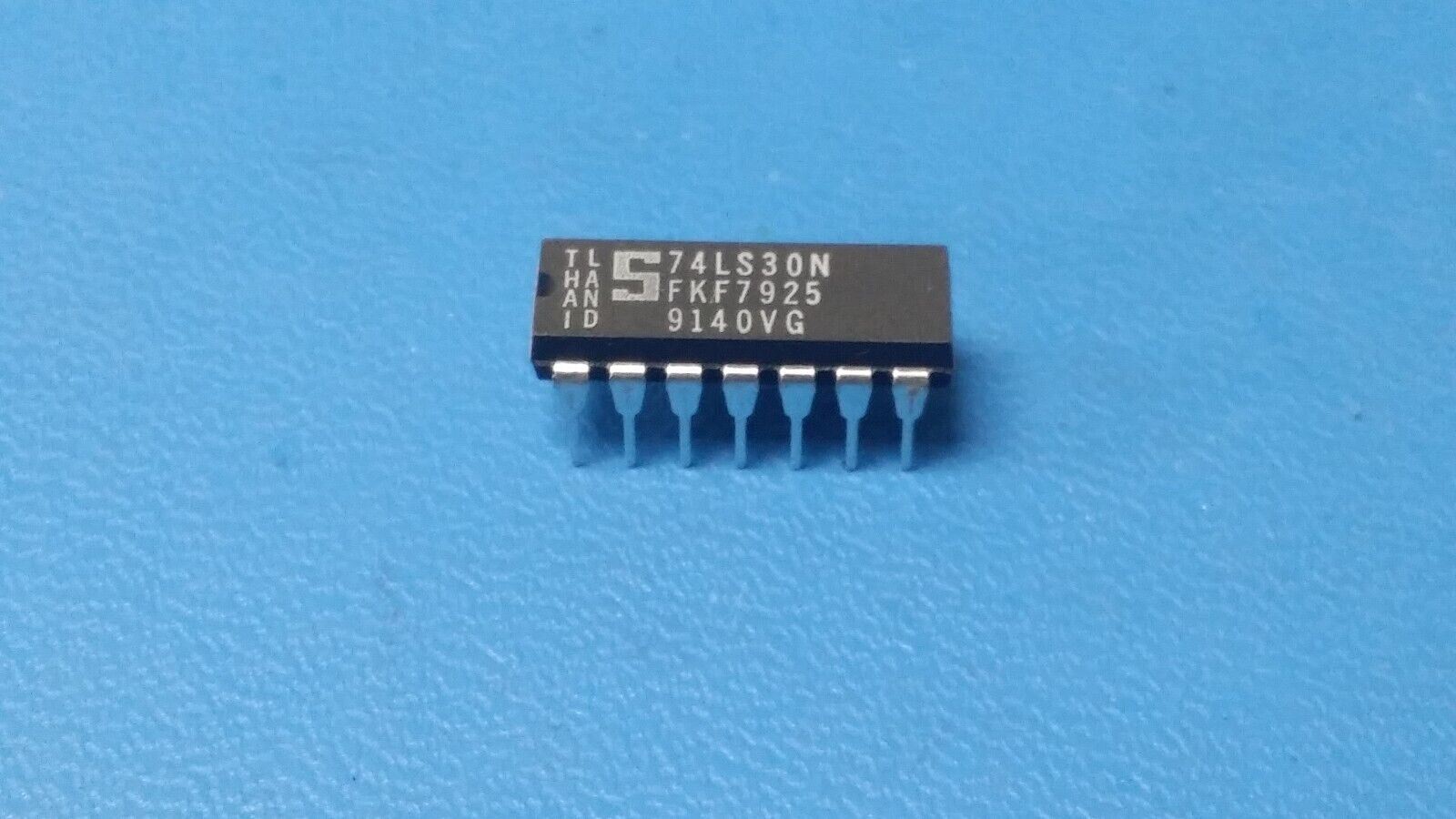

(5 PCS) SN74LS30N MOT/TI/SIG NAND Gate LS Series 1-Func 8-Input TTL PDIP14
Tax included.
THIS IS FOR (5 PCS) OF SN74LS30N, SN74LS30NDS BY MOT
NAND Gate LS Series 1-Func 8-Input TTL PDIP14
Part #: SN74LS30NDS
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: NAND Gate, LS Series, 1-Func, 8-Input, TTL, PDIP14
Mfr Package Description PLASTIC, DIP-14
Status Discontinued
Logic IC Type NAND GATE
Sub Category Gates
Family LS
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Number of Functions 1
Number of Inputs 8.0
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Propagation Delay (tpd) 20.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 18.86 mm
Width 7.62 mm
