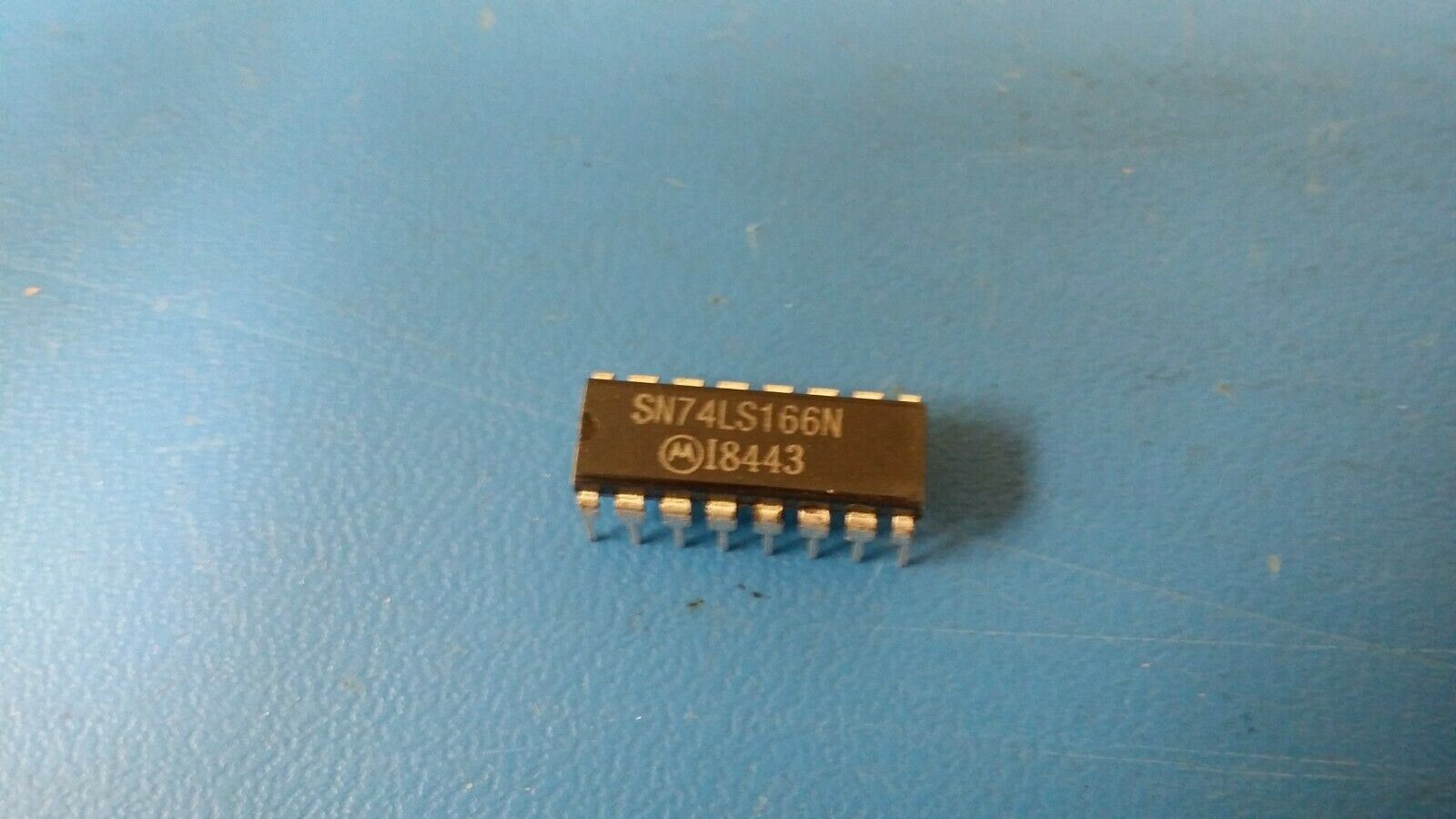

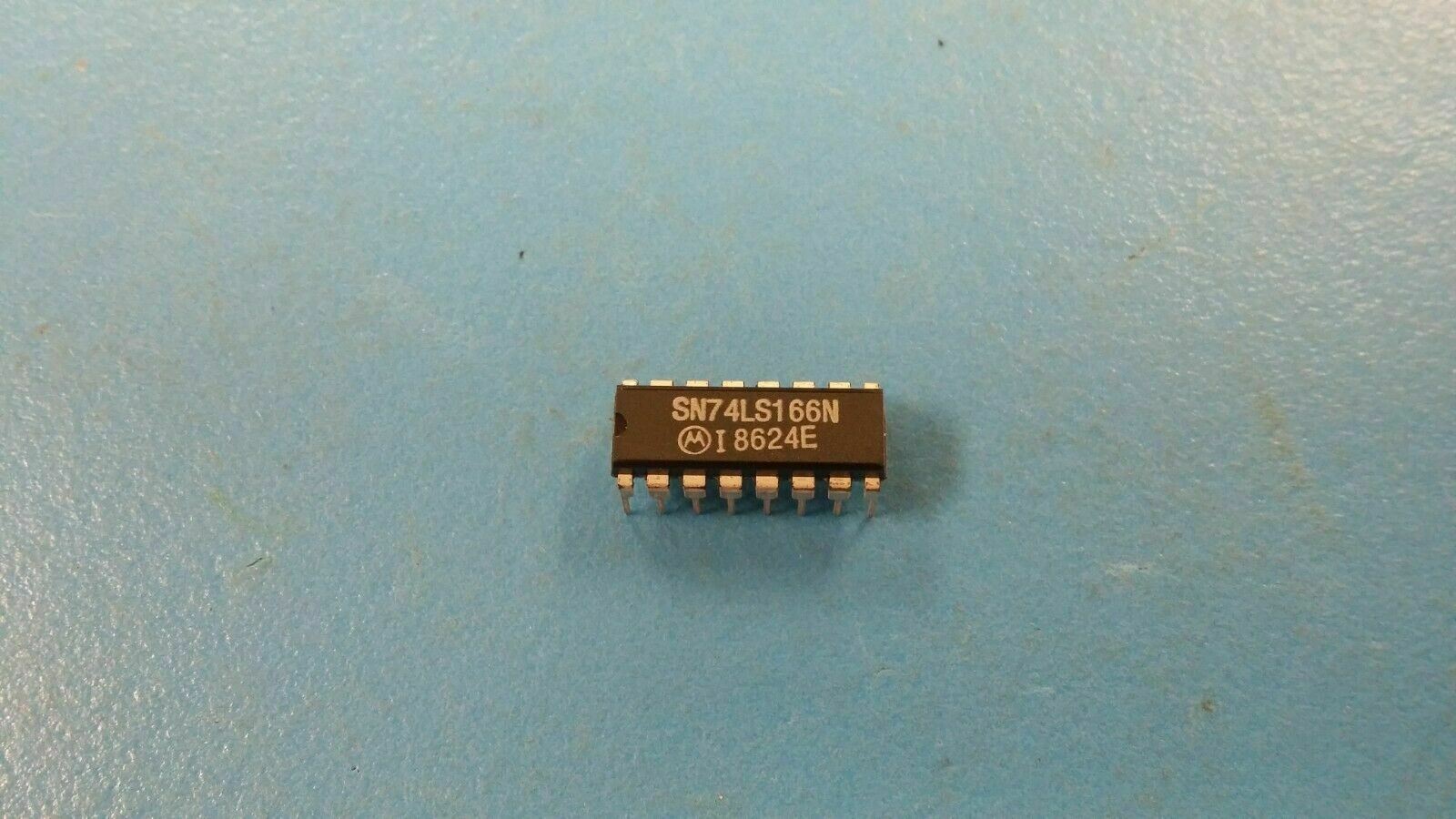

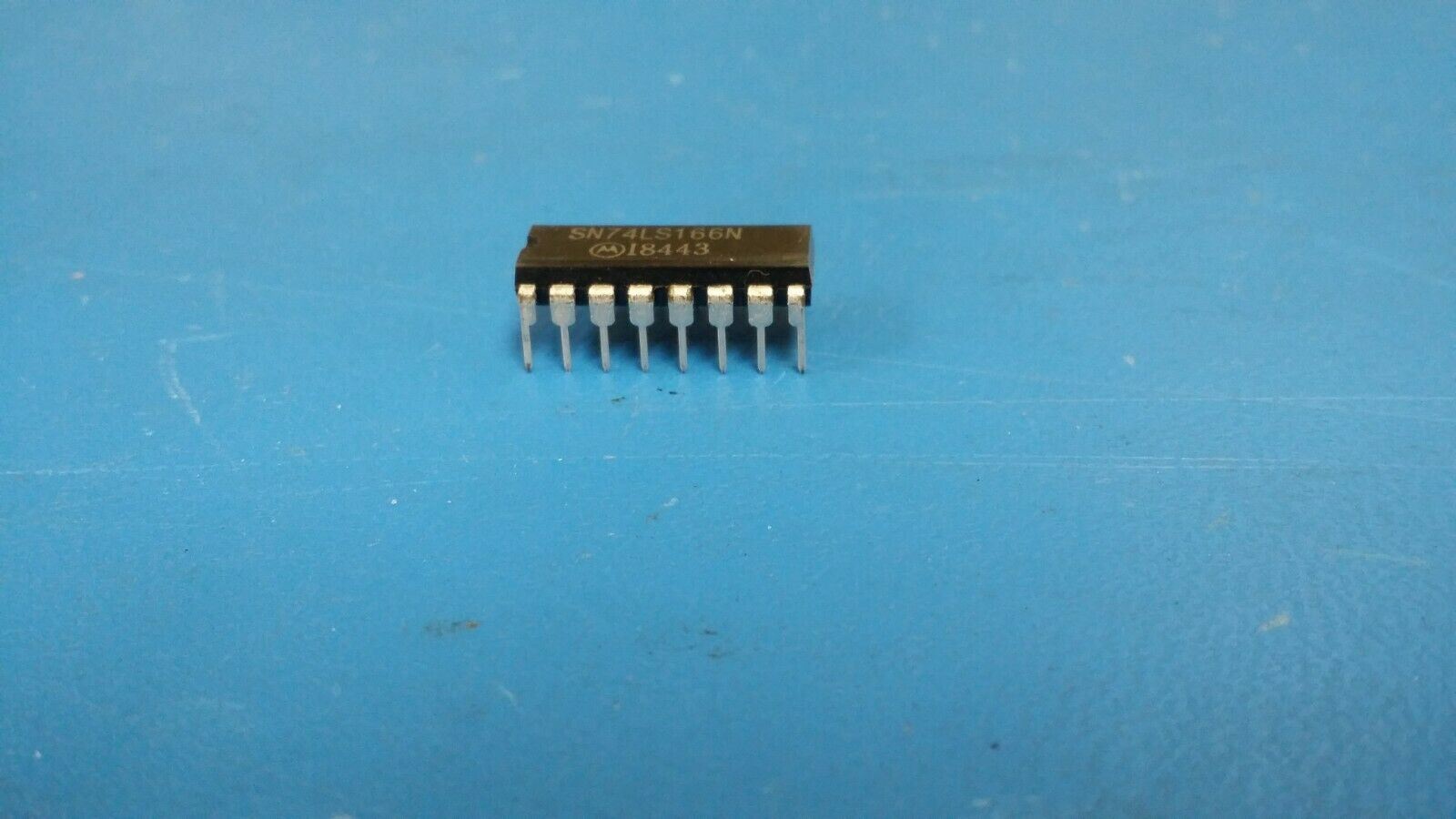

(5 pcs) SN74LS166N Motorola Shift Register, 16 Pin, Plastic, DIP
Tax included.
THIS LISTING IS FOR (5 pcs) OF SN74LS166N BY Motorola
Shift Register, 16 Pin, Plastic, DIP
Part #: SN74LS166N
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: Parallel In Serial Out, LS Series, 8-Bit, Right Direction, True Output, TTL, PDIP16
Shift Register, 16 Pin, Plastic, DIP
Mfr Package Description 648-08
Status Transferred
Logic IC Type PARALLEL IN SERIAL OUT
Sub Category Shift Registers
Count Direction RIGHT
Family LS
fmax-Min 25.0 MHz
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Load Capacitance (CL) 15.0 pF
Max Frequency@Nom-Sup 2.5E7 Hz
Number of Bits 8
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 38.0 mA
Propagation Delay (tpd) 35.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.44 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 19.175 mm
Width 7.62 mm
Additional Feature CLOCK INHIBIT
