(5 PCS) SN74LS155N MOTOROLA Decoder/Driver, TTL, PDIP16

$4.95
Unit price per

Tax included.

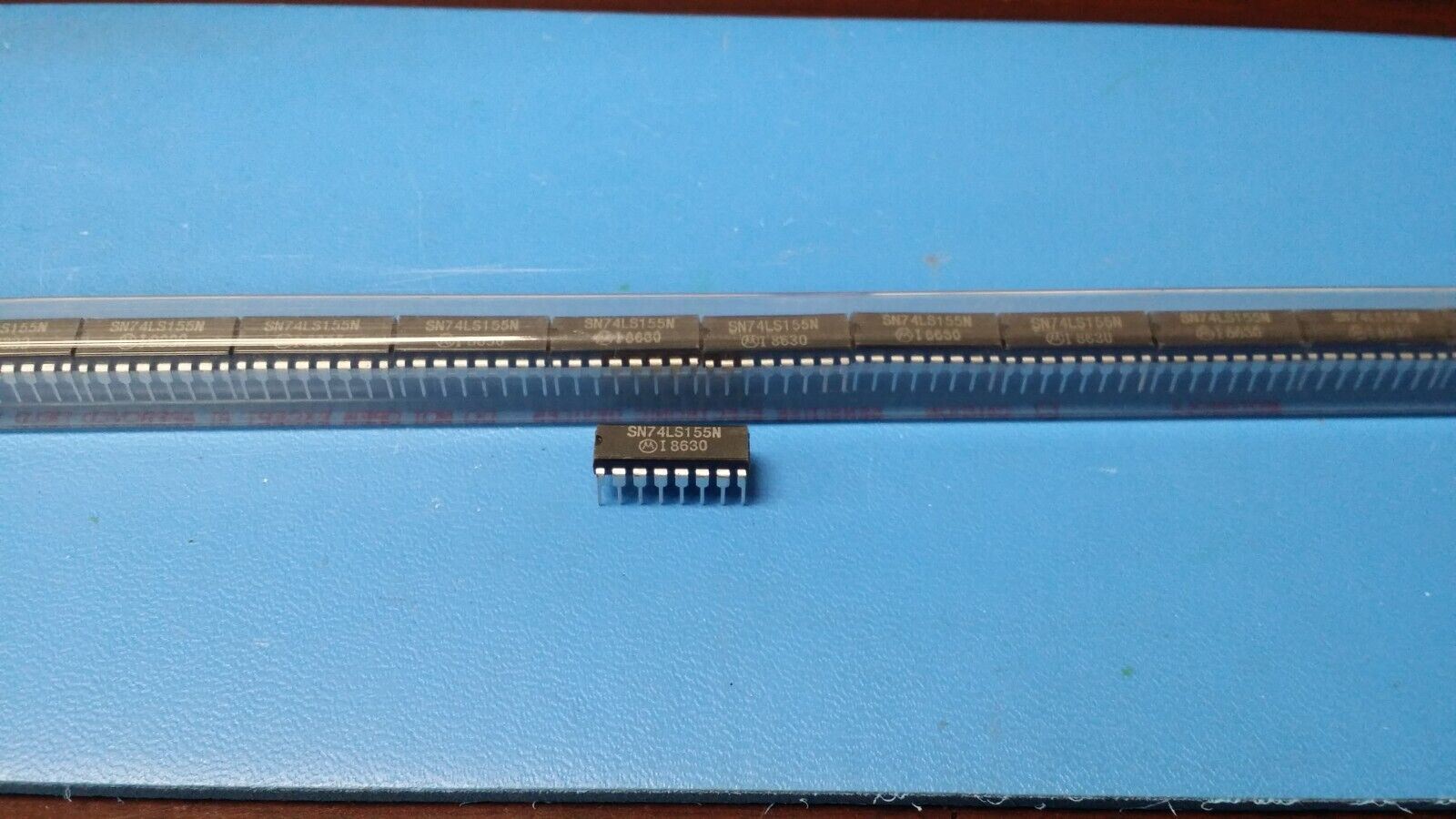

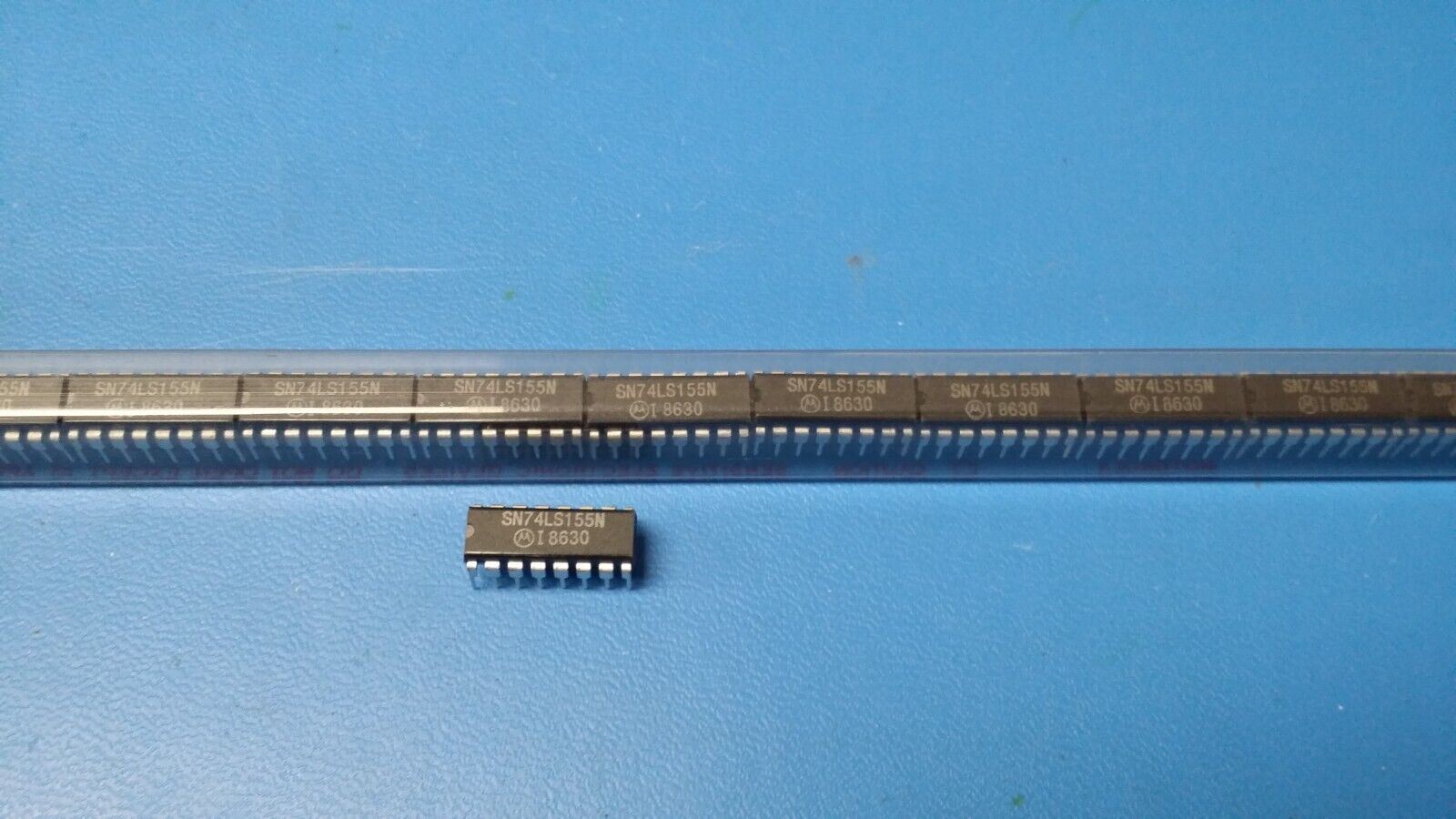

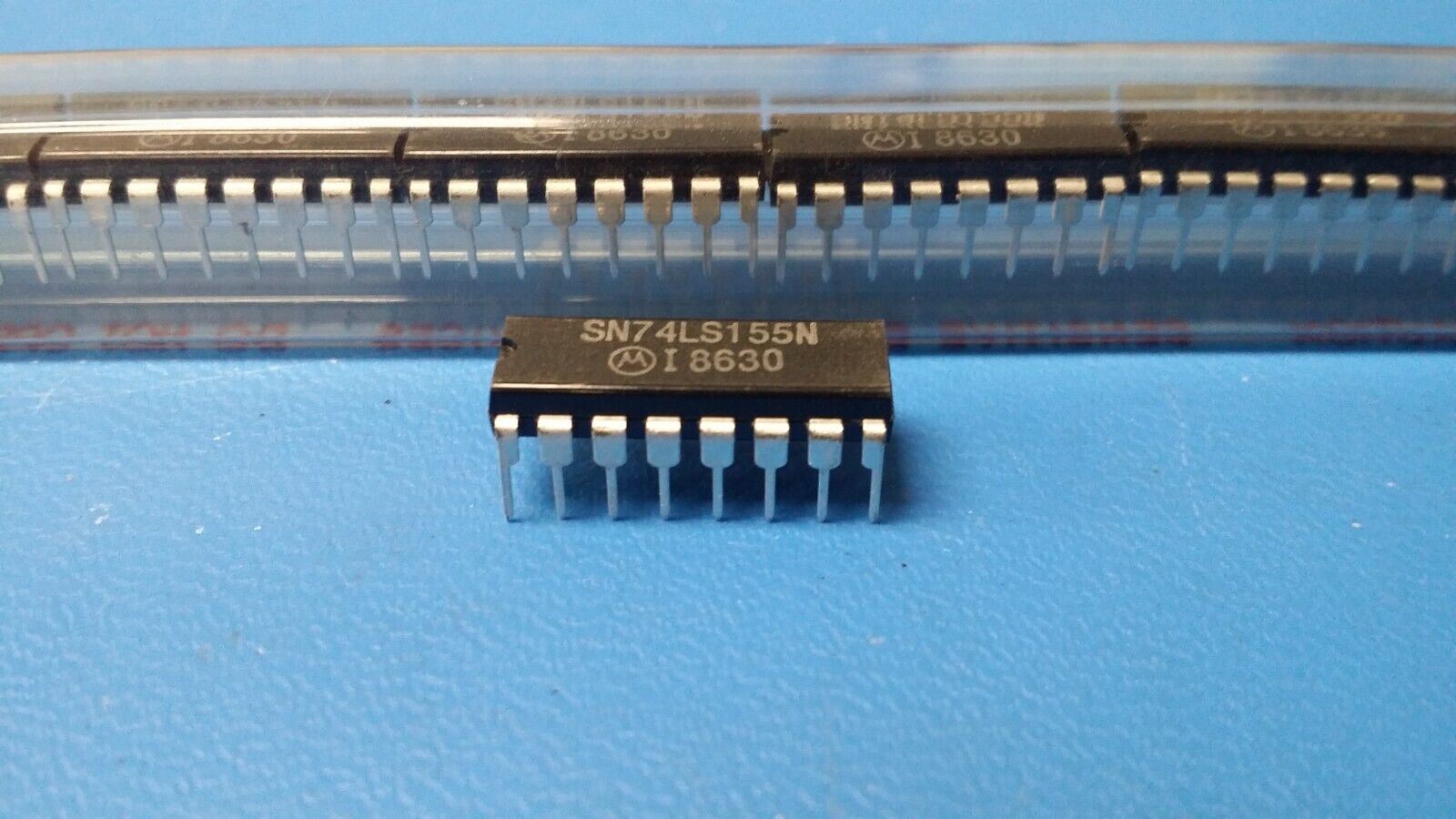

THIS IS FOR (5 PCS) OF SN74LS155N BY MOTOROLA

Decoder/Driver, TTL, PDIP16

Part #: SN74LS155N

Part Category: Logic ICs

Manufacturer: Motorola Solutions

Description: Decoder/Driver, LS Series, True Output, TTL, PDIP16

Mfr Package Description PLASTIC, DIP-16

Status Discontinued

Family LS

Input Conditioning STANDARD

JESD-30 Code R-PDIP-T16

Number of Functions 2

Number of Terminals 16

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Shape RECTANGULAR

Package Style IN-LINE

Propagation Delay (tpd) 30.0 ns

Qualification Status Not Qualified

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount NO

Technology TTL

Temperature Grade COMMERCIAL

Terminal Form THROUGH-HOLE

Terminal Position DUAL

Additional Feature FUNCTION 2 OUTPUT INVERTED
