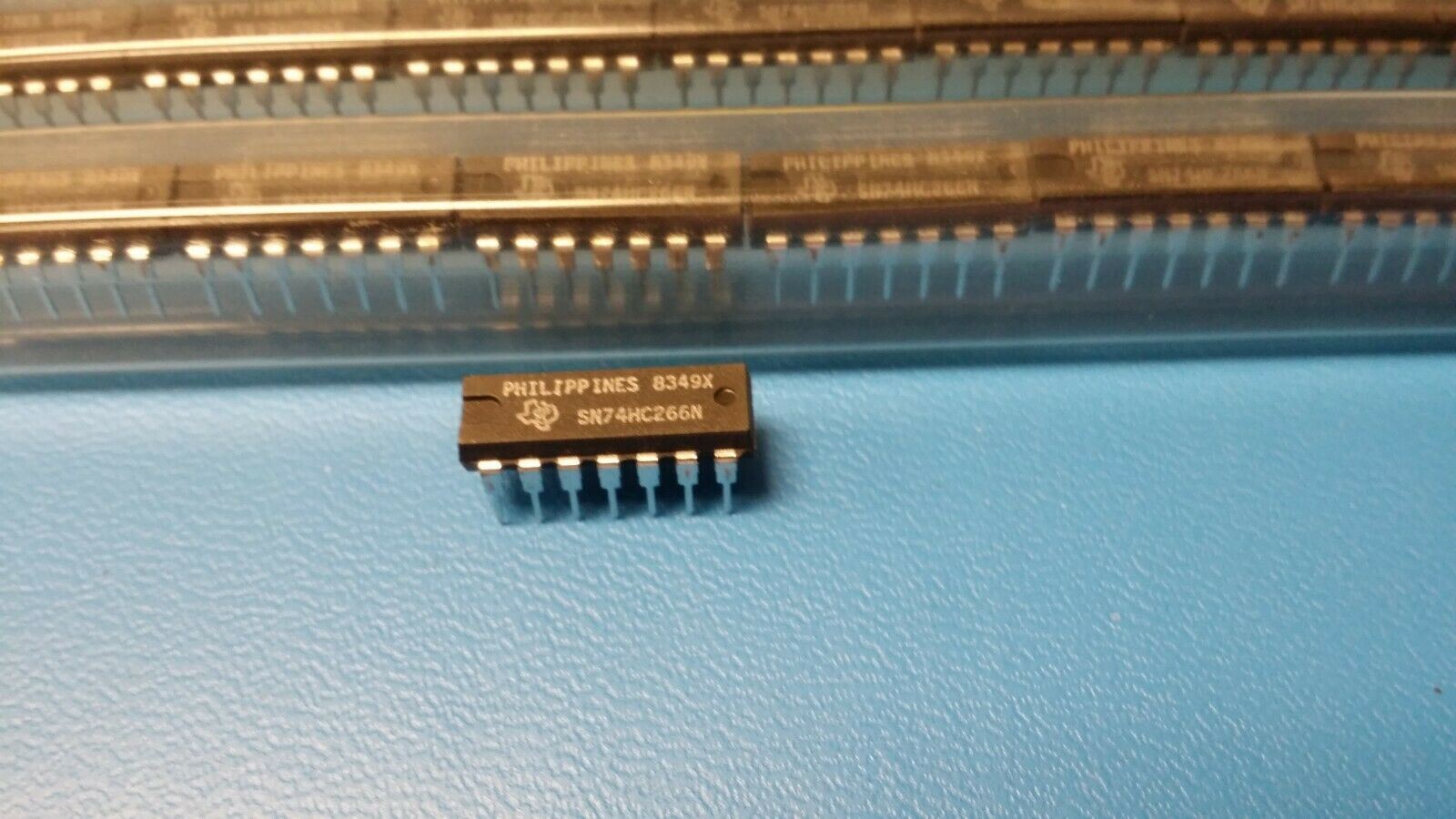

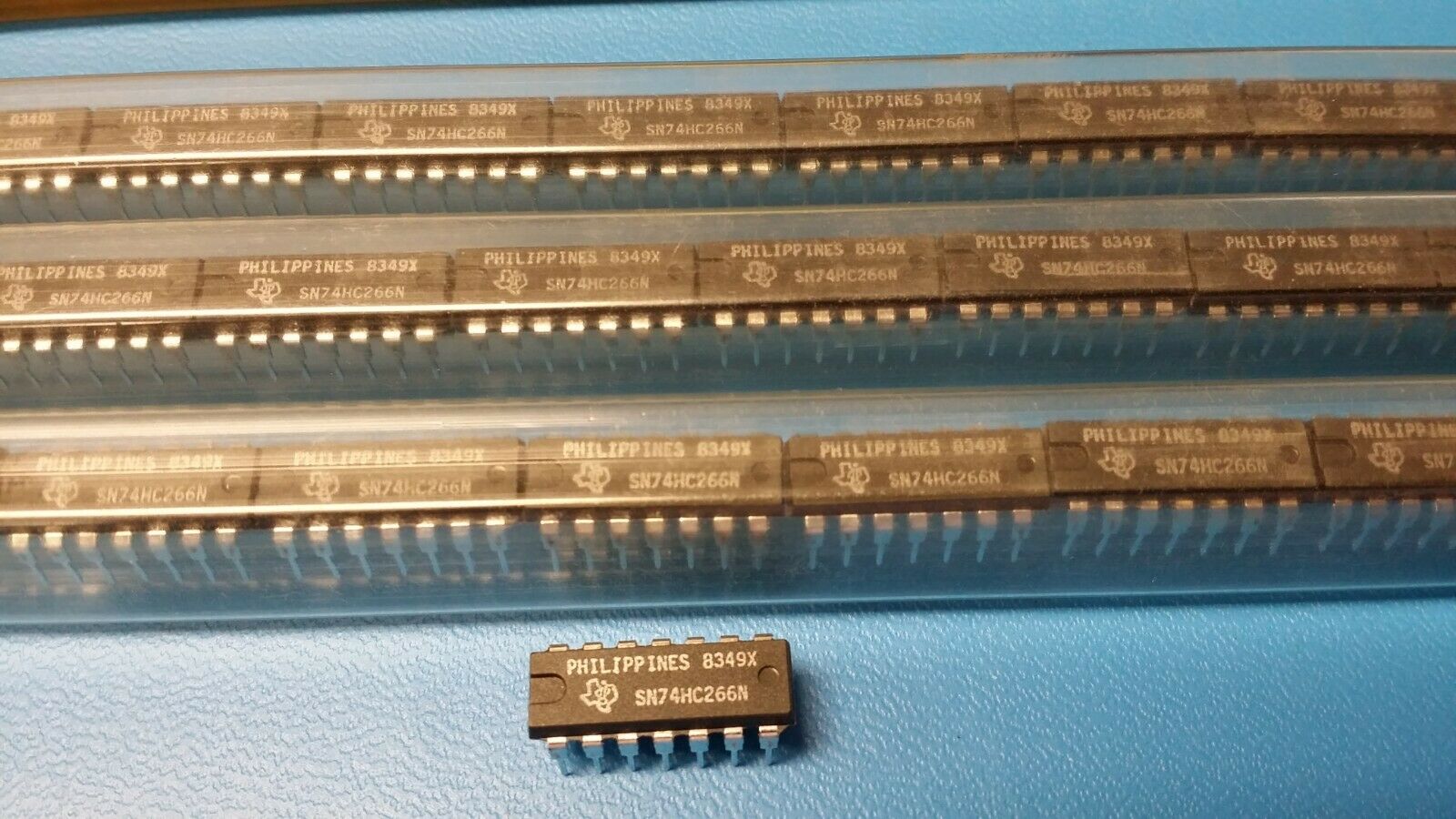

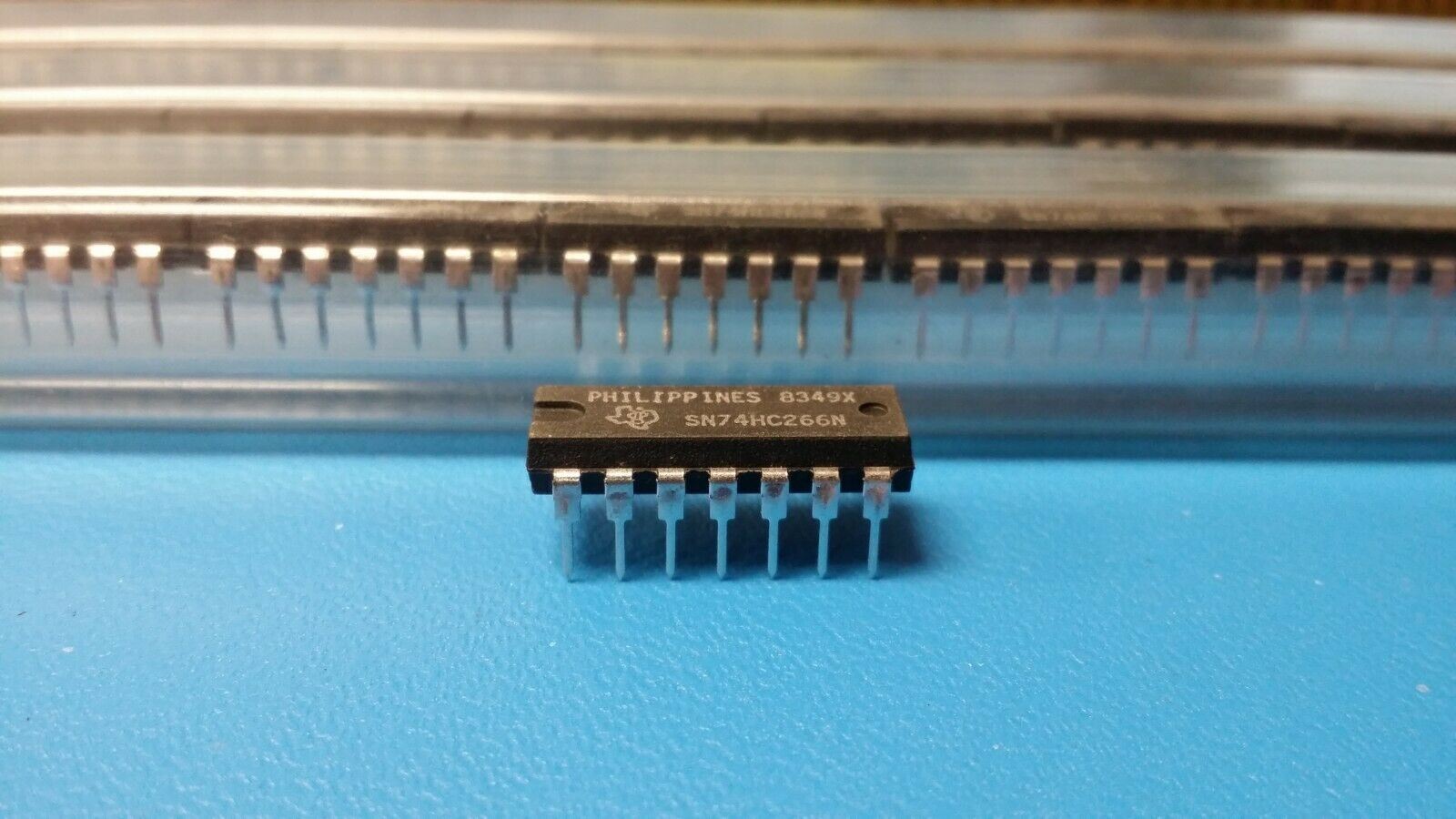

(5 PCS) SN74HC266N TI XNOR Gate 4-Element 2-IN CMOS 14-Pin PDIP
(5 PCS) SN74HC266N TI XNOR Gate 4-Element 2-IN CMOS 14-Pin PDIP
(5 PCS) SN74HC266N TI XNOR Gate 4-Element 2-IN CMOS 14-Pin PDIP

(5 PCS) SN74HC266N TI XNOR Gate 4-Element 2-IN CMOS 14-Pin PDIP

Tax included.
Only 13 left!
THIS LISTING IS FOR (5 PCS) OF SN74HC266N BY TI
XNOR Gate 4-Element 2-IN CMOS 14-Pin PDIP

Manufacturer Texas Instruments
Series 74HC
Packaging Tube
Part Status Active
Logic Type XNOR (Exclusive NOR)
Number of Circuits 4
Number of Inputs 2
Features Open Drain
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 2µA
Current - Output High, Low -, 5.2mA
Logic Level - Low 0.5V ~ 1.8V
Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 23ns @ 6V, 50pF
Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole
Supplier Device Package 14-PDIP
Package / Case 14-DIP (0.300", 7.62mm)
Base Part Number SN74HC2
