(5 PCS) SN74AS00N TI NAND Gate IC 4 Channel 14-DIP
Tax included.

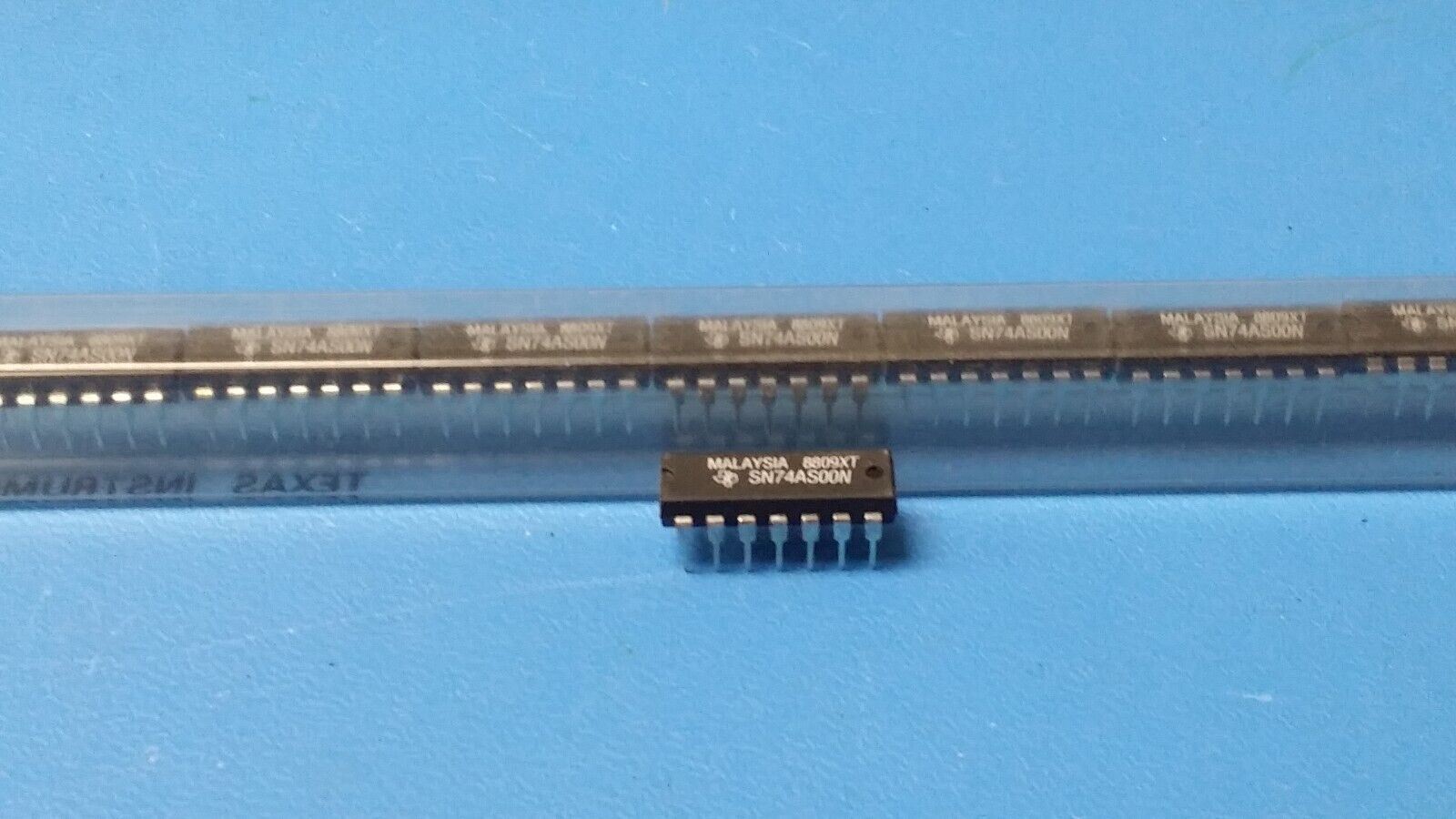

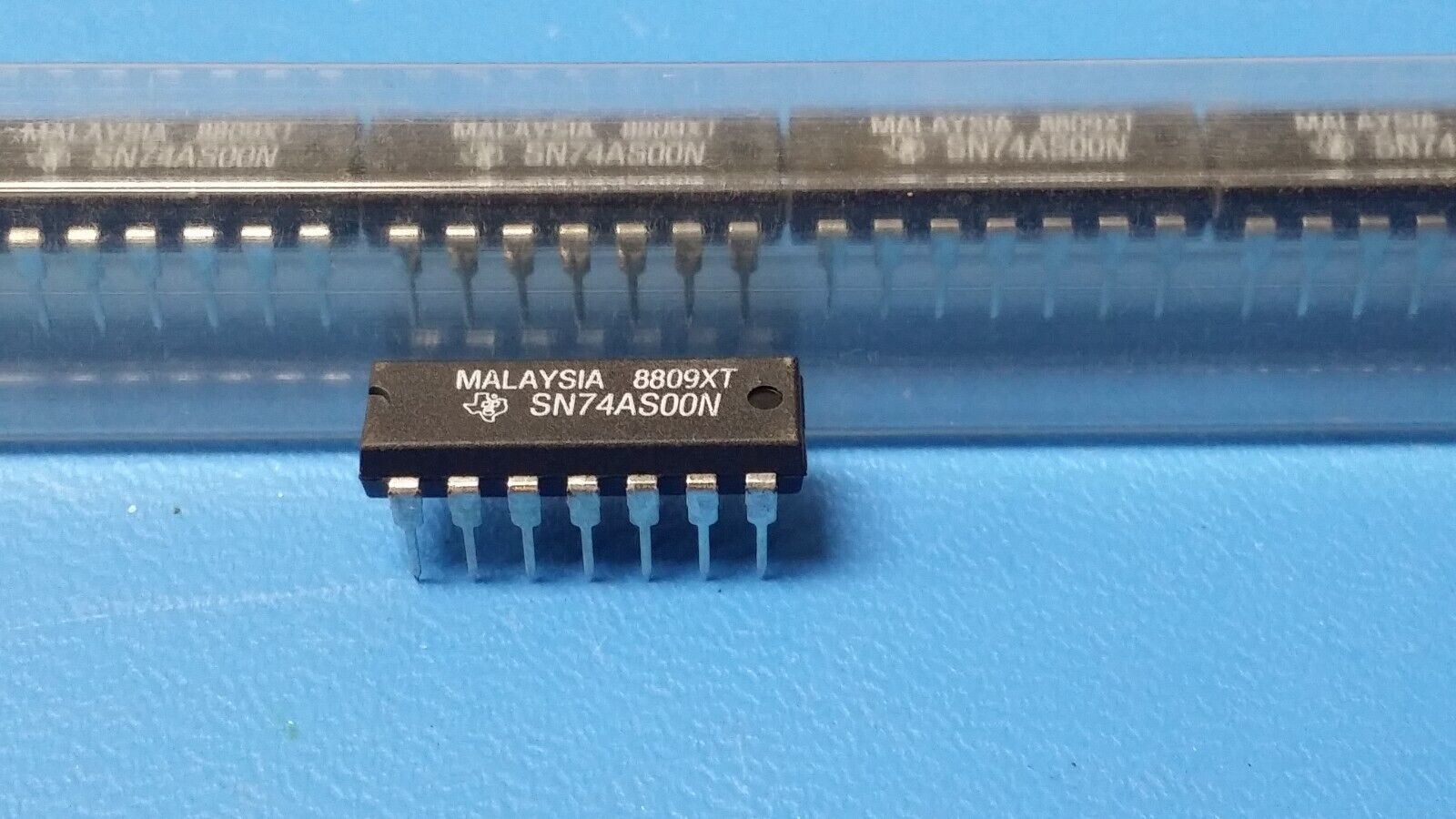

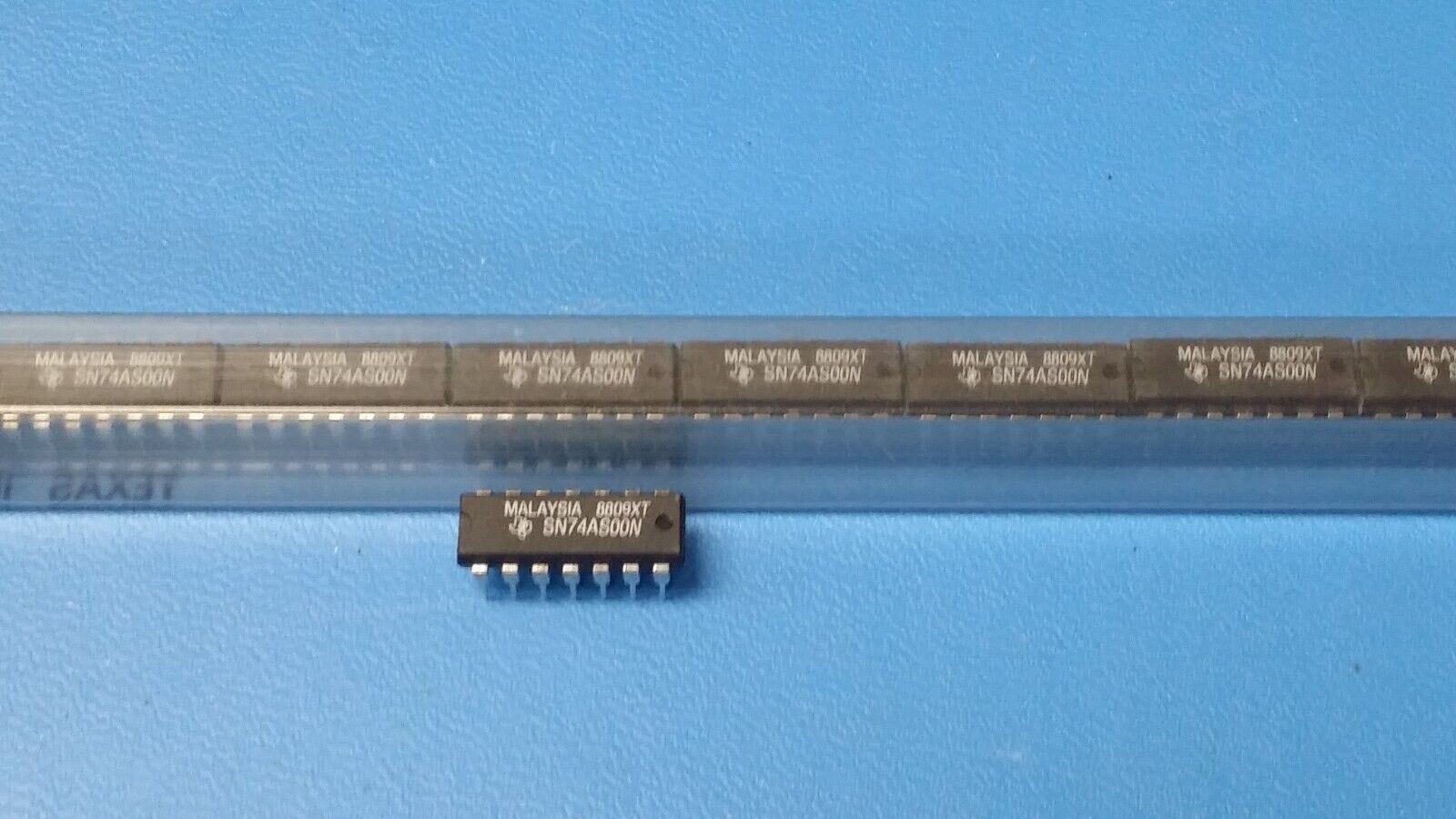

THIS IS FOR (5 PCS) OF SN74AS00N BY TI
NAND Gate IC 4 Channel 14-DIP
Manufacturer: Texas Instruments
Product Category: Logic Gates
RoHS: N
Product: Single-Function Gate
Logic Function: NAND
Logic Family: AS
Number of Gates: 4 Gate
Number of Input Lines: 8 Input
Number of Output Lines: 4 Output
High Level Output Current: - 2 mA
Low Level Output Current: 20 mA
Propagation Delay Time: 4.5 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: SMD/SMT
Package / Case: PDIP-14
Packaging: Tube
Brand: Texas Instruments
Function: NAND
Height: 4.57 mm
Input Type: TTL
Length: 19.3 mm
Logic Type: 2-Input NAND
Number of Bits: 4 bit
Operating Supply Current: 3 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Output Type: TTL
Product Type: Logic Gates
Series: SN74AS00
25
Subcategory: Logic ICs
Width: 6.35 mm
Unit Weight: 0.032734 oz
