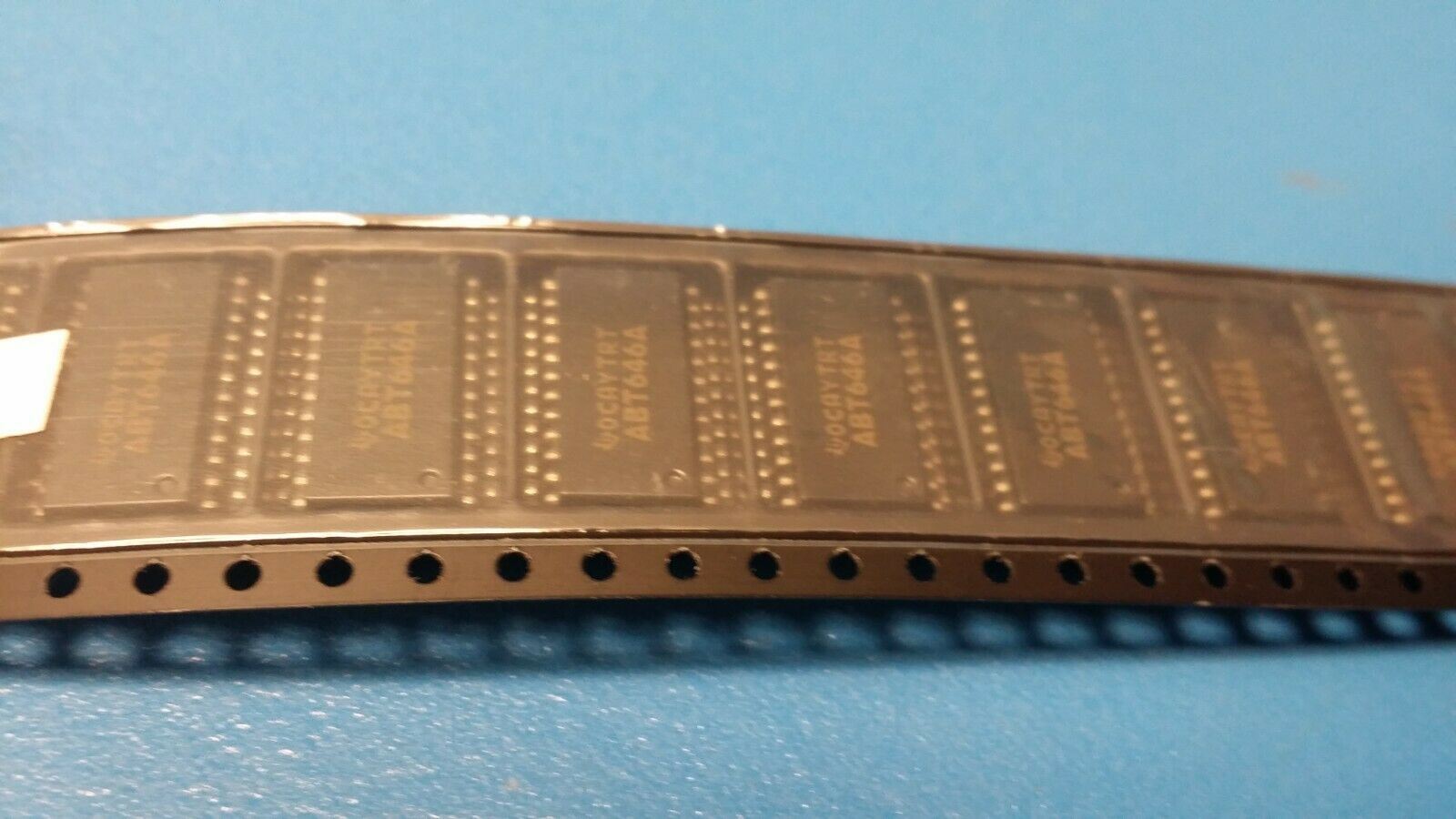

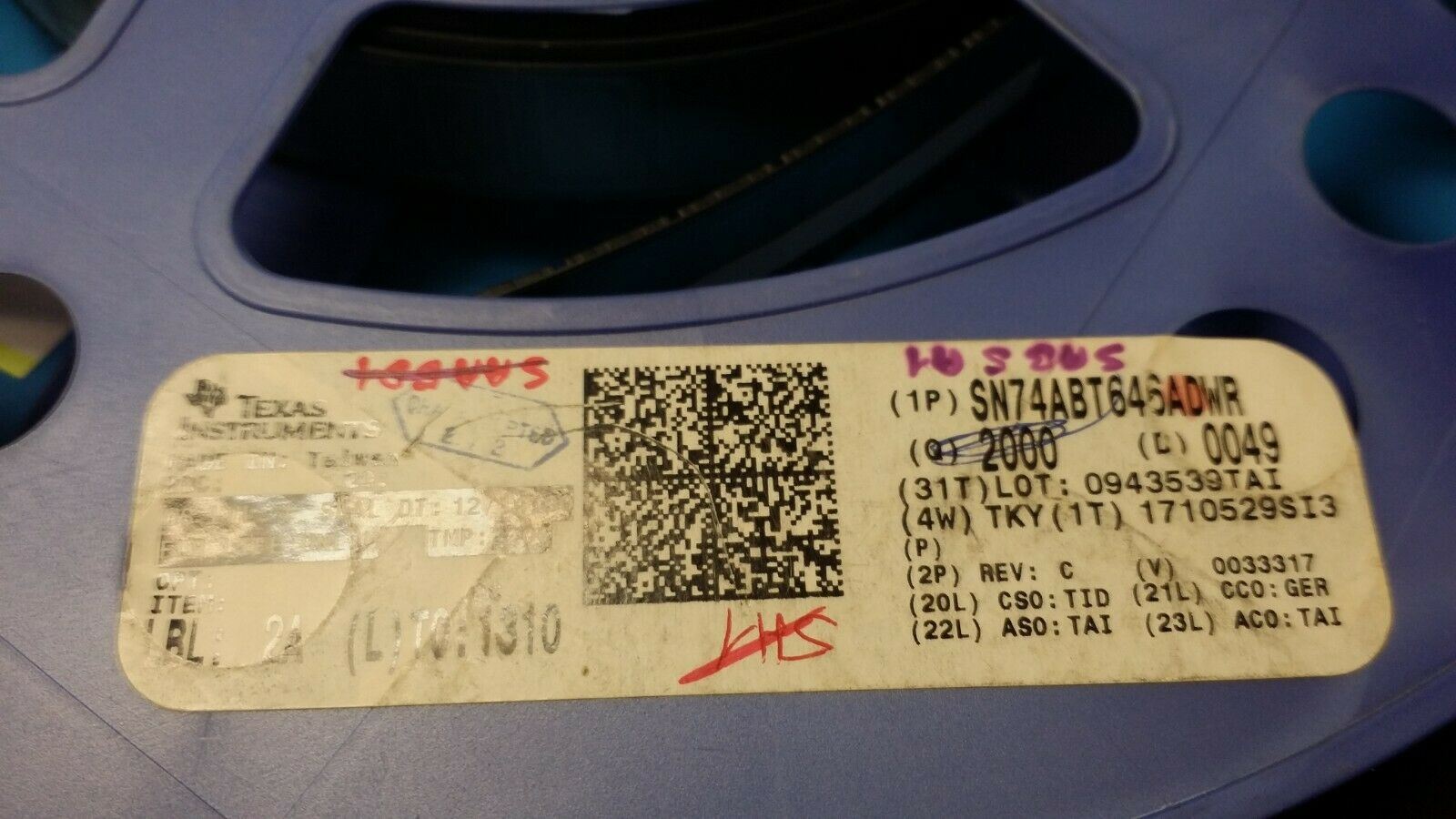

(5 PCS) SN74ABT646ADWR TI Bus XCVR Single 8-CH 3-ST 24-Pin SOIC T/R
Tax included.
THIS LISTING IS FOR (5 PCS) OF SN74ABT646ADWR BY TI
Bus XCVR Single 8-CH 3-ST 24-Pin SOIC T/R
Manufacturer: Texas Instruments
Product Category: Bus Transceivers
RoHS: NO
Logic Family: 74ABT
Input Level: TTL
Output Level: TTL
Output Type: 3-State
High Level Output Current: - 32 mA
Low Level Output Current: 64 mA
Propagation Delay Time: 5.1 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Package / Case: SOIC-24
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Function: Tri-State Octal Bus
Height: 2.35 mm
Length: 15.4 mm
Number of Circuits: 8
Operating Temperature Range: - 40 C to + 85 C
Product: BiCMOS
Series: SN74ABT646A
Technology: BiCMOS
Width: 7.52 mm
Brand: Texas Instruments
Mounting Style: SMD/SMT
Number of Channels: 8
Supply Current - Max: 30 mA
Operating Supply Voltage: 4.5 V to 5.5 V
Polarity: Non-Inverting
Product Type: Bus Transceivers
