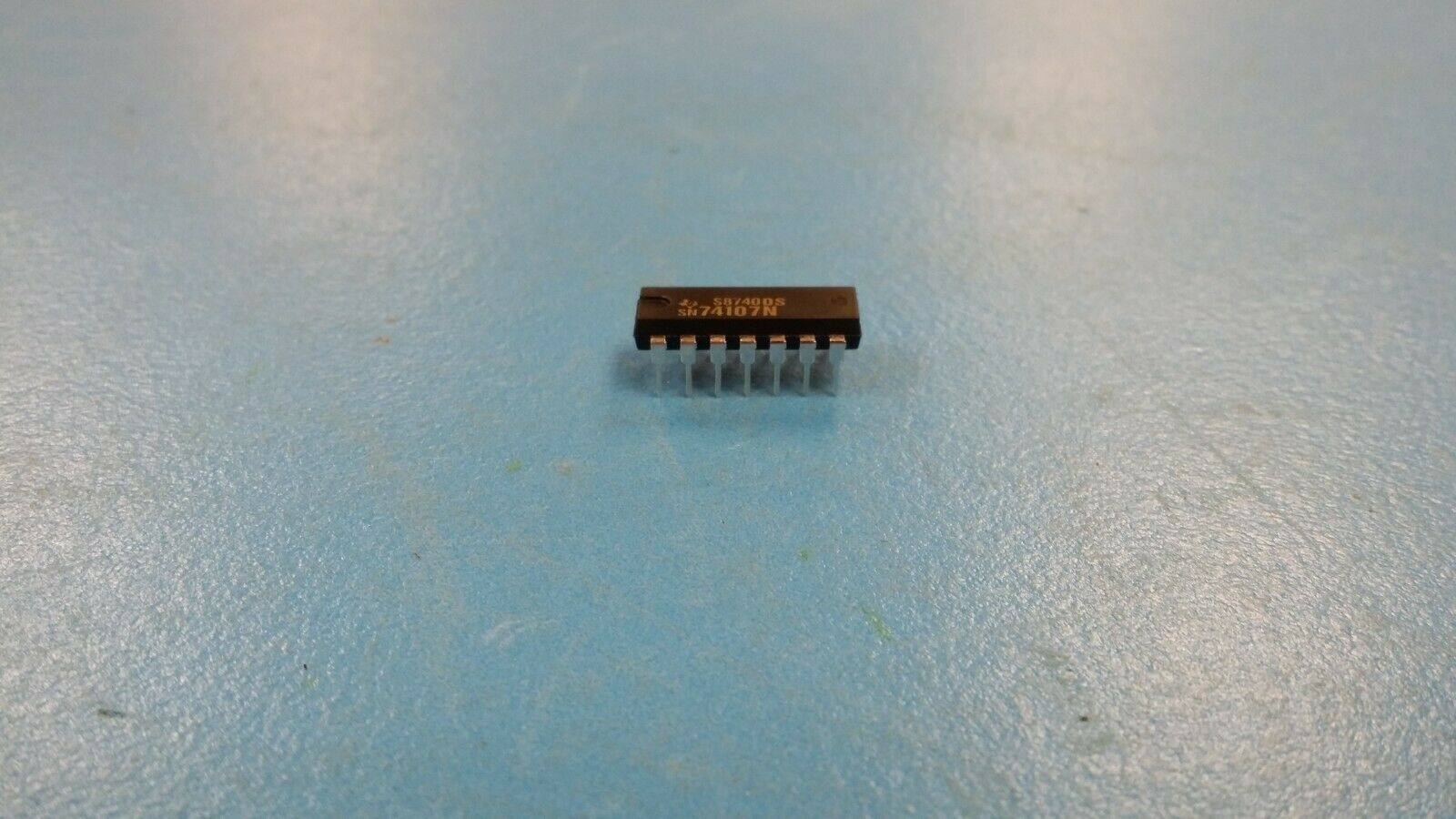

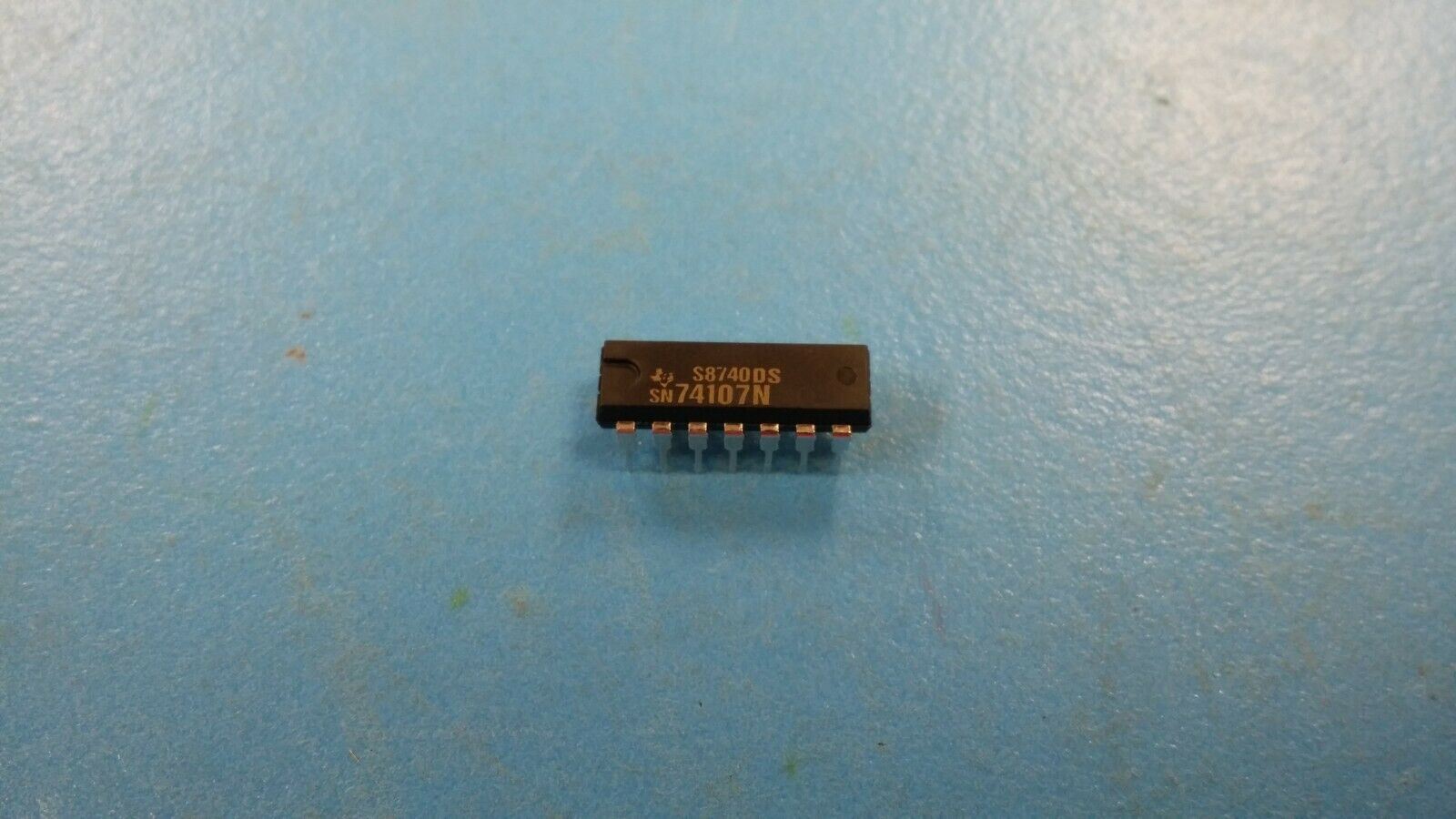

(5 PCS) SN74107N TI Flip Flop 2 Element JK Type 1 Bit Positive Edge 14-DIP
Tax included.
THIS LISTING IS FOR (5 PCS) OF SN74107N BY TI
Flip Flop 2 Element JK Type 1 Bit Positive Edge 14-DIP
Manufacturer Texas Instruments
Series 7400
Packaging Tube
Part Status Obsolete
Function Master Reset
Type JK Type
Output Type Differential
Number of Elements 2
Number of Bits per Element 1
Clock Frequency 20MHz
Max Propagation Delay @ V, Max CL 40ns @ 5V, 15pF
Trigger Type Positive Edge
Current - Output High, Low 400µA, 16mA
Voltage - Supply 4.75V ~ 5.25V
Current - Quiescent (Iq) 20mA
Operating Temperature 0°C ~ 70°C (TA)
Mounting Type Through Hole
Supplier Device Package 14-PDIP
Package / Case 14-DIP (0.300", 7.62mm)
Base Part Number SN74107
