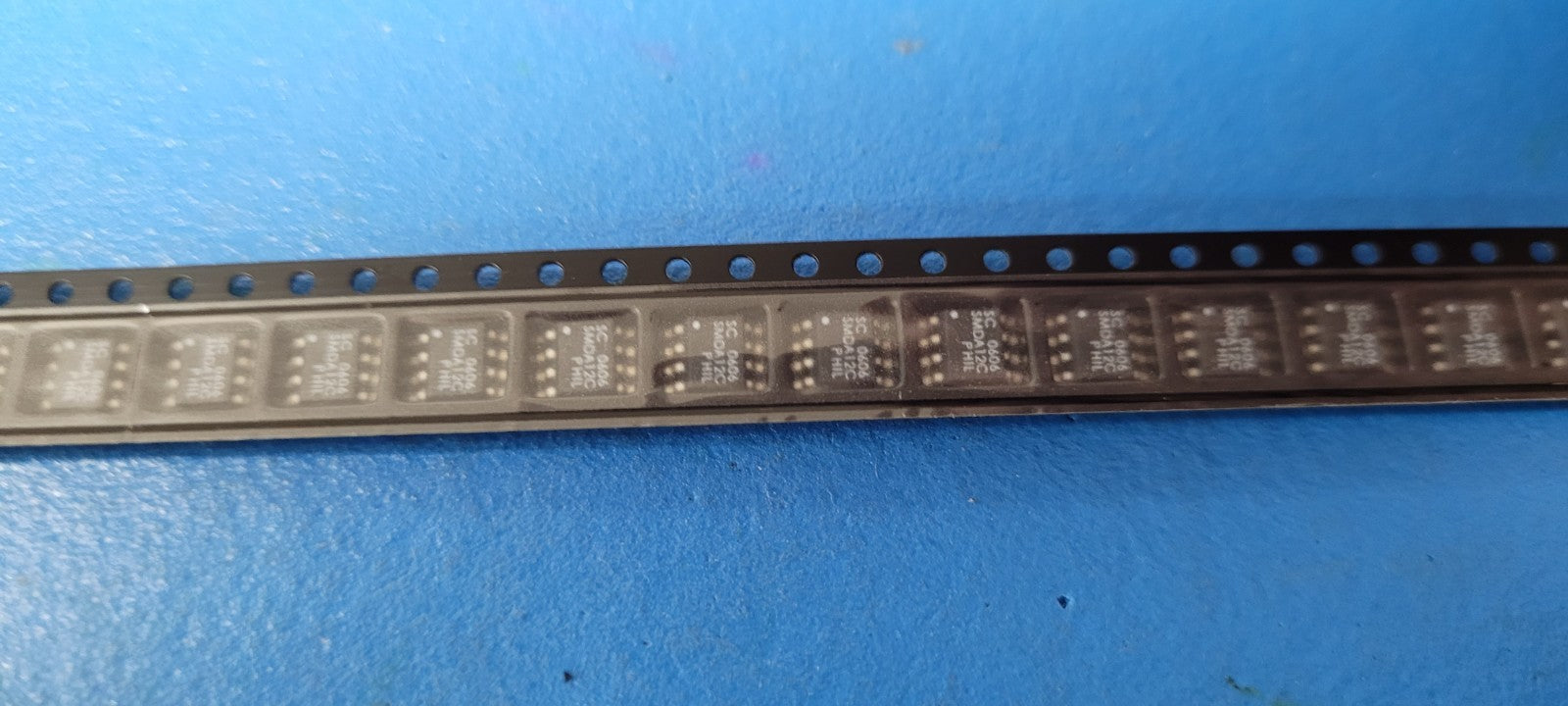

(5 PCS) SMDA12C.TB SEMTECH TVS DIODE 12VWM 19VC 8-SOIC
Tax included.
THIS IS FOR (5 PCS) OF SMDA12C.TB BY SEMTECH
TVS DIODE 12VWM 19VC 8-SO (NOT ROHS)
Part #: SMDA12C.TBT
Active
Part Category: Transient Suppressors
Manufacturer: SEMTECH CORP
Description: Trans Voltage Suppressor Diode, 300W, 12V V(RWM), Bidirectional, 8 Element, Silicon, MS-012AA
Status Active
Additional Feature HIGH RELIABILITY, LOW LEAKAGE CURRENT
Breakdown Voltage-Min (V) 13.3000000000000000
Clamping Voltage-Max (V) 19.0000
Configuration COMMON BIPOLAR TERMINAL, 8 ELEMENTS
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code MS-012AA
JESD-30 Code R-PDSO-G8
J-STD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max (W) 300.0000
Number of Elements 8
Number of Terminals 8
Operating Temperature-Max (Cel) 125.0000000000000000
Operating Temperature-Min (Cel) -55
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
DLA Qualification Not Qualified
Rep Pk Reverse Voltage-Max (V) 12.0000000000000000
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
