(5 PCS) SMDA12C.TB ESD Suppressor Diode TVS Bi-Dir 12V 8-Pin SOIC
Tax included.

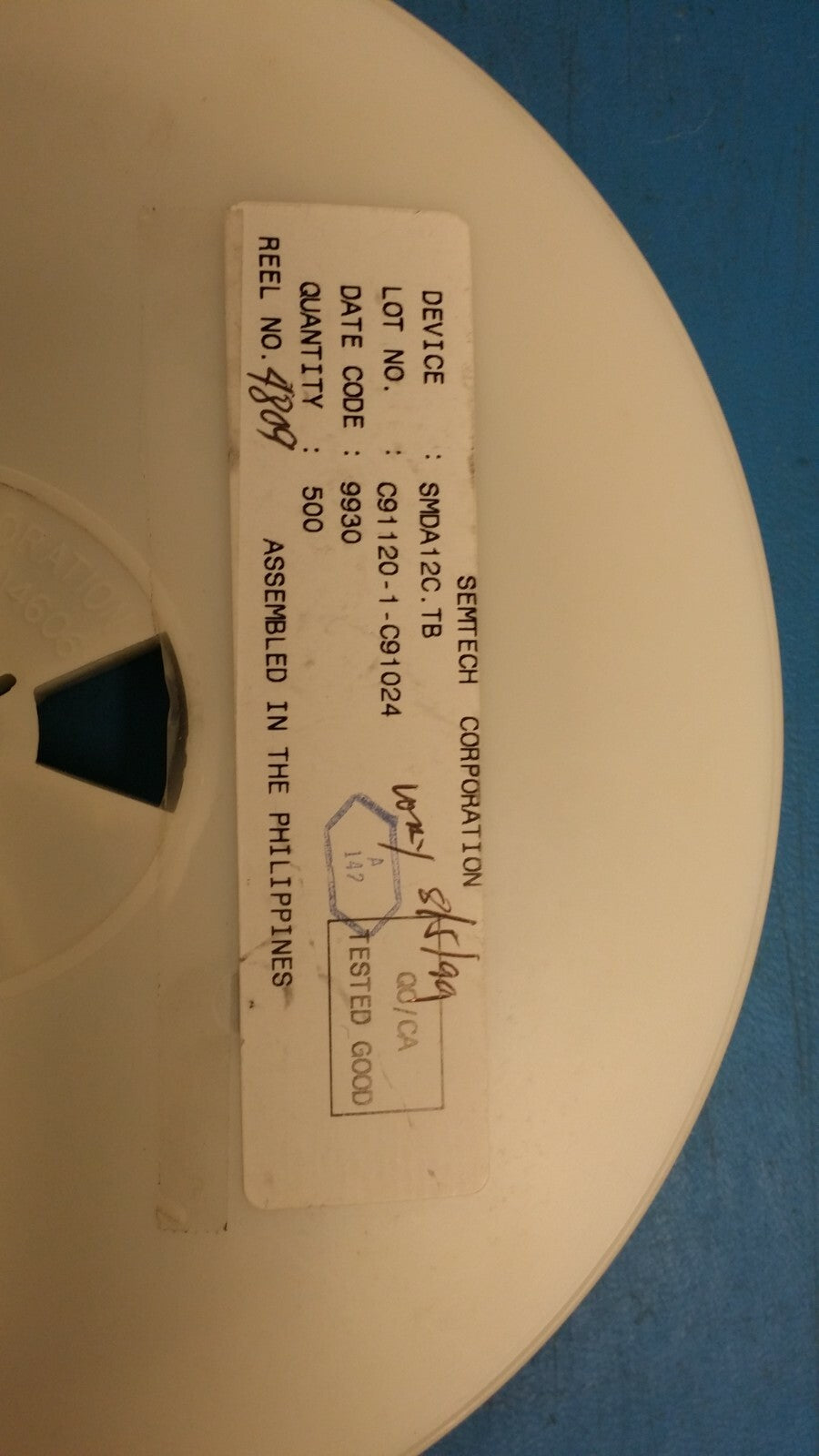

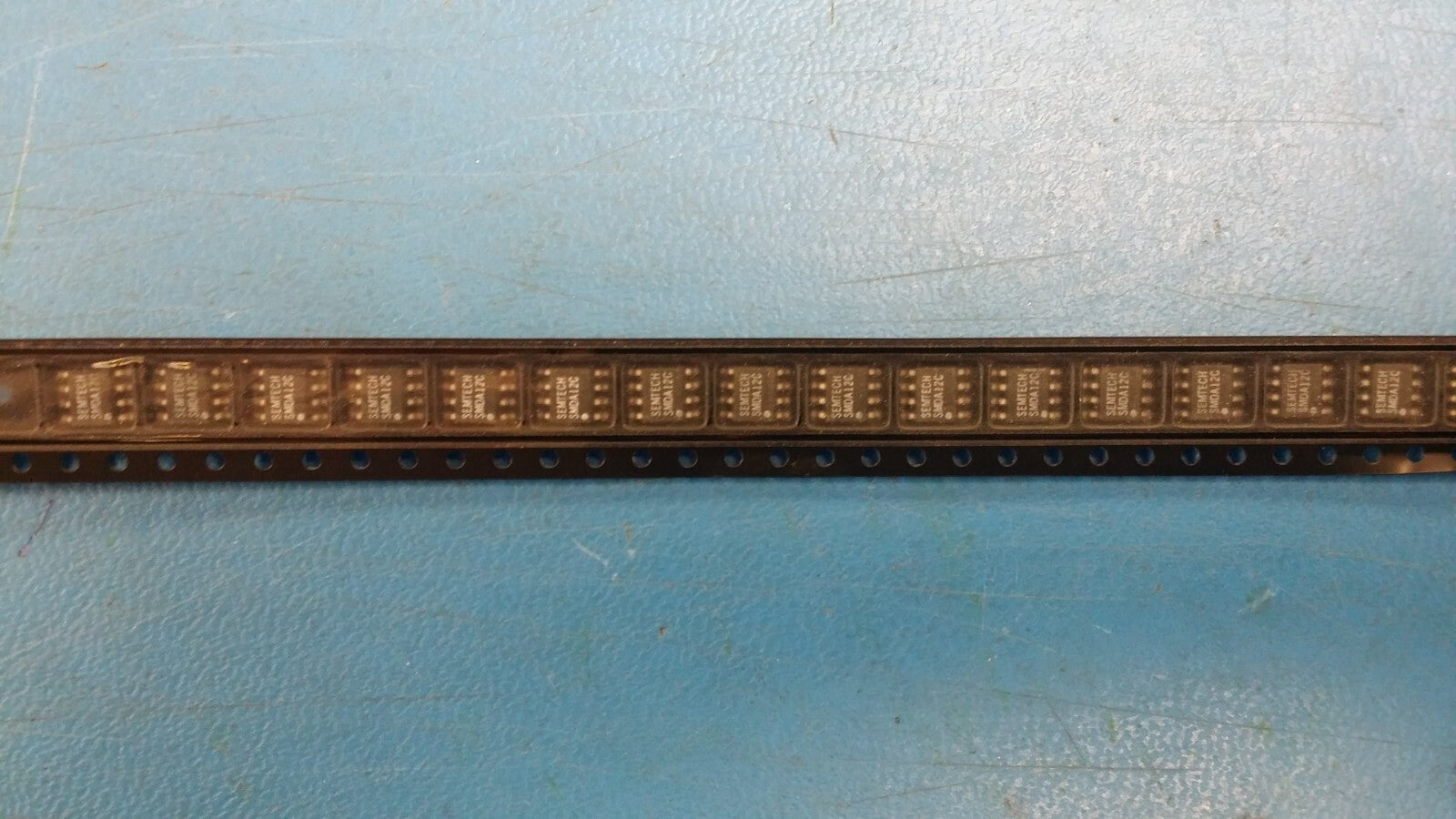

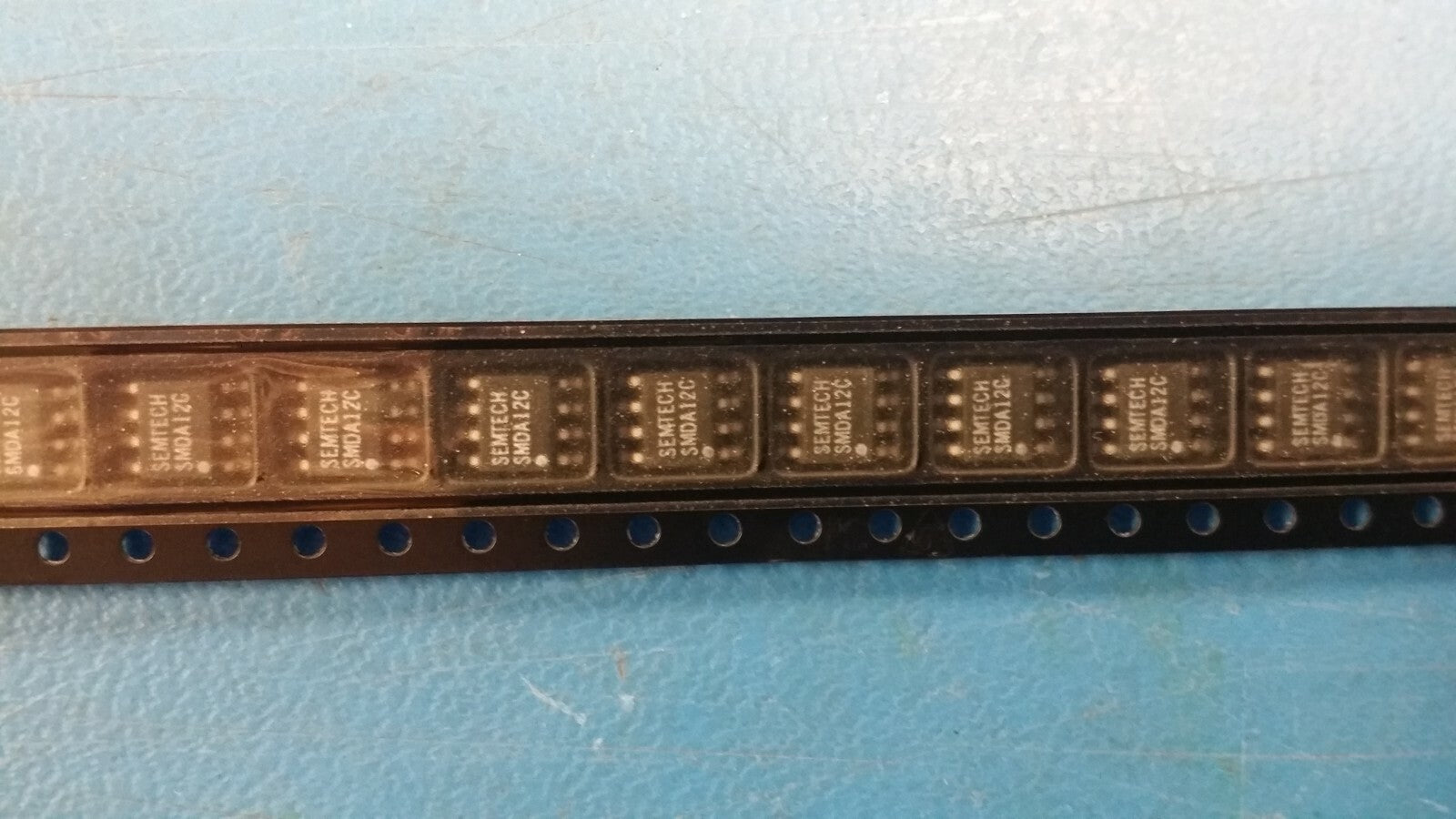

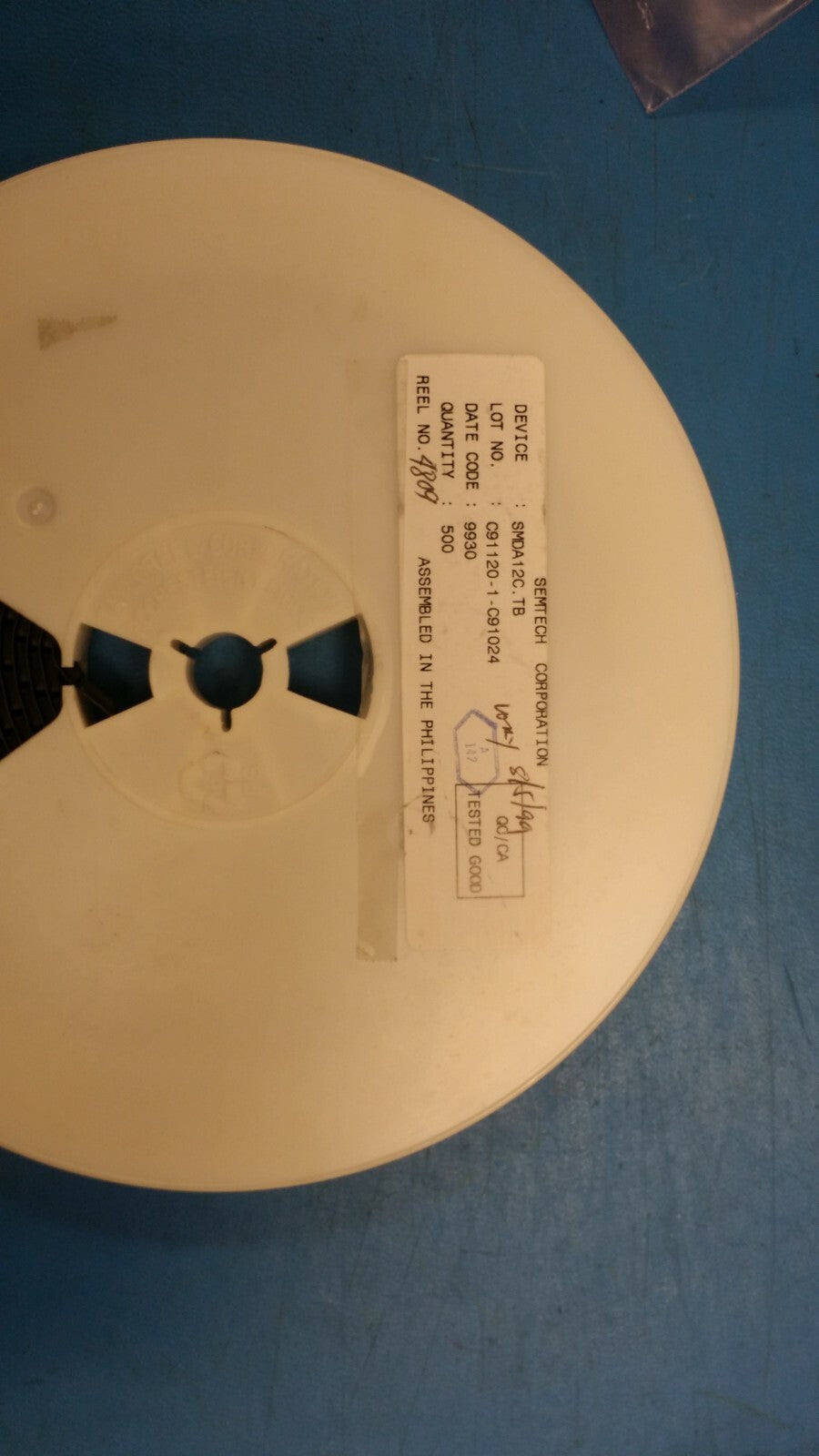

This listing is for (5PCS) of SMDA12C.TB by Semtech
Status Discontinued
Additional Feature HIGH RELIABILITY, LOW LEAKAGE CURRENT
Breakdown Voltage-Min (V) 13.3000000000000000
Clamping Voltage-Max (V) 24.0000
Configuration COMMON BIPOLAR TERMINAL, 8 ELEMENTS
Diode Capacitance-Min (pF) 150.0000000000000000
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code MS-012AA
JESD-30 Code R-PDSO-G8
Non-rep Peak Rev Power Dis-Max (W) 300.0000
Number of Elements 8
Number of Terminals 8
Operating Temperature-Max (Cel) 125.0000000000000000
Operating Temperature-Min (Cel) -55
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity BIDIRECTIONAL
DLA Qualification Not Qualified
Rep Pk Reverse Voltage-Max (V) 12.0000000000000000
Reverse Current-Max (uA) 1.000000000000000
Surface Mount YES
Technology AVALANCHE
Terminal Form GULL WING
Terminal Position DUAL
