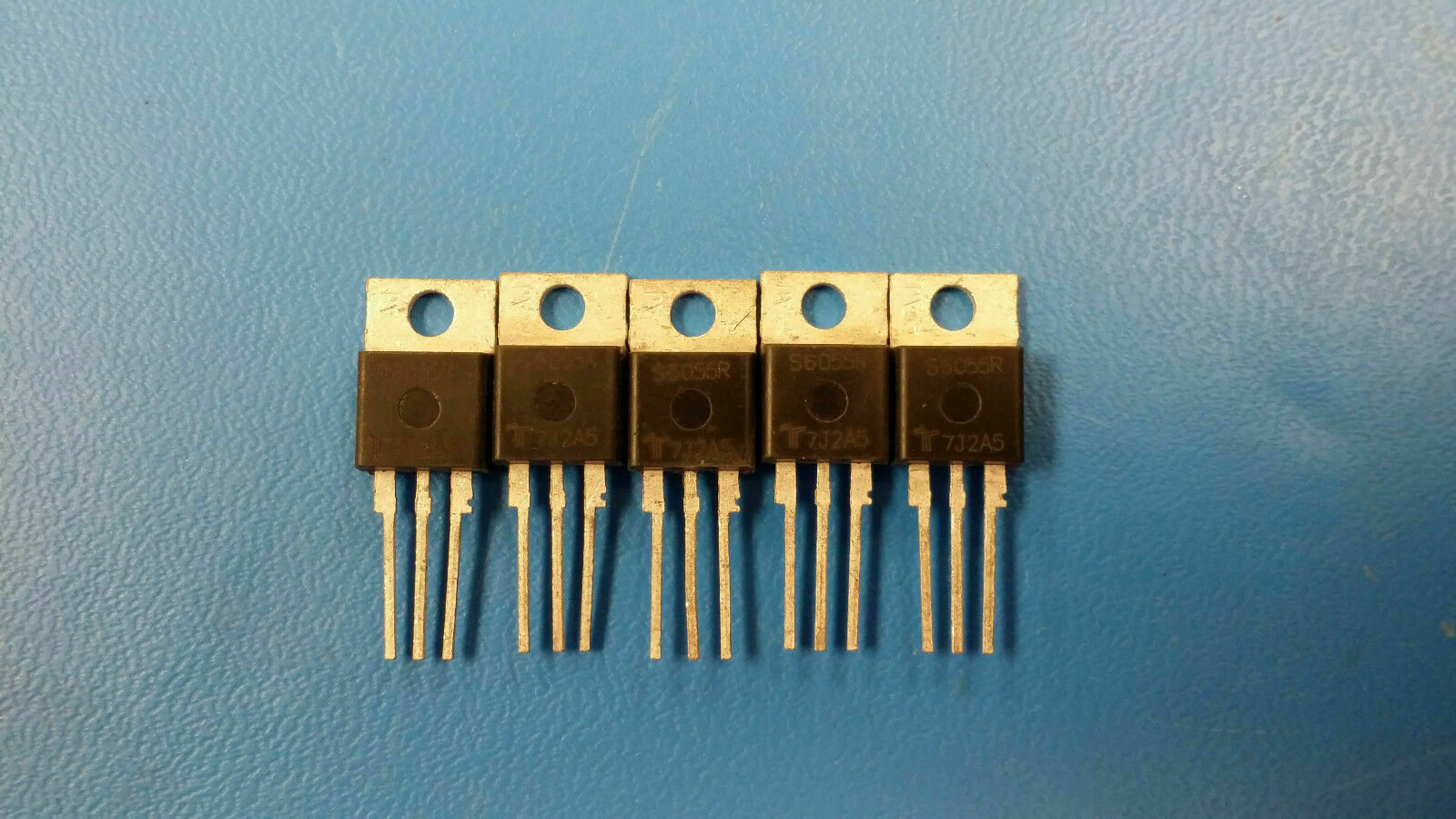

(5 PCS) S6055R TECCOR SCR 600 V 55 A Through Hole TO-220 Non-Isolated Tab
Tax included.
THIS LISTING IS FOR (5 PCS) OF S6055R BY TECCOR
Thyristor SCR 600V 650A 3-Pin(3+Tab) TO-220AB Non-Isolated ROHS
Manufacturer:
Thyristor SCR 600V 650A 3-Pin(3+Tab) TO-220AB Non-Isolated ROHS
Manufacturer:
| Littelfuse/Teccor | ||
| Product Category: | SCRs | |
| Rated Repetitive Off-State Voltage VDRM: | 600 V | |
| Off-State Leakage Current @ VDRM IDRM: | 0.01 mA | |
| On-State RMS Current - It RMS: | 55 A | |
| Vf - Forward Voltage: | 1.8 V | |
| Gate Trigger Voltage - Vgt: | 1.5 V | |
| Gate Trigger Current - Igt: | 40 mA | |
| Holding Current Ih Max: | 60 mA | |
| Mounting Style: | Through Hole | |
| Package / Case: | TO-220 | |
| Packaging: | Tube | |
| Brand: | Littelfuse/Teccor | |
| Maximum Operating Temperature: | + 125 C |
|
| Minimum Operating Temperature: | - 40 C |
|
| Non Repetitive On-State Current: | 650 A |
|
| Qualification: | Commercial |
