(5 PCS) S6010LS2 S6010LS2TP 10A 600V Half Wave Uni-Directional SCR TO-220
(5 PCS) S6010LS2 S6010LS2TP 10A 600V Half Wave Uni-Directional SCR TO-220
(5 PCS) S6010LS2 S6010LS2TP 10A 600V Half Wave Uni-Directional SCR TO-220
(5 PCS) S6010LS2 S6010LS2TP 10A 600V Half Wave Uni-Directional SCR TO-220
(5 PCS) S6010LS2 S6010LS2TP 10A 600V Half Wave Uni-Directional SCR TO-220
(5 PCS) S6010LS2 S6010LS2TP 10A 600V Half Wave Uni-Directional SCR TO-220

(5 PCS) S6010LS2 S6010LS2TP 10A 600V Half Wave Uni-Directional SCR TO-220

Tax included.
Only 241 left!

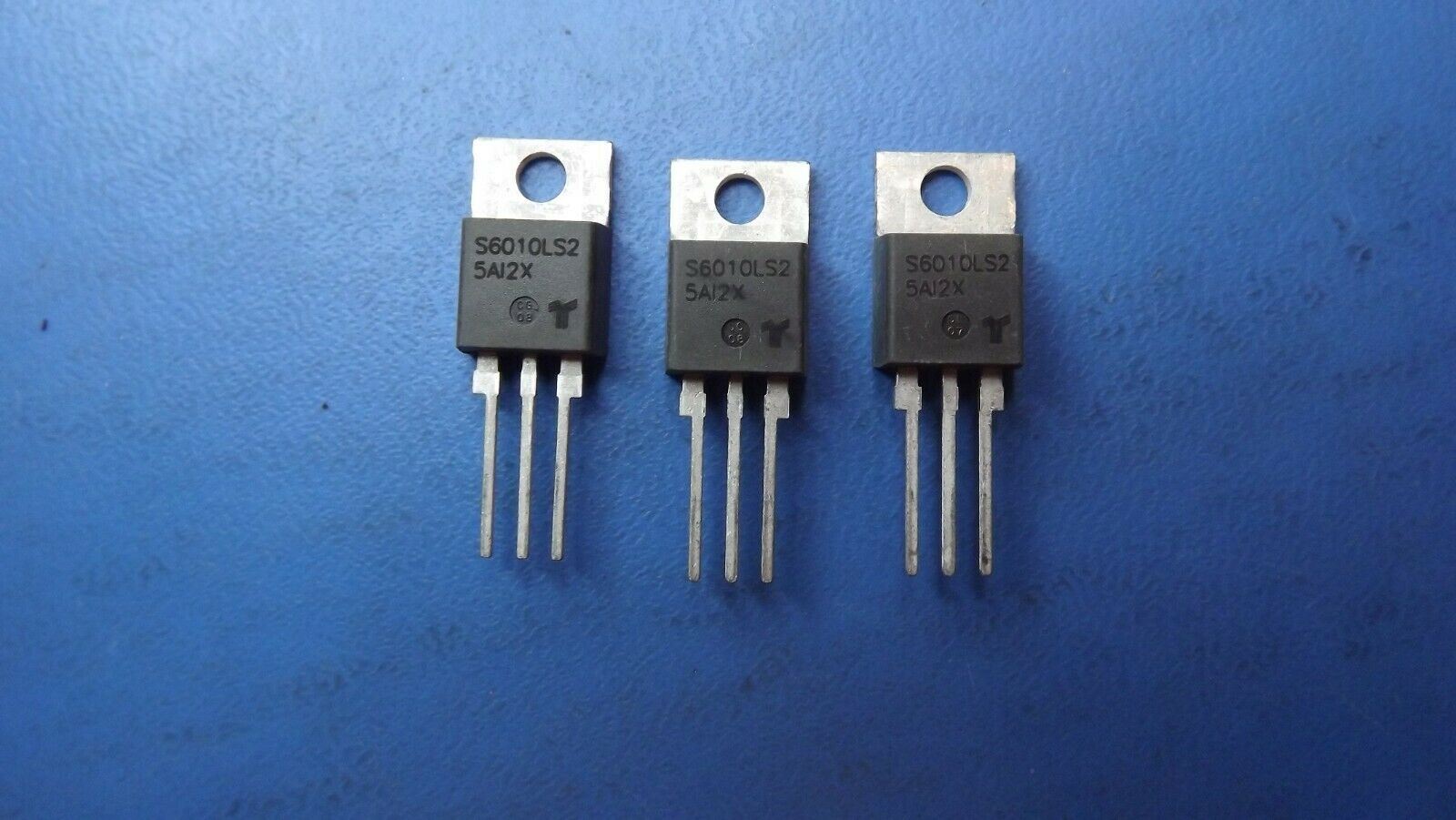

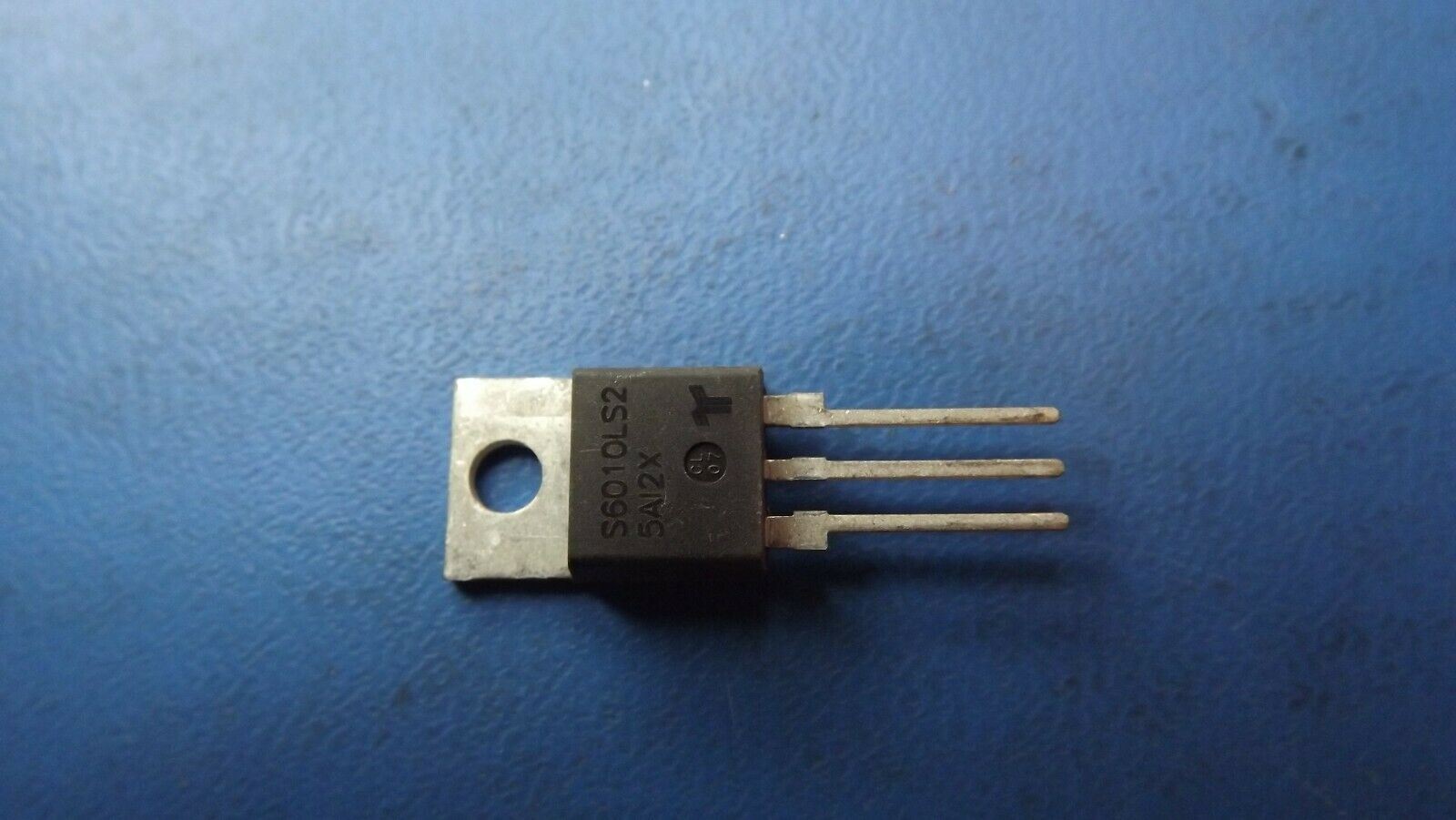

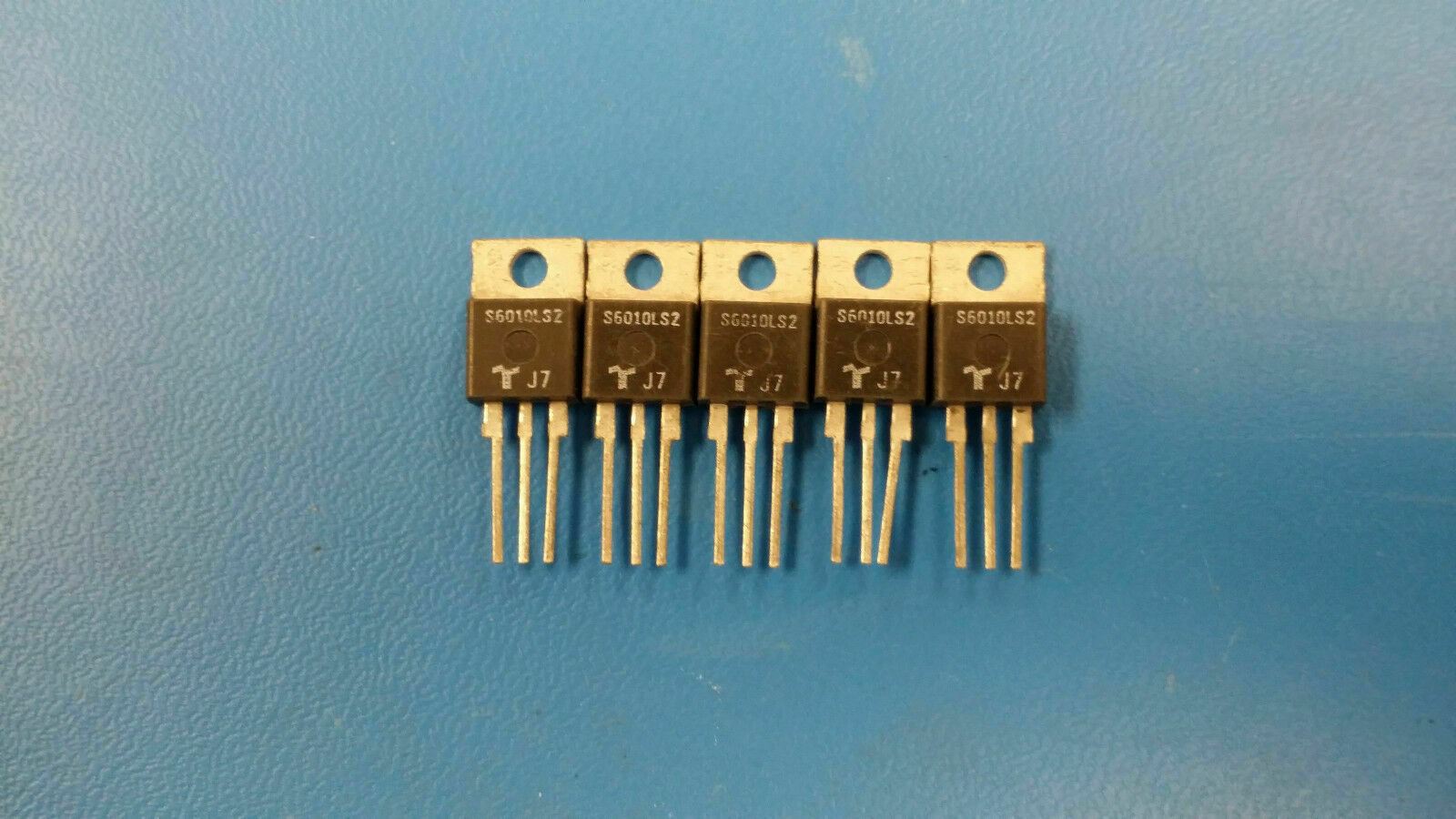

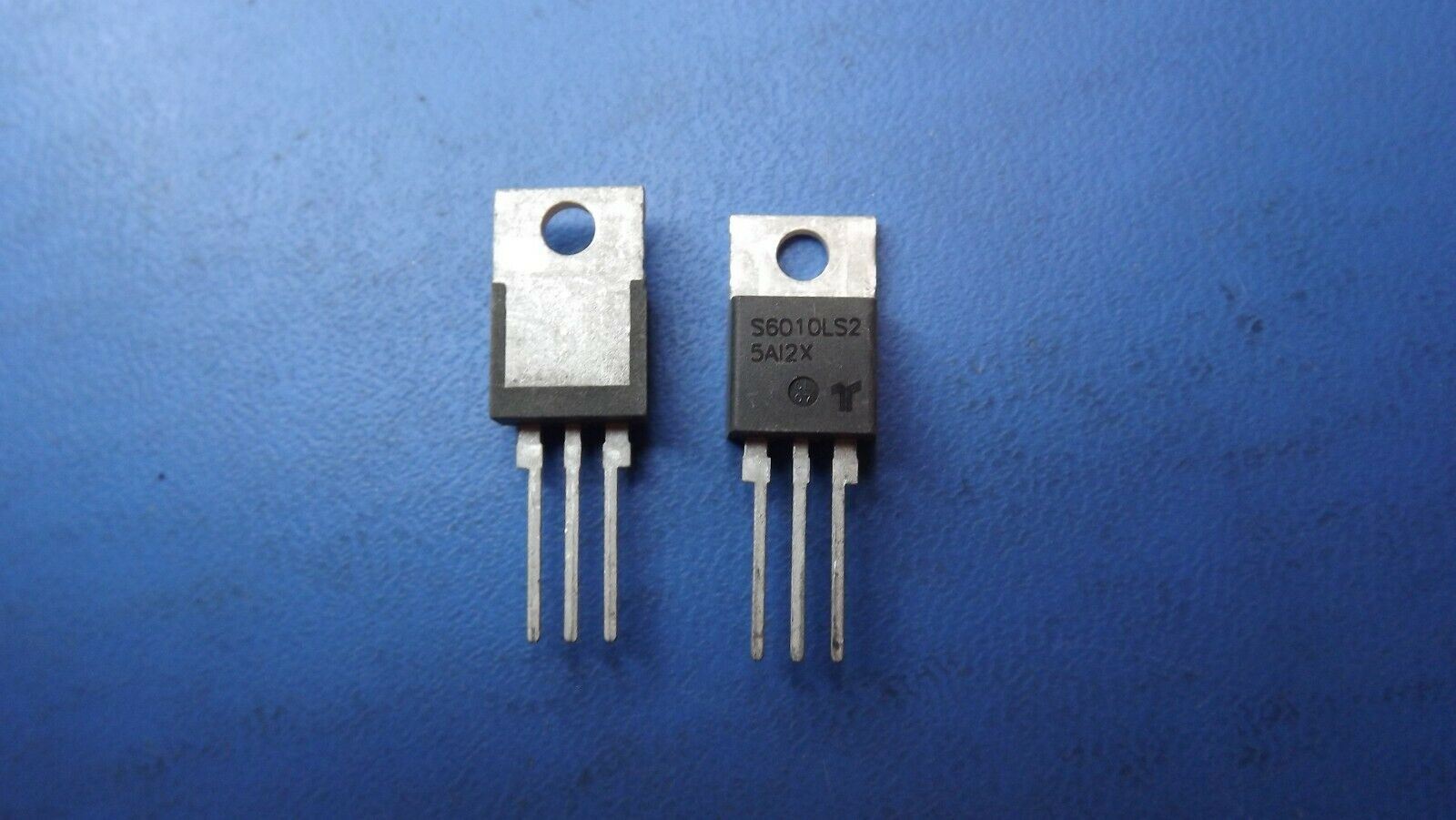

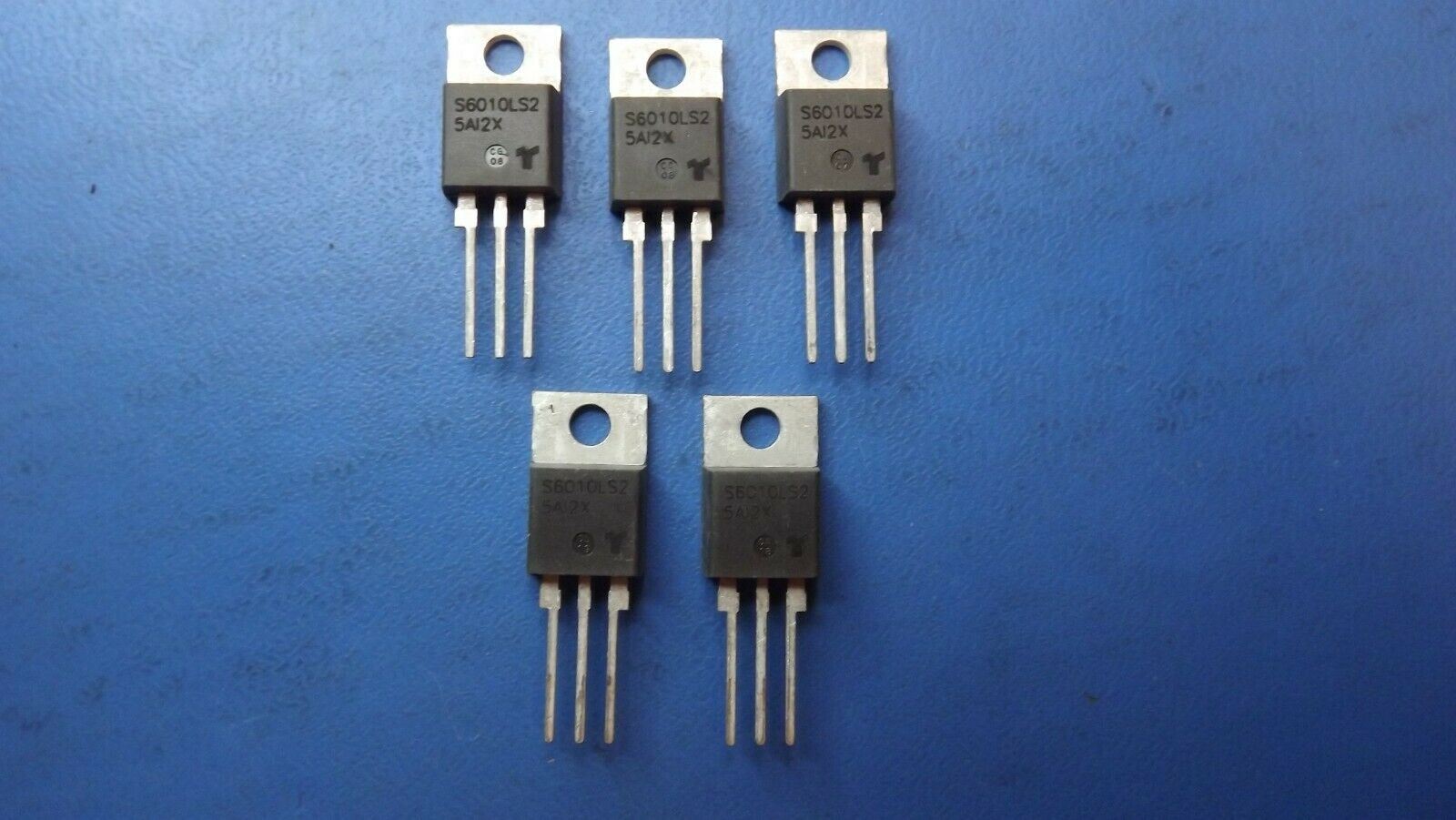

THIS LISTING IS FOR (5 PCS) OF S6010LS2 BY TECCOR
10A 600V Half Wave Unidirectional Sensitive SCR TO-220
Manufacturer:

Littelfuse/Teccor
Product Category: SCRs
RoHS: Yes
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 0.005 mA
On-State RMS Current - It RMS: 10 A
Vf - Forward Voltage: 1.6 V
Maximum Gate Peak Inverse Voltage: 1 V
Gate Trigger Voltage - Vgt: 0.8 V
Gate Trigger Current - Igt: 200 uA
Holding Current Ih Max: 6 mA
Mounting Style: Through Hole
Package / Case: TO-220
Packaging: Bulk
Brand: Littelfuse/Teccor
Maximum Operating Temperature: + 110 C
Minimum Operating Temperature: - 40 C
Non Repetitive On-State Current: 100 A
